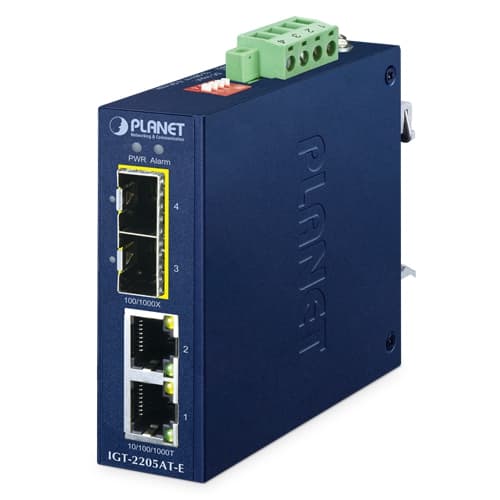

IGT-2205AT-E — Industrial Compact 2-Port 10/100/1000BASE-T to 2-Port 100/1000BASE-X SFP Media Converter

Descripción

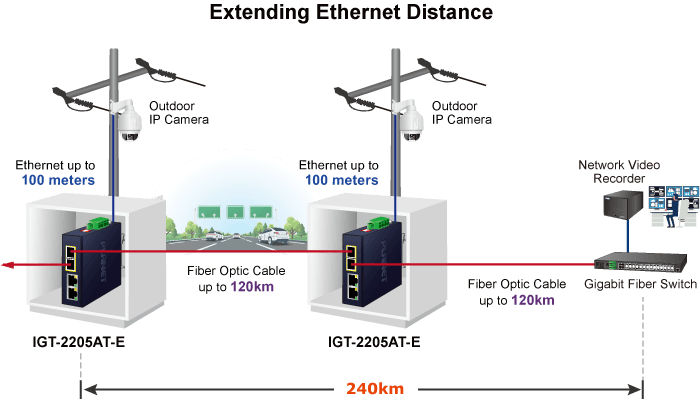

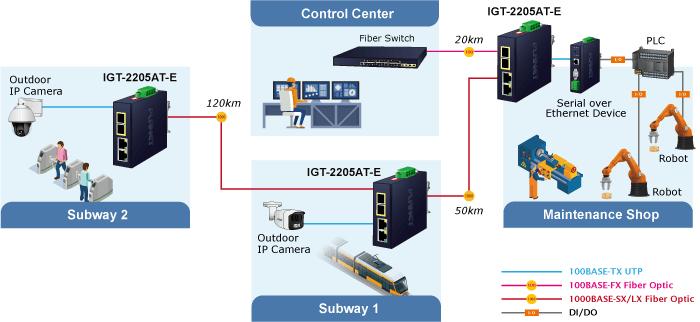

Flexible, Reliable and Industrial-grade Network Distance Extension Solution PLANET IGT-2205AT-E is an industrial-grade Gigabit media converter that provides non-blocking wire-speed performance and high flexibility for extending Gigabit Ethernet in harsh industrial environments. It is equipped with two 10/100/1000BASE-T RJ45 copper ports and two 100/1000BASE-X SFP fiber optic interfaces, enclosed in a rugged IP40-rated case with a redundant power system. The IGT-2205AT-E is ideal for applications such as surveillance deployment, industrial control, and wireless service in environments with extreme temperatures ranging from -40 to 75 degrees C . Fiber-Optic Link Capability Enables Extension of Network Deployment The two SFP slots are compatible with 100BASE-FX and 1000BASE-X fiber-optic transceivers. The robust fiber uplink capability ensures stable throughput for all connected network nodes. Gigabit Ethernet transmission can be extended up to 300 meters over multi-mode fiber and up to 10/20/30/40/50/70 kilometers over single-mode fiber. Fast Ethernet can be extended up to 2 kilometers with multi-mode fiber or up to 20/40/60 kilometers with single-mode fiber. This makes it well-suited for use in factory data centers and distribution networks. Adjustable 4-port Switch Mode or 2-port Fiber Redundant Mode Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-2205AT-E can be configured as Ethernet switch mode or fiber redundant mode . With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair. Environmentally Hardened Design The IGT-2205AT-E is equipped with a slim-type IP40-rated metal case for easy deployment in demanding industrial environments. With IP40 industrial-grade protection, the IGT-2205AT-E provides a high level of immunity against electromagnetic interference and heavy electrical surges typically found on plant floors or in curbside traffic control cabinets. Capable of operating in a wide temperature range from -40 to 75 degrees C, the IGT-2205AT-E can be installed in almost any harsh environment. It also supports both DIN rail and wall mounting, allowing for efficient use of cabinet space. Convenient and Reliable Power System To enhance operational reliability and flexibility, the IGT-2205AT-E is equipped with two DC power input connectors for redundant power installation. It supports a wide input voltage range from 12 to 58V DC, making it suitable for global high-availability applications requiring dual or backup power inputs. Flexible and Easy Installation with Limited Space The compact-sized IGT-2205AT-E is specially designed for installation in narrow spaces such as wall enclosures. It can be mounted via wall mounting or DIN rail, offering greater flexibility and ease of installation in space-constrained environments. Applications Hardened Environment Application PLANET IGT-2205AT-E Industrial Gigabit Media Converter offers full-port Gigabit transmission speed. It is designed with high reliability and security to ensure continuous operation in harsh environments such as transportation control cabinets, factory floors, outdoor installations, and locations with extreme temperatures. In addition, the IGT-2205AT-E is compatible with 100/1000Mbps SFP transceivers to provide a stable, long-distance connection and flexible industrial networking deployment. Redundancy Application The IGT-2205AT-E Industrial Gigabit Media Converter supports rapid fiber link redundancy for mission-critical Ethernet applications. The redundant mode features an auto-recovery function—when the destination port of a packet is link-down, the converter will automatically forward the packet to the backup port, ensuring uninterrupted communication. Key Features Physical Port 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function 2-port SFP, supporting 100/1000BASE-X transceiver type auto detection Fiber Port Redundancy (This function is only enabled when DIP Switch 1 is set to ON) Only primary port is active at a time, while the backup port is blocked. When primary port link failure occurs, the traffic will swap to back up port automatically. Once the primary port status is back to link up, the traffic will swap from backup port to primary port. Layer 2 Features Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode High-performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 10K jumbo frame size support Integrated address look-up engine, supporting 8K absolute MAC addresses Automatic address learning and address aging Industrial Case and Installation Slim IP40 metal case protection DIN-rail, side wall-mount design for redundant power design Redundant Power Design 12 to 58V DC, redundant power with reverse polarity protection function Supports 4000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

Copper Port

2 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation

SFP / mini-GBIC Slots

2 x 100/1000BASE-X SFP interfaces Supports auto detection

DIP Switch

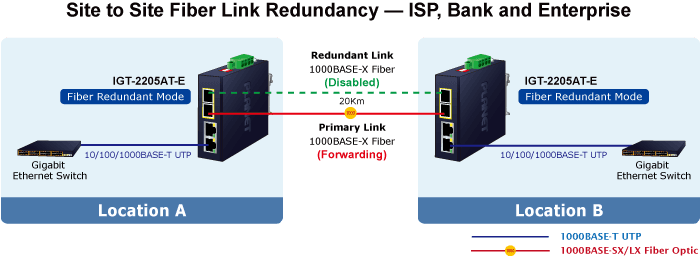

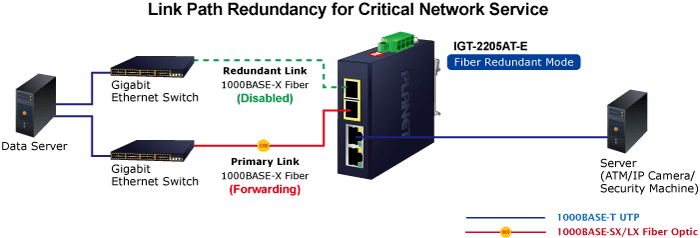

DIP Function ON OFF 1 Fiber Redundancy Port 3 and Port 4 are both linked; only Port 3 transmits data. If Port 3 fails, traffic will switch to Port 4. Port 3 and Port 4 are both linked and can transmit data simultaneously. 2 Flow Control Pauses transmission when receiver is busy to reduce packet loss No flow control; data sends continuously, may lose packets

DIP

Function | ON | OFF

1

Fiber Redundancy | Port 3 and Port 4 are both linked; only Port 3 transmits data. If Port 3 fails, traffic will switch to Port 4. | Port 3 and Port 4 are both linked and can transmit data simultaneously.
