IPM-8222 — IP-based 8-port Switched Power Manager

Descripción

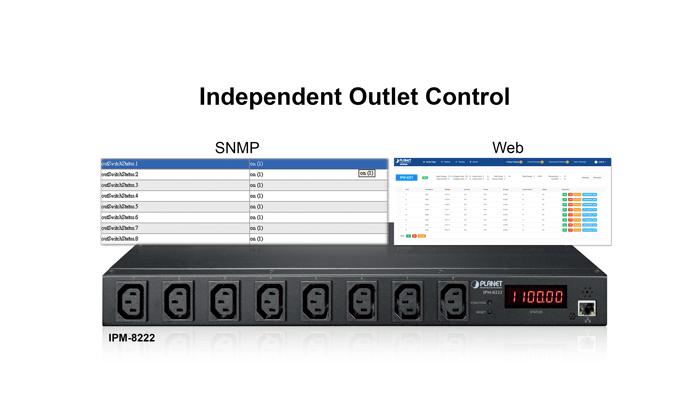

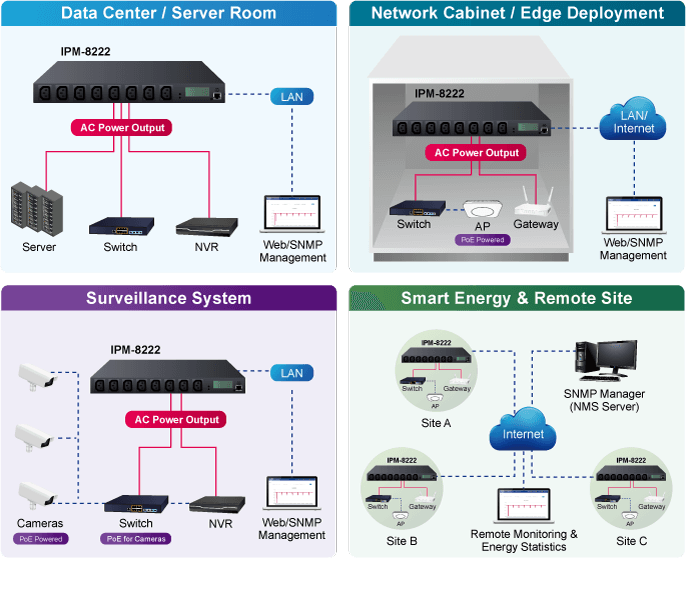

Fulfilling Your Power Requirements with IP-enabled Power Outlets PLANET IPM-8222 8-port IP Power Management (IPM) device is designed to efficiently handle power distribution for a versatile array of connected devices. By leveraging IP-based technology, it transforms conventional power management equipment into manageable network devices, enabling IT staff to remotely monitor and control powered devices (PDs) with ease. Centralized Management for Efficient Operation The PLANET IPM-8222 can be monitored via web interface and SNMP, allowing administrators to remotely manage connected equipment and streamline daily operations. With its user-friendly management functions, IT staff can efficiently oversee device status and perform power control without the need for on-site intervention. Intelligent Power Management The IPM-8222 features 8 customizable power outlets that can be operated independently. Users can monitor and control power usage via web interface or LED display panel, enabling efficient management of multiple networking devices while reducing maintenance time and operational effort. Real-time Current Monitoring The built-in LED display panel displays the aggregate current drawn from the power outlets. This helps installers and administrators quickly identify abnormal power usage and prevent overload conditions, ensuring stable operation of connected equipment. Scheduled Power On/Off The IP-based Switched Power Manager allows users to define power schedules for connected devices. It provides advance control of power cycling, helping improve operational efficiency and enabling planned maintenance without manual intervention. Enhanced Overload Protection Equipped with a built-in circuit breaker and reset switch, the IPM-8222 ensures stable and safe power distribution. The 16-amp circuit breaker protects connected equipment from damage caused by overload, improving overall system reliability. Integrated Environmental Monitoring The IPM-8222 includes built-in temperature monitoring capability, allowing users to observe environmental conditions directly without requiring external sensors. This helps maintain optimal operating conditions and enhances equipment protection. Efficient Energy Management Through its configuration interface, the IPM-8222 enables users to monitor power consumption in real time. This allows better control of energy usage and supports cost-effective operation in network environments. Applications Remote Management via Network PLANET Switched IPM consolidates power control, current monitoring, web-based management, e-mail notification, and SNMP functions into a single device. The IPM-8222 enables technical staff to remotely monitor and control connected equipment through the network, allowing rapid response to abnormal conditions and reducing the need for on-site maintenance. Simplified Power Control for IT Equipment The IPM-8222 provides an efficient solution for managing power in network cabinets, server rooms, and edge installations. With independently controlled outlets, administrators can remotely reboot devices such as switches, routers, and IP cameras, minimizing downtime and improving system availability. Built-in Environmental Monitoring With integrated temperature monitoring, the IPM-8222 allows users to observe environmental conditions without additional sensors. This helps ensure that equipment operates within a safe temperature range and reduces the risk of overheating in enclosed spaces such as racks or cabinets. Energy-saving and Cost-effective Operation By providing real-time power consumption monitoring and scheduled power control, the IPM-8222 helps organizations optimize energy usage. This contributes to lower electricity costs and more efficient operation of network infrastructure. Key Features Hardware 1U rack-mount size design IEC outlet models 8 power outlets that support real-time current monitoring LED display panel displays current, voltage, energy and network information Optional button lock function to prevent unauthorized operation Circuit breaker can avoid damage caused by overload LED display to visually present the operating status of ports and PDU Each PDU can supply a maximum load of 3800W Built-in temperature monitoring for environmental awareness Power Distribution Maximum amps/Inlet: IEC 16A for 1 inlet Maximum amps/Outlets: IEC 10A per outlet Full frequency range: 50~60Hz Individual power sockets can be controlled locally and remotely The user can set the power-on sequence and delay time for each socket Supports current, power, and power factor monitoring of each outlet Supports per-outlet threshold warning and automatic power-off Remote Access Remote power control via TCP/IP and a built-in 10/100Mbps Ethernet port Multi-browser support (Edge, Google Chrome, Firefox, Safari, Opera) Management Network protocols: TCP/IP, UDP, HTTP/HTTPS (TLS 1.2), NTP, DHCP, Ping Event notification via pop-up message or e-mail SNMP support with available MIB files Outlet naming support for easier management Voltage, current, wattage and total kWh reporting Configurable over-current protection per outlet Activity log for system monitoring PDU energy usage statistics Zero meter clearing function Firmware upgrade via network Multiple language support Displays current and voltage alarms on the web interface with historical records PLANET's Universal Network Management System and Smart Discovery Utility to remotely monitor all operational status of connected PDUs Security Dynamic password verification enhances login security Multi-level user access (Administrator / Operator / Visitor) IP filtering to prevent unauthorized access

Especificaciones técnicas

Outlet Power Port

8

Inlet Power Port

1

Network Connector

1 RJ45 port for 10/100BASE-TX

Sensor Function

Embedded temperature and humidity sensor

Button

1 x Function Button 1 x Reset Button Press over 10 seconds to reset the device to factory default

LED

State of the socket / Power：LED Displays 10/100M：1 ( Green / Orange )

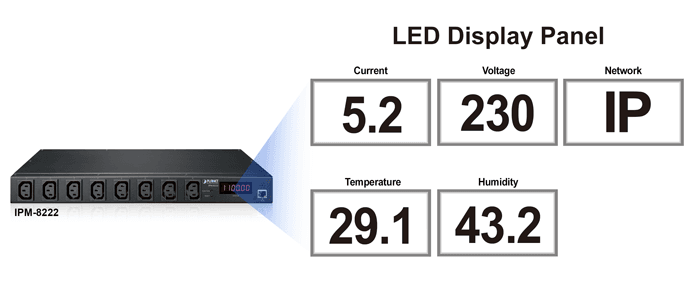

LED Display Panel

Displays voltage, current, temperature, humidity and IP address

Housing

Metal

Dimensions (W x D x H)

442 x 159 x 44.5mm

Weight

1.9kg

Installation

1U rack-mountable, desktop

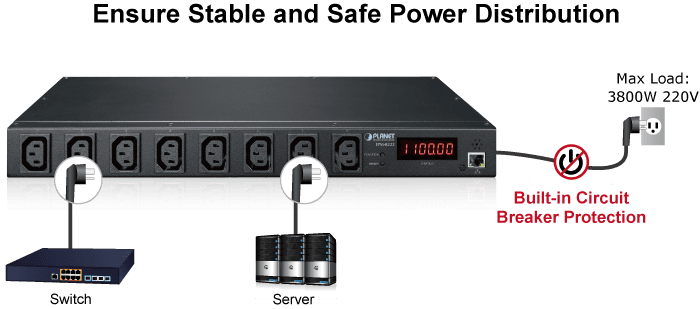

Breaker

1 x 16A

Surge Protection

Surge Protection (IEC 61000-4-5) 1kV (Line-to-Line) 2kV (Line-to-Ground)

Power

Inlet Outlet

Inlet

Outlet

Voltage

100~240V

Frequency

50~60Hz

Connection

1 x IEC320 C20 8 x IEC320 C13

1 x IEC320 C20

8 x IEC320 C13

Maximum Current

16A (total) 10A per outlet

16A (total)

10A per outlet

User Account

Administrator / Operator / Visitor

Management / Monitor Utility

Web browser, SNMP PLANET Smart Discovery Utility

Security

IP filter

Computer Interface

IEEE 802.3 10BASE-T IEEE 802.3u 10/100BASE-TX

Regulatory Compliance

CE, FCC

Operating Temperature

0 ~ 60 degrees C

Operating Humidity

0 ~ 90%
