IPOE-162 — Industrial IEEE 802.3at Gigabit Power over Ethernet Plus Injector (Mid-span)

Descripción

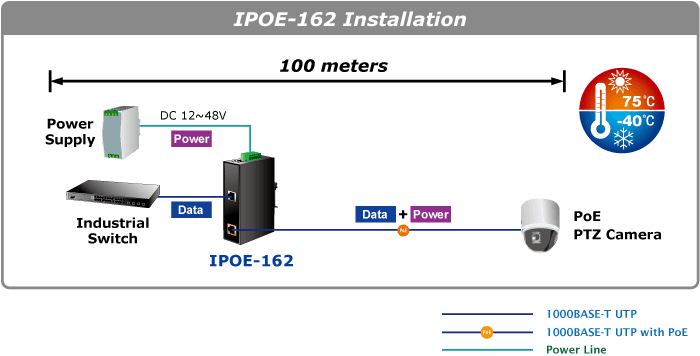

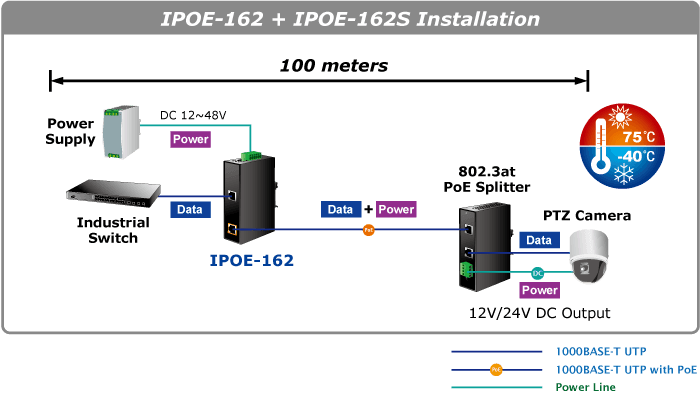

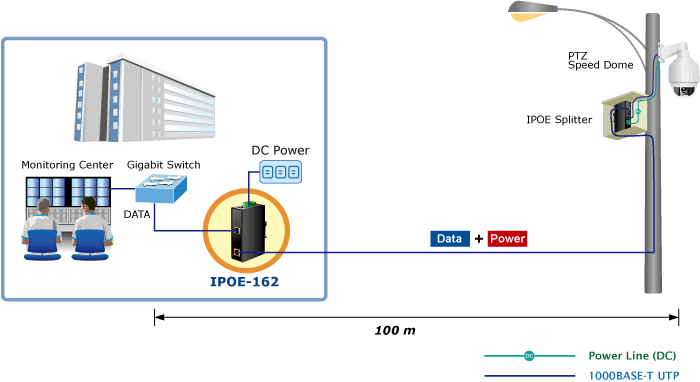

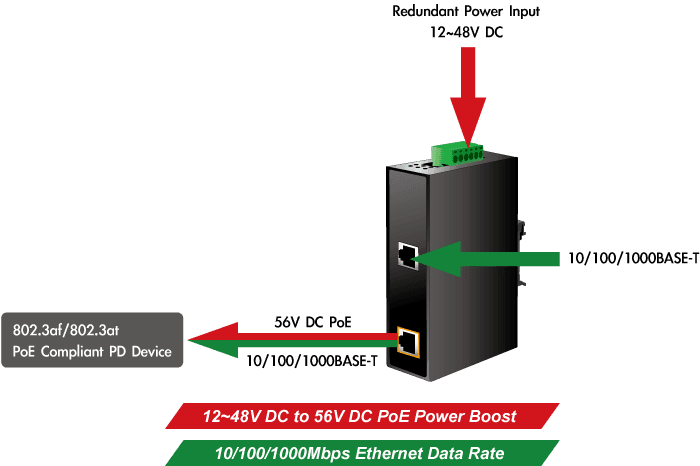

Planet IPOE-162 Single-Port , Mid-span Industrial IEEE 802.3at Power over Ethernet Plus Injector provides a maximum of up to 30 watts of power output over Ethernet cables. It is specifically designed to fulfill the growing demand of higher power network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need higher power to work stably. Quick and Easy High Power PoE Network Deployment The IPOE-162 can deliver 30-watt 56V DC power over Cat.5/5e/6 Ethernet cables which allow data and power to transmit simultaneously through the cable between the Injector (IPOE-162) and PoE PD (powered device) or PoE Splitter (IPOE-162S/POE-162S). The maximum distance between the Injector and Splitter is 100 meters. The IPOE-162 is also compatible with IEEE 802.3af PoE PD or PoE Splitter and provides a maximum of up to 15.4-watt power output. With Industrial IEEE 802.3at Power over Ethernet Plus devices installed, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to each device. It would make the network deployment easier and more reliable. Convenient and Reliable Power System To facilitate the 802.3at PoE usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the IPOE-162 adopts 12~48V DC to 56V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. Stable Operating Performance under Difficult Environments Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-162 will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets. The IPOE-162 can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-162 is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space. Applications Connecting to IEEE 802.3at Compliant Devices Having the capability of IEEE 802.3at Power over Ethernet standard, the IPOE-162 can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices. IEEE 802.3at Injector and Splitter Installation For a place which is hard to find the power inlet, the IPOE-162 and IPOE-162S can operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or in enterprise office or home. Key Features Interface 2 RJ45 interfaces - 1-port Data + Power output - 1-port Data input One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power) PoE Gigabit Power over Ethernet Plus mid-span PSE IEEE 802.3at/802.3af PoE compliant IEEE 802.3at/802.3af splitter devices compatible Supports PoE Power up to 30 watts for the PoE port Provides DC 56V power over RJ45 Ethernet cable to device with Ethernet port Auto-detection of PoE IEEE 802.3at/802.3af devices Remote power feeding up to 100m Hardware IP30 slim metal case LED indicators for power LED and PoE-in-use Industrial Case and Installation DIN-rail and wall-mount designs Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

Hardware Version

3

Interface

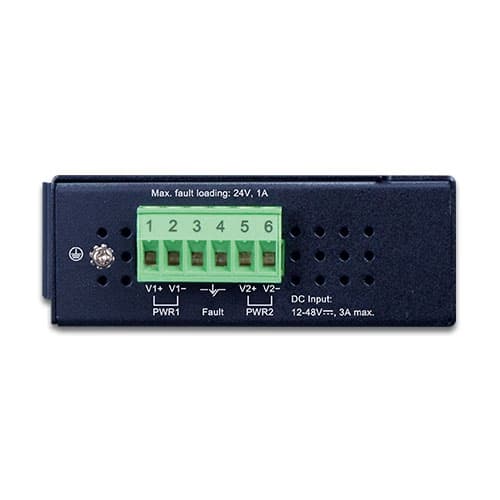

Input Port: 1 x RJ45 STP (Data In) Output Port: 1 x RJ45 STP (Data + Power Out) Input Power Terminal Block: 1

LED Indicator

System: Power 1 ( Green ) Power 2 ( Green ) Fault ( Red ) PoE Port: PoE-in-use x 1 ( Orange )

Network Cable

10BASE-T: UTP Cat. 3, 4, 5, up to 100m (328ft) 100BASE-TX: UTP Cat. 3, 4, 5, up to 100m (328ft) 1000BASE-T: UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

32 x 87.8 x 135 mm

Weight

489g

Unit Input Voltage

12 ~ 48V DC

Power Consumption

32 watts max.

Number of devices can be powered

1

Installation

DIN-rail kit and wall-mount ear

Alarm

Provides one relay output for power failure; alarm relay current carry ability: 3A @ DC 24V

Enclosure

IP30 slim metal case

PoE Standard

IEEE 802.3at Power over Ethernet Plus / mid-span PSE

PoE Power Output

30 watts

PoE Power Supply Type

Mid-span

Power Pin Assignment

4/5(+), 7/8(-)

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

Regulatory Compliance

FCC Part 15B Class A, CE

Stability Testing

IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
