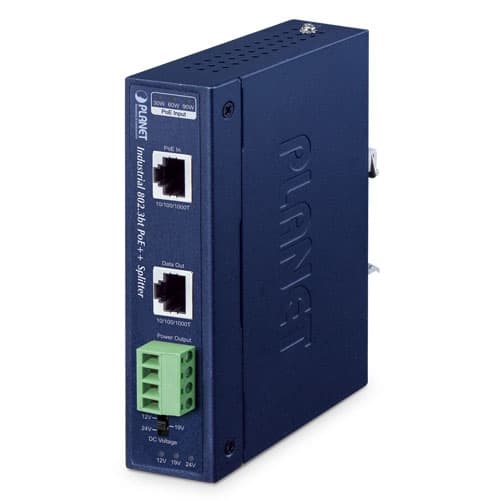

IPOE-173S — Industrial Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

Descripción

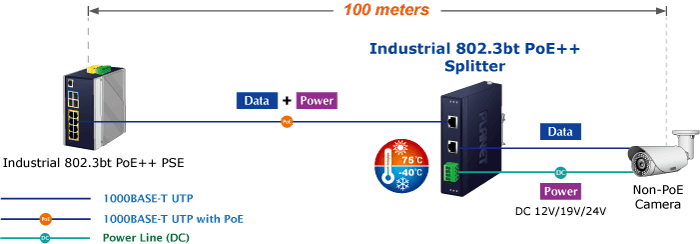

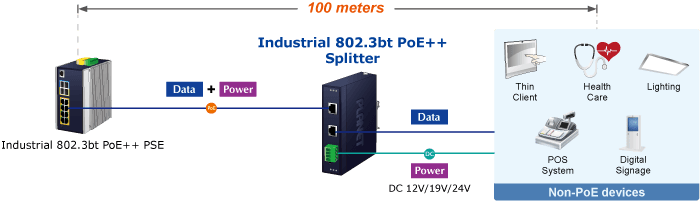

Highly Convenient and Robust Industrial PoE++ Splitter PLANET IPOE-173S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V/19V/24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill the growing industrial applications, the IPOE-173S is designed to work under the operating temperature range from -40 to 75 degrees C . The IPOE-173S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment. Quick and Easy 802.3bt PoE++ Network Deployment If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-173S, powered by an ultra PoE power sourcing equipment, is able to feed the PDs with 802.3bt PoE++ as the splitter can split the data and power into two streams. The PDs gets their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into an PoE++ environment with the IPOE-173S: PTZ speed dome camera Thin client AIO (All-in-One) touch PC Remote digital signage display Non-PoE network devices that need higher power to work normally The POE-173S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time. Innovative, Selectable DC Power Output Voltage Via the innovative 12/19/24 volt DIP switch on the front panel, the IPOE-173S can supply 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications. Dual Power Output Capability The IPOE-173S shares its 70-watt output power with not only one power-hungry device but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source: IP camera (Power 1) + Outdoor housing with fan and heater (Power 2) IP camera (Power 1) + Pan & tilt motor (Power 2) Analog camera (Power 1) + IP video server (Power 2) Environmentally Hardened Design With the compact, slim-type IP30 industrial case, the space-saving industrial 802.3bt PoE++ splitter IPOE-173S can be placed in almost any difficult environment. It allows either DIN-rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C , the IPOE-173S is the ideal product for co-working with industrial 802.3bt PoE++ type-4 injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments. Applications 802.3bt PoE++ Switch and Splitter Installation For a place which is hard to find the power inlet, the IPOE-173S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ (pan, tilt & zoom) IP cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Key Features Interface 2 RJ45 interfaces 1-port Data + Power input 1-port Data output 2 DC output (4-pin terminal block) 1 12V/19V/24V DC DIP switch Power over Ethernet Complies with 802.3bt PoE++ Power over Ethernet end-span / mid-span PSE Backward compatible with 802.3at PoE+ Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output Supports power output up to 70 watts Remote power feeding up to 100 meters Hardware IP30 slim metal case DIN-rail or wall mount design Supports high surge/ESD protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

Interface

PoE Input Port 1 10/100/1000 BASE-T RJ45 Data Output Port 1 10/100/1000 BASE-T RJ45 DC Out Plug Connector 1 removable 4-pin terminal block DIP Switch 12V/19V/24V DC output

LED Indicators

PoE Input: 30W ( Green ) 60W ( Green ) 90W ( Green ) DC Voltage: 12V ( Green ) 19V ( Green ) 24V ( Green )

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

32 x 87.8 x 135 mm

Weight

440g

Installation

DIN-rail/wall mountable

ESD Protection

4KV

EFT Protection

4KV

Enclosure

IP30 metal case

Power Requirements

4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V

Power Consumption

System on with PoE input 5.3 watts Full loading with maximum 12V DC, 6.8A output 75.83 watts

Power Output

802.3 bt type 4 PoE++ input 12V DC, 6.8A (max.) 19V DC, 4.3A (max.) 24V DC, 3.3A (max.) The total output power is limited to a maximum of 70W across all output voltage modes.

Network Cable

802.3 bt PoE++ input (60W+) 4-pair UTP Cat. 5e, 6, up to 100m (328ft) 802.3at PoE+ input (30W) 2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)

PoE Standard

802.3 bt PoE++ 4-pair 802.3at PoE+

Power Output

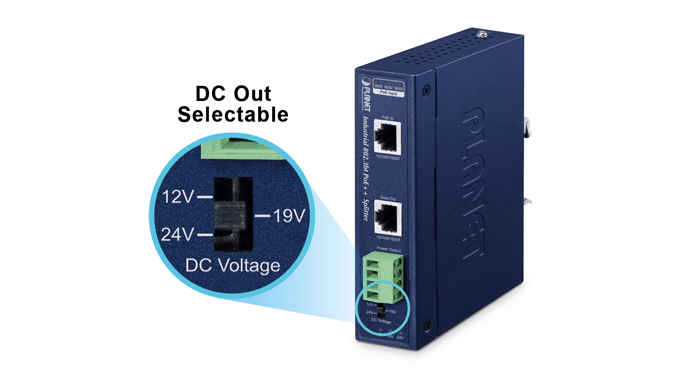

DC 12V/19V/24V by DIP switch control

PoE Power Supply Type

End-span + Mid-span End-span Mid-span

Power Pin Assignment

1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4

Regulatory Compliance

FCC Part 15 Class A, CE

Operating Temperature

-40~ 75 degrees C

Storage Temperature

-40~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
