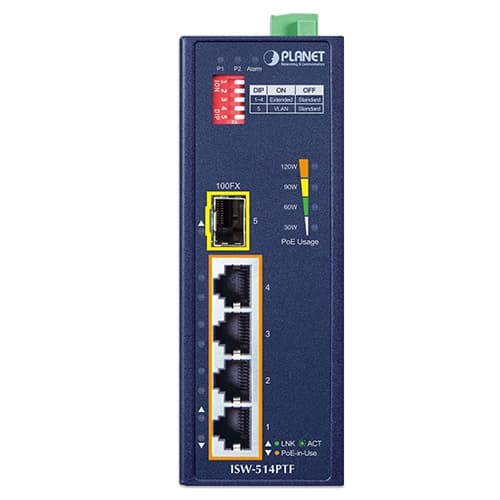

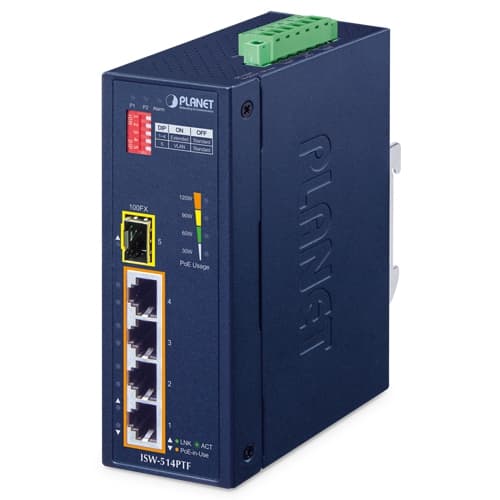

ISW-514PTF — Industrial 4-Port 10/100TX 802.3at PoE+ plus 1-Port 100FX Ethernet Switch

Descripción

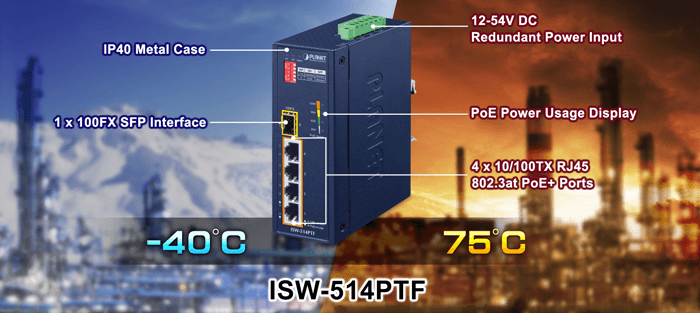

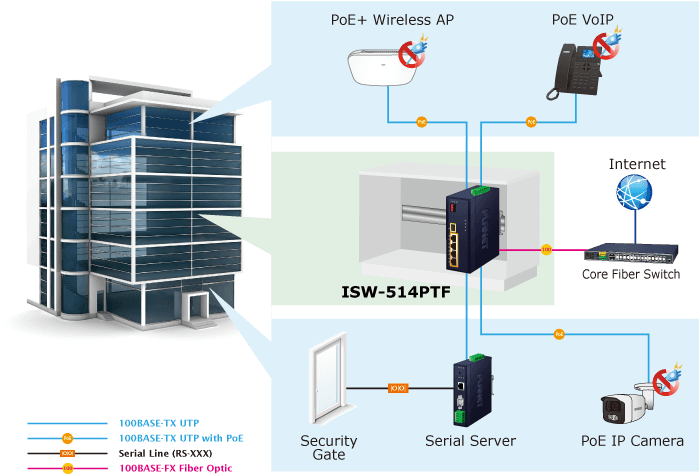

A Perfect Full PoE+ Power Solution Ideal for Hardened Environment With Plug and Play design, PLANET ISW-514PTF Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch, featuring 4 IEEE 802.3at PoE+10/100BASE-TX ports and 1 additional 100BASE-FX fiber optic interface for uplink connection, allows to automatically detect and configure internal and external peripherals. With rugged IP40 metal housing and redundant power system for total power budget of up to 120 watts for different kinds of PoE applications, the ISW-514PTF also operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius. In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-514PTF is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-514PTF also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting. PROFINET Traffic Pass-through with QoS The ISW-514PTF features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-514PTF receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-514PTF will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic. Convenient and Reliable Power System To facilitate the 802.3at PoE+ usage with the commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-514PTF adopts 12~54V DC to 54V DC power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. 802.3at PoE+ Power and Ethernet Data Transmission Extension The ISW-514PTF has a built-in solid DIP switch providing “ Standar d”, " VLAN " and “ Extend ” operation modes. By default, the ISW-514PTF operates as a normal IEEE 802.3af/at PoE+ Switch in the “ Standard ” operation mode. The " VLAN " operation mode features with port-based VLAN function helps to prevent the IP camera’s multicast or broadcast storm from influencing each other. In the “ Extend ” operation mode, the ISW-514PTF operates on a per-port basis at 10Mbps full duplex operation and can support 25-watt PoE power output over a distance of up to 250 meters , overcoming the 100-meter limit on Ethernet UTP cable. Fiber Optic Link Capability for Flexible Distance Extension The ISW-514PTF is equipped with one 100BASE-FX port, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 2 kilometers (multi-mode fiber) to 20/40/60/120 kilometers (single-mode fiber or WDM fiber). They are suitable for transportation, manufacturing, security and surveillance for long-distance extension without any limitation. Environmentally-hardened Design With the IP40 metal industrial case, the ISW-514PTF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C , the ISW-514PTF can be placed in almost any difficult environment. Robust Protection The ISW-514PTF provides contact discharge of ±5KV DC and air discharge of ±5KV DC for Ethernet ESD protection. It also supports ±5KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Intelligent LED Indicator for Real-time PoE Usage The ISW-514PTF helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “ PoE Power Usage ”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage. Flexible and Easy Installation with Limited Space The ISW-514PTF is designed to be installed in different environments, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail mounting, thereby making its usability more flexible and easier in any space-limited location. Applications Industrial-grade PoE+ Switch for Building Automation and Security Suitable for buildings where security is strictly enforced, the ISW-514PTF, with four Fast Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-514PTF makes the installation of IP cameras or wireless APs easier and more efficient. Perfect Integration Solution for IP PoE Camera and NVR System The ISW-514PTF provides four 10/100BASE-TX 802.3at PoE+ ports which can offer sufficient PoE power to 4 PoE IP cameras at the same time. In addition, with the 100BASE-FX interfaces, the ISW-514PTF can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the ISW-514PTF facilitates the recorded video files from the 4 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The ISW-514PTF undoubtedly brings an ideal secure surveillance system at a lower total cost. Key Features Physical Port 4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Ports 1 to 4) 1 100BASE-FX SFP interface Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 4 ports of IEEE 802.3af/at devices powered Up to 120-watt PoE budget Supports PoE power up to 36 watts for each PoE port Each port supports 54V DC power to PoE powered device Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m in standard mode with 250m in extend mode Switching Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates PROFINET traffic pass-through with QoS IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 1K MAC address table size IEEE 802.1Q VLAN transparency Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Ports 1 to 4) Automatic address learning and address aging Industrial Case and Installation IP40 metal case DIN-rail, wall-mount design or side wall-mount design One terminal block for master and slave power input (Power Range: 12 ~54V DC redundant power) 12~54V DC redundant power with reverse polarity protection Fault alarm for power input failed 4 real-time PoE power usage indicators Supports 5KV DC Ethernet ESD protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

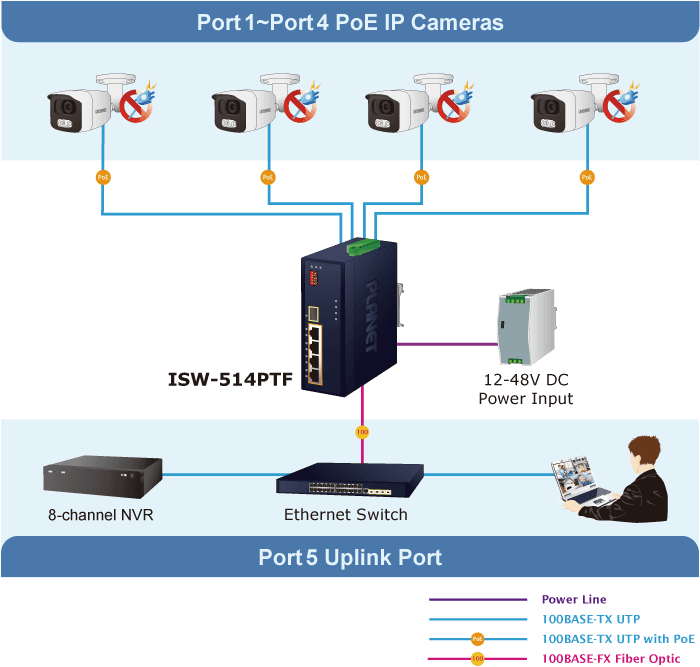

Copper Ports

Four 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Ports 1 to 4)

PoE Injector Ports

Four ports with 802.3af/at PoE+ injector function (Ports 1 to 4)

SFP Port

One port 100BASE-FX SFP port

Connector

Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for power fault alarm Pin 5/6 for Power 2

DIP Switch (Ports 1 to 4)

Standard mode: 30-watt PoE transmission distance of 100m at speed of 10/100Mbps VLAN mode: "Port-based VLAN Protection" where ports can be isolated from each other via one DIP switch. Only Port-5 can visit other ports. Extend mode: 25-watt PoE transmission distance of 250m at speed of 10Mbps

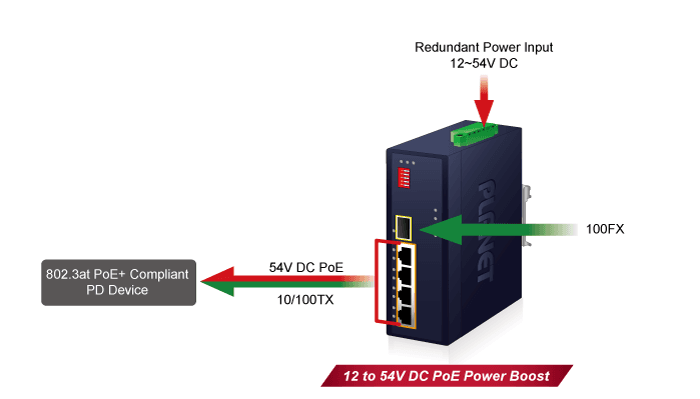

Power Requirements

12~54V DC, 7A (max.)

Power Consumption

Max. 7 watts/23.8BTU@54V DC input (System) Max. 133 watts/453BTU@54V DC input (Ethernet + PoE Full Loading)

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

Dimensions (W x D x H)

50 x 87.8 x 135 mm

Weight

613g

Enclosure

IP40 metal case

Installation

DIN-rail/ wall-mount

ESD Protection

5KV

LED Indicators

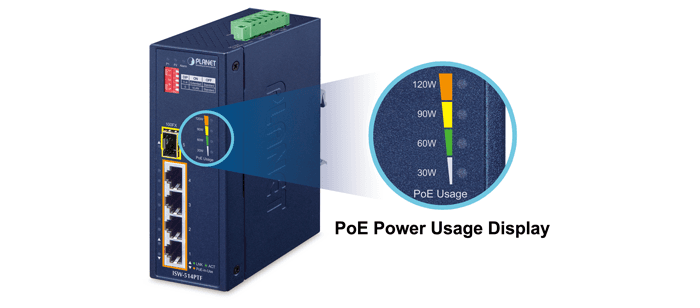

3 x LED for System and Power: Green : DC Power 1 Green : DC Power 2 Red : Power Fault Alarm 2 x LED for PoE +Copper Port (Ports 1 to 4): Green : LNK/ACT (10/100Mbps) Amber : PoE-in-Use 1 x LED for 100BASE-FX Port (Port 5): Green : LNK/ACT (100Mbps) 4 x LED for PoE Usage(W) (Low to high): Amber : 30W, 60W, 90W and 120W

Switch Architecture

Store-and-Forward

Switch Fabric

1Gbps/non-blocking

Throughput (packet per second)

0.74Mpps @64 bytes

Address Table

1K entries

Jumbo Frame

1536 bytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

Power Pin Assignment

1/2 (+), 3/6 (-)

PoE Power Output

Per port 54V DC, Max. 36 watts

PoE Power Budget (max.)

120W maximum @54V DC 90W maximum@24V DC 60W maximum@12V DC

Max. Number of Class 2 PDs

4

Max. Number of Class 3 PDs

4

Max. Number of Class 4 PDs

4

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus PROFINET Traffic Pass-through with QoS

Temperature

Operating: -40~75 degrees C Storage: -40~85 degrees C

Humidity

Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
