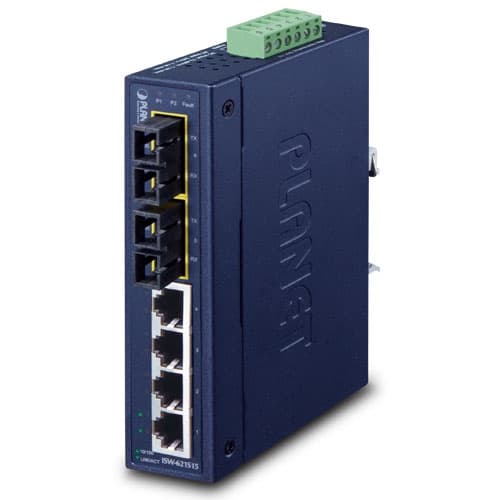

ISW-621 / ISW-621S15 — 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Fast Ethernet Switch

Descripción

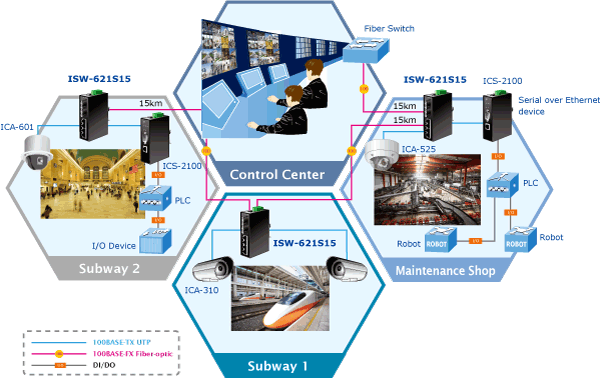

New slim type with more practicability and convenience PLANET has released the ISW-621/ISW-621S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. Each of them is equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-621 has 2 100Base-FX multi-mode SC interfaces for transmission distance up to 2km, and the ISW-621S15 has 2 100Base-FX single-mode SC interfaces for transmission distance up to 15km, both of them operate reliably in Heavy Industrial demanding environments. Meanwhile, the compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. Stable operating performance under difficult environments The ISW-621 / ISW-621S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-621/ISW-621S15 can be placed in almost any difficult environment. The ISW-621/ISW-621S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance The ISW-621/ISW-621S15 each provides 4 10/100Base-TX Ethernet ports and 2 100Base-FX optic-fiber SC interfaces, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The flow control function allows the ISW-621/ISW-621S15 to have fast and reliable data transfer. All of the RJ-45 copper interfaces in the ISW-621/ISW-621S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Applications Industrial area switch for data collect and forward The ISW-621/ISW-621S15 is equipped with 4 10/100Mbps ports that offer auto MDI / MDIX feature, 2 100Base-FX optic-fiber SC interfaces, 1.2Gps non-blocking switch fabric, and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621/ISW-621S15 with the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments. Key Features • Physical Port –4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function –2-port 100Base-FX interfaces for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-621 –2-port 100Base-FX interfaces for up to 15km (Single-mode fiber 9µm/125µm) on ISW-621S15 • Layer 2 Features –Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard –Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port –High performance Store and Forward architecture –Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) –Backplane (Switching Fabric): 1.2Gbps –Integrated address look-up engine, support 2K absolute MAC addresses –1 Mbit on-chip frame buffer –Automatic address learning and address aging –CSMA/CD Protocol • Industrial Case / Installation –IP-30 metal case / protection –DIN rail and wall mount design –12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power –Supports EFT protection 6000 VDC for power line –Supports 6000 VDC Ethernet ESD protection –-10 to 60 degrees C operating temperature

Especificaciones técnicas

Copper

Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.)

Optical

Port 2 x 100Base-FX Cable ISW-621: 50/125μm fiber ISW-621S15: 9/125μm fiber Mode ISW-621: Multi-mode ISW-621S15: Single-mode Distance ISW-621: 2km ISW-621S15: 15km Frequency ISW-621: 1310nm ISW-621S15: 1310nm Launch Power ISW-621: Max. -14dBm, Min. -19dBm ISW-621S15: Max. -7dBm, Min. -20dBm Receive Sensitivity ISW-621: -34.5dBm ISW-621S15: -28dBm Max. Input Power ISW-621: -14dBm ISW-621S15: -8dBm

Dimensions (W x D x H)

135 x 87.8 x 32 mm

Weight

442g

Power Requirements

12~48 VDC, Redundant power with polarity reverse protection function

Power Consumption / Dissipation

Max. 11.6 watts / 40BTU

Installation

DIN rail kit / wall mount ear

Alarm

Provides one relay output for power fail Alarm relay current carry ability: 1A @ DC 24V

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Buffer

1Mbit

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Switch Fabric

1.2Gbps

Throughput (Packet Per Second)

0.89Mpps @ 64Bytes

Standards Compliance

IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control

Temperature

Operating: -10~60 degrees C Storage: -40~85 degrees C

Humidity Operating

Operating: 5~90%, Storage: 5~90% (non-condensing)

Regulation Compliance

FCC Part 15 Class A, CE

Safety

UL, cUL

Stability Testing

IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)
