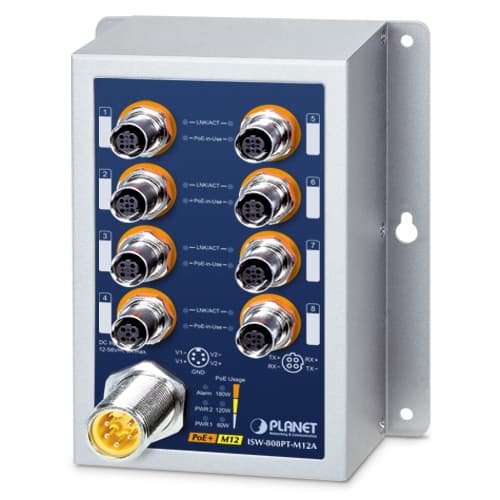

ISW-808PT-M12A — Industrial 8-Port 10/100TX M12 802.3at PoE+ Switch

Descripción

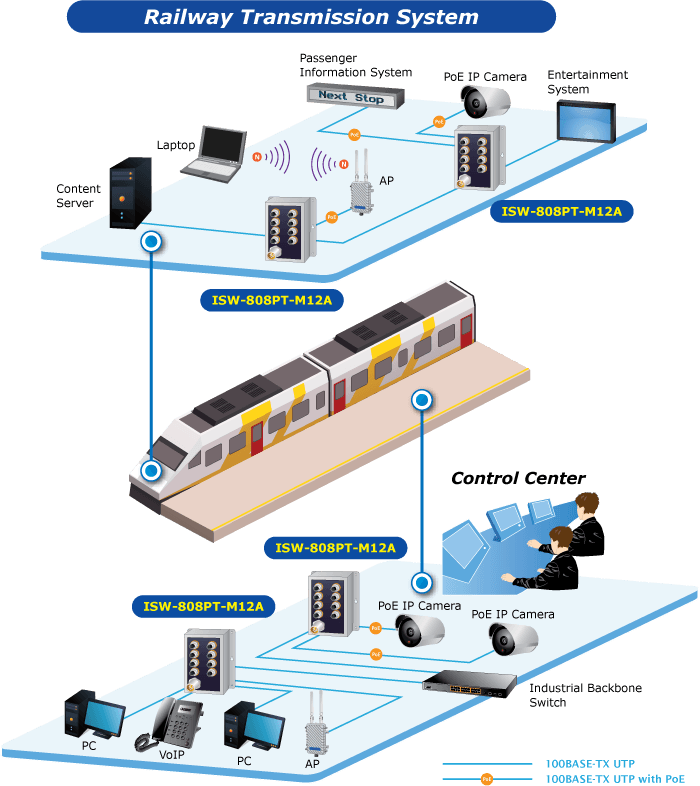

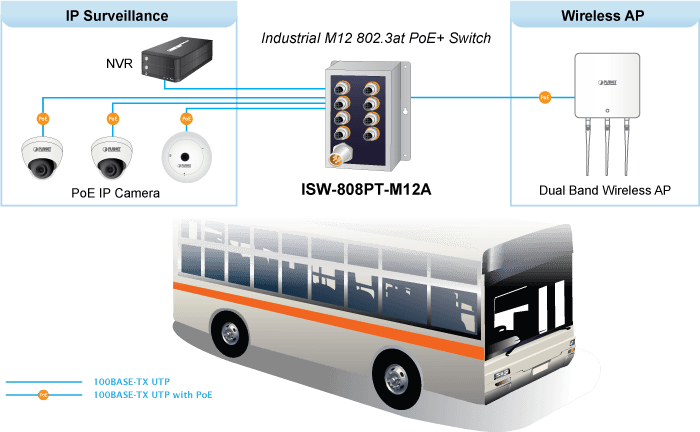

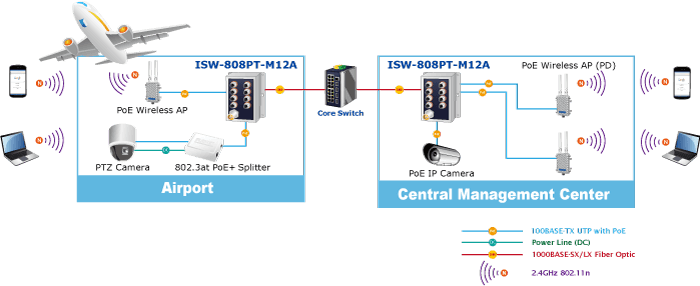

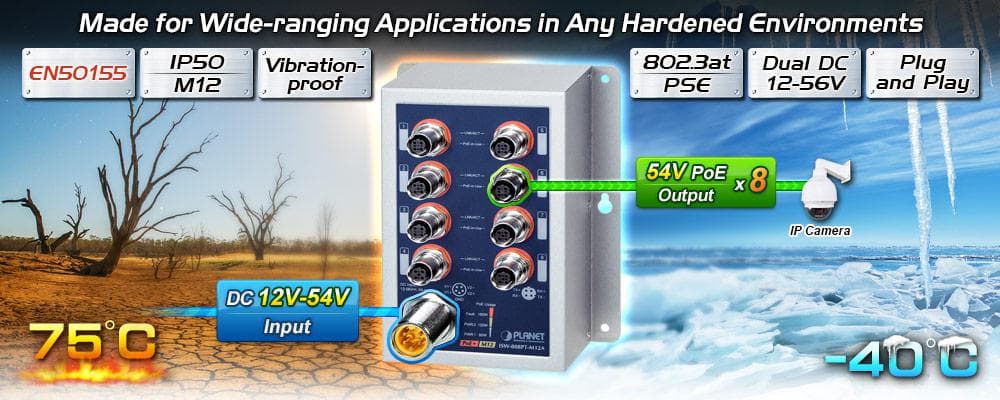

Reliable Data and Power over Ethernet PLANET ISW-808PT-M12A is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP50-rated metal case of the ISW-808PT-M12A allows either DIN-rail or wall mounting for efficient use of cabinet space. The ISW-808PT-M12 also supports PROFINET traffic pass-through, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting. PROFINET Traffic Pass-through with QoS The ISW-808PT-M12A features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-808PT-M12A receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-808PT-M12A will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic. Environmentally-hardened Design Being able to operate under the temperature range from -40 to 75 degrees C , the ISW-808PT-M12A, equipped with a tough IP50-rated industrial case, provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It ensures the highest level of reliability for mission-critical applications in any difficult environment. Convenient and Reliable Power System To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12A adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. Intelligent LED Indicator for Real-time PoE Usage The ISW-808PT-M12A helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the ISW-808PT-M12A has three orange LEDs indicating 60W,120W and 180W of PoE power usage. High Performance The ISW-808PT-M12A has 2K MAC address table and offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each Fast Ethernet port, the ISW-808PT-M12A can handle large amounts of data in a secure topology linking to a backbone or high capacity servers. Easy Installation The flow control function enables the ISW-808PT-M12A to provide fast and reliable data transfer. All of the M12 RJ45 copper interfaces in the ISW-808PT-M12A support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. Applications ITS Industrial Ethernet PoE Solution The ISW-808PT-M12A’s vibration-proof and shockproof features guarantee stable operation, even in moving vehicles, trains and other public transportation systems, making it an ideal solution for intelligent transportation systems. To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12A adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. It certainly meets the transmission needs of power and data for surveillance system, video transmission and wireless service on the bus, shuttle and other vehicles. Public Construction for Data Collection and Forwarding Providing up to 8 PoE+, in-line power interfaces, the ISW-808PT-M12A can easily build a power centrally controlled by IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the ISW-808PT-M12A makes the installation of IP cameras or wireless AP easier and more efficient. Key Features Physical Port 8-port 10/100BASE-TX with dustproof M12 connectors and IEEE 802.3at PoE+ injector function Power over Ethernet Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus. Backward compatible with IEEE 802.3af Power over Ethernet Up to 8 ports of IEEE 802.3af/802.3at devices powered 180-watt PoE budget Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters Layer 2 Features Supports auto-negotiation and 10/100Mbps half/full duplex mode High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth PROFINET traffic pass-through with QoS Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) Backplane (switching fabric): 1.6Gbps Integrated address look-up engine, supporting 2K absolute MAC addresses Automatic address learning and address aging CSMA/CD Protocol Industrial Case and Installation IP50 metal case Dustproof and fanless designs DIN-rail and wall-mount installation Redundant power design 12 to 54V DC, redundant power with reverse polarity protection Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience Supports 6KV DC Ethernet ESD protection Supports 6KV surge protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

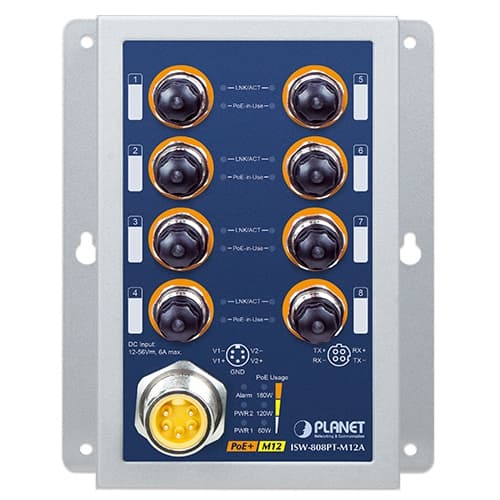

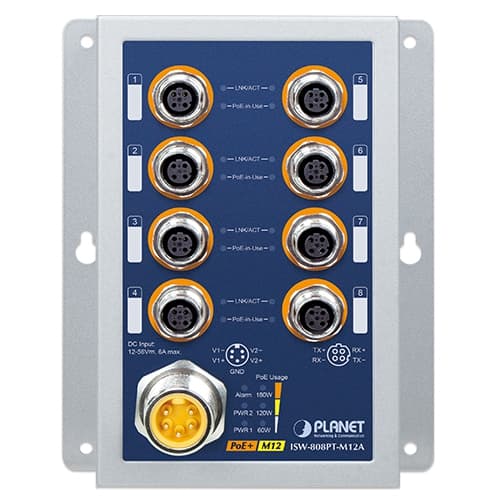

Copper Ports

8 x M12, 4-pin D-coded female connector 10/100BASE-TX auto-MDI/MDI-X

IEEE 802.3at PoE+ Ports

8, port 1 to port 8

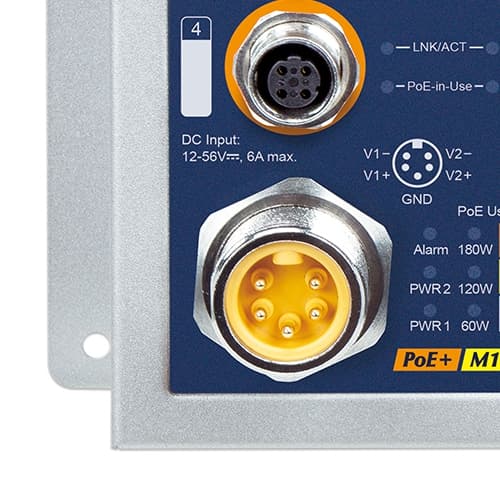

Power Connector

1 x M23, 5-pin A-coded male connector

Enclosure

IP50 metal case

Dimensions (W x D x H)

132 x 75 x 160mm

Weight

952g

Installation

Wall-mount and DIN-rail kit

Power requirements

Dual 12~54V DC

Power Consumption

DC 12V:75.6 watts/257BTU DC 24V:129.3 watts/441 BTU DC 48V:190.1 watts/648 BTU DC 54V:191.7 watts/654 BTU

ESD Protection

6KV DC

Surge Protection

6KV DC

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Switch Fabric

1.6Gbps

Throughput (packet per second)

1.19Mpps

Maximum Transmit Unit

1536 bytes

Network Cables

10BASE-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.)

PoE Standard

IEEE 802.3at Power over Ethernet Plus / PSE

PoE Power Supply Type

End-span

PoE Power Output

54V DC per port with maximum of 36 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Budget

180 watts@48-56V DC input 120 watts@24~48V DC input 60 watts@12~23V DC input

Regulatory Compliance

FCC Part 15 Class A CE

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet plus PROFINET Traffic Pass-through with QoS

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Railway Traffic

EN50155

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
