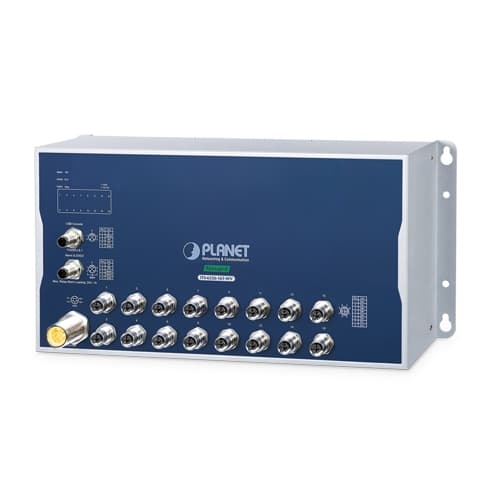

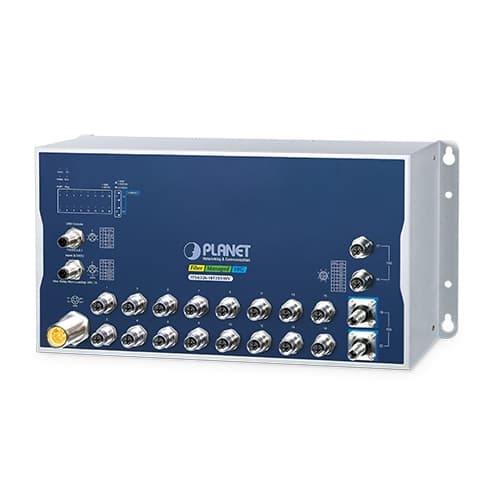

ITS-6326-16T-LV / ITS-6326-16T-WV / ITS-6326-18T2XS-WV — Industrial L3 16-Port 10/100/1000T + 2-Port 10GBASE-T M12 + 2-Port 10G Q-ODC Managed Ethernet Switch

Descripción

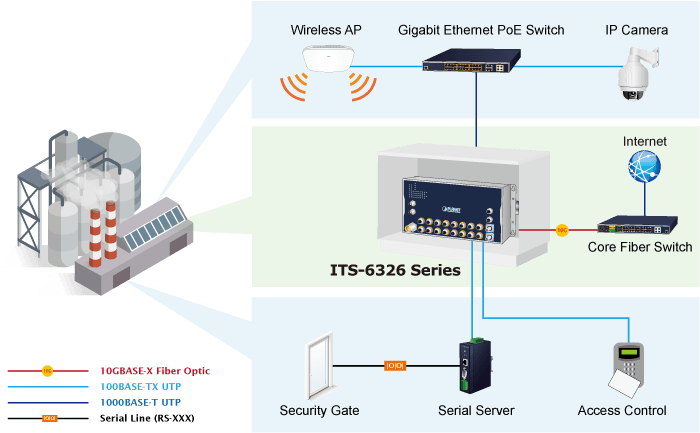

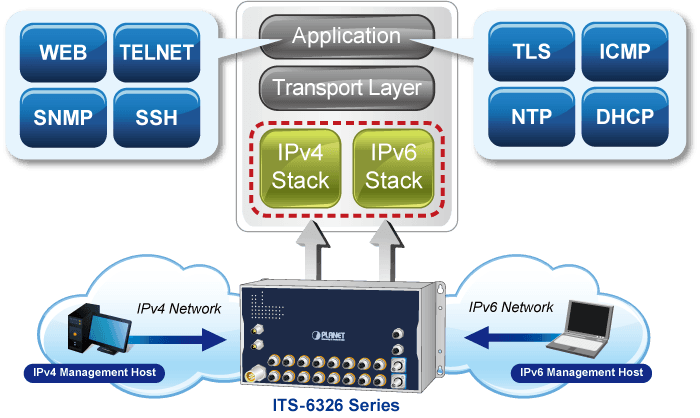

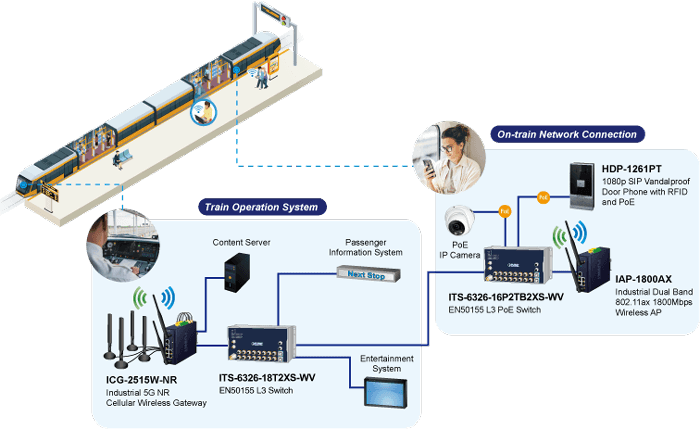

Advanced Layer 3 Managed Switch for Railway Transportation and Harsh Environments PLANET ITS-6326 Industrial Managed Switch Series, featuring 10G M12 connector and Q-ODC (Quad Optical Direct Connect), is specifically designed for railway system. Compliant with EN50155 , EN45545-2 , and IEC 61373 standards, it offers robust features tailored to excel in demanding environments. This series supports dual-stack management for both IPv6 and IPv4, incorporates built-in Layer 3 OSPFv2 dynamic routing, and is powered by a high-performance Layer 2/Layer 4 Gigabit switching engine. This series provides extensive functionality, making it ideal for both railway and heavy industrial applications. Equipped with M12 X-code and Q-ODC connectors for each port, it ensures reliable and stable performance. With the capability to operate seamlessly in extreme temperatures ranging from -40 to 70°C, it offers exceptional adaptability, durability, and silent operation, making it suitable for the harshest industrial conditions. Also, this series is available in three distinct models, as detailed in the table below. This variety provides users with the flexibility to choose the model that best meets their specific needs. Model Name ITS-6326-18T2XS-WV ITS-6326-16T-WV ITS-6326-16T-LV 10/100/1000BASE-T, M12, 8-pin X-coded Connector 16 16 16 10G/5G/2.5G/1GBASE-T, M12, 8-pin X-coded Connector 2 - - 10GBASE-X, Q-ODC Fiber Port 2 - - Enclosure Back panel is equipped with vertical heat-dissipation fins Back panel is flat without heat-dissipation fins Power Input Voltage 24 to 110VDC 24 to 54VDC High-performance 10Gbps Ethernet Capability Some models in the ITS-6326 series include two 10G M12 ports and two Q-ODC slots , designed with a high-performance switch architecture that provides non-blocking switch fabric and wire-speed throughput of up to 112Gbps . This robust capability effectively simplifies LAN upgrades to accommodate increasing bandwidth demands. Each 10G M12 port supports four transmission speeds: 1GBASE-T , 2.5GBASE-T , 5GBASE-T , and 10GBASE-T , offering administrators the flexibility to choose the appropriate speed for efficient network expansion. Additionally, the 10G Q-ODC slots exclusively accommodate 10GBASE-SR/LR single-mode fiber transceivers.Engineered for reliability in challenging conditions, it serves as the ideal solution for railway on-board and trackside applications, as well as for vehicles and other demanding industrial environments. Redundant Ring, Fast Recovery for Critical Network Applications The ITS-6326 series supports redundant ring technology and features robust, rapid self-recovery capabilities to prevent interruptions and external intrusions, it incorporates the advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input into an industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms. Cybersecurity Network Solution to Minimize Security Risks The industrial managed switch supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. In addition, it includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Layer 3 Routing Support The ITS-6326 series empowers administrators to enhance network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing or automatically setting up RIP (Routing Information Protocol) and OSPF (Open Shortest Path First).The RIP uses hop count as a routing metric and prevents routing loops by limiting the number of hops permitted in a path from source to destination.The OSPF, a dynamic interior routing protocol for autonomous systems, operates based on link-state information. It builds a link-state database through the exchange of link-state data among Layer 3 switches and applies the Shortest Path First algorithm to generate a route table from this database. Robust Layer 2 Features The ITS-6326 series can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the ITS-6326 series allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. User-friendly Management Interfaces For efficient management, this series is equipped with console , Web and SNMP management interfaces. With the built-in Web-based management interface, the ITS-6326 series offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the switches can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Moreover, the ITS-6326 PoE Series offers secure remote management by supporting SSHv2 , TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the ITS-6326 series helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Powerful Security Offering comprehensive Layer 2 to Layer 4 Access Control List (ACL) features for enforcing security at the edge, it can restrict network access by denying packets based on source and destination IP addresses, TCP/UDP ports, or predefined typical network applications. Its protection mechanism also includes 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports is prevented, ensuring user privacy. Network administrators can now build highly secure corporate networks with significantly less time and effort than before. 1588 Time Protocol for Industrial Computing Networks The ITS-6326 series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the ITS-6326 series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory. SMTP/SNMP Trap Event Alert The ITS-6326 series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Intelligent SFP Diagnosis Mechanism The ITS-6326 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Digital Input and Digital Output for External Alarm This external alarm system enables users to utilize a Digital Input to monitor and log the status of external devices, such as door intrusion detectors, and send event alarms to administrators. The Digital Output can be used to alarm administrators of any changes in link status, whether the link is down or up, on the ITS-6326 series port. Effective Alarm Alert for Better Protection The ITS-6326 series includes a Fault Alarm feature that promptly alerts users to any issues with the switches. This valuable functionality eliminates the need for users to spend time identifying the problem, resulting in significant savings in both time and human resources. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform. Applications Designed for Industrial and Transportation Applications The ITS-6326 series, featuring high-speed Gigabit Ethernet interfaces with M12 connector, is ideal for security-focused environments. It efficiently manages IP phone systems, surveillance setups, and wireless access points in harsh industrial and transportation settings. High Availability Networking with Excellent Redundancy for Surveillance System The ITS-6326 series features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The ITS-6326 series is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission. Key Features Physical Port ITS-6326-18T2XS-WV 16 x 10/100/1000BASE-T M12 ports (Ports 1 to 16) 2 x 10GBASE-T M12 ports (Ports 17 to 18) , backward compatible with 5G/2.5G/1GMbps data rate 2 x 10GBASE-X Q-ODC fiber connector (Ports 19 to 20) One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup. One M12 A-coded 5-pin male connector with alarm, digital Input and digital Output functions One M23 A-coded 5-pin male connector with input voltage range of 24 to 110 VDC (Operating voltage: 16.8 to 137.5 VDC) ITS-6326-16T-WV 16 x 10/100/1000BASE-T M12 ports (Ports 1 to 16) One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup. One M12 A-coded 5-pin male connector with alarm, digital Input and digital Output functions One M23 A-coded 5-pin male connector with input voltage range of 24 to 110 VDC (Operating voltage: 16.8 to 137.5 VDC) ITS-6326-16T-LV 16 x 10/100/1000BASE-T M12 ports (Ports 1 to 16) One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup. One M12 A-coded 5-pin male connector with alarm, digital Input and digital Output functions One M23 A-coded 5-pin male connector with input voltage range of 24 to 54 VDC (Operating voltage: 16.8 to 54 VDC) Industrial Case and Installation IP40 metal case Wall-mount design Dual DC input Overload current protection Reverse polarity protection -40 to 70 degrees C operating temperature Industrial Protocol Modbus TCP for real-time monitoring in the SCADA system Supports IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode. Digital Input and Digital Output One digital input (DI) One digital output (DO) Integrate sensors into auto alarm system. Transfer alarm to IP network via SNMP trap. Layer 3 IP Routing Features Supports maximum 128 static routes and route summarization. IPv4 dynamic routing protocol supports RIPv2 and OSPFv2. IPv6 dynamic routing protocol supports OSPFv3. IPv4/IPv6 hardware static routing Routing interface provides per VLAN routing mode. Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex). High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth. Storm Control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN UP to 4K VLANs groups, out of 4094 VLAN IDs Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (Static Trunk) Maximum 10 trunk groups with 20 ports per trunk group Up to 8Gbps bandwidth (duplex mode) Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS IP TOS/DSCP/IP precedence IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3. Supports IPv6 MLD snooping v1 and v2. Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering MVR (Multicast VLAN Registration) Security Storm Control support Broadcast / Multicast / Unknown Unicast Authentication Built-in RADIUS client to co-operate with the RADIUS servers DHCP Option 82 RADIUS/TACACS+ login user access authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC Filtering Port Security for Source MAC address entries filtering DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks DoS Attack Prevention Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console/Telnet Command Line Interface Web switch management SNMP v1 and v2c and v3 switch management SSHv2, TLSv1.2 secure access SNMP Management Four RMON groups (history, statistics, alarms, and events) SNMP trap for interface Link Up and Link Down notification IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Reset button for system reboot or reset to factory default Dual Images DHCP Functions: DHCP Relay DHCP Option 82 DHCP Server User Privilege levels control Network Time Protocol (NTP) Network Diagnostics SFP-DDM (Digital Diagnostic Monitor) ICMPv6/ICMPv4 remote ping Cable diagnostic technology provides the mechanism to detect and report potential cabling issues. SMTP, Syslog and SNMP trap remote alarm System Log Provides ONVIF for co-operating with PLANET video IP surveillances PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and NMSViewerPro/CloudNMS App for deployment management

Especificaciones técnicas

Copper Ports,M12, 8-pin X-coded Female Connector

ITS-6326-18T2XS-WV： 16 x 10/100/1000BASE-T (Ports 1 to 16) 2 x 10GBASE-T (Ports 17 to 18) Supports 10G/ 5G/ 2.5G/ 1G/ 100Mbps data rate ITS-6326-16T-WV/ITS-6326-16T-LV： 16 x 10/100/1000BASE-T (Ports 1 to 16)

Q-ODC Fiber Ports

ITS-6326-18T2XS-WV 2 x 10GBASE-X with single-mode fiber (Ports 19 to 20)

Console

USB Data to RS232 serial port (115200, 8, N, 1) 1 x M12 A-coded 5-pin male connector

Reset Button

< 5 sec.: System reboot > 5 sec.: Factory default

Alarm & DI & DO Ports

1 x M12 A-coded 5-pin male connector for DI/DO and alarm interface Pin 1 for DI and Pin 2 for DO Pin 3/4 for Alarm Pin 5 for GND

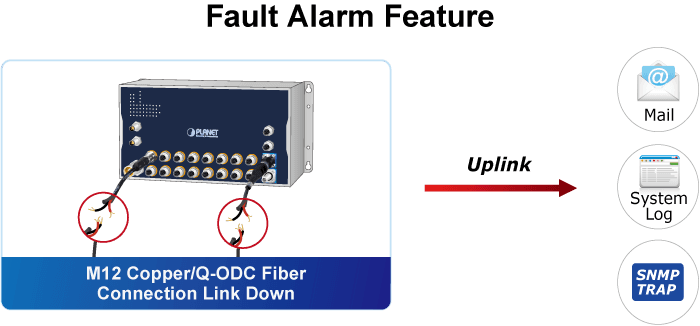

Alarm

One relay output for port breakdown and power failure. Alarm relay current carry ability: 1A @ 24V DC

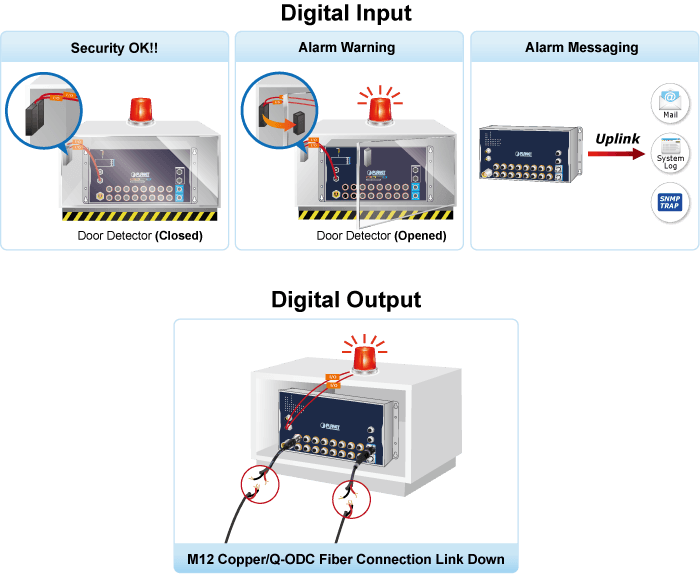

Digital Input (DI)

One digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max.

Digital Output (DO)

One digital output (DO) Open collector to 24V DC, 100mA max.

Power Connector

1 x M23 A-coded 5-pin male connector

Number of Power Input

2

Power Input

Wide Voltage Input (WV Series): 24 to 110 VDC Low Voltage Input (LV Series): 24 to 54 VDC

Operating Voltage

Wide Voltage Input (WV Series): 16.8 to 137.5 VDC Low Voltage Input (LV Series): 16.8 to 54 VDC

Power Consumption

ITS-6326-18T2XS-WV: Max. 36.04 watts / 122.97 BTU (system on) Max. 43.57 watts / 147.47 BTU (Full loading) ITS-6326-16T-WV/ ITS-6326-16T-LV: Max. 23.3 watts / 79.5 BTU (system on) Max. 29.34 watts / 100.11 BTU (Full loading)

LED

System: PWR1 ( Green ) PWR2 ( Green Alarm ( Red ) Ring ( Green ) R.O. ( Green ) I/O ( Red ) 10/100/1000T M12 Ports: Up: 1000 LNK/ACT ( Green ) 10/100 LNK/ACT ( Amber ) 100/1G/2.5G/5G/10GBASE-T M12 Ports: Up: 1000 LNK/ACT ( Green ) 100/10G LNK/ACT ( Amber ) Down: 2.5G/5G LNK/ACT ( Amber ) 10GBASE-X Q-ODC Fiber Port: Up: LNK/ACT ( Amber )

Enclosure

IP40 aluminum case

Installation

Wall-mount design

Dimensions (W x D x H)

400 x 74 x 195 mm

Weight

ITS-6326-18T2XS-WV: 4650g ITS-6326-16T-WV: 4450g ITS-6326-16T-LV: 3250g

Switch Architecture

Store-and-forward

Switch Fabric

112Gbps/non-blocking ITS-6326-18T2XS-WV 32Gbps/non-blocking ITS-6326-16T-WV/ ITS-6326-16T-LV

Switch Throughput@64Bytes

83.3Mpps @64 bytes ITS-6326-18T2XS-WV 23.8Mpps @64 bytes ITS-6326-16T-WV/ ITS-6326-16T-LV

Address Table

16K entries, automatic source address learning and aging

Shared Data Buffer

32M bits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries Max. 4K H/W routing table entries

Routing Protocols

IPv4 hardware static routing IPv6 hardware static routing IPv4 RIPv2 IPv4 OSPFv2 dynamic routing IPv6 OSPFv3 dynamic routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX / RX / Both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions

VLAN

EEE 802.1Q tag-based VLAN, up to 255 VLAN groups IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/Static Trunk Supports Static Port Trucking, (20 ports/10 groups max.) Dynamic LACP-(20 ports/10 groups max.)

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups IPv4 IGMP querier mode support IPv4 IGMP Snooping port filtering Multicast VLAN Registration

MLD Snooping

IPv6 MLD (v1/v2) snooping, up to 255 multicast groups IPv6 MLD querier mode support

Bandwidth Control

Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps

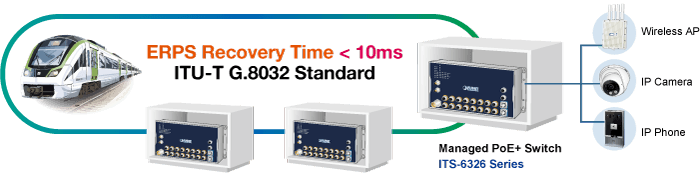

Ring

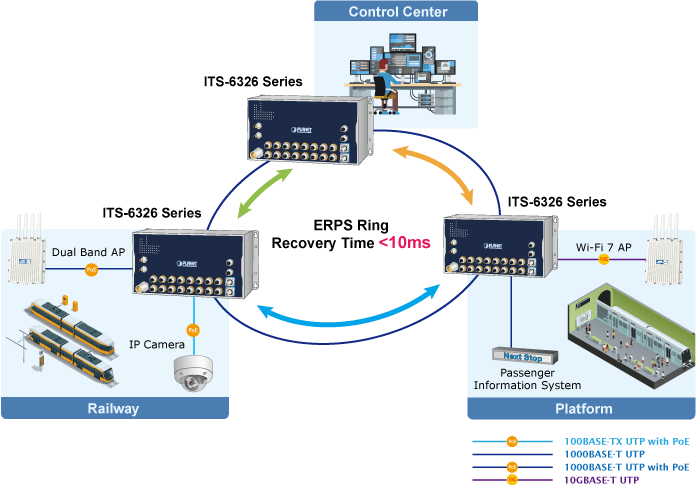

Support ERPS, complies with ITU-T G.8032v1 and v2 Recovery time < 50ms

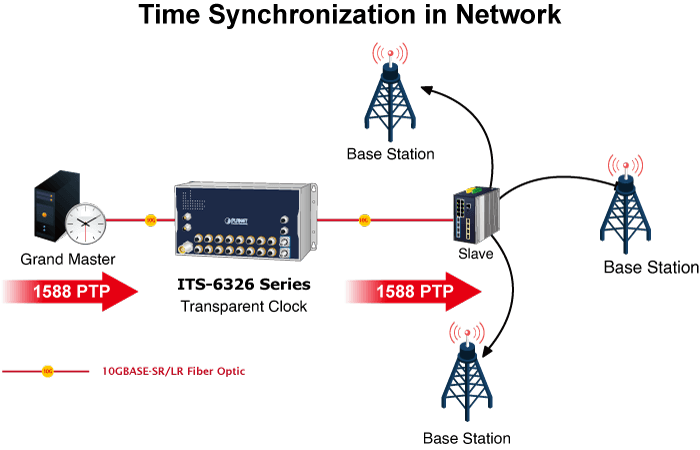

Synchronization

IEEE 1588v2 PTP(Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet

Access Control List

IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries

Security

Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

Basic Management Interfaces

Console/ Telnet/ Web browser/ SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS System, NMSViewerPro and CloudNMS App

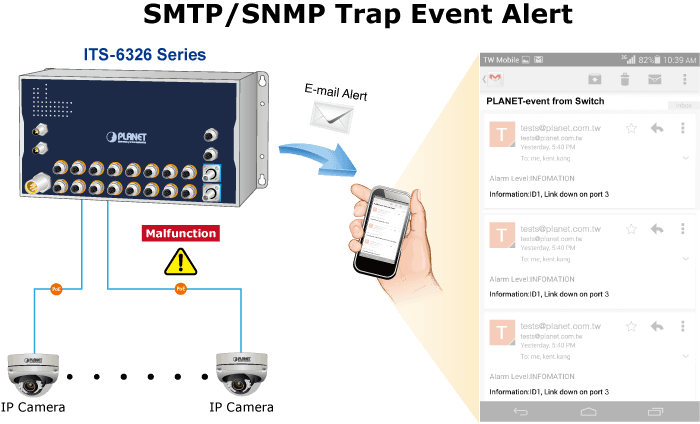

Event Management

Remote Syslog System log SMTP

ONVIF

ONVIF device discovery ONVIF device monitoring Floor map

SNMP MIBs

RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP RFC 4292 IP Forward MIB RFC 4293 IP MIB

Regulatory Compliance EMI & EMS

FCC Part 15 Class A Planning: CE：EN 55032, EN 55035 EN 61000-6-2, EN 61000-6-4

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) Planning: IEC 61373, EN 50155 (Shock) IEC 61373, EN 50155 (Vibration)

Railway (Planning)

EN 50155, EN50121-4, IEC 60571

Railway Fire Protection (Planning)

EN 45545-2

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10GBASE-X IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 1588 PTPv2 RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring

Operating

Temperature: -40 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
