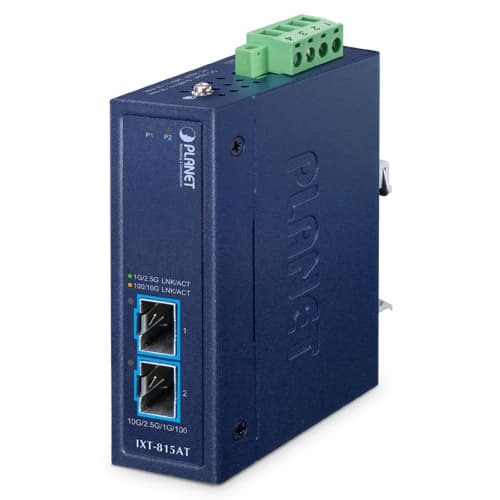

IXT-815AT — Compact Industrial 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter

Descripción

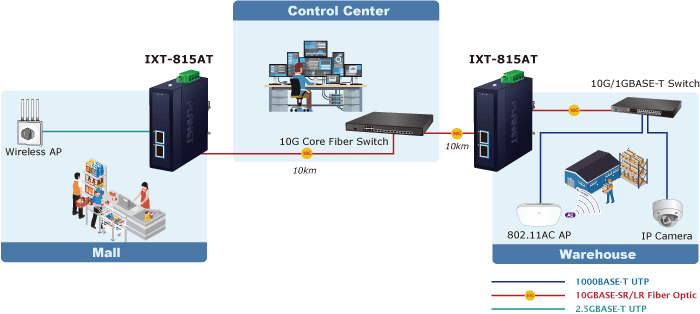

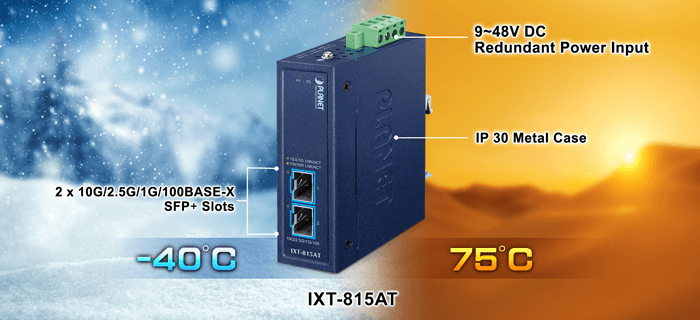

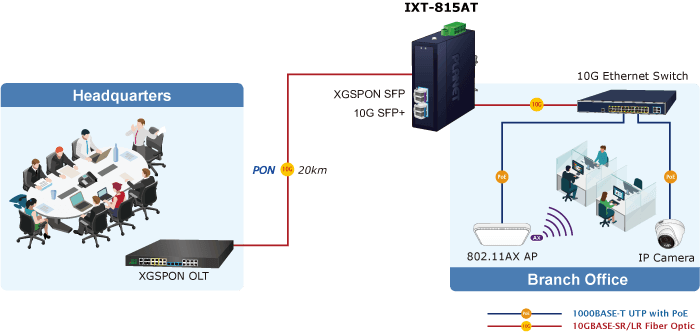

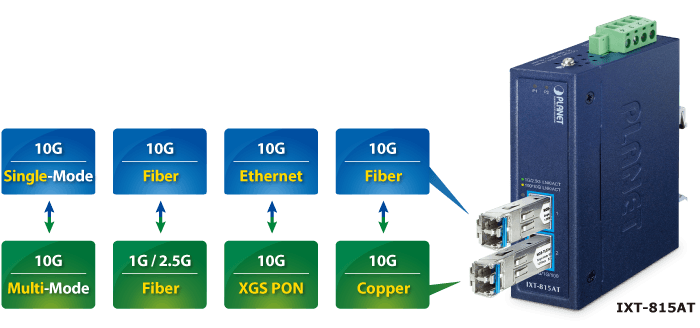

Flexible, Reliable and Industrial-grade Backbone Network Distance Extension Solution The PLANET IXT-815AT is the smallest compact industrial-grade 10G Ethernet media converter, delivering non-blocking wire-speed performance and exceptional flexibility for 10 Gigabit Ethernet extension in harsh industrial environments. It features dual 10G/2.5G/1GBASE-X and 100BASE-FX SFP+ fiber interfaces, housed in a rugged yet compact IP30-rated enclosure with a redundant power system and a wide operating temperature range from -40 to 75 degrees C . The IXT-815AT supports single-mode to multi-mode conversion and can cascade fiber optic cables to extend transmission distances. It also functions as a 10GPON to 10G Ethernet bridge and supports both XGS-PON and GPON ONT SFP modules. With its plug-and-play design, no software installation is required, enabling quick and easy deployment. Versatile Features to Meet Diverse Networking Needs The IXT-815AT delivers broad bandwidth and powerful processing capabilities. Its dual 10GBASE-X SFP+ fiber-optic interfaces support multiple speeds — 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX, and 100BASE-FX — allowing administrators to select the appropriate SFP/SFP+ transceiver based on distance and speed requirements. The device also supports flexible conversion between multi-mode and single-mode fiber, extending transmission distances from 300 meters to 80 kilometers using 10GBASE-SR or 10GBASE-LR modules. Supported conversion scenarios include: 10G BASE-X fiber to 2.5G/1G/100 BASE-X fiber Multi-mode fiber to single-mode fiber Duplex fiber to simplex fiber 10Gbps XGSPON / 2.5Gbps GPON fiber to 10Gbps Ethernet fiber With dual high-speed ports, the IXT-815AT can connect to servers, switches, storage systems, and wireless access points. It also supports bridging between 10GPON and 10Gbps Ethernet, making it ideal for data center cloud computing, enterprise backbone networks, and inter-building deployments. Two Fiber Optic Ports Double the Deployment Distance The IXT-815AT provides two 10G fiber ports that support both single-mode and multi-mode fiber, enabling conversion between PON and Ethernet. With fiber optic connectivity on both ends, the transmission distance can reach up to 120 km , significantly extending service coverage and deployment flexibility. Stable and Efficient Chipset with High Network Performance The IXT-815AT features two built-in 10GBASE-X SFP+ ports to ensure stable and high-speed data transmission. With a 40Gbps switching fabric and support for 12K jumbo frames , it efficiently handles large volumes of data traffic. In addition, its 4K MAC address table and VLAN pass-through functionality enhance overall network management and performance. Environmentally Hardened Design The IXT-815AT features a slim-type IP30-rated metal case, allowing easy deployment in demanding industrial environments. With IP30 protection, it offers a high level of immunity against electromagnetic interference and heavy electrical surges, which are commonly encountered on plant floors or in curbside traffic control cabinets. Designed to operate in extreme temperatures ranging from -40 to 75 degrees C , the IXT-815AT can be installed in nearly any harsh environment. It also supports both DIN rail and wall mounting for efficient use of cabinet space. Convenient and Reliable Power System To enhance operational reliability and flexibility, the IXT-815AT is equipped with two DC power input connectors for redundant power supply installation. It also features an integrated power source that supports a wide voltage range ( 9 to 48V DC or 24V AC ), making it suitable for global applications requiring dual or backup power inputs. This design allows seamless integration into the customer’s automation network, improving overall system reliability and uptime. Robust Protection The IXT-815AT provides Ethernet ESD protection with ±6kV DC contact discharge and ±8kV DC air discharge, enhancing product stability and protecting users’ networks from damaging ESD attacks. This ensures stable and uninterrupted operation. Applications Hardened Environment Application PLANET IXT-815AT Industrial Gigabit Media Converter offers full port 10 Gigabit speed, and has a strong, stable and long-distance connection and flexible industrial networking deployment. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced. Perfect Applications for Advanced Networks The IXT-815AT is ideal for reliable, high-performance, and long-distance networking. With 10G data transmission and easy installation, it is well-suited for FTTH, FTTC, and FTTB deployments by ISPs and small to medium-sized businesses. Designed for industrial control applications, it supports a wide operating temperature range of -40 to 75°C, ensuring stable operation in harsh environments such as transportation systems, factory floors, and outdoor installations where extreme high or low temperatures are common. This rugged and versatile design makes the IXT-815AT an excellent choice for both mission-critical industrial deployments and large-scale fiber networks. Key Features Physical Port Media conversion between 10GBASE-X SFP+, 2.5GBASE-X, 1000BASE-X, and 100BASE-FX fiber optic interfaces. Dual 10GBASE-X SFP+ fiber optic ports supporting: Multi-mode fiber with LC connector Single-mode fiber with LC connector SFP transceivers support auto-detection for 10G/2.5G/1G/100Mbps Layer 2 Features Fully compliant with IEEE 802.3ae/bz/an Ethernet standards Non-blocking full wire-speed forwarding performance Supports 12K jumbo frames for handling large data transmissions Transparent IEEE 802.1Q VLAN tagging and multicast pass-through IEEE 802.3x full-duplex flow control and back-pressure to prevent packet loss Industrial Case and Installation Slim-type IP30 durable metal casing for enhanced reliability DIN rail and wall-mount design Redundant power design 9 to 48V DC redundant power with polarity reverse protection AC 24V power adapter supported Supports 6000 VDC Ethernet ESD protection LED indicators to facilitate network diagnostics -40 to 75 degrees C operating temperature Operating temperature range: -40 to 75 degrees Celsius Compact size and plug-and-play installation

Especificaciones técnicas

SFP+ Port

Dual 10GBASE-X SFP+ interfaces Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers

Fiber Mode

May vary on SFP+/SFP module

Fiber Port Type (connector)

SFP, LC type

Fiber Maximum Distance

May vary on SFP module

Network Cables

May vary on SFP+ and SFP modules

Connector

Removable 4-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for Power 2

Enclosure

Metal case

LED

System: PWR1, PWR2 ( Green ) SFP+ Interfaces 2.5Gbps/1Gbps LNK/ACT( Green ) 10Gbps /100Mbps LNK/ACT( Amber )

ESD Protection

Contact ±6KV DC

Enclosure

IP30 type metal case

Installation

DIN-rail kit and wall-mount ear

Dimensions (WxDxH)

30 x 70 x 104mm

Weight

254g

Power Requirements

DC 9~48V or 24V AC

Power Consumption

Max. 1.17 watts / 3.99 BTU/h @9V DC input (Power on without any connection) Max. 8.46 watts / 8.46 BTU/h @9V DC input (Full loading)

Switch Architecture

Store-and-Forward

Flow Control

Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support for efficient flow control

Fabric

40Gbps backbone to ensure high-speed data transmission

Forwarding Rate

Non-blocking, full wire-speed forwarding rate

MAC Address Table

4K MAC address table, auto-aging

Jumbo Frame

12K

VLAN Support

Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments

Priority Switching

8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service IEEE 802.1Q VLAN pass-through

Temperature

Operating: -40~75 degrees C Storage: -40~85 degrees C

Humidity

Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
