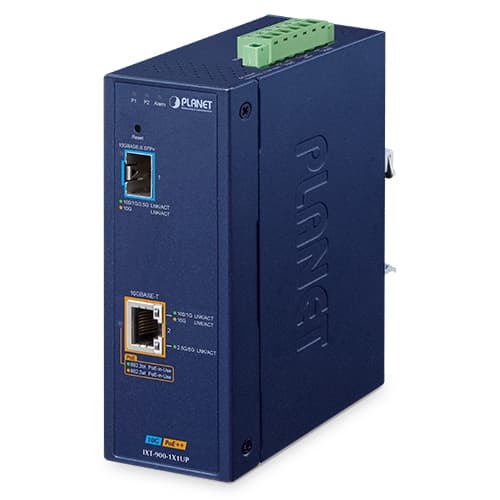

IXT-900-1X1UP — Industrial 1-Port 10G SFP+ + 1-Port 10GBASE-T 802.3bt PoE++ Managed Media Converter

Descripción

Ultra-fast Connections, Secure Management and Powerful IEEE802.3bt Compatibility PLANET Industrial IXT-900-1X1UP media converter is a robust network device, capable of operating in extreme temperature conditions, ranging from -40 to 75 °C . It offers 10Gbps high-speed network connectivity and media conversion between different connector types, along with advanced IEEE 802.3bt Type 4 power delivery on its copper port, which eliminates the need for separate power sources for devices like IP cameras. This converter excels in remote management as it is equipped with secure, standalone management features suitable for both remote enterprise and telecom operations. It supports a web interface , command line interface (CLI) , and SNMP for comprehensive, remote monitoring and management via PLANET CloudViewerPro and PLANET NMS . Featuring a 10GBASE-T copper port and a 10G SFP+ port , it combines the advantages of 10G connectivity with the versatility of both fiber and copper ports. Compact yet powerful, the IXT-900-1X1UP is an ideal choice for businesses seeking to enhance their network's speed and flexibility, making it a top choice for modern network upgrades. 10GBASE-T with 95W PoE++ Capability and 10GBASE-X SFP+ The IXT-900-1X1UP delivers a speed of up to 10Gbps over both copper and fiber-optic cabling, enhancing data transmission efficiency. Its 10GBASE-T copper interface with 5-speed auto-negotiation (10G/5G/2.5G/1G/100M) allows for high-speed data transfer over the existing Cat6/Cat6A cabling, avoiding costly upgrades. Furthermore, its IEEE802.3bt compatibility enables direct powering of Wi-Fi 7 APs, adding to its versatile network capabilities. The fiber-optic 10GBASE-X SFP+ interfaces support 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. 802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand for supplying stable PoE power to powered device, the IXT-900-1X1UP offers five different PoE power output modes for selection. 95W 802.3bt PoE++ Power Output Mode 95W Force Power Output Mode 95W Legacy Power Output Mode 36W End-span PoE Power Output Mode 36W Mid-span PoE Power Output Mode Intelligent Alive Check for Powered Devices The IXT-900-1X1UP can be configured to monitor the status of connected powered devices (PDs) in real time through ping action. If a PD stops working and responding, the IXT-900-1X1UP will recycle the PoE port power and bring the PD back to working condition. This greatly enhances reliability, as the assigned PoE port automatically reboots the PD, reducing the administrator's management burden. PoE Scheduling to Save Energy By implementing the "PoE schedule" function, businesses can reduce their energy consumption during non-business hours or periods of low network usage. This not only helps to reduce energy costs but also minimizes the overall carbon footprint of the organization. Furthermore, the IXT-900-1X1UP’s PoE scheduling feature provides a convenient and easy-to-use interface for managing power usage. The user can easily set the time intervals for each PoE port, allowing for more efficient power management. Scheduled Power Recycling The IXT-900-1X1UP enables connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. This will reduce the chance of IP camera or AP crashes resulting from buffer overflow. Link Fault Pass-through Link Fault Pass-through is a networking feature. It facilitates the detection and propagation of link faults or errors from one network device to another. It helps maintain network reliability and minimizes downtime by allowing devices to dynamically respond to link faults. Link Fault Pass-through improves fault detection and enables faster troubleshooting and resolution processes. How it works: When a link fault occurs, the device experiencing the fault generates a notification. This notification is then forwarded to other connected devices using Link Fault Pass-through. Upon receiving the link fault information, the connected devices become aware of the fault. This awareness enables them to take appropriate actions, such as rerouting traffic or disabling the affected port. Environmentally Hardened Design With the IP40 industrial case, the IXT-900-1X1UP provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C , the IXT-900 PoE series can be placed in almost any difficult environment. Network with Cybersecurity Helps Minimize Risks The IXT-900-1X1UP is equipped with enhanced cybersecurity features to fend off cyber threats and attacks. It supports SSHv2, TLSv1.2 , and SNMPv3 protocols to provide strong protection against advanced threats. Thus, transmitting data to a customer's critical equipment in a business network is very secure. The IXT-900-1X1UP protects network management and enhances the security of mission-critical networks without incurring any additional deployment cost or effort. Redundant Ring, Fast Recovery for Critical Network Applications The IXT-900-1X1UP supports software-based redundant ring technology and features strong, rapid self-recovery capability to prevent interruption and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, ensuring rapid self-recovery in ring networks. With this advanced feature, the data link recovery time can be as fast as 500ms . IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IXT-900-1X1UP helps the enterprises and telecoms step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. SNMP for Comprehensive Network Monitoring and Centralized Control SNMP (Simple Network Management Protocol) provides network monitoring and management capabilities by gathering real-time information about network devices. By proactively identifying and addressing network issues, reliability and performance are improved. SNMP also facilitates centralized control of network devices, allowing for monitoring and configuration of multiple devices from a single location, reducing manual effort and enhancing operational efficiency. Layer 2 Features The device has a 16K-entry MAC address table that automatically removes inactive addresses. Its backbone supports speeds of up to 40Gbps , and it can handle Jumbo Frames up to 9K in size. The device is equipped with Storm Control to manage Broadcast/Multicast/Unknown Unicast traffic to prevent excessive network flooding. Efficient Traffic Control The IXT-900-1X1UP media converter boasts advanced QoS features and robust traffic management capabilities, optimizing the delivery of business-class data, voice, and video solutions. Its feature set includes broadcast/multicast/unicast storm control, per-port bandwidth control, and 802.1p CoS/DSCP/IP Precedence QoS priority and remarking. These capabilities guarantee optimal performance for VoIP and video stream transmission, maximizing the utilization of limited network resources for enterprises. Intelligent SFP Diagnosis Mechanism The IXT-900-1X1UP supports the SFP-DDM (digital diagnostic monitor) function, which greatly helps network administrators easily monitor real-time parameters of the SFP transceivers. These parameters include optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IXT-900 series, from remote locations. Tailored for deployment in both enterprises and industries where the IXT-900 PoE series is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. Whether using UNI-NMS or the CloudViewerPro app, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight. Applications Gearing Up for Wi-Fi 7 with the IXT-900 PoE Series PLANET IXT-900-1X1UP is more than just a reliable media converter and 10G high-speed connector for office and factory environments. It is also equipped with IEEE802.3bt PoE++ support, perfectly aligning with the upcoming Wi-Fi 7 technology. This ensures a faster, more robust Wi-Fi deployment, especially in open areas like factories. Key Features Physical Port One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function One 10G/2.5G/1G/100BASE-X SFP+ interface Supports IEEE802.3bt PoE++ standard IEEE 802.3bt Power over Ethernet Compliant with IEEE 802.3bt Type-4 PoE++ standard Backward compatible with IEEE 802.3af/at PD device The RJ45 port on the IXT-900 PoE series delivers a maximum power output of 95 watts, which is also the maximum PoE budget the device can provide. Detects powered devices (PD) automatically. Power feeding up to 100m. PoE management features PoE admin-mode control PoE port power limit PD classification detection Intelligent PoE features Temperature threshold setting PoE usage threshold setting PD alive check PoE schedule Layer 2 Features Storm Control support Broadcast / Multicast / Unknown Unicast Supports VLAN IEEE 802.1Q tagged VLAN. Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad) Up to 256 VLAN groups, out of 4096 VLAN IDs Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based) Link Layer Discovery Protocol (LLDP) 16K MAC address table with auto-aging Jumbo Frame support up to 9K in size. Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all converter ports Strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification IEEE 802.1p CoS IP TOS / DSCP / IP Precedence IP TCP/UDP port number Typical network application Management IPv4 and IPv6 dual stack management Supports Link Fault Pass-through Supports Link Fault PoE Pass-through Management Interfaces Web HTTP/HTTPS management Telnet Command Line Interface SNMPv1, v2c, v3 monitoring SSHv2, TLSv1.2 System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default. Dual images Simple Network Time Protocol (SNTP) User privilege levels control SNMP Management SNMP trap for interface link up and link down notification. Four RMON groups (history, statistics, alarms and events.) Network Diagnostic SFP-DDM (Digital Diagnostic Monitor) Syslog remote alarm Local system Log ICMPv6 / ICMPv4 remote ping PLANET Smart Discovery Utility for convenient deployment PLANET Remote Management PLANET NMS Controller and CloudViewerPro app for central management Security IP address access management to prevent unauthorized intruder. Static MAC setting and MAC Filtering Protected ports Case and Installation Dual 12~54VDC external power supply -40 to 75°C operating temperature Supports 4KVDC Contact / 8KVDC Air Ethernet ESD protection. Wall-mount and DIN-rail installation

Especificaciones técnicas

Copper Interface

1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function support IEEE802.3bt PoE++ standard

Fiber Interface

1x 10G/2.5G/1G/100BASE-X SFP+ interface

Reset Button

< 5 sec.: System reboot > 5 sec.: Factory default

Connector

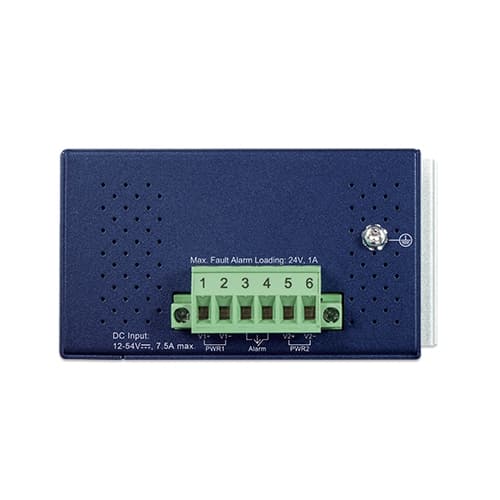

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC

Enclosure

IP40 metal case

ESD Protection

4KVDC Contact / 8KVDC Air

Installation

Wall-mount and DIN-rail kit installation

Dimensions (W x D x H)

50 x 86.4 x 135mm

Weight

659g

Power Requirement

12~54V DC

Power Consumption (IXT-900-1X1UP)

12VDC: 5.86W/20 BTU (No Loading) 70.8W/ 241.6 BTU (Full Loading) 54VDC: 6.3W/21.4 BTU (No Loading) / 102.7W/350.43 BTU (Full Loading)

LED Indicator

System: PWR 1/2, ( Green ) Alarm ( Red ) PoE: 802.3bt PoE-in-Use ( Green ) 802.3at PoE-in-Use ( Amber ) Per 10GBASE-T RJ45 Port: 100/1G LINK/ACT ( Green ) 2.5G/5G LINK/ACT ( Green ) 10G LINK/ACT ( Amber ) Per 10GBASE-X SFP+ Port: 100/1G LINK/ACT ( Green ) 2.5G LINK/ACT ( Green ) 10G LINK/ACT ( Amber )

Processing Scheme

Store and Forward

Fabric

40Gbps

Throughput (packet per second)

29.76Mpps@64bytes

Address Table

16K entries, automatic source address learning and aging

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Jumbo Frame

9K

Shared Buffer

12Mbits

PoE Standard

IEEE 802.3bt PoE++ Type-4 PSE Backward compatible with 802.3at PoE+ PSE

PoE Power Supply Type

802.3bt End-span Mid-span Legacy Force

Power Pin Assignment

802.3bt: 1/2(-), 3/6(+),4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-)

PoE Power Budget

95W

Port Configuration

Port disable/enable Auto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selection Flow control disable/enable

Port Status

Display each port’s link status, speed, Auto-negotiation status, duplex mode, flow control status

VLAN

IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 256 VLAN groups, out of 4096 VLAN IDs

Bandwidth Control

Per port bandwidth control Ingress: 16~10,000,000Kbps Egress: 16~10,000,000Kbps

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: CoS/802.1p DSCP IP Precedence

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 500ms

Access Security

Remote management protocols support: SSH, Telnet, HTTP and HTTPs Protected ports

Basic Management Interfaces

Telnet, Web browser, SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS Controller PLANET CloudViewerPro mobile app

Event Management

Remote syslog Local system log SNMP trap

SNMP MIBs

RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 3411 SNMP-Frameworks-MIB LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3bz, 2.5G/5GBASE-T IEEE 802.3an, 10GBASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3ae 10GBASE-SR/LR IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP RFC 768 UDP RFC 2474 DSCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP ITU-T G.8032 ERPS Ring

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
