KVM-210-08 — 8-Port Combo KVM Switch

Descripción

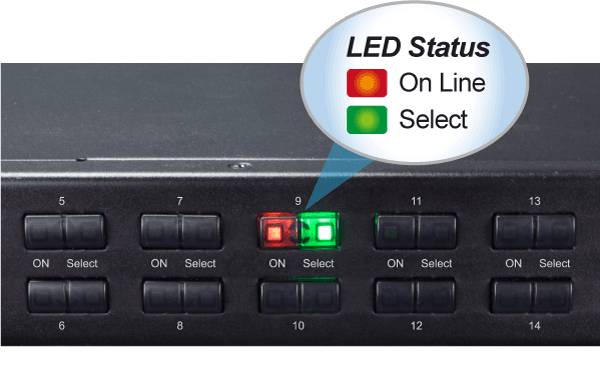

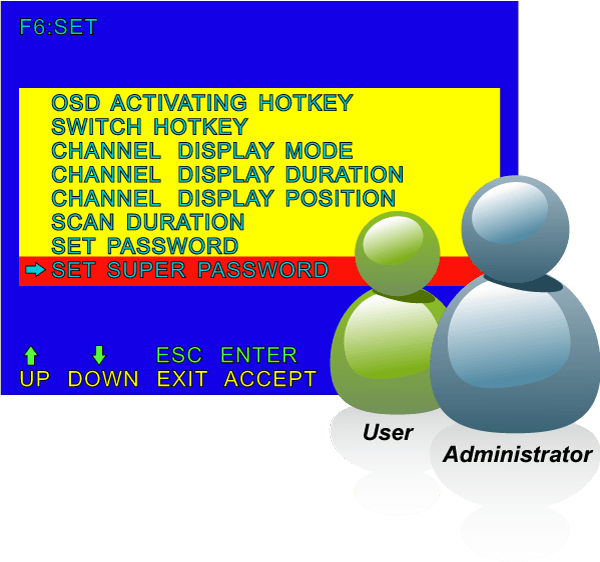

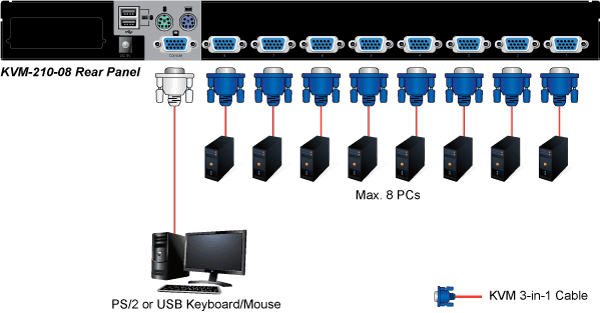

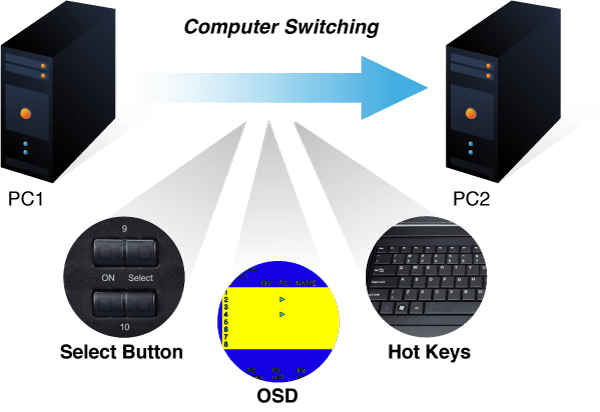

Easily Control Servers with Flexibility PLANET offers an ideal enterprise 8-port KVM switch solution for company server room or testing facilities. The KVM-210-08 8-port Combo KVM Switch features the patented design of the availability of USB and PS/2 interface connection, user-friendly OSD utility and daisy-chain function. The KVM switch solution frees up more table and rack space for users in addition to saving the cost of multiple keyboards, mice and monitors. Computer Switching There are three convenient methods to access any computer connected to the installation: Port select button Hotkeys on keyboard OSD (on screen display) Flexible LED Display You could check the computer status on the front LED of the KVM-210-08. "Red" indicates that a computer is connected to the corresponding port and "Green" indicates that the computer connected to the corresponding port has focus. Two Level Password Security Protection Two level password security only authorizes up to one user and an administrator with a separate profile for each user. Easy to Install Simply plug cables into their appropriate ports. There is no software to configure, and no incompatible problems. It works on multiple operating platforms like Windows, Linux, Mac, Sun, etc. Powerful Mouse/Keyboard Support In the present computer applications, a mouse has become an indispensable device. The KVM-210-08 fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination. Applications Standalone Operation The KVM-210-08 allows access and controls up to 8 computers from a single console (Keyboard, mouse and monitor). Cascade Operation By cascading to 8 KVM switches, it can control up to 64 servers. Key Features Hardware 1U rack-mount size and desktop design Standalone machine controls up to 8 sets of computers Up to 2 levels can be cascaded and up to 64 computers can be controlled Front panel status LEDs give a clear indication of the active computers Supports a high resolution of up to 2048 x 1536 and 350MHz of bandwidth Security Two-layer password security protection Management Auto scan mode for monitoring computers Requires no additional software or hardware Computer selection via Port Select Button, Hotkey and On Screen Display (OSD) Hot pluggable: Add or remove computers without having to power down the switch QVS (Quick View Setting): Quickly select your computer by naming or SN number Compatibility Multiplatform support -- Windows, Linux and Sun Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice

Especificaciones técnicas

Number of Ports

8

Maximum

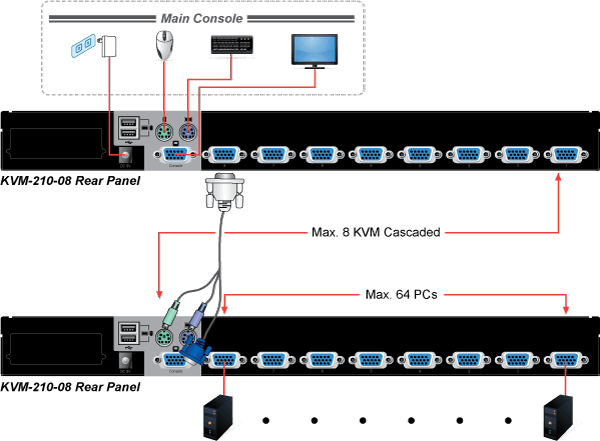

64 by cascading (KVM-210-08 x 8)

PC Ports

Keyboard: PS/2 female + USB Type A female Mouse: PS/2 female + USB Type A female Video: 8 x HDB-15 female

Keyboard

: PS/2 female + USB Type A female

Mouse

: PS/2 female + USB Type A female

Video

: 8 x HDB-15 female

Console Ports

Keyboard: PS/2 female + USB Type A female Mouse: PS/2 female + USB Type A female Video: 1 x HDB-15 female

Video

: 1 x HDB-15 female

LED

On Line: 8 Selected: 8

On Line

: 8

Selected

: 8

Button

Reset: 1 Select: 8

Reset

: 1

Select

: 8

Video Resolution

2048 x 1536

Housing

Metal

Dimensions (W x D x H)

432 x 155 x 44 mm

Weight

2.22kg

Power Requirement

9V DC, 1A

Installation

1U rack-mountable, desktop

PC Selection

Port select button Hotkeys on keyboard OSD (on screen display)

Scan Interval

5~60 seconds

Security

User password and super password

Operating Temperature

-10 ~ 50 degrees C

Operating Humidity

0 ~ 90%

Regulatory

CE, FCC
