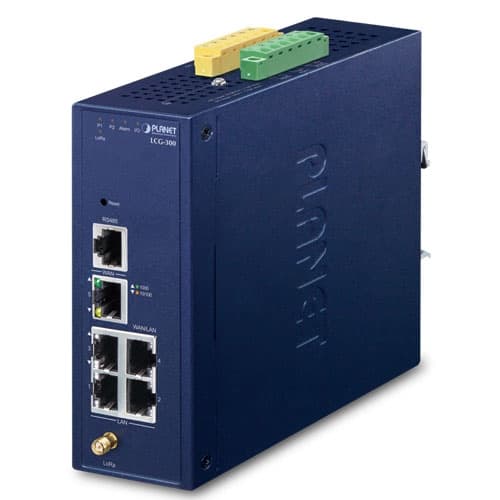

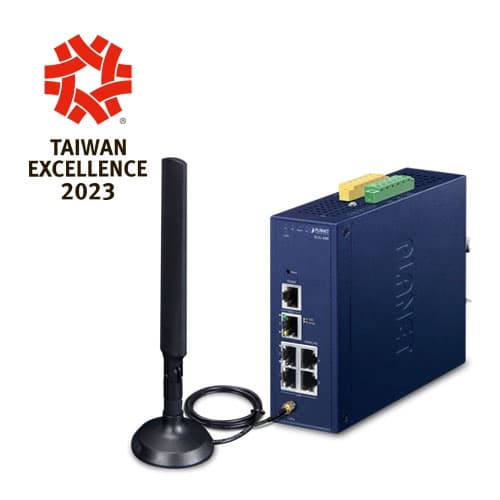

LCG-300 — Industrial LoRaWAN Gateway with 5-Port 10/100/1000T

Descripción

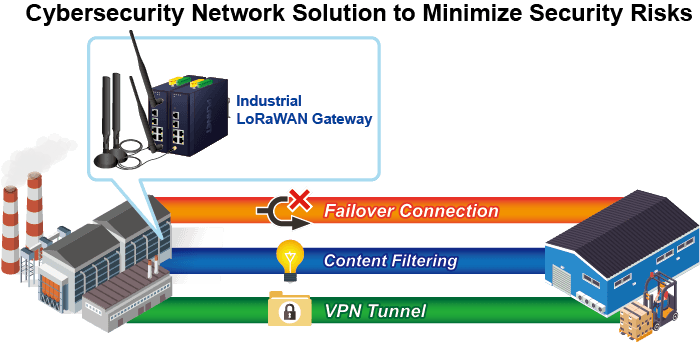

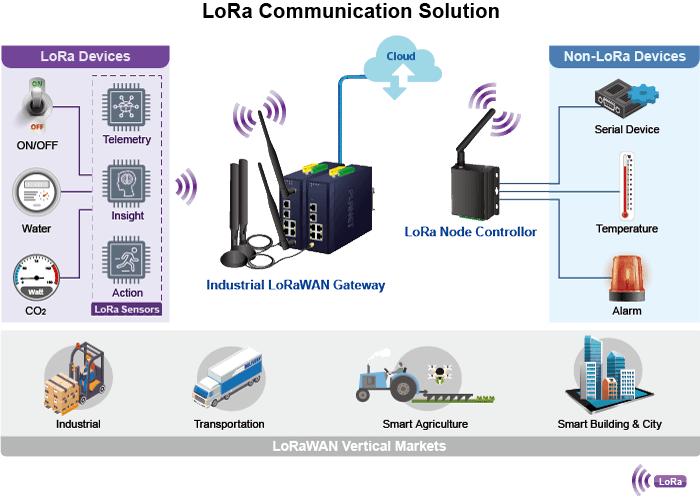

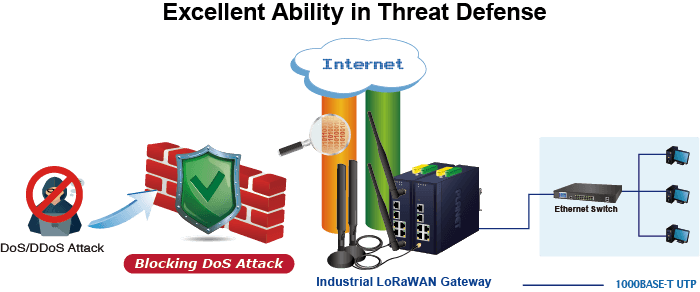

Connect to LoRa Network with Excellent LoRaWAN Gateway PLANET LCG-300 is an industrial-grade LoRaWAN gateway with reliable connectivity for IoT deployments. With LoRaWAN protocol support, it helps to bridge LoRa wireless network to an IP network. The LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption. The LCG-300 is fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300 is a best choice to help you to promote the implementation of AIoT network. Comprehensive features for Industrial environemnt The LCG-300 also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS-485), and DI and DO interfaces designed in a compact yet rugged metal case. The LCG-300 also features several main categories across your industrial network deployments: SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Cybersecurity and SPI firewall security protection Easy management with setup wizard, DHCP server and dashboard LoRaWAN Compatibility LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space. The LCG-300 is LoRaWAN compatible and make sure it works well with LoRa sensor without any propblem. Enhance IoT Efficiency with LCG-300 Series The LCG-300 series gateways support the expanding LoRa IoT ecosystem by converting sensor data into easily readable JSON format. This feature allows sensor data to be read without the need for external applications to parse the data, thus significantly simplifying the data integration process and reducing the time required to deploy IoT solutions. Additionally, the built-in MQTT broker in the LCG-300 series facilitates data parsing and collection, enabling users to obtain data quickly and conveniently. This is possible both through the internal MQTT broker and an external MQTT broker. This functionality helps reduce the costs associated with building network servers and minimizes the complexity of the network architecture. Excellent Ability in Threat Defense The LCG-300 has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-300 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-300 offers an easy-to-use, platform independent management and configuration facility. The LCG-300 supports SNMP and it can be managed via any management software based on the standard SNMP protocol. Applications LoRa Communication Solution PLANET LCG-300 LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300 can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly. Key Features Highlights Supports EU868, US915, AS923 (Sub 1G) 8 programmable parallel demodulation paths 2 x DI/DO and 1 serial port (RS485) for Modbus applications SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful packet inspection (SPI) firewall and content filtering Blocks DoS/DDOS attack, port range forwarding Planet NMS controller system and CloudViewer app supported -45 to 75 degrees C operating temperature; DIN-rail and fanless designs Hardware 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X 1 x LoRa antenna 1 x serial console port (RS485) 1 x reset button LoRa Interface Supports EU868/AU915/US915/AS923(Sub 1G) 8 programmable parallel demodulation paths IP Routing Feature Static route Dynamic route OSPF Firewall Security Cybersecurity Stateful Packet Inspection (SPI) firewall Blocks DoS/DDoS attack Content filtering MAC filtering and IP filtering NAT ALGs (Application Layer Gateway) Blocks SYN/ICMP flooding VPN Features IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN) Max. Connection Tunnel Entries: 60 VPN tunnels, Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Networking Outbound load balancing Failover for dual-WAN Static IP/PPPoE/DHCP client for WAN DHCP server/NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 Port forwarding; QoS; DMZ; IGMP; UPnP; SNMPv1,v2c, v3 MAC address clone DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP Others Setup wizard Dashboard for real-time system overview Supported access by HTTP or HTTPS Auto reboot PLANET NMS System and Smart Discovery Utility for deployment management Planet CloudViewer app for real-time monitoring

Especificaciones técnicas

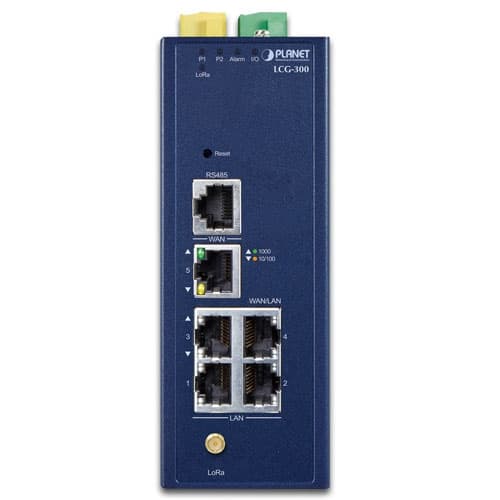

Copper Ports

5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5)

Serial Interface

RJ45 serial port

LoRa Antenna

2 dBi external antennas with SMA connectors for LoRa

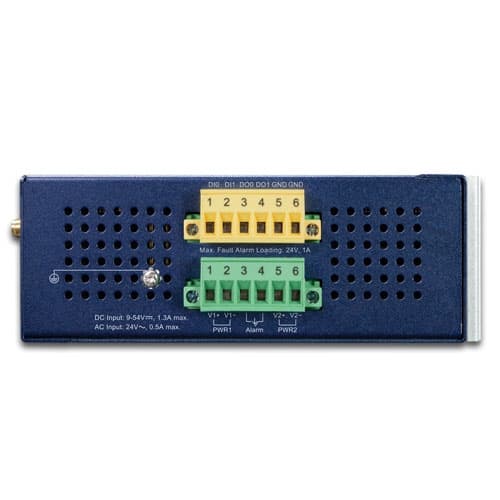

DI & DO Interfaces

2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max.

Connector

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Enclosure

IP30 metal case

Installation

DIN-rail, desktop, wall-mounting

LED Indicators

System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) LoRa (Green) Ethernet Interfaces (Ports 1-4 and WAN Port): 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber)

Dimensions (W x D x H)

50 x 135 x 135 mm

Weight

0.9 kg

Power Requirements – DC

9~54V DC, 1.3A Max.

Power Consumption

8 watts/ 27.3 BTU

Frequency Band

LCG-300-EU:863~870MHz (IN865/EU868/RU864) LCG-300-US: 902~928MHz (US915/AU915/KR920/AS923)

Receiving Sensitivity

-142.5dBm

Output Power

27dBm Max.

VPN

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)

VPN Tunnels

Max. 60

VPN Throughput

Max. 60Mbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encrypting

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported

Secure Management Interfaces

SSHv2, TLSv1.2, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics

Regulatory Compliance

CE, FCC

Operating

Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
