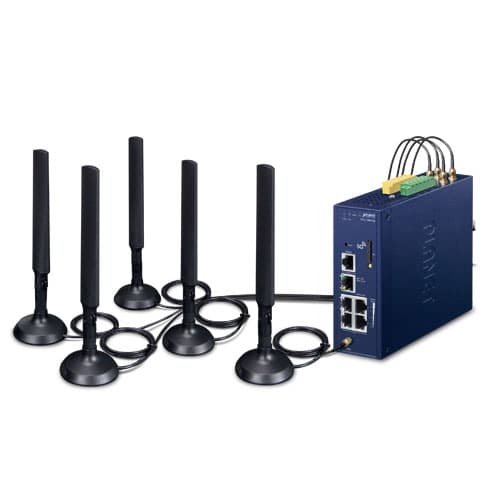

LCG-300-NR — Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T

Descripción

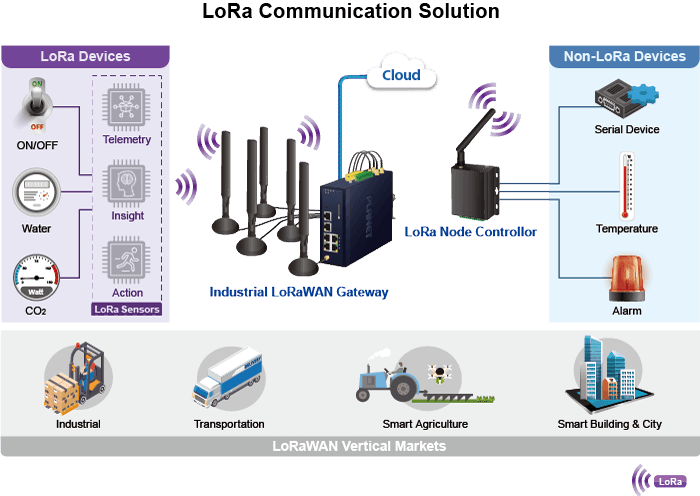

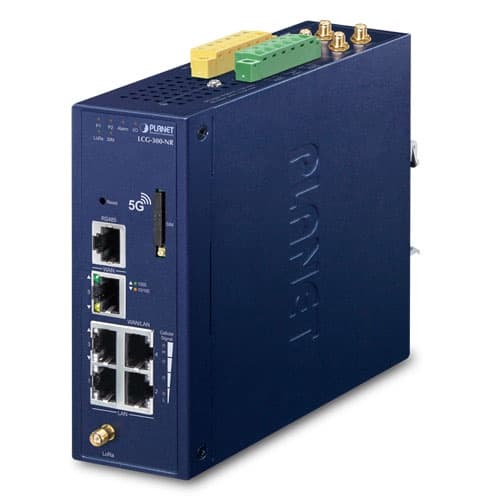

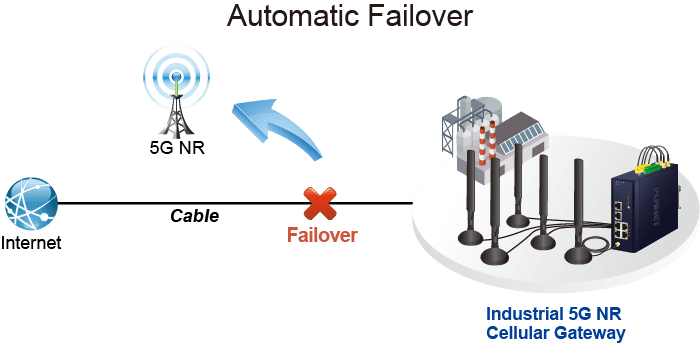

Connect to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway PLANET LCG-300-NR is an industrial-grade 5 G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network. The LCG-300-NR also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS-485), and DI and DO interfaces designed in a compact yet rugged metal case. It establishes a fast 5G NR cellular connection between the Ethernet equipped devices. The LCG-300-NR is an integrated 5G NR and LoRaWAN solution for System Integrators, ISPs and Enterprises. The LCG-300-NR LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption, and is fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300-NR is the best choice to help you to promote the implementation of AIoT network. Automatic Failover between 5G NR and Dual WAN With 5G NR, and dual Gigabyte Ethernet WAN interfaces, the LCG-300-NR ensures Internet connectivity by featuring failover functionality between 5G NR and dual WAN. It provides flexibility to set priority for 5G NR or dual WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity. Ultra-Fast Speed 4G/5G Network* The LCG-300-NR supports 5G NR DL ( downlink) speeds higher than 2.4 Gbps and 4G LTE DL speeds of up to 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. It also supports multi-band connectivity including LTE FDD/TDD and WCDMA for a wide range of applications. *The real 5G NR/4G LTE data rate is dependent on local service provider. GPS Included The LCG-300-NR is equipped with (global positioning system) feature. It adapts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked. LoRaWAN Compatibility The LCG-300-NR is LoRaWAN compatible and make sure it works well with LoRa sensor without any problem. LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space. Enhance IoT Efficiency with LCG-300 Series The LCG-300 series gateways support the expanding LoRa IoT ecosystem by converting sensor data into easily readable JSON format. This feature allows sensor data to be read without the need for external applications to parse the data, thus significantly simplifying the data integration process and reducing the time required to deploy IoT solutions. Additionally, the built-in MQTT broker in the LCG-300 series facilitates data parsing and collection, enabling users to obtain data quickly and conveniently. This is possible both through the internal MQTT broker and an external MQTT broker. This functionality helps reduce the costs associated with building network servers and minimizes the complexity of the network architecture. Ideal High-Availability VPN Security Router Solution for Industrial Environment The LCG-300-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the LCG-300-NR makes the connection secure, more flexible, and more capable. Excellent Ability in Threat Defense The LCG-300-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-300-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-300-NR offers an easy-to-use, platform independent management and configuration facility. The LCG-300-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol. Maximizing Work Efficiency with PLANET SD-WAN Gateway PLANET LCG-300-NR incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs. Applications 5G NR Cellular Communication Solution PLANET LCG-300-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the LCG-300-NR provides failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications. LoRa Communication Solution PLANET LCG-300-NR LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300-NR can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly. Key Features Highlights Global 5G NR (NSA/SA)/4G LTE network with SIM design for cellular network redundancy Automatic failover between 5G NR and Gigabit WAN Supports EU868, US915, AS923 (Sub 1G) 8 programmable parallel demodulation paths 2 x DI/DO and 1 serial port (RS485) for Modbus applications SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful packet inspection (SPI) firewall and content filtering Blocks DoS/DDOS attack, port range forwarding Planet NMS controller system and CloudViewer app supported -45 to 75 degrees C operating temperature; DIN-rail and fanless designs Hardware 3 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X 1 x 10/100/1000BASE-T RJ45 LAN/WAN port, auto-negotiation, auto MDI/MDI-X 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X 4 x 5G NR antennas 1 x SIM card slot 1 x LoRa antenna 1 x RJ45 type RS485 for Modbus TCP 1 x reset button Cellular Interface Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA Built-in SIM and broadband backup for network redundancy Four detachable antennas for 5G NR connection LED indicators for signal strength and connection status LoRa Interface Supports EU868/AU915/US915/AS923(Sub 1G) 8 programmable parallel demodulation paths IP Routing Feature Static route Dynamic route OSPF Firewall Security Cybersecurity Stateful Packet Inspection (SPI) firewall Blocks DoS/DDoS attack Content filtering MAC filtering and IP filtering NAT ALGs (Application Layer Gateway) Blocks SYN/ICMP flooding VPN Features IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN) Max. Connection Tunnel Entries: 60 VPN tunnels, Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Networking Outbound load balancing Failover for dual-WAN Static IP/PPPoE/DHCP client for WAN DHCP server/NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 Port forwarding; QoS; DMZ; IGMP; UPnP; SNMPv1,v2c, v3 MAC address clone DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP Others Setup wizard Dashboard for real-time system overview Supported access by HTTP or HTTPS Auto reboot PLANET NMS System and Smart Discovery Utility for deployment management Planet CloudViewer app for real-time monitoring

Especificaciones técnicas

Ethernet

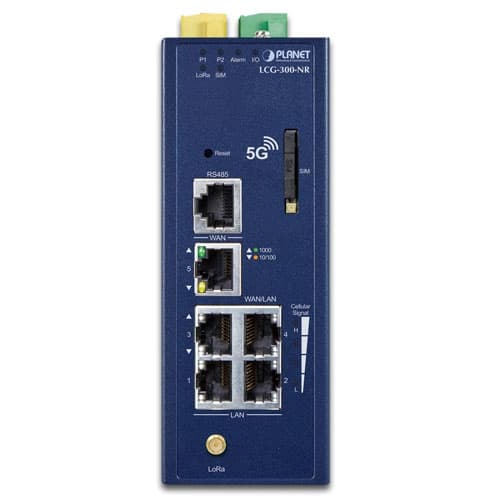

5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5)

Serial Interface

RJ45 type RS485 for Modbus TCP

Cellular Antenna

5 dBi external antennas with SMA connectors for 5G-NR

SIM Interface

1 SIM card slot with mini SIM card tray

LoRa Antenna

2 dBi external antennas with SMA connectors for LoRa

DI & DO Interfaces

2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max.

Connector

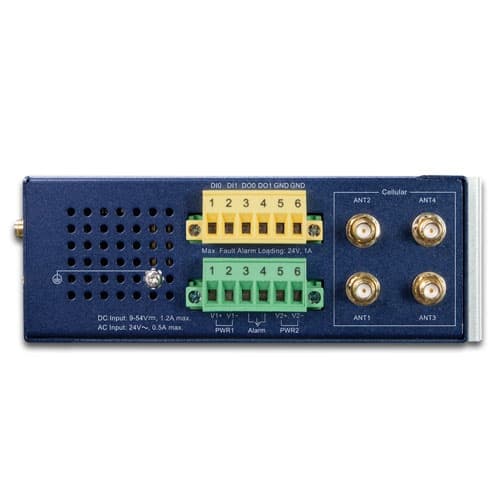

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Enclosure

IP30 metal case

Installation

DIN-rail, desktop, wall-mounting

LED Indicators

System: P1, P2, LoRa, SIM ( Green ) Alarm, I/O ( Red ) Interfaces (Ports 1-4 and WAN Port): 1000 LNK/ACT ( Green ) 10/100 LNK/ACT ( Amber cellular signal 4 levels ( Green )

Dimensions (W x D x H)

50 x 135 x 135 mm

Weight

924g

Power Requirements – DC

9~54V DC, 1.5A Max.

Power Consumption

Max. 3.9 watts/13.2 BTU (No Loading) Max. 11.6 watts/39.5 BTU (Full loading)

Frequency Band

LCG-300-NR-EU:863~870MHz (IN865/EU868/RU864) LCG-300-NR-US: 902~928MHz (US915/AU915/KR920/AS923)

Receiving Sensitivity

-142.5dBm

Output Power

27dBm Max.

5G SUB6 BANDS

NSA： n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/ n66/n70/n71/n75/n76/n77/n78/n79 SA： n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/n66/n70/n71/n75/n76/n77/n78/n79

LTE BANDS

FDD：B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71 TDD：B34/B38/B39/B40/B41/B42/B43/B48 LAA：B46

UMTS BANDS

FDD ：B1/B2/B8/B4/B5/B19 MAX DL SPEED: DL3.4Gbps; UL 550 Mbps GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS TDD ：MAX DL SPEED DL 2.4 Gbps; UL 900 Mbps

WCDMA

B1/B2/B3/B4/B5/B8

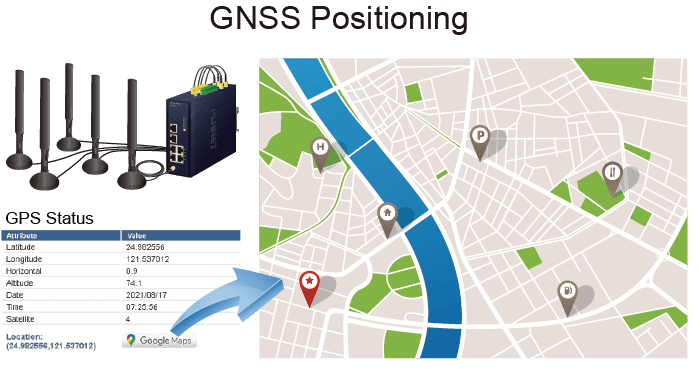

GNSS

GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS

Data Transmission Throughput

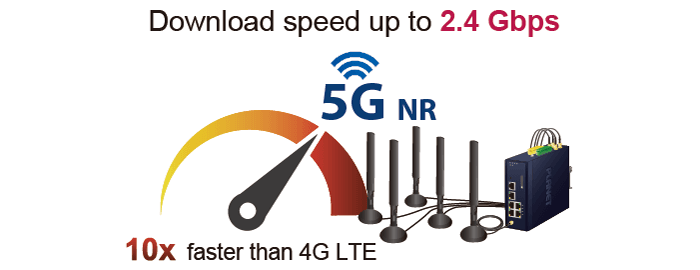

2.4Gbps (DL)/500Mbps (UL) for NR 1Gbps (DL)/200Mbps (UL) for LTE 42Mbps (DL)/5.76Mbps (UL) for HSPA+

Firewall Security

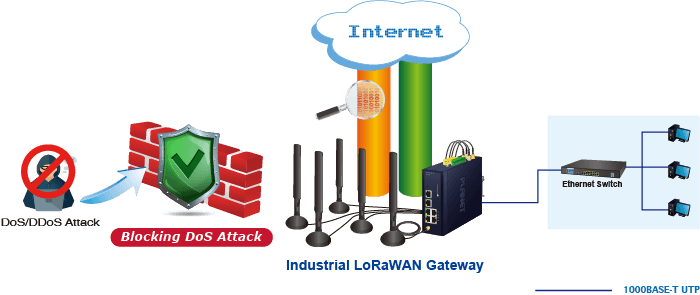

Cybersecurity SSL (HTTPS) Inspection Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack

NAT

Port forwarding DMZ Host UPnP

Content Filtering

MAC filtering IP filtering Web filtering

Bandwidth Management

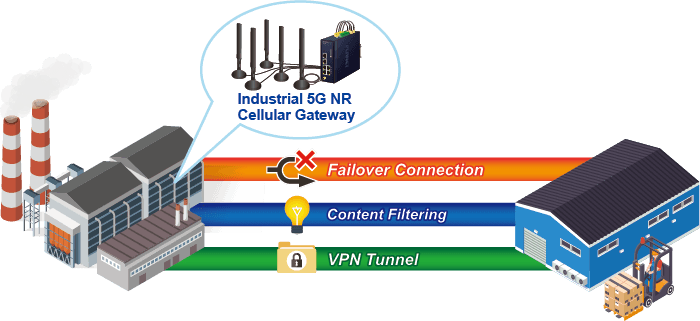

Outbound load balancing Failover for dual-WAN QoS (Quality of Service)

Operation Mode

Routing mode

Routing Protocol

Static Route, Dynamic Route (RIP), OSPF

VLAN

802.1q Tag-based, Port-based, Multi-VLAN

Multicast

IGMP Proxy

NAT Throughput

Max. 900Mbps

Outbound Load Balancing

Supported algorithms: Weight

Protocol

IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,

Key Features

HA (High Availability) Captive Portal RADIUS Server/Client AP Control

VPN Function

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)

VPN Tunnels

Max. 60

VPN Throughput

Max. 108Mbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encrypting

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported

Secure Management Interfaces

SSHv2, TLSv1.2, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics

Regulatory Compliance

CE, FCC

Operating

Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
