LCG-350W-NR — Industrial Outdoor LoRaWAN 5G NR Cellular Gateway

Descripción

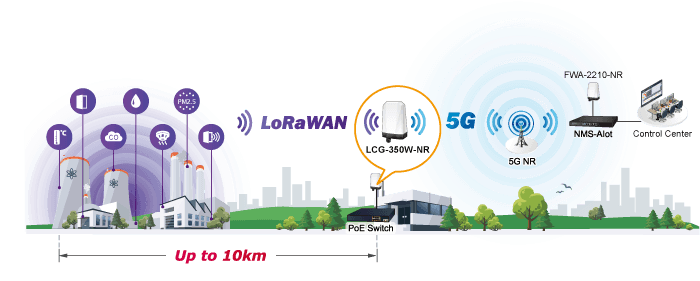

Connecting to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway PLANET LCG-350W-NR is an Industrial-grade Outdoor 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network. The LCG-350W-NR offers seamless wireless connectivity through compliance with IEEE 802.11b/g/n standards and is optimized for diverse LoRa applications with support for multiple frequency bands. Thus, the LCG-350W-NR is perfect for diverse regional applications. It provides secure wired network access via a 10/100BASE-T Ethernet interface with PoE+ and built-in electromagnetic isolation protection. The LCG-350W-NR is built to endure harsh conditions, featuring an IP67 rating for dust and water resistance and operating in a wide temperature range. It includes integrated power protection, an MQTT broker for IoT data communication, strong VPN security, and compatibility with remote management systems. The LCG-350W-NR is the ideal choice for secure, reliable, and flexible networking in any scenario. U ltra-fast 4G/5G Network* The LCG-350W-NR supports 5G NR DL (downlink) speeds higher than 3.6 Gbps and 4G LTE DL speeds of up to 2 Gbps. Its wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. It also supports multi-band connectivity including LTE FDD/TDD and WCDMA for a wide range of applications. *The real 5G NR/4G LTE data rate is dependent on local service provider. GPS Included The LCG-350W-NR is equipped with global positioning system feature. It adopts the 5G-NR technology that incorporates multiple global navigation systems (BDS/GPS/GLONASS/GALILEO/QZSS/SBAS). It helps to position location of cellular gateway based on a network of satellites that continuously transmit necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked. LoRaWAN Compatibility The LCG-350W-NR is LoRaWAN-compatible, ensuring smooth operation with LoRa sensors. LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space. Enhanced IoT Efficiency with LCG-300 Series The LCG-300 series gateways support the expanding LoRa IoT ecosystem by converting sensor data into easily readable JSON format. This feature allows sensor data to be read without the need for external applications to parse the data, thus significantly simplifying the data integration process and reducing the time required to deploy IoT solutions. Additionally, the built-in MQTT broker in the LCG-300 series facilitates data parsing and collection, enabling users to obtain data quickly and conveniently. This is possible both through the internal MQTT broker and an external MQTT broker. This functionality helps reduce the costs associated with building network servers and minimizes the complexity of the network architecture. Ideal High-Availability VPN Security Router Solution for Industrial Environment The LCG-350W-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the LCG-350W-NR makes the connection more secure, flexible, and capable. Excellent Ability in Threat Defense The LCG-350W-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-350W-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-350W-NR offers an easy-to-use, platform-independent management and configuration facility. The LCG-350W-NR supports SNMP, allowing it to be managed via any management software based on the standard SNMP protocol. Maximizing Work Efficiency with PLANET SD-WAN Gateway PLANET LCG-350W-NR incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for managing multiple WAN. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs. Applications Integrated LoRa and 5G NR Cellular Communication Solution PLANET LCG-350W-NR LoRaWAN Gateway is the solution for AIoT applications, seamlessly integrating LoRa, LoRaWAN, and 5G NR cellular technologies to provide superior performance and connectivity. Supporting both LoRa and LoRaWAN standards, the LCG-350W-NR allows transceivers to work with various LoRaWAN sensor devices such as temperature, humidity, water leak sensors, smoke detectors, and PM2.5 sensors. Additionally, legacy sensors can be connected via LoRa Node controllers, capturing and transmitting critical data over long distances through the LoRa wireless network. The LCG-350W-NR then transmits the collected data via Ethernet or 5G NR to the Network Server, such as an AIoT device, which manages the network and efficiently distributes the data to the relevant applications. Thanks to the integration of the advanced 5G NR technology, the LCG-350W-NR surpasses the 100-meter limitation of RJ45 cables, enabling data transmission over vast distances without the constraints of wired connections. The LCG-350W-NR also includes advanced networking features such as VPN, Modbus, and comprehensive network management, making it highly versatile across various industries. Key Features Highlights Supports global 5G NR (NSA/SA) and 4G LTE with a Nano-SIM card slot for reliable cellular access. Compliant with IEEE 802.11b/g/n standards for wireless connectivity. Supports EU868, IN865, RU864, US915, AU915, KR920 and AS923 frequency bands for various regional applications. 8 programmable parallel paths for better data processing 10/100BASE-T Ethernet LAN interface with 802.11at PoE+ support and built-in 1.5KV electromagnetic isolation protection Built-in reverse phase, overvoltage, and lightning protection Supports both 100-277V AC input and 802.11at PoE+ power. Integrated MQTT broker for efficient IoT data communication Supports SSL VPN and robust hybrid VPN protocols (IPSec/PPTP/L2TP over IPSec) for secure data transmission. Features Stateful Packet Inspection (SPI) firewall and content filtering to block DoS/DDOS attacks and manage port range forwarding. Compatible with Planet NMS controller system and CloudViewerPro app for easy remote management and monitoring. Operates in -40°C to 75°C; IP67-rated for dust and water resistance. Hardware 1 x 10/100BASE-T RJ45 LAN port with 802.3at PoE+ 2 x 5G NR antennas 1 x Nano-SIM card slot 1 x LoRa antenna 1 x Wi-Fi antenna 1 x GPS antenna 1 x reset button Cellular Interface Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA. Built-in SIM and broadband backup for network redundancy Four detachable antennas for 5G NR connection LED indicators for signal strength and connection status LoRa Interface Supports EU868, IN865, RU864, US915, AU915, KR920 and AS923. 8 programmable parallel demodulation paths RF Interface Characteristics Features 2.4GHz (802.11b/g/n) band for configuration. 2T2R MIMO technology for simple wireless connection IP Routing Feature Static route Dynamic route OSPF Firewall Security Cybersecurity Stateful Packet Inspection (SPI) firewall Blocks DoS/DDoS attack Content filtering MAC filtering and IP filtering NAT ALG (Application Layer Gateway) Blocks SYN/ICMP flooding VPN Features IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server and SSL Server/Client (Open VPN) Max. Connection Tunnel Entries: 30 VPN tunnels, Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Networking DHCP server/NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 Port forwarding; IGMP; UPnP; SNMPv1,v2c, v3 DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP MQTT Broker Others Setup wizard Dashboard for real-time system overview Supported access by HTTP or HTTPS Auto reboot PLANET NMS System and Smart Discovery Utility for deployment management Planet CloudViewerPro app for real-time monitoring

Especificaciones técnicas

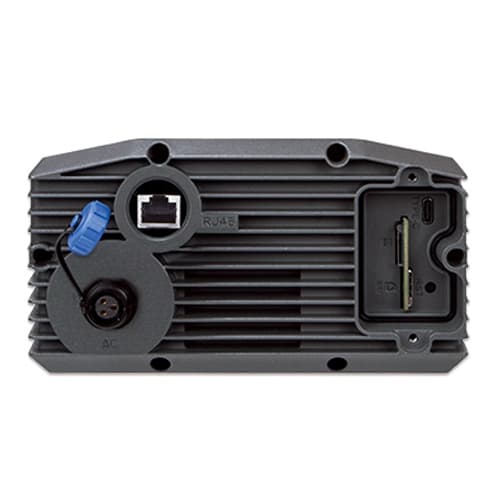

Ethernet

1 10/100BASE-T RJ-45 Ethernet

Cellular Antenna

2 x 3 dBi internal antennas

SIM Interface

1 Nano-SIM card slot

LoRa Antenna

2 dBi internal antenna

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Enclosure

IP67 rating

Installation

Wall hanging, pole mounting

LED Indicators

PWR ( Blue ) Internet ( Blue ) LoRa ( Blue ) 4G/5G ( Blue ) Wi-Fi ( Blue )

Dimensions (W x D x H)

156 x 89 x 241 mm

Weight

1045g

Power Requirements

48V DC IN, 0.5A, IEEE 802.3at PoE+ or　100~277V AC IN, 0.5A

Power Consumption

Max. 2.4 watts/8.19 BTU (No Loading) Max. 3.3 watts/11.26 BTU (Full loading)

Frequency Band

Suffixes 868: supported EU868, IN865, RU864 915: supported US915, AU915, KR920, AS923

Receiving Sensitivity

-140dBm

Output Power

26±1dBm

5G Sub6 Band

LCG-350W-NR-EU: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78 LCG-350W-NR-NA: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77

LTE Band

LCG-350W-NR-EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 LCG-350W-NR-NA: LTE FDD: B2/B4/B5/B12/B13/B29/B30/B66/B71 LTE TDD: B41/B46(LAA)/B48

WCDMA

LCG-350W-NR-EU: B1/B5/B8

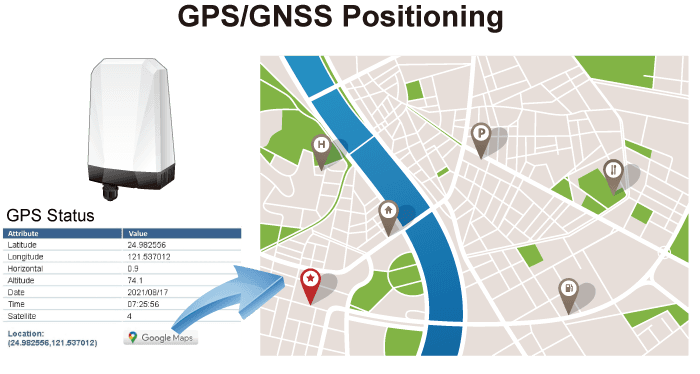

GNSS

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS

Data Transmission Throughput

3.4Gbps (DL)/350Mbps (UL) for 5G NR 2Gbps (DL)/150Mbps (UL) for LTE Cat20 42Mbps (DL)/5.76Mbps (UL) for HSPA+

Standard

IEEE 802.11b/g/n 2.4GHz

Band Mode

2.4G Only

Frequency Range

2.4GHz FCC: 2.412~2.462GHz ETSI: 2.412GHz~2.472GHz

Operating Channels

2.4GHz FCC: 1~11 ETSI: 1~13

Data Transmission Rates

Transmit: 150 Mbps* for 2.4 GHz Receive: 150 Mbps* for 2.4 GHz *The estimated transmission distance is based on the theory. The actual distance may vary in different environments.

Channel Width

20/40MHz

Transmission Power

11b: 26dBm ± 1dBm @11Mbps 11g: 24dBm ± 1.5dBm @54Mbps 11g/n: 20dBm ± 1.5dBm @MCS7, HT20 17dBm@MCS7,HT40

Encryption Security

WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) WPA3 personal 802.1x Authenticator

Wireless Advanced

Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering

Max. SSID

4

Max. Wireless Clients

64 (32 is suggested, depending on usage)

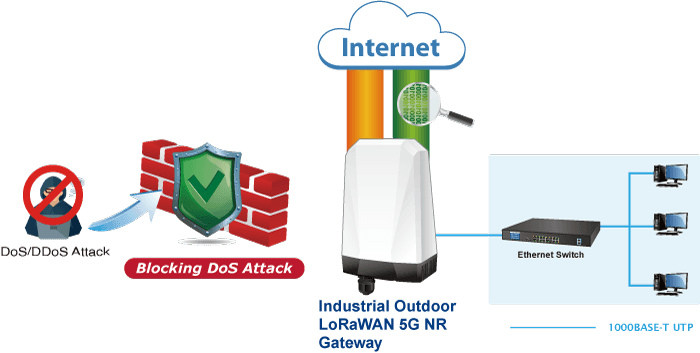

Firewall Security

Cybersecurity SSL (HTTPS) Inspection Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack

NAT

Port forwarding UPnP

Content Filtering

MAC filtering IP filtering Web filtering

Management

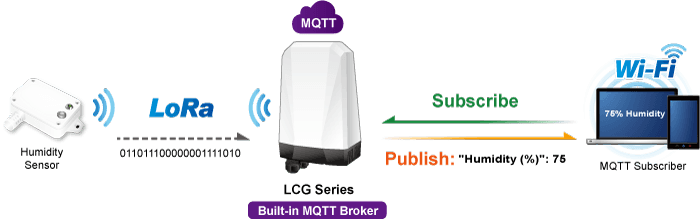

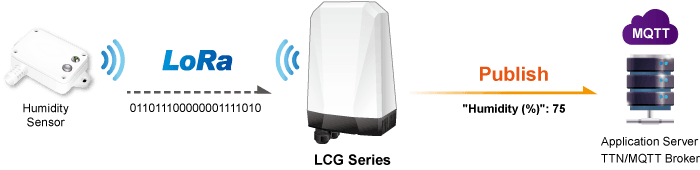

MQTT Broker

Operation Mode

Routing mode

Routing Protocol

Static Route, Dynamic Route (RIP), OSPF

Multicast

IGMP Proxy

Protocol

IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,

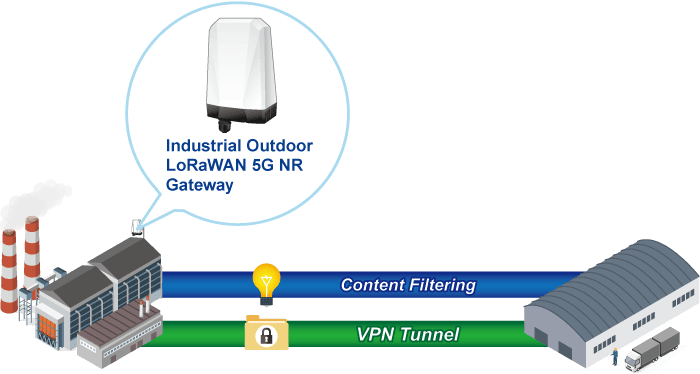

VPN Function

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)

VPN Tunnels

Max. 30

VPN Throughput

Max. 50Mbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encryption

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility and NMS controller supported PLANET CloudViewerPro app

Secure Management Interfaces

SSHv2, TLSv1.2/1.3, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics

Regulatory Compliance

CE

Electrostatic Discharge (ESD) Immunity Test

IEC 61000-4-2, Level 4

Surge Immunity Test

IEC 61000-4-5, Level 4

Electrical Fast Transient (EFT) Burst Immunity Test

IEC 61000-4-4, Level 4

Operating

Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
