LN501 — Outdoor IP67 LoRa Node Controller

Descripción

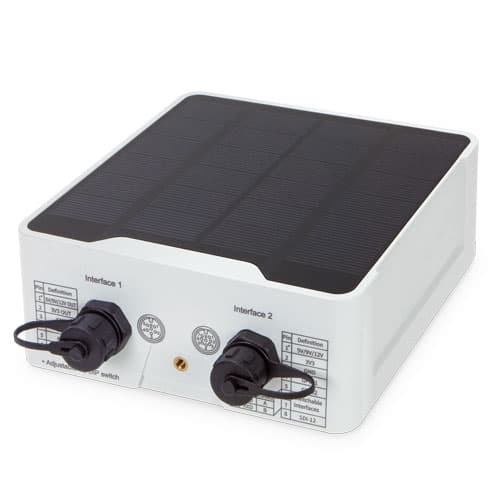

Feature-rich Sensor Hub for Connecting Sensors PLANET LN501 is an outdoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on to simplify the deployment and replacement of LoRaWAN networks. The LN501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar or built-in battery power supply and is equipped with IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. LoRaWAN-based Controller with Rich Industrial Interfaces The LN501 is LoRaWAN compatible and is with built-in multiple industrial interfaces to connect to all types of sensors, meters and other appliances. It also bridges Modbus data between serial and Ethernet network via LoRaWAN. The LN501 supports LoRaWAN class A and C protocol to be in full compatibility with standard LoRaWAN gateways including PLANET LCG-300 series. RS232 RS485 GPIO Analog Input SDI-12 The LN501 is ideal for large-scale IoT application deployments, such as projects for building automation, smart metering, HVAC system, etc. With multiple interfaces, PLANET LN501 can perfectly help retrofit legacy assets into IoT enablement. Key Features Highlights Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485/SDI-12 interfaces Long transmission distance up to 11km with line of sight Waterproof design including IP67 case and M12 connectors Solar powered and built-in battery (optional) Quick wireless configuration via NFC Compliant with standard LoRaWAN gateways and network servers

Especificaciones técnicas

Technology

LoRaWAN

Antenna

Internal Antenna

Frequency

LN501-868M: IN865, EU868, RU864 LN501-915M: US915, AU915, KR920, AS923

Tx Power

16dBm(868)/20dBm(915)

Sensitivity

-137dBm @300bps

Work Mode

OTAA/ABP Class A, Class C

Interface Type

M12 A-Coded Male

IO

Ports 2 × GPIO Logical Level Low: 0~0.9V, High: 2.5~3.3V Maximum Current 20 mA Work Mode Digital input, digital output, pulse counter

Serial Port

Ports 1 × RS232 or RS485 (Switchable) Baud Rate 1200~115200 bps Protocol Transparent (RS232), Modbus RTU (RS485)

Analog Input

Ports 2 × Analog input Resolution 12 bit Input Range 4~20mA or 0~10V (Switchable)

SDI-12

Ports 1 × SDI-12 Protocol SDI-12 V1.4

Power Output

Ports 2 × 3.3 V, 2 × 5/9/12 V (Switchable) Power Time Before Data Collection 0~10 minutes

Power On & Off

NFC, power button (Internal)

Configuration

PC software (via USB Type C or NFC)

Operating Temperature

-20°C to +60°C

Ingress Protection

IP67

Dimensions

116 × 116 × 45.5 mm

Power Connector

1 × M12 A-Coded Male Interface

Power Supply

Solar powered + 2 X 2550mAh battery backup + 5-24 VDC

Installation

Desktop, Wall mounting

Regulatory Compliance

CE, FCC
