LRP-111U-KIT — Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit

Descripción

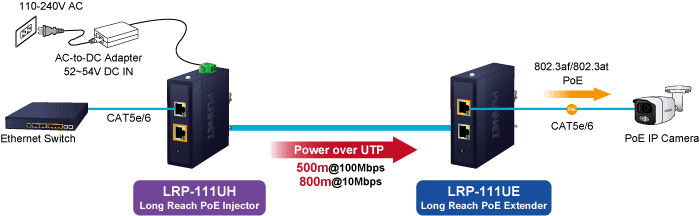

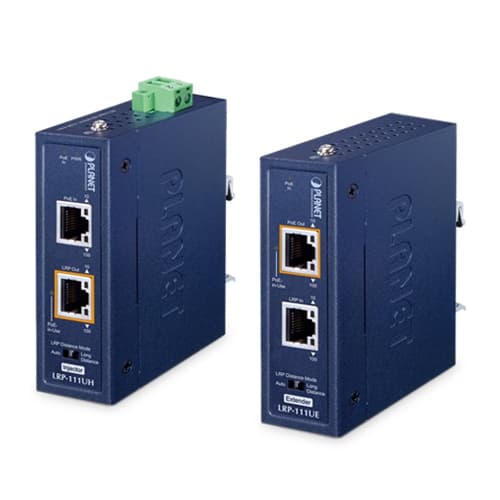

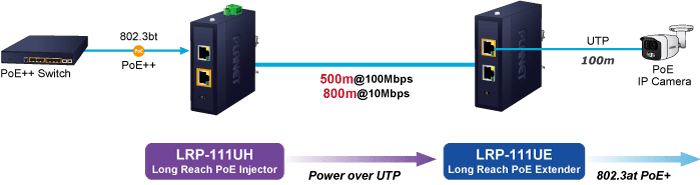

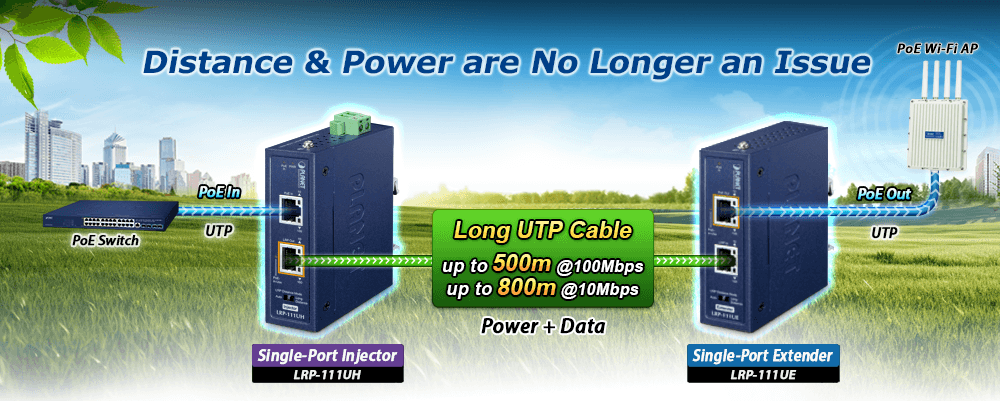

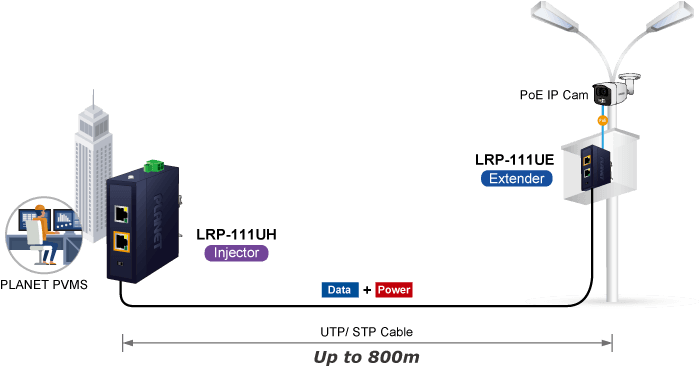

PLANET Long Reach PoE solution with a maximum range of over 1000 meters is designed to extend IP Ethernet transmission and inject power simultaneously into a remote PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet. Convenient PoE over UTP Extender in Harsh Environment The LRP-111U-KIT, a PLANET brandnew industrial-grade Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 800m (2,624ft.) over UTP/STP cable, and another Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3at/bt PoE . The LRP-111U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -40 to 75 degrees C . Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently. Composition of Long Reach PoE over UTP Extender Kit The LRP-111U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products: LRP-111UH : 1-Port 10/100TX 802.3bt PoE PD + 1-Port UTP Long Reach PoE Injector LRP-111UE : 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Extender The LRP-111UH transmits data and power over UTP/STP cable to the LRP-111UE, which can be located as far as 800m away. It will then deliver the data and power output with a maximum of up to 60 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing rated IP30 ,ensuring durability. Their wall-mounted design fits easily in any space-limited location. Functions LRP Injector LRP Extender LRP-111UH LRP-111UE Power Input RJ45 with 802.3bt PoE input or power supply with 52~54V DC in UTP with DC power over UTP input Power Output UTP with DC power over UTP output RJ45 with 802.3bt PoE output LAN Connection NVR or 802.3bt PoE Ethernet switch at head-end PoE IP camera, PoE wireless AP, PoE access control at remote site IP Ethernet and Power over Long UTP A normal UTP cable can only be extended up to 100 meters, but the LRP-111U-KIT can extend PoE networking up to 800 meters (2,624ft.) , enabling stable, high-quality video transmission . It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range. Stable Operating Performance under Difficult Environments PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, entertainment venues, and many more. They can operate stably under temperature ranging from -40 to 75 degrees C to enable the users to conveniently operate the kit in almost any location. Plug and Play Installation With the Plug and Play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network. Flexible and Easy Installation with Limited Space The compact-sized LRP-111U-KIT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location. Applications The LRP-111U-KIT includes two products: The LRP-111UH, an UTP Long Reach 802.3bt PoE Injector (LRP injector), and the LRP-111UE, an UTP Long Reach 802.3bt PoE Extender (LRP extender). Working in pair, the LRP-111UH can be powered by either external DC power supply or PoE++ Ethernet switch, and from there, the LRP-111UE’s 802.3bt standard PoE output goes to PoE Powered Device (PDs). The LRP-111U-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on. The LRP-111U-KIT can function in two different kinds of combinations: Type 1: LRP-111UH with PoE power input and LRP-111UE with PoE power output The LRP-111UH injector is powered by IEEE 802.3bt PoE source and it transmits data and power over UTP cable to the LRP-111UE extender. An IEEE 802.3bt compliant PoE PD will then automatically be powered by the LRP-111UE via UTP cabling. Functions LRP Injector LRP Extender LRP-111UH LRP-111UE Power Input power supply with 52~54V DC in UTP with DC power over UTP input Power Output UTP with DC power over UTP output RJ45 with 802.3bt PoE output Functions LRP Injector LRP Extender Type 2: LRP-111UH with 52~54V DC power input and LRP-111UE with PoE power output The LRP-111UH injector is powered via the DC power supply and it transmits data and power over UTP cable to the LRP-111UE extender. An IEEE 802.3bt compliant PoE PD will then automatically be powered by the LRP-111UE via UTP cabling. Functions LRP Injector LRP Extender LRP-111UH LRP-111UE Power Input power supply with 52~54V DC in UTP with DC power over UTP input Power Output UTP with DC power over UTP output RJ45 with 802.3bt PoE output Type 3: LRP-111UH with PoE power input and LRP-111UE with PoE power output The LRP-111UH injector is powered by an IEEE 802.3bt PoE switch, which needs to be set to extend mode. It transmits data and power over UTP cable to the LRP-111UE extender, reaching distances of up to 1150 meters. An IEEE 802.3bt compliant PoE PD will then automatically be powered by the LRP-111UE via UTP cabling. Key Features PoE over Long UTP Eliminates power cabling with PoE over UTP Supports Power over Ethernet PSE (PoE Injector) Power and Ethernet data transmission of 800m over UTP/STP cabling Complies with IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt Power over Ethernet PD on RJ45 port Supports Long Reach PoE power up to 70 watts (depending on power source and cable distance) Supports PoE Power up to 60 watts (depending on power source and cable distance) Auto detects remote powered device (PD) Plug and Play; no PC required Industrial Case and Installation Supports extensive LED indicators for network diagnostics Metal case protection Compact size, DIN-rail and wall-mount design Supports Ethernet ESD protection of 6KV DC -40 to 75 degrees C operating temperature Free fall, shock-proof and vibration-proof for industries 52~54V DC power with reverse polarity protection (LRP-111UH only)

Especificaciones técnicas

Model

LRP-111UH LRP-111UE

LRP-111UH

LRP-111UE

Functions

Long Reach PoE Injector Long Reach PoE Extender

Long Reach PoE Injector

Long Reach PoE Extender

Ethernet Interface

LRP-111UH LRP-111UE Copper 10/100BASE-TX RJ45 Half- or Full-duplex/Auto-Sensing, MDI/MDI-X Power over Ethernet Standard IEEE 802.3bt PoE PD (Powered Device) IEEE 802.3bt PoE PSE (Power Source Equipment) PoE Input Supports both mid-span and end-span PSE Input Range: 52~54V DC Supports both mid-span and end-span PSE PoE Output － 54V DC, 1.1A max PoE Budget － Up to 60 watts PoE Mode － End-span + Mid-span , RJ45 Pin 1/2(-), 3/6(+),4/5(+),7/8(-) Data Rate 10/100Mbps Cabling Cat5e or above UTP cable Maximum Distance 100m Maximum Frame Size 1522bytes

Copper

10/100BASE-TX RJ45 Half- or Full-duplex/Auto-Sensing, MDI/MDI-X

Power over Ethernet Standard

IEEE 802.3bt PoE PD (Powered Device) | IEEE 802.3bt PoE PSE (Power Source Equipment)

PoE Input

Supports both mid-span and end-span PSE Input Range: 52~54V DC | Supports both mid-span and end-span PSE

PoE Output

－ | 54V DC, 1.1A max

PoE Budget

－ | Up to 60 watts

PoE Mode

－ | End-span + Mid-span , RJ45 Pin 1/2(-), 3/6(+),4/5(+),7/8(-)

Data Rate

10/100Mbps

Cabling

Cat5e or above UTP cable

Maximum Distance

100m

Maximum Frame Size

1522bytes

Long Reach PoE Interface

LRP-111UH LRP-111UE Connectivity 1 x 10/100Mbps RJ45 connector Long Reach PoE over UTP PSE 1 x 10/100Mbps RJ45 connector Long Reach PoE over UTP PD Power Input － 52-54V DC Power Output 54V DC － Power Pin assignment RJ45 Pin 1, 2, 4, 5 VCC+ RJ45 Pin 3, 6, 7, 8 VCC- RJ45 Pin 1, 2, 4, 5 VCC+ RJ45 Pin 3, 6, 7, 8 VCC- Cabling Cat.5e or above UTP cable Maximum Distance Max. 500m with PoE++ output at 100Mbps (328ft.) Max. 800m with PoE++ output at 10Mbps (1,640ft.) Performance Distance Data Rate LRP-111UE 802.3bt PoE Output Capability LRP-111UH with 54V DC in LRP-111UH with bt PoE++ in 100m 100Mbps 65.62W 66.74W 200m 100Mbps 53.42W 57.77W 300m 100Mbps 38.82W 39.9W 400m 100Mbps 34.2W 35.374W 500m 100Mbps 27.26W 29.6W 600m 10Mbps 22.6W 23.754W 700m 10Mbps 17.91W 17.91W 800m 10Mbps 15.56W 15.56W Note： LRP-111UKIT has a maximum cable length of 800m with a speed of 10Mbps. At a cable length of 500m, the speed increases to 100Mbps.

Connectivity

1 x 10/100Mbps RJ45 connector Long Reach PoE over UTP PSE | 1 x 10/100Mbps RJ45 connector Long Reach PoE over UTP PD

Power Input

－ | 52-54V DC

Power Output

54V DC | －

Power Pin assignment

RJ45 Pin 1, 2, 4, 5 VCC+ RJ45 Pin 3, 6, 7, 8 VCC- | RJ45 Pin 1, 2, 4, 5 VCC+ RJ45 Pin 3, 6, 7, 8 VCC-

Cabling

Cat.5e or above UTP cable

Maximum Distance

Max. 500m with PoE++ output at 100Mbps (328ft.) Max. 800m with PoE++ output at 10Mbps (1,640ft.)

Distance

Data Rate | LRP-111UE 802.3bt PoE Output Capability

LRP-111UH with 54V DC in

LRP-111UH with bt PoE++ in

100m

100Mbps | 65.62W | 66.74W

200m

100Mbps | 53.42W | 57.77W

300m

100Mbps | 38.82W | 39.9W

400m

100Mbps | 34.2W | 35.374W

500m

100Mbps | 27.26W | 29.6W

600m

10Mbps | 22.6W | 23.754W

700m

10Mbps | 17.91W | 17.91W

800m

10Mbps | 15.56W | 15.56W

DIP Switch

Long Reach port mode: Auto: Auto-negotiation mode with maximum 100Mbps data rate and 500 meters UTP cable distance Long Distance: Long Reach port congiured with 10Mbps data rate and supports up to 800 meters UTP cable distance

Connector

Removeable 2-pin terminal block

Power Consumption

LRP-111UH： Max. 3 watts (System On) Max. 98 watts (Ethernet + PoE Full Loading) LRP-111UE： Max. 4 watts (System On) Max. 98 watts (Ethernet + PoE Full Loading)

Dimensions (W x D x H)

30 x 70 x 104 mm

Weight

LRP-111UH： 240g LRP-111UE： 238g

Enclosure

IP 30 compact size Metal case

Installation

DIN-rail kit or wall-mount ear

ESD Protection

6KV DC

LED Indicators

LRP-111UH： 5 x LEDs PWR PoE In PoE In use Lan Speed (10: Green 100: Amber ) LRP Speed (10: Green 100: Amber ) LRP-111UE： 4 x LEDs PoE In PoE In use Lan Speed (10: Green 100: Amber ) LRP Speed (10: Green 100: Amber )

Regulation Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2) IEEE 802.3bt Power over Ethernet (802.3bt Type 3) IEEE 802.3bt Power over Ethernet (802.3bt Type 4)

Temperature

Operating: -40~75 degrees C Storage: -40~85 degrees C

Humidity

Operating: 5~90% (non-condensing) Storage: 5~95% (non-condensing)

Note

The speed and performance of the LRP-111U-KIT are related to the quality of the cable used.
