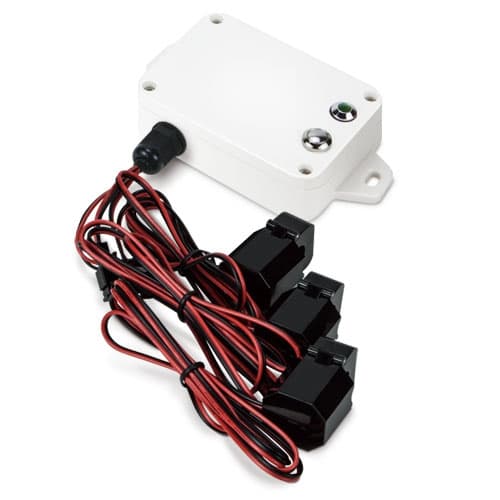

LS200-CM3 — IP53 LoRaWAN 3-Phase Current Meter

Descripción

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor PLANET LS200-CM3 IP53 LoRaWAN 3-phase Current Meter, designed for robust industrial power monitoring , excels with a maximum current measurement of 75A . Housed in a resilient IP53-rated enclosure, it ensures reliable operation in challenging environments. Utilizing LoRaWAN technology, the sensor enables real-time tracking of 3-phase electrical currents, optimizing energy usage and preventing equipment failures. With a focus on durability and precision, this current meter is indispensable for enhancing industrial operational efficiency , promoting energy conservation, and facilitating proactive maintenance in dynamic and demanding power systems. LoRa and LoRaWAN Wireless Technology LoRa is a low-power, wide area network (LPWAN) RF modulation technology. It standardizes LPWANs and enables extremely long-range data links. With a range of up to three miles (five kilometers) in urban areas and over 10 miles (15 kilometers) in rural areas (line of sight), LoRa is ideal for creating networks that require long-range or deep in-building communication. A key feature is its ultra-low power requirements, enabling the deployment of battery-operated devices that can last up to several years. Using the open LoRaWAN protocol in a star topology, it's suitable for applications with numerous low-power devices collecting small amounts of data. The LS series is ideal for LoRa-enabled devices in the IoT system. LoRaWAN-based Sensor PLANET LoRaWAN LS100/LS200 series Sensor is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems. LS100-WL IP65 LoRaWAN Water Leak Sensor LS100-PIR IP30 LoRaWAN Indoor Occupancy Sensor LS100-DW IP30 LoRaWAN Door and Window Sensor LS200-TH IP65 LoRaWAN Indoor Temperature and Humidity Sensor LS200-PT IP65 LoRaWAN Product Temperature Sensor LS200-TC IP65 LoRaWAN Machine Temperature Sensor LS200-RF IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor LS200-LG IP65 LoRaWAN Light Level Sensor LS200-CM3 IP53 LoRaWAN 3-phase Current Meter Applications LoRa Communication Solution PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner. Key Features 3-phase Current Meter with Clamp-On CT Measure 75A current maximum IP53 rating LoRaWAN™ Class A compatible

Especificaciones técnicas

Technology

LoRaWAN

Frequency

LS200-CM3-868M 863–870 MHz LS200-CM3-915M 902–928 MHz

TX Power

LS200-CM3-868M EU868 16dBm IN865 20dBm (optional) LS200-CM3-915M US915 20dBm AS923 16dBm (optional) AU915 20dBm (optional) KR920 14dBm (optional)

Rx Sensitivity

-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)

Work Mode

OTAA/ABP Class A

Power Supply

2x 3.6V ER14505 AA battery in parallel (Battery not included)

Operating Voltage

DC 3.1V～3.65V

Battery Life Time

5 years (25°C, 30-minute reports, TxPower=20dBm, SF10)

Standby Current

25µA

Wake-up Current (Typical value)

127mA

Low Battery Threshold

3.2V

Dimensions (L x W x H)

112 x 88.19 x 32 mm

Weight

141g

Sensor Dimensions (L x W x H)

27.5 x 25 x 42.5 mm

Sensor Weight

49.6 x 3g

Sensor Measurement Info

Current Measurement Range: 100mA to 75A Operating Temperature: -40℃ to 85℃

Ingress Protection

IP53

Operating Temperature

-20°C to 55°C

Relative Humidity

<90% RH (non condensing)

Storage Temperature

-40 °C ~ 85 °C

Regulatory Compliance

CE RED, FCC PART 15B
