MFB-Series Transceiver — 100BASE-FX SFP Transceiver

Descripción

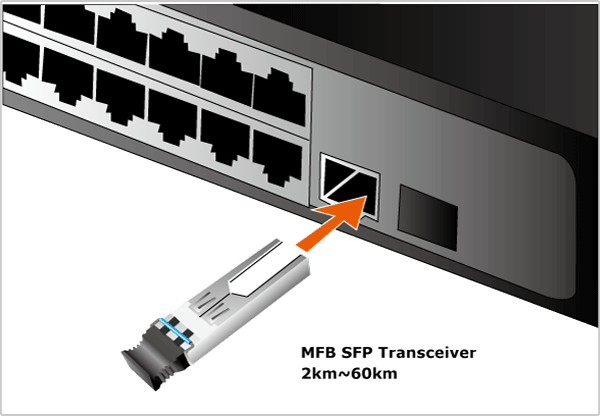

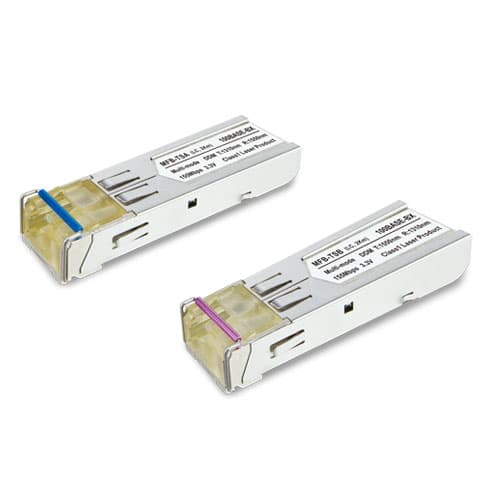

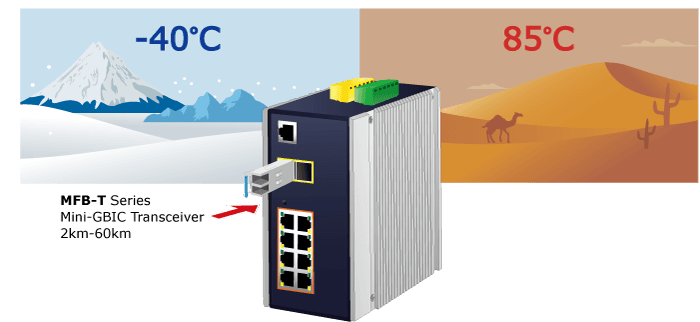

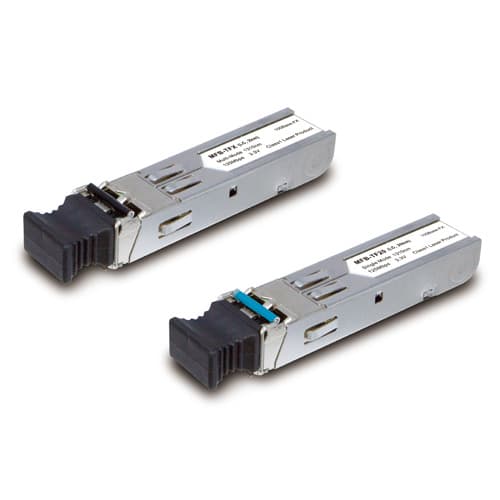

The MFB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation. The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber. To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100Base-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 85℃) environment. The MFB-T 100Base-FX transceiver series provides easy and fast 100Base-FX connection for Planet wide temperature industrial equipment. Applications The MFB family SFP Fast Ethernet transceivers can be installed in PLANET Switch and Media Converter products with 100Base-FX SFP interface. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 60 kilometers (Single-Mode, LC). The MFB family SFP Fast Ethernet transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to / from any SFP port without having to power off the Switch / Media Converter. The MFB-T 100Base-FX transceiver series is an ideal solution for -40℃ to 85℃ wide temperature industrial equipment with 100Base-FX SFP interfaces. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 20km (Single-Mode, LC). Key Features SFP Multi-Source Agreement compliant 125Mbps IEEE 802.3u 100Base-FX compliant Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 ) 125Mbps FDDI ISO / IEC 9314-1 compliant Serial ID functionality support AC-coupled differential inputs and outputs Class 1 laser safety standard IEC 825 compliant 2km link on a multimode fiber and 20km to 60km on a single mode fiber Low power dissipation 0 to 60 degrees C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-FA20 / MFB-FB20 -40 to 85 degrees C operating temperature for MFB-TFX / MFB-TF20 /MFB-TF120/MFB-TSA & MFB-TSB/MFB-TFA20 & MFB-TFB20/MFB-TFA40 & MFB-TFB40/MFB-TFA60 & MFB-TFB60

Especificaciones técnicas

PHY Type

IEEE 802.3u 100BASE-FX

Fiber Type

Multi-mode

Connector

LC

Speed

155Mbps (maximum)

Wavelength (TX/RX)

1310nm/1550nm

Maximum Distance

2km

Digital Diagnostics Monitoring

SFF-8472 DDM

Operating Temperature

-40 to +85 degrees C

Humidity

5% to 90% (non-condensing)

Wavelength (TX/RX)

1550nm/1310nm

PHY Type

100Base-FX

Fiber Type

Multi-Mode

Wavelength

1310nm

Operating Temperature

0 ~ 60 degrees C

Fiber Type

Single Mode

Maximum Distance

20km

Maximum Distance

40km

Maximum Distance

60km

PHY Type

100Base-BX

Connector

WDM / Bidi LC

Wavelength

TX: 1310nm, RX: 1550nm

Wavelength

TX: 1550nm, RX: 1310nm

Operating Temperature

-40 ~ 85 degrees C

Wavelength

1550nm

Maximum Distance

120km

Operating Temperature

-40~85 degrees C
