MGB-Series Transceiver — 1000BASE-SX/LX SFP Transceiver

Descripción

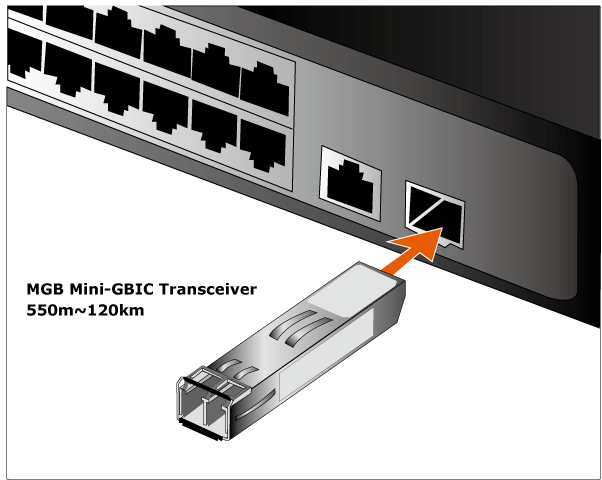

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation. The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP) to 550 meters (Multi-mode, LC), and up to 120 kilometers (Single-mode, LC). To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 85℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment. Applications The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media Converter products with 1000BASE-SX/LX/BX SFP interface. The deployment distance can be extended from 550m (Multi-mode, LC) to up to 120 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch/Media Converter. The MGB-T series 1000BASE-SX/LX/BX transceiver is an ideal solution for -40℃ to 85℃ wide temperature industrial equipment with 1000BASE-SX/LX/BX SFP interfaces. The deployment distance can be extended from 550m (Multi-mode, LC) to 10/20/40/80 kilometers (Single-mode, LC). Key Features Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard One 1000Mbps TP/LC fiber port Duplex/Single LC connector Differential PECL inputs and outputs Single power supply 3.3V TTL signal detection indicator Hot pluggable Class 1 laser product complies with EN 60825-1 Plug and Play Installation

Especificaciones técnicas

PHY Type

IEEE 802.3ab 1000BASE-T

Connector

RJ45 Copper

Maximum Distance

100m

Operating Temperature

0~60 degrees C

PHY Type

IEEE 802.3z 1000BASE-SX

Fiber Type

Multi-Mode

Connector

Dual LC/UPC

DDM

YES

Wavelength

850nm

Maximum Distance

550m

Wavelength

1310nm

Maximum Distance

2km

PHY Type

IEEE 802.3z 1000BASE-LX

Fiber Type

Single-Mode

Maximum Distance

20km

Maximum Distance

40km

Fiber Type

Single-mode

DDM

Yes

Wavelength

1550nm

Maximum Distance

80km

Maximum Distance

120km

Operating Temperature

-40~85 degrees C

Fiber Type

N/A

DDM

N/A

Wavelength

N/A

Fiber Type

Multi-mode

PHY Type

IEEE 802.3z 1000BASE-BX

Connector

Simplex LC/UPC

Wavelength

MGB-LA10: TX1310nm, RX1550nm MGB-LB10: TX1550nm, RX1310nm

Maximum Distance

10km

Wavelength

MGB-LA20: TX1310nm, RX1550nm MGB-LB20: TX1550nm, RX1310nm

Wavelength

MGB-LA40: TX1310nm, RX1550nm MGB-LB40: TX1550nm, RX1310nm

Wavelength

MGB-LA80: TX1490nm, RX1550nm MGB-LB80: TX1550nm, RX1490nm

Wavelength

MGB-TSA: TX1310nm, RX1550nm MGB-TSB: TX1550nm, RX1310nm

Wavelength

MGB-TLA10: TX1310nm, RX1550nm MGB-TLB10: TX1550nm, RX1310nm

Wavelength

MGB-TLA20: TX1310nm, RX1550nm MGB-TLB20: TX1550nm, RX1310nm

Wavelength

MGB-TLA40: TX1310nm, RX1550nm MGB-TLB40: TX1550nm, RX1310nm

Wavelength

MGB-TLA80: TX1490nm, RX1550nm MGB-TLB80: TX1550nm, RX1490nm

PHY Type

IEEE 802.3z 1000BASE-EZX

Wavelength

MGB-TLA120:　TX1490nm, RX1550nm MGB-TLB120:　TX1550nm, RX1490nm
