MGS-6311-24UPL6X — L3 24-Port 2.5GBASE-T 802.3bt PoE + 6-Port 10GBASE-X SFP+ Managed Ethernet Switch

Descripción

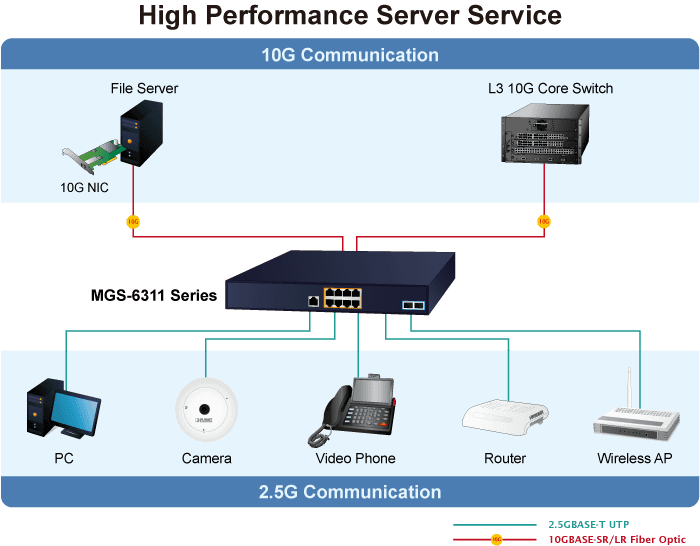

Perfect Managed Multigigabit Ethernet Switch with L3/L2 Switching and Security PLANET MGS-6311-24UPL6X is a brand-new Layer 3 managed multigigabit switch delivering 2.5Gbps over existing UTP, purpose-built for high-bandwidth edge such as Wi-Fi 6/6E/7 access points, NAS, and workstations with 2.5GBASE-T interfaces. It features 24 10/100/1000/2500BASE-T copper ports with IEEE 802.3bt PoE++ (up to 95W/port) and a total PoE budget up to 720W, plus 6 10GBASE-X SFP+ fiber uplinks to flexibly extend distance. The MGS-6311-24UPL6X provides high-density performance, Layer 3 static routing, RIP and OSPF. With six 10Gbps uplinks, it securely aggregates large volumes of traffic to enterprise backbones or high-capacity servers. Its comprehensive security enables effective traffic control for ISP and enterprise VoIP, video streaming and multicast applications. A smart fan design further balances cooling and acoustics based on load and temperature. 2.5Gbps Capability for Diversified Bandwidth Applications With Wi-Fi 6/6E/7 APs pushing multi-gigabit throughput, traditional Gigabit access is no longer sufficient. Supporting 2.5Gbps and 802.3bt PoE++, the MGS-6311-24UPL6X delivers both data and high power over existing CAT5e cabling to APs, IP cameras and other PDs—speed you demand with plug-and-play simplicity for fast rollouts. The fiber-optic 10GBASE-X SFP+ interfaces of the MGS-6311-24UPL6X support multi-speed operation at 1G, 2.5G, and 10G, allowing network administrators to flexibly choose suitable SFP or SFP+ transceivers according to required transmission distance or bandwidth, enabling seamless network expansion across diverse environments. Redundant Ring, Fast Recovery for Critical Network Applications The MGS-6311-24UPL6X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation. Layer 3 Routing Support The MGS-6311-24UPL6X is equipped with advanced Layer 3 routing capabilities, including Static Route, RIP/RIPng, OSPF/OSPFv3, and BGP4/BGP6, enabling efficient inter-VLAN and inter-domain routing within enterprise networks. With full support for VRRP (IPv4/IPv6), the switch provides gateway redundancy and ensures uninterrupted network connectivity in case of link or device failure. These features make the MGS-6311-24UPL6X ideal for large-scale or multi-segment deployments that require scalable, resilient, and secure Layer 3 performance. Strong Multicast The MGS-6311-24UPL6X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which makes the MGS-6311-24UPL6X great for any robust networking. Full IPv6 Support The MGS-6311-24UPL6X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built. Robust Layer 2 Features The MGS-6311-24UPL6X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the MGS-6311-24UPL6X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 64 groups for trunking with a maximum of 8 ports for each group. Excellent Layer 2 to Layer 4 Traffic Control The MGS-6311-24UPL6X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission. Powerful Network Security The MGS-6311-24UPL6X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Advanced IP Network Protection The MGS-6311-24UPL6X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Efficient and Secure Management For efficient management, the MGS-6311-24UPL6X is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the MGS-6311-24UPL6X offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the MGS-6311-24UPL6X offers Cisco-like command and customer doesn’t need to learn new command from these switches For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Moreover, the MGS-6311-24UPL6X offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session. Intelligent SFP Diagnosis Mechanism The MGS-6311-24UPL6X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Centralized Power Management for Gigabit Ethernet PoE Networking To meet higher-power PoE applications with multi-gig access, the MGS-6311-24UPL6X provides 24 IEEE 802.3bt PoE++ ports delivering up to 95W per port (PD dependent) and a total 720W PoE budget. Power and data are integrated, centrally managed and delivered over a single cable—cutting AC wiring costs and installation time while supporting IR/PTZ/speed-dome cameras, Wi-Fi 6/6E/7 APs and more. Intelligent Powered Device Alive Check The MGS-6311-24UPL6X can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the MGS-6311-24UPL6X will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. PoE Schedule for Energy Savings Besides being used for IP surveillance, the MGS-6311-24UPL6X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the MGS-6311-24UPL6X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget. Remote Management Solution with NMS The MGS-6311 series with the NMS helps IT staff remotely manage all network devices and monitor PDs' operational statuses. Thus, they are designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the NMS, all kinds of businesses can now be speedily and efficiently managed from one platform. Applications Excellent Solution to Enterprise Security and QoS Switch The MGS-6311-24UPL6X performs 240 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the six built-in SFP+ ports, the MGS-6311-24UPL6X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features. Layer 3 VLAN Routing With the built-in robust Layer 3 traffic routing protocols, the MGS-6311-24UPL6X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The MGS-6311-24UPL6X is certainly a cost-effective and ideal solution for enterprises. High Availability Mesh Networking Solution for Big Data System Highly flexible, extendable and easy to deploy, the MGS-6311-24UPL6X offers high-throughput optical uplinks with long-distance options up to 120km (module-dependent) and rapid self-recovery (MSTP/ERPS). It is ideal for data centers, service providers and telecoms to build redundant connections and high-bandwidth aggregation for big-data server farms. Key Features Physical Ports 24 10/100/1000/2500BASE-T ports with IEEE 802.3bt PoE++ injector function (up to 95W per port) 6 10GBASE-SR/LR SFP+ slots, backward compatible with 1000/2500BASE-X SFP transceivers RJ45 to DB9 console interface for switch basic management and setup IP Routing Features IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/BGP6 IPv4/IPv6 static routing and VRRP (v2/v3) function provide reliable Layer 3 gateway redundancy Routing interface provides per VLAN routing mode Supports route redistribution Layer 2 Features Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz Gigabit Ethernet standard Prevents packet loss flow control IEEE 802.3x pause frame flow control in full-duplex mode Back pressure flow control in half-duplex mode High performance Store-and-Forward architecture, broadcast storm control, port loopback detection 32K MAC address table, automatic source address learning and aging Supports VLAN IEEE 802.1Q tag-based VLAN GVRP for dynamic VLAN management Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported Private VLAN Edge (PVE) supported GVRP protocol for Management VLAN Protocol-based VLAN MAC-based VLAN IP subnet VLAN Supports Link Aggregation Maximum 64 trunk groups, up to 8 ports per trunk group IEEE 802.3ad LACP (Link Aggregation Control Protocol) Cisco ether-channel (static trunk) Supports Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU & root guard, BPDU Filtering and BPDU Forwarding. Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many) Provides port mirror (many-to-1) Supports G.8032 ERPS (Ethernet Ring Protection Switching) Quality of Service 8 priority queues on all switch ports Support for strict priority and WRR (Weighted Round Robin) CoS policies Traffic classification IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Strict priority and WRR CoS policies Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD v1 and v2 snooping Querier mode support Supports Multicast VLAN Register (MVR) IGMP proxy and fast-leave mechanisms are available to optimize multicast forwarding Security IEEE 802.1x port-based network access authentication MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6 TACACS+ login users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Supports DHCP snooping Supports ARP inspection IP Source Guard prevents IP spoofing attacks Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding Management Management IP for IPv4 and IPv6 Switch Management Interface Console/Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2/TLSv1.2 secure access BOOTP and DHCP for IP address assignment Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6 SNTP (Simple Network Time Protocol) for IPv4 and IPv6 User privilege levels control Syslog server for IPv4 and IPv6 Supports DDM Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) Supports sFlow Supports ULDP Supports ULPP (Uplink Protection Protocol) Supports ULSM (Uplink State Monitor protocol) Supports LLDP/LLDP MED Supports DHCP Option82/43/60/61/67 Supports ping, trace route function for IPv4 and IPv6 PLANET Smart Discovery Utility for deployment management Supports PLANET NMS for centralized deployment and management Power over Ethernet Complies with IEEE 802.3bt Power over Ethernet Plus Plus Up to 24 ports of IEEE 802.3bt PoE++ with each offering up to 95 watts (Ports 1-24) Supports maximum 720-watt PoE budget Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection PoE schedule Intelligent PoE features PD alive check PoE schedule

Especificaciones técnicas

Copper Ports

24 10/100/1000/2500BASE-T RJ45 copper ports (ports 1 to 24)

PoE Injector Port

24 ports with IEEE 802.3bt PoE++ injector function (up to 95W per port, total 720W)

10G SFP+ Ports

6 10GBASE-SR/LR SFP+ interfaces (ports 25 to 30) Backward compatible with 1000/2500BASE-X SFP transceivers

Console Port

1 x RJ45-to-RS232 serial port (9600, 8, N, 1)

CPU

MIPS InterAptiv Dual-Core, up to 1GHz

RAM

512Mbytes

Flash Memory

32Mbytes

ESD Protection

Contact ±6KV , Air ±8KV

Surge Protection

Differential mode ±2KV , Common mode ±4KV

Dimensions (W x D x H)

440 x 330 x 44 mm, 1U height

Weight

5076g

Power Consumption

29.1 watts / 99.3BTU (System) 818 watts/ 2791.1 BTU (System+PoE)

Power Requirements- AC

AC 100~240V, 50/60Hz

Fan

6

LED

System: PWR ( Green ), SYS ( Green ) Ports: Per 2.5GBASE-T RJ45 Ports: 10/100/1000/2500Mbps LNK/ACT ( Green ) PoE-in-Use ( Amber ) Per 10GBASE-X SFP Ports: 1G/2.5G/10G LNK/ACT ( Green )

Switch Architecture

Store-and-forward

Switch Fabric

240Gbps/non-blocking

Switch Throughput

178.56Mpps

Address Table

32K MAC address table with auto learning function

ARP Table

8K

Routing Table

12K

IP Interface

32

ACL Table

4K

Shared Data Buffer

16Mbit

Multicast Table

1K

Jumbo Frame

12KBytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

PoE Standard

IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at/af PoE PSE

PoE Power Supply Type

802.3bt : End-span+Mid-span 802.3at : End-span

PoE Power Output

Port 1 to 24 – 95W (max.)

Power Pin Assignment

802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) 802.3at PoE: End-span: 1/2(-), 3/6(+)

PoE Power Budget

720 watts (max)

Number of 95W 802.3bt Type-4 PDs

7

Number of 60W 802.3bt Type-3 PDs

12

Number of 802.3at PDs

24

IP Routing Protocol

Static route RIPv1/v2 OSPFv2/v3 BGP4 VRRPv2 PIM

Layer 3 Protocol

ARP ARP Proxy IGMP Proxy

IP Routing Protocol

IPv6 Static Route RIPng OSPFv3 BGP6 VRRPv3 PIM (IPv6)

Layer 3 Protocol

MLD Proxy

Other

ICMPv6,ND,DNSv6

Port Configuration

EEE Green energy savings disable/enable Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect

Port Status

Display each port’s speed duplex mode, link status, flow control status and auto negotiation status

VLAN

802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN

Spanning Tree Protocol

STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU and root guard, BPDU Filtering and BPDU Forwarding

Bandwidth Control

TX/RX/Both

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group

QoS

8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR

Multicast

IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024

Access Control List

Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 4K entries

Security

Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels

AAA

TACACS+ and IPv4/IPv6 over RADIUS

Authentication

IEEE 802.1x port-based network access control

System Configuration

Console, Telnet, Web browser, SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

Management

IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility PLANET NMS controller supported

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3,9) RFC 1493 Bridge MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

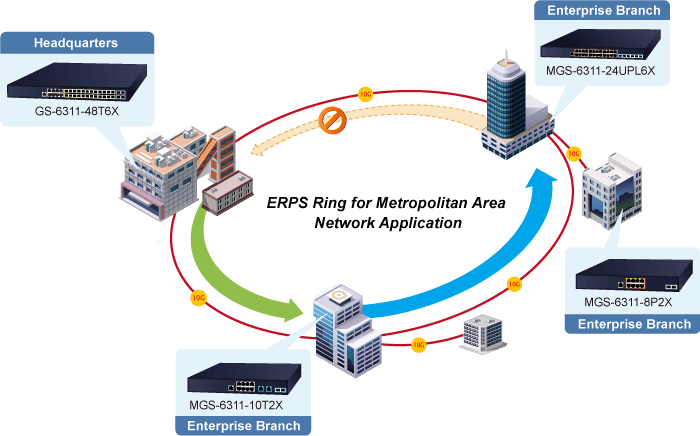

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3bz Gigabit 2.5G, 5GBASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
