MGS-6311-8UP4X — L3 8-Port 2.5GBASE-T 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch

Descripción

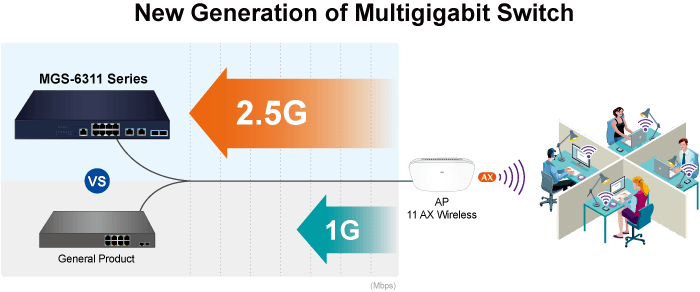

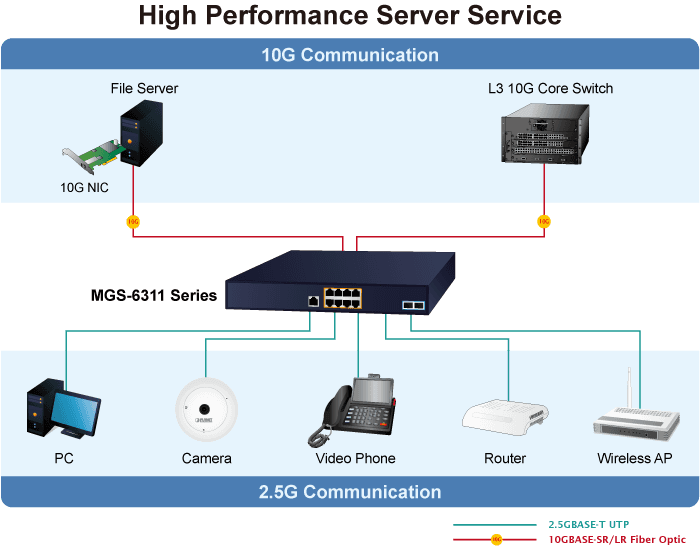

Perfect Managed Multigigabit Ethernet Switch with L3/L2 Switching and Security PLANET MGS-6311-8UP4X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 7 (802.11be) wireless APs, NAS, workstation and those with 2.5GBASE-T interfaces. It features 8 10/100/1000/2500BASE-T copper ports supporting 802.3bt PoE++ injector function, a total PoE power budget of up to 240 watts and 4 extra 1G/2.5G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance. The MGS-6311-8UP4X provides high-density performance, Layer 3 dynamic routing - RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) and VRRP (Virtual Router Redundancy Protocol). With 2.5Gbps copper interfaces and 10Gbps fiber-optical interfaces, it can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the MGS-6311-8UP4X perform effective data traffic control for ISP and enterprise Wi-Fi, video streaming, and multicast applications. 2.5Gbps Capability for Diversified Bandwidth Applications With the terminal access rates of 802.11ac/ax wireless APs reaching as high as 1.2Gbps to 3.6Gbps, Gigabit ports have been unable to satisfy the demand. Supporting 2.5Gbps capability and 802.3at/bt PoE output, the MGS-6311-8UP4X can deliver not only data to 802.11ac/ax wireless APs, but also power with the existing CAT5e Ethernet cables to other powered devices such as APs and IP cameras. It can definitely give you the speed you demand and its Plug and Play makes installation easy The fiber-optic 10GBASE-X SFP+ interfaces of the MGS-6311-8UP4X support dual speeds, 10GBASE-SR/LR and 1000BASE-SX/LX , meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. Full-Power IEEE 802.3bt PoE++ for Next-Generation High-Power Applications MGS-6311-8UP4X equipped with IEEE 802.3bt PoE++ technology , this switch delivers up to 95 watts of power per port , enabling a single Ethernet cable to transmit both multi-gigabit data and high-power electricity simultaneously. With 8 × 2.5GBASE-T PoE++ ports and a total PoE power budget of up to 240 watts , it is purpose-built to support power-hungry edge devices such as AI smart cameras, PoE lighting systems, Wi-Fi 7 (802.11be) wireless APs, digital signage, and industrial IoT equipment. Powering Smart Buildings and Edge AI with 802.3bt PoE++ By eliminating the need for additional power outlets and adapters, 802.3bt PoE++ simplifies deployment , reduces installation costs, and enhances network flexibility , making it an ideal solution for smart buildings, intelligent transportation , surveillance, and edge AI applications where high power and high bandwidth are both critical. Remote Management Solution with NMS The MGS-6311-8UP4X with the NMS helps IT staff remotely manage all network devices and monitor PDs' operational statuses. Thus, they are designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the NMS, all kinds of businesses can now be speedily and efficiently managed from one platform. Redundant Ring, Fast Recovery for Critical Network Applications The MGS-6311-8UP4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation. Layer 3 Routing Support The MGS-6311-8UP4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, and automatically configuring RIP (Routing Information Protocol), OSPF (Open Shortest Path First) and VRRP (Virtual Router Redundancy Protocol) for gateway redundancy. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database. The VRRP can provide default gateway redundancy by allowing multiple Layer 3 switches to share a virtual IP address. When the master device becomes unavailable, a backup device can automatically take over the virtual gateway role, ensuring continuous network connectivity and high availability Strong Multicast The MGS-6311-8UP4X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the MGS-6311-8UP4X great for any robust networking. Full IPv6 Support The MGS-6311-8UP4X provides IPv6 management and enterprise-level secure features such as SSH , ACL , WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built. Robust Layer 2 Features The MGS-6311-8UP4X supports basic switch management functions such as port speed configuration, port aggregation, VLANs, Multiple Spanning Tree Protocol (MSTP), bandwidth control, and IGMP snooping. The MGS-6311-8UP4X provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN, and GVRP protocol functions. By supporting port aggregation, the MGS-6311-8UP4X allows the operation of high-speed trunks combined with multiple ports. It supports up to 64 trunk groups with a maximum of 8 ports per group. Excellent Layer 2 to Layer 4 Traffic Control The MGS-6311-8UP4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission. Powerful Network Security The MGS-6311-8UP4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Advanced IP Network Protection The MGS-6311-8UP4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Efficient and Secure Management For efficient management, the MGS-6311-8UP4X is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the MGS-6311-8UP4X offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the MGS-6311-8UP4X can be accessed via Telnet or the console port. To reduce product learning time, it offers Cisco-like commands, and customers do not need to learn new commands for these switches. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Moreover, the MGS-6311-8UP4X offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session. Intelligent SFP Diagnosis Mechanism The MGS-6311-8UP4X supports SFP-DDM ( Digital Diagnostic Monitor ) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Intelligent Powered Device Alive Check The MGS-6311-8UP4X can monitor the status of connected PDs in real time via the PD alive check function. If a PD stops operating or responding, the switch will restore PoE power to the PD, allowing it to resume normal operation. This feature greatly enhances network reliability by resetting the PD’s power via the PoE port and reduces the administrator’s management burden. PoE Schedule for Energy Savings Besides IP surveillance, the MGS-6311-8UP4X are also suitable for building PoE networks, including VoIP and wireless LAN. In response to global energy-saving initiatives and environmental protection efforts, the switches can effectively manage power supply while still delivering high wattage. The PoE Schedule function allows each PoE port to be enabled or disabled during specified time intervals, helping SMBs and enterprises save energy and reduce costs. Applications Excellent Solution to Enterprise Security and QoS Switch The MGS-6311-8UP4X performs 120 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the MGS-6311-8UP4X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features. Layer 3 VLAN Routing With the built-in robust Layer 3 traffic routing protocols, the MGS-6311-8UP4X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The MGS-6311-8UP4X is certainly a cost-effective and ideal solution for enterprises. High Availability Mesh Networking Solution for Big Data System With highly-flexible, highly-extendable and easy-to-install features, the MGS-6311-8UP4X offers up to 120Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The MGS-6311-8UP4X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The MGS-6311-8UP4X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm. Key Features Physical Ports 8 10/100/1000/2500BASE-T ports with 95W 802.3bt PoE++ injector function 4 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5G BASE-SX/LX/BX SFP RJ45 to DB9 console interface for switch basic management and setup Power over Ethernet Complies with IEEE 802.3bt/at Power over Ethernet Plus Up to 8 ports of IEEE 802.3bt/at devices powered Supports PoE power up to 95 watts for each PoE port Supports maximum 240-watt PoE budget Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection PoE schedule IP Routing Features IPv4 routing protocol supports RIPv1/v2 and OSPFv2 IPv6 routing protocol supports RIPng and OSPFv3 Routing interface provides per VLAN routing mode Supports route redistribution Layer 2 Features Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an Gigabit Ethernet standard Prevents packet loss flow control IEEE 802.3x pause frame flow control in full-duplex mode Back pressure flow control in half-duplex mode High performance Store-and-Forward architecture, broadcast storm control, port loopback detection 16K MAC address table, automatic source address learning and aging Supports VLAN IEEE 802.1Q tag-based VLAN GVRP for dynamic VLAN management Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported Private VLAN Edge (PVE) supported GVRP protocol for Management VLAN Protocol-based VLAN MAC-based VLAN IP subnet VLAN Supports Link Aggregation Maximum 64 trunk groups, up to 8 ports per trunk group IEEE 802.3ad LACP (Link Aggregation Control Protocol) Cisco ether-channel (static trunk) Supports Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU & root guard, BPDU Filtering and BPDU Forwarding Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many) Provides port mirror (many-to-1) Supports G.8032 ERPS (Ethernet Ring Protection Switching) Quality of Service 8 priority queues on all switch ports Support for strict priority and WRR (Weighted Round Robin) CoS policies Traffic classification IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Strict priority and WRR CoS policies Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD v1 and v2 snooping Querier mode support Supports Multicast VLAN Register (MVR) Security IEEE 802.1x port-based network access authentication MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6 TACACS+ login users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Supports DHCP snooping Supports ARP inspection IP Source Guard prevents IP spoofing attacks Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding Management Management IP for IPv4 and IPv6 Switch Management Interface Console/Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2/TLSv1.2 secure access BOOTP and DHCP for IP address assignment Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6 SNTP (Simple Network Time Protocol) for IPv4 and IPv6 User privilege levels control Syslog server for IPv4 and IPv6 Supports DDM Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) Supports sFlow Supports ULDP Supports ULPP (Uplink Protection Protocol) Supports ULSM (Uplink State Monitor protocol) Supports LLDP/LLDP MED Supports DHCP Option82/43/60/61/67 Supports ONVIF device discovery and device quick link. Supports ping, trace route function for IPv4 and IPv6 PLANET Smart Discovery Utility for deployment management Support PLANET NMS and CloudNMS for centralized deployment and management

Especificaciones técnicas

Copper Ports

8 10/100/1000/2500BASE-T RJ45 copper ports (ports 1 to 8)

PoE Injector Port

8 ports with 802.3at/bt PoE++ injector function (ports 1 to 8)

10G SFP+ Ports

4 10GBASE-SR/LR SFP+ interface (ports 9 to 12) Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceiver

Console Port

1 x RJ45-to-RS232 serial port (9600, 8, N, 1)

CPU

MIPS 800MHz

RAM

4Gbytes

Flash Memory

32Mbytes

ESD Protection

Contact ±6KV , Air ±8KV

Surge Protection

Differential mode ±2KV , Common mode ±4KV

Dimensions (W x D x H)

330 x 230 x 43.6 mm, 1U height

Weight

2510g

Power Consumption

10.4 watts / 35.46BTU (System) 280 watts/ 954.8 BTU (System+PoE)

Power Requirements- AC

AC 100~240V, 50/60Hz

Fan

2 Smart FAN

LED

System: PWR ( Green ), SYS ( Green ) Ports: Per 2.5GBASE-T RJ45 Ports: 10/100/1000/2500Mbps LNK/ACT ( Green ) 802.3bt/at/af PoE-in-Use ( Amber ) Per 10GBASE-X SFP Ports: 1G/2.5G/10G LNK/ACT ( Green )

Switch Architecture

Store-and-forward

Switch Fabric

120Gbps/non-blocking

Switch Throughput

89.28Mpps

Address Table

16K MAC address table with auto learning function

ARP Table

8K

Routing Table

6K

IP Interface

1024

ACL Table

4K

Shared Data Buffer

12Mbit

Multicast Table

1K

Jumbo Frame

12KBytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

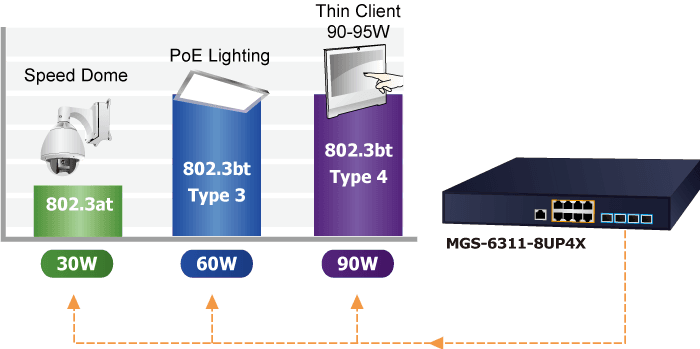

PoE Standard

IEEE 802.3bt PoE++ PSE

PoE Power Supply Type

End-span/Mid-span/802.3bt

PoE Power Output

95W(max.)

Power Pin Assignment

1/2(-)3/6(+), 4/5(+)7/8(-)

PoE Power Budget

240 watts (max.)

IP Routing Protocol

VRRP v1, v2, v3 Static route RIPv1/v2 OSPFv2 BGP4 Hardware-based Layer 3 routing

Layer 3 Protocol

ARP ARP Proxy IGMP Proxy

IP Routing Protocol

IPv6 Static Route RIPng OSPFv3 BGP6 (BGP4+) PIM6 IPv6 RA (Router Advertisement) IPv6 LPM Routing Hardware-based Layer 3 routing SNMP over IPv6 Support IPv6 IPSec Support IPv6 ACL

Other

ICMPv6,ND,DNSv6 DNS over IPv6 Support

Port Configuration

EEE Green energy savings disable/enable Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect

Port Status

Display each port’s speed duplex mode, link status, flow control status and auto negotiation status

VLAN

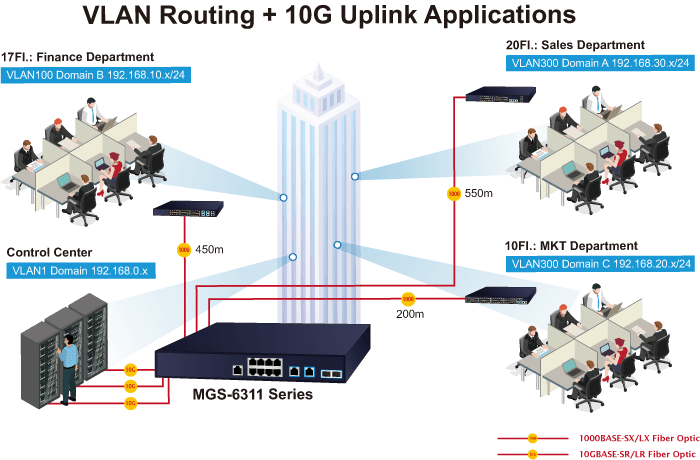

802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN

Spanning Tree Protocol

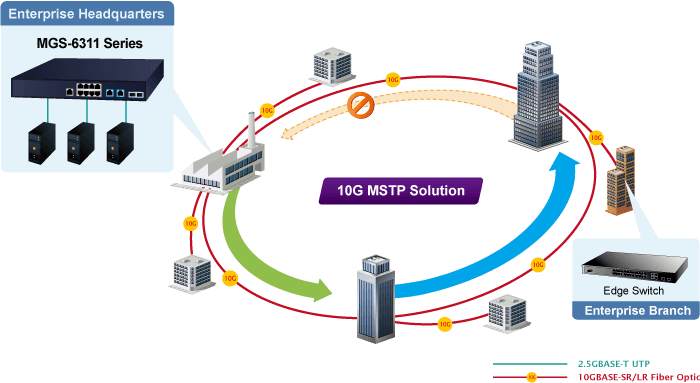

STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU and root guard, BPDU Filtering and BPDU Forwarding

Bandwidth Control

TX/RX/Both

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group

Ring

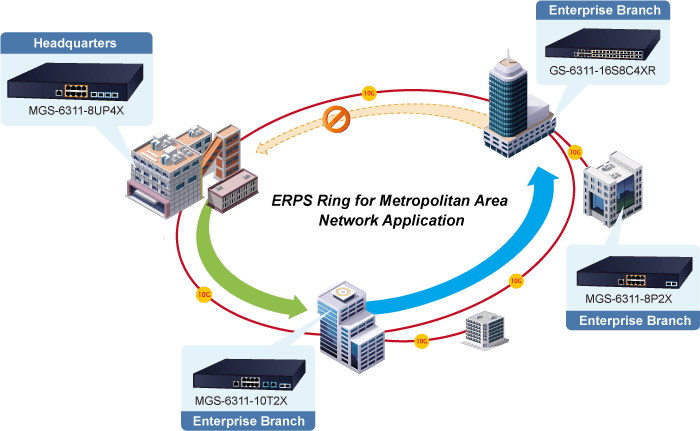

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 15ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports major ring and sub-ring

QoS

8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR

Multicast

IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024

Access Control List

Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 4K entries

Security

Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels

AAA

TACACS+ and IPv4/IPv6 over RADIUS

Authentication

IEEE 802.1x port-based network access control MAC-based authentication

System Configuration

Console, Telnet, Web browser, SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

Management

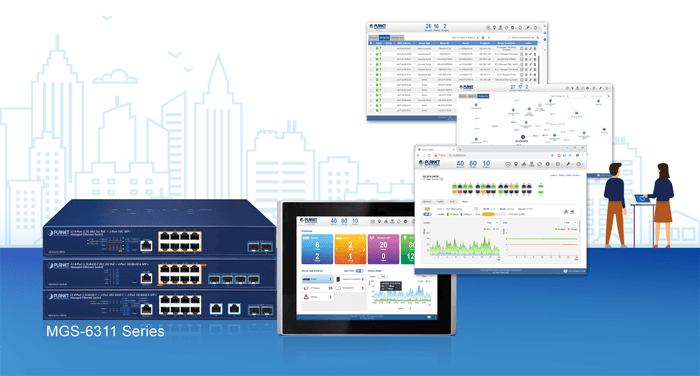

IPv4 and IPv6 dual stack management SNMP over IPv6 Support User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups HTTP over IPv6 Support IPv4/IPv6 FTP/TFTP IPv4/IPv6 SNTP/NTP Supports ping, trace route function for IPv4 and IPv6 RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH IPv4/IPv6 Telnet IPv6 Radius+ Support The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 IPv6 TACACS+ support PLANET Smart Discovery Utility PLANET NMS controller and CloudNMS supported

ONVIF

ONVIF device discovery ONVIF device quick link

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3,9) RFC 1493 Bridge MIB Power over Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3bz Gigabit 2.5G, 5GBASE-T IEEE 802.3an Gigabit 10GBASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS IEEE 802.3bt Power over Ethernet PLUS PLUS RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
