MTB-Series Module — 10GBASE-LR/SR/BX/T Modules

Descripción

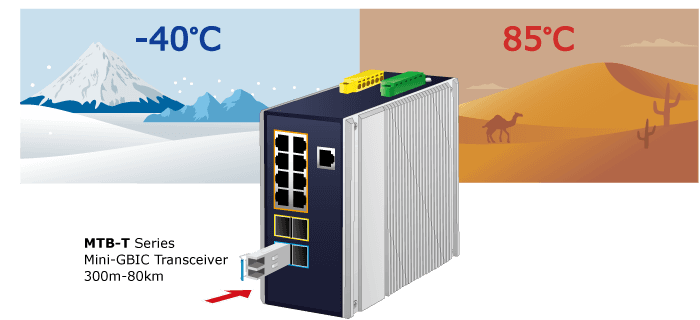

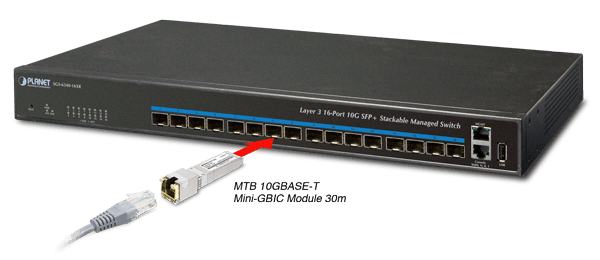

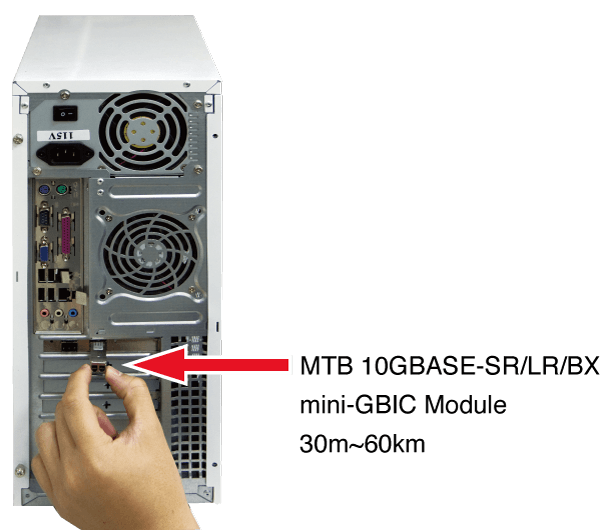

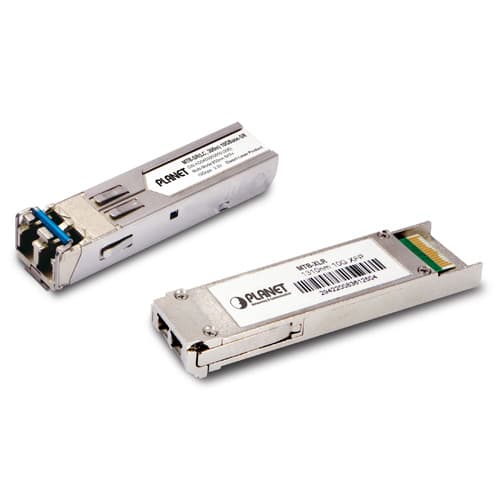

The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode, LC), to up to 60 kilometers (single-mode, LC). To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 85 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart. The 10GBASE-T SFP+ Copper Transceiver is specifically designed for high-speed communication links that require 10 gigabit Ethernet over Cat 6a/7 cable. It is the first SFP+ transceiver that offers 10Gb/s communication over fiber optic media. Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center to expand without added expenses. The added benefit is that it provides backward compatibility with legacy networks by adopting standard-based technology of the familiar RJ45 connector. Applications Applying 10Gbps SFP+ with 10G PCI Express Server Adapter The 10GBASE-LR/SR/BX/T mini-GBIC module can be installed into PLANET products with 10G SFP+ interface like PLANT ENW-9801 PCI-e NIC card. The 10G SFP+ slots of the ENW-9801 are hot-pluggable and hot-swappable. With the ENW-9801 installed in the PC, you can plug and pull out the 10GBASE-LR/SR/BX/T mini-GBIC module in and from the 10G SFP+ slot of the ENW-9801, respectively, without having to power off the PC. The MTB-T series 10GBASE-SR/LR/BX transceiver is an ideal solution for -40 to 85 degrees C wide temperature industrial equipment with 10GBASE-SR/LR/BX SFP interfaces. The deployment distance can be extended from 300m (multi-mode, LC) to 10/20/40/60 kilometers (single-mode, LC). Key Features Complies with the IEEE 802.3ae 10 Gigabit Ethernet Standard Compact RJ45 connector assembly SFP+ multi-source agreement compliant SFF-8472 diagnostic monitoring interface for optical transceivers For established fiber link distance up to 300m over 50/125μm multi-mode fiber cable For established fiber link distance up to 60km over 9/125μm single-mode fiber cable Cost-effective at up to 30m distance on UTP cables 10 Gigabit Ethernet over Cat6a/Cat7 cable Plug and Play Installation

Especificaciones técnicas

Package

SFP+

PHY Type

IEEE 802.3an 10 Gigabit Ethernet Standard

Fiber Type

--

Connector

RJ45 Copper

Wavelength

--

Maximum Distance

30m

Operating Temperature

0~70 degrees C

PHY Type

IEEE 802.3ae 10 Gigabit Ethernet Standard

Fiber Type

Multi-mode

Connector

Dual LC/UPC

DDM

Yes

Wavelength

850nm

Maximum Distance

300m

Operating Temperature

0~60 degrees C

Fiber Type

Single-mode

Wavelength

1310nm

Maximum Distance

2km

Maximum Distance

10km

Maximum Distance

20km

Maximum Distance

40km

Wavelength

1550nm

Maximum Distance

60km

Maximum Distance

80km

Connector

Simplex LC/UPC

Wavelength

TX: 1270nm RX: 1330nm

Wavelength

TX: 1330nm RX: 1270nm

Maximum Distance

70km

Operating Temperature

-40~85 degrees C
