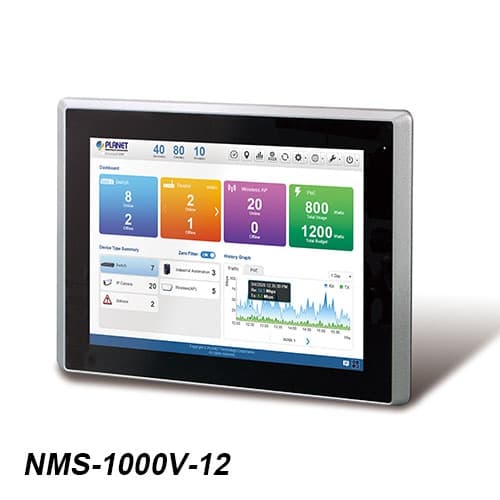

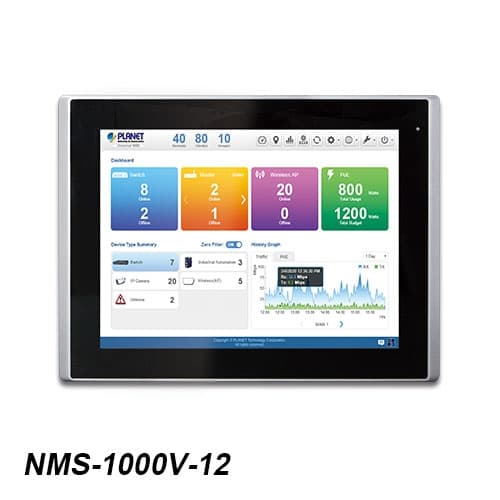

NMS-1000V — Universal Network Management Controller with LCD Touch Screen

Descripción

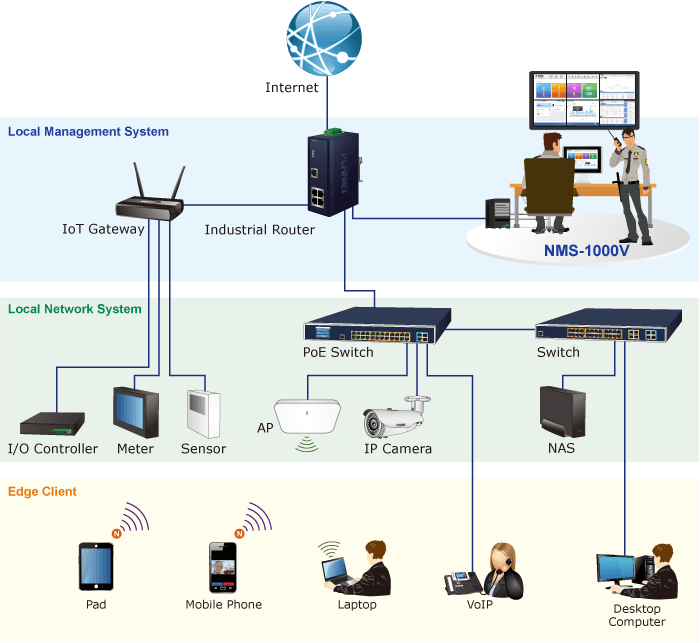

Universal Network Management Controller with LCD Touch Screen PLANET's NMS-1000V-12 Network Management controller can directly monitor all kinds of deployed network devices without having to use an extra computer. However, the deployed devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc., have to be compliant with the SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. It thus enables the administrator to centrally manage a network of up to 1024 nodes from a central office, greatly boosting network and power management efficiency. Through the intuitive touch panel, any network exception messages can be displayed in real time to greatly improve the work efficiency of network management personnel. With its user authentication management, the NMS-1000V-12 enhances data transmission security in the modern factory automation systems. Watch Over Network within Minutes The domain information web page presents a managed devices list and topology view, providing the at-a-glance and efficient summary of your management network. It lets you have a valuable information on the current wired and wireless network statuses via data-driven graphical charts. The topology viewer and event reports enable you to visualize the system usage and node status in real time so as to address whatever issue they may have. Network with Cybersecurity Helps Minimize Security Risks With the UNC-NMS, the NMS Series comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. The data transmission supports TLS and SSL protocols to provide strong protection against advanced threats. The cybersecurity feature of the NMS Series protects the network management and enhances the security of the mission-critical network without any extra deployment cost and effort. User-friendly Setup Wizard The NMS-1000V-12 enhances user experience by providing more user-friendly wizard and obvious step-by-step guidance on each related function. Just like an app, it reduces training time and allows even non-technical users to be able to set up management network system within minutes. Interactive Dashboard Shows Network Statuses in an Instant The NMS-1000V-12’s interactive dashboard includes local site network router, switch, access point statistics and WAN Traffic/PoE history graph. The administrator can quickly overview the device statuses as to whether or not they are online or offline. Through alert pop message window he can also find out system event on the touch panel, thus immediately knowing where the disconnection issue comes from. Real-time Centralized Monitoring with Pop-up Alerts and E-mail Alarm Function As the NMS-1000V can come out with a topology view of the network of the deployed powered devices, it enables to detect which device is online (Green) or offline (Red). The real-time centralized monitoring of these devices can help the administrator know what the current statuses of these devices are. Pop-up alerts shown on the touch panel tell where the problems are. The e-mail alarm function is designed to send an email alert to the administrator via the SMTP server where syslog information can be found once an abnormality is detected. This can prompt the administrator to quickly fix the identified problem in the network. Optimizing Wi-Fi Deployment with Floor Maps With the floor maps, devices can be located according to the field deployment, thus saving your time and cost of on-site support and monitoring. The current statuses of devices are shown in real time and the heat map is able to show the wireless signal coverage and strength to help the administrator fine-tune the overlapping of the adjacent devices anytime to optimize the wireless network performance. HDMI Screen Synchronization Projection and Remote Login The NMS-1000V-12 supports HDMI interface that can easily connect to another bigger size screen, so that user can easily monitor the network more clearly. It also can be operated from anywhere via Web browser so as to open more monitor screens for accessing managed nodes in a DHCP-enabled network, thus controlling multiple devices through the other PC, laptop or tablet. Applications Economical Central Network Management Solution for SMBs PLANET NMS-1000V-12 helps service providers and IT managers control all PLANET network devices at the same time and enables administrator to effectively manage a local network of up to 1024 managed nodes simultaneously without having to purchase any license and hardware-based controller, and pay an expensive annual subscription fee. The administrator can automatically discover and configure device profiles, batch provisioning/firmware upgrade, and built-in SAPC (Smart AP Control) that customizes Wi-Fi planning against floor maps, and monitors all managed APs through a single Web-based interface. It allows operating across different platforms through virtualization software, which helps SMBs save costs on the need to configure the wireless APs one by one if done manually. [Remarks] Router: Log in to the router’s Web user interface and enable the SNMP function. Switch: Log in to the switch’s Web user interface and enable the SNMP and LLDP function. AP: Log in to the AP’s Web user interface to configure the AP to “Managed AP” . In support of SNMP AP, enable the SNMP function. IP Cam: The ONVIF function is enabled by default. Key Features Industrial-grade Physical Hardware 2 x 10/100/1G/2.5GBASE-T Ethernet RJ45 ports 2 x USB 3.2 Gen1 Type-A ports (configuration backup and restoration) 2 x USB 2.0 Type-A ports (configuration backup and restoration) 1 x HDMI interface 3 x DB-9 COM1,COM2, COM3 (reserve) 1 x 3-pin DC power input terminal VESA (100 x 100) panel mount Network Devices Management Dashboard Providing the at-a-glance view of system, device summary, traffic, PoE network status Setup Wizard Easy to use step-by-step guidance Node Discovery To detect PLANET managed devices available and allow AP grouping to accelerate AP management Auto-Topology Viewer A topology of network devices compliant with SNMP, ONVIF, Smart Discovery and LLTD Protocol Event Reports The status of a network can be reported via network alarm, system log Alarm System Popup alerts and email alerts for the administrator via the SMTP server Batch Provisioning Enabling multiple APs to be configured and upgraded at one time by using the designated profile Coverage Heat Map Real-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment Customized Profile Allowing the creation and maintenance of multiple wireless profiles Auto Provision Multi-AP provisioning with one click Cluster Management Simplifying high-density AP management Zone Plan Optimizing AP deployment with actual signal coverage Authentication Built-in RADIUS server seamlessly integrated into the enterprise network User Control Allowing on-demand account creation and user-defined access policy Scalability Free system upgrade and AP firmware bulk upgrade capability Maximum Scalability 50 floor maps, 1024 nodes, 128 AP groups, 128 SSID profiles, 1024 managed APs, 20,000 clients, 20,000 RADIUS user accounts, 50 RADIUS user groups and 1024 RADIUS clients Network Management Characteristics Built-in DHCP Server Built-in RADIUS Server SSL secure access Web-based GUI management interface SNMP v1, v2c, and v3 management Supports PLANET DDNS/Easy DDNS

Especificaciones técnicas

Form Factor

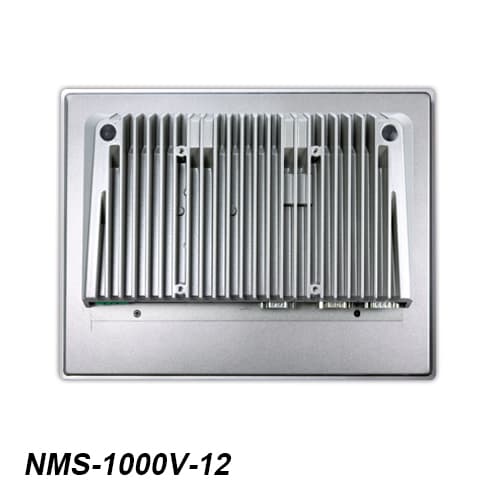

Panel Mount, VESA 100 x 100

I/O Interface

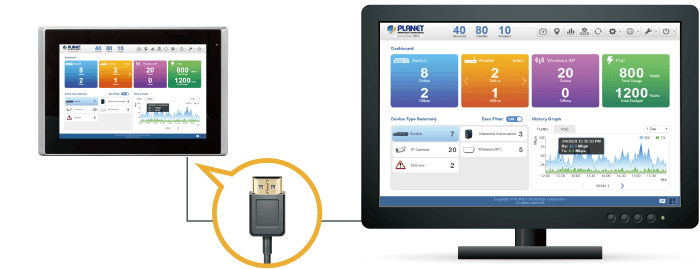

2 x 10/100/1G/2.5GBASE-T Ethernet RJ45 ports 2 x USB 3.2 Gen1 Type-A ports 2 x USB 2.0 Type-A ports 1 x HDMI interface 3 x DB-9 COM1,COM2,COM3 (reserve) 1 x 3-pin DC power input terminal

Storage

1 x M.2 2280 128G SATA3.0 SSD

Touch LCD Size

12.1” TFT-LCD

Touch Type

Projected Capacitive Touch

Display Resolution

1024 x 768

Display Luminance (cd/m²)

500

Display Viewing Angle (H°/V°)

178(H)/178(V)

Display Contrast

1000:1

Display Backlight lifetime (hrs)

30,000 hrs

Light Transmission (%)

Light Transmission (%) Projected Capacitive Touch: over 90%

Dimensions (W x D x H)

319 x 244.9 x 77 mm

Weight

3.34 kg

Enclosure

Aluminum die-cast chassis

Power Requirements

DC IN 9~36V 60W adapter 12V 5A with terminal block AC 100~240V, 2.0A, 60~50Hz

IP rating

IP66 Compliant Front Bezel

Temperature

Operating: -20 ~ 60 degrees C Storage: -30 ~ 70 degrees C

Humidity

10 ~ 95% @ 40 degrees C (non-condensing)

MTBF (Hours)

100,000

Number of Managed Devices

1,024

Number of RADIUS Client Devices

1,024

Number of RADIUS User Accounts

20,000

Auto Discovery

Supports PLANET devices

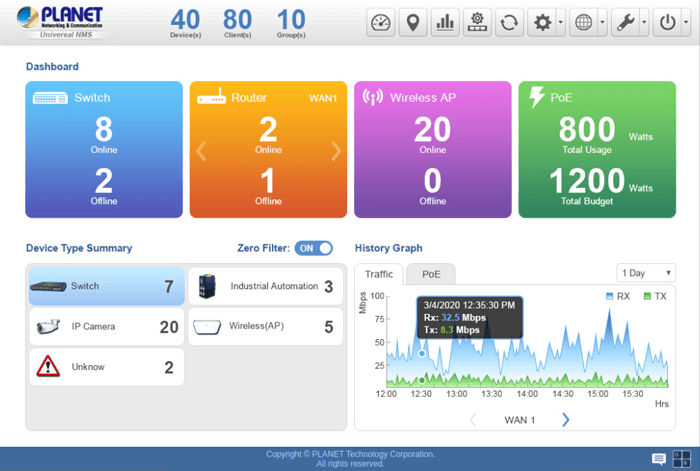

Dashboard

Providing the at-a-glance view of system, device summary, traffic, PoE network status

Device List

Allows creation and maintenance of device profiles

Auto-Topology View

Provides visual topology view of connected PLANET devices

Status Monitoring

Real-time online/offline devices

Event and Syslog Report

Real-time system event and syslog server supported

Event Alarm Define

Allows event alarm item option

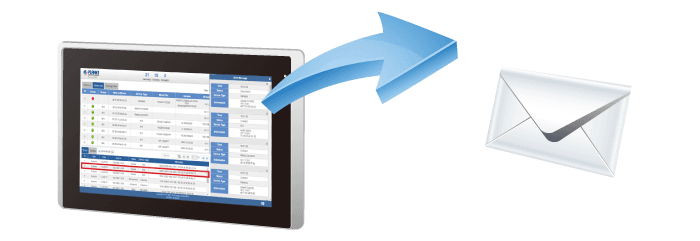

SMTP Alarm

E-mail alert to the administrator via the SMTP server

Popup Alert Message Window

Touch screen exclusive alert message window

SSID/RF Profile

Allows creation and maintenance of multiple wireless profiles

Cluster Management

Allows AP grouping for bulk provisioning and batch upgrading

Bulk AP Provisioning

Supports bulk AP provisioning with user-defined profiles

Bulk AP Firmware Upgrade

Supports bulk AP firmware upgrade

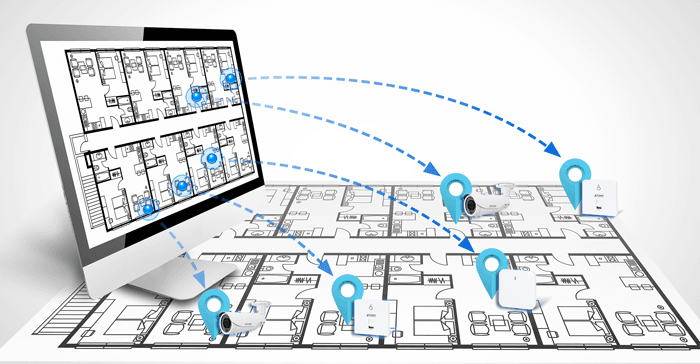

Coverage Heat Map

Enables real signal coverage of managed AP reflecting on the uploaded zone maps

Graphical Statistics

Real-time and historical visibility of wireless traffic flow

Backup/Restoration

Provides system and profile backup/restoration

SSIDs-to-VLANs Mapping

Allows to configure SSIDs-to-VLANs mapping in supported APs

RADIUS Authentication

RADIUS server is integrated for client authentication in a large-scale enterprise network

User Account Management

Supports on-demand account creation per user-defined access policy

Secure Management Interfaces

TLS 1.2 w/ UNC-NMS, SSLv3, SNMPv3

Network

DDNS: Supports PLANET DDNS/Easy DDNS DHCP: Built-in DHCP Server for auto IP assignment to APs Management: Console; Telnet; SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery: Supports SNMP, ONVIF and PLANET Smart Discovery

Maintenance

Backup: System backup and restore to local or USB HDD Reboot: Provides system reboot manually or automatically per power schedule Diagnostic: Provides IPv4/IPv6 ping and trace route

Regulatory Compliance

CE, FCC Class A

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T
