NVR-820 — 8-CH Network Video Recorder with HDMI

Descripción

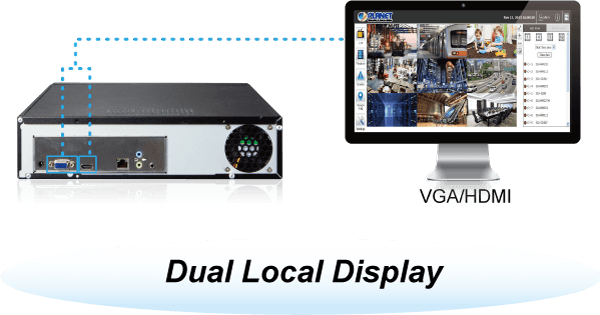

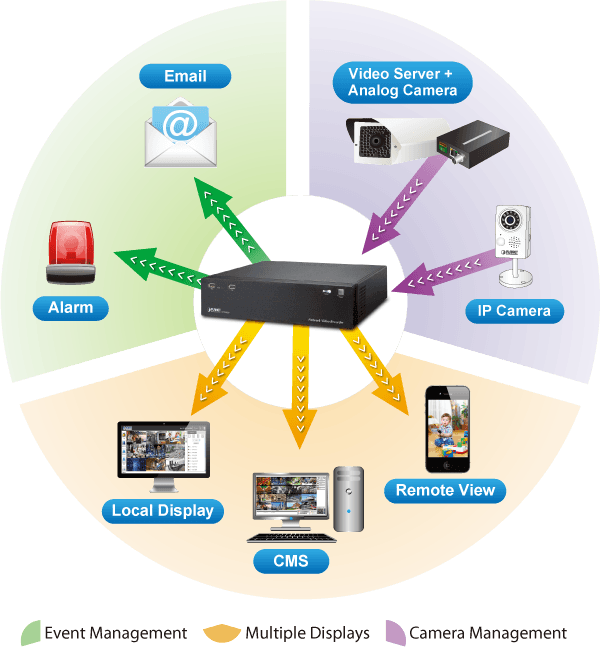

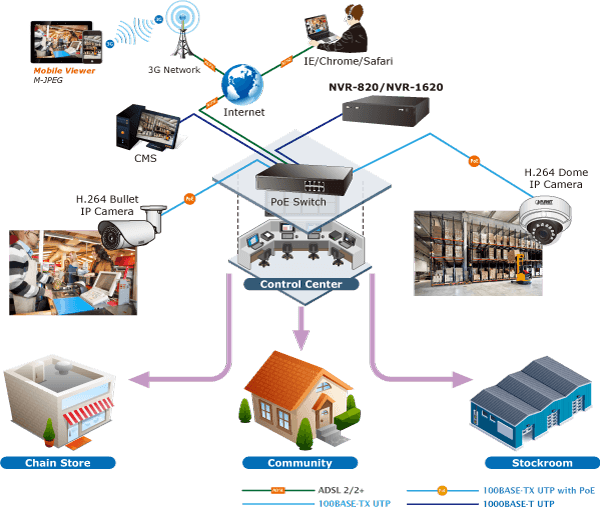

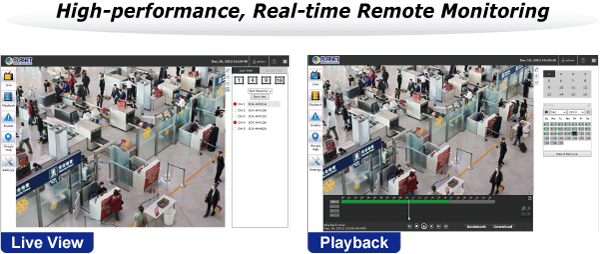

Efficient SMB Surveillance Solution PLANET NVR-820, a high-definition IP surveillance solution, is suitable for upgrading your CCTV system to IP system without re-cabling. It is the 8-channel Linux-embedded NVR with HDMI local display, bringing a stable and efficient system operation under a wide range of recording, network management and system settings. The NVR-820 can be used as a control center to control and monitor up to 8 connected network cameras (ONVIF supported) locally or remotely, perfectly designed for intelligent IP surveillance system. Users can just turn on the cameras and the NVR-820 to easily protect their lives and properties under the IP networks. It also supports image storage for evidentiary recording and data backup of up to 2 SATA hard disks. The recorded video files can be saved in the NVR without the need for an additional PC for file storage, thus bringing users a secure surveillance system at a lower total cost. It is fully compatible with iOS, Android and Internet Explorer on Windows operating system for multi-platform remote access. High Resolution Local Display The NVR-820 provides an HDMI and VGA video output interface for dual local display, which can be connected to HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution, and check NVR system status on VGA monitor at the same time, eliminating the need for a separate PC to view video from the unit. It also can be operated with the USB keyboard and mouse to configure and monitor all the system easily. Performing Real-time Remote Monitoring Up to 8 IP cameras can be connected to the NVR-820 via a connected IP network. With the NVR-820, it delivers high-performance video recordings and smooth playbacks of multiple megapixel cameras. Users can view remote surveillance in real time and play back recorded videos via the web browser or the bundled CMS software. Managing and Presenting Clear and Concise Video Not just for small scale applications such as retail stores and SMBs, the NVR system is expandable for multi-site management with the bundled CMS software. For instance, the CMS software in the NVR-820 can manage up to 16 units of NVR at the same time meaning 128 channels of IP cameras can be viewed simultaneously. With multi-monitor and e-map functions, the NVR can help the administrators to monitor the surveillance system more efficiently and effectively. Applications Advanced Event Management The NVR-820 is equipped with a smart alarm-triggering mechanism and supports various alerts and abnormal events. When it comes to a critical event, having a smart and responsive event management in place is essential for video surveillance system. This feature greatly strengthens the security and management efficiency of PLANET NVR systems. Perfect for Indoor Surveillance Applications PLANET NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. Users can also login from their mobile phones to check the monitoring screen anywhere, anytime. It is especially perfect for indoor surveillance in such places as boutique, department stores, restaurants, etc. Key Features Hardware Linux-embedded, highly-reliable standalone NVR Supports Gigabit Ethernet port Supports VGA/HDMI dual local display Supports 3.5" SATA II x 2 HDDs Video/Audio Supports M-JPEG / MPEG-4 / H.264 compressions Auto configuration for PLANET IP cameras Video resolution up to 5 mega-pixel (2560 x 1920) Supports up to 120fps@1080p (H.264) 2-way audio support with enhanced audio quality Video Recording/Backup Simultaneous recording and live video streams Manual or scheduled recording of 8 IP cameras simultaneously Video recycle function records events 24/7 Exports recorded video files in AVI format to USB device or local storage Instant event notification Network Service Easy access with PLANET Dynamic DNS and built-in NTP Server Supports DHCP Server/client (Auto detection) Easy Installation & Management ONVIF compliant for interoperability Supports multiple languages Automatically discovered by management software E-map interface in web and utility configuration Web-based and management utility for easy configuration Up to 16 NVRs, max. 128 channels with the central management software Supports USB keyboard and mouse Supports mobile phone remote view

Especificaciones técnicas

Ethernet

1 x RJ45, 10/100/1000BASE-T

USB Interface

2 x USB 2.0 for backup device and firmware upgrade

Video Interface

VGA/HDMI video interface

Audio Interface

Mic-in, line-in and line-out

Storage Device

2 x 3.5" SATA II hard disk connectors

LED

Power, Status

Button

Power, Reset

Max. Channels

8-channel IP cameras

Additional Camera

Manual / Smart Camera Search / Auto setup

Compression

H.264 / MPEG-4 / M-JPEG

Resolution

5MP / 3MP / 1080p / 720p / FD1 / CIF / QCIF

Max. Live Video Frame Rate (Local Display)

240fps@720p (8-ch) 120fps@1080p (4-ch) 80fps@3MP (2-ch) *Supports 5MP and Full HD 1080p@60fps

Max. Recording Frame Rate (Local Display)

240fps@1080p (8-ch), 4Mbps per channel, total of 8 channels 120fps@3MP, 6Mbps per channel, total of 8 channels *Real performance may vary in different environments.

Audio Type

2-way

Audio Format

G.711, G.726 (Camera dependent)

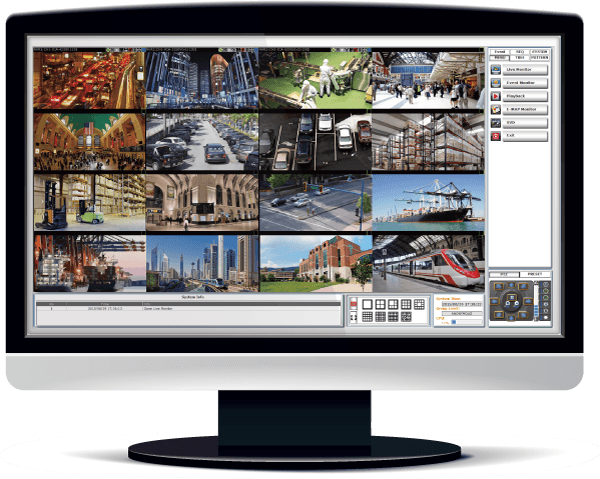

Display Mode

Live View / Playback / Full Screen / Sequence View / Saved views

Split Screen

1/4/9

Full Screen

1/4/9

Sequence Mode

Sequence all/manually selected cameras in 1/4 split view with configurable timer

Snapshot

Video snapshot in JPEG format

PTZ Support

Digital PTZ / Auto Pan / Preset Point / Sequence view

Split Screen

1/4

Play Method

Play / Pause / Stop / Forward / Reverse/Speed Adjust/Frame by Frame Search by time or event only

Bookmark

Intuitive timeline interface with bookmark function for easy file export

Dual Monitor

Main UI + Full screen live view / sequence view

Monitor Resolutions

1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

Network Service

TCP / HTTP / SMTP / DHCP / DNS / ARP / P2P / NTP / UPnP / FTP

Streaming Protocols

Depending on the supported cameras

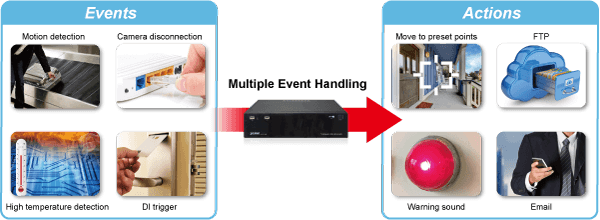

Event Type

System Events – System Start/Shutdown System Settings modified Camera Settings modified Start Recycle Disk Full Camera Events – Motion/Sensor Detection

Event Action

Display red window on video of event channel Buzzer alarm Disable/enable event action Duration of event action Recording Mail/FTP notification E-map notification

Number of Groups

7 (Administrator/Guest/User Define * 5)

Privileges

Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance

User Interface

Graphic local user interface (Operated by mouse, keyboard) Web Browser (Internet Explorer 7 or above) CMS Utility

Log Type

Alert/Event/User Access

Software Utility

Search utility/media player for exporting recorded files

Power

19V DC, 4.74A

Consumption

60W

Operating Temperature

5~40 degrees C

Storage Temperature

-40~70 degrees C

Humidity

10~90% (non-condensing)

Weight

2.4kg

Dimensions (W x D x H)

315 x 225 x 75 mm
