NVR-E6480 — 64-Ch Windows-based NVR with 8-Bay Hard Disks

Descripción

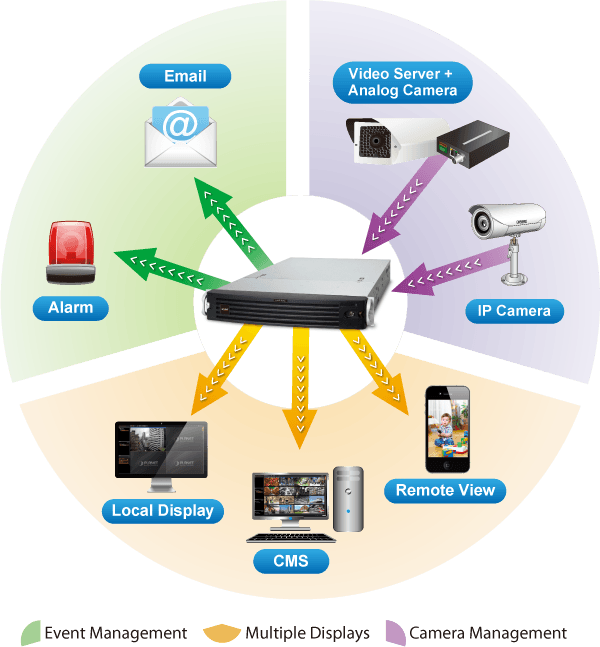

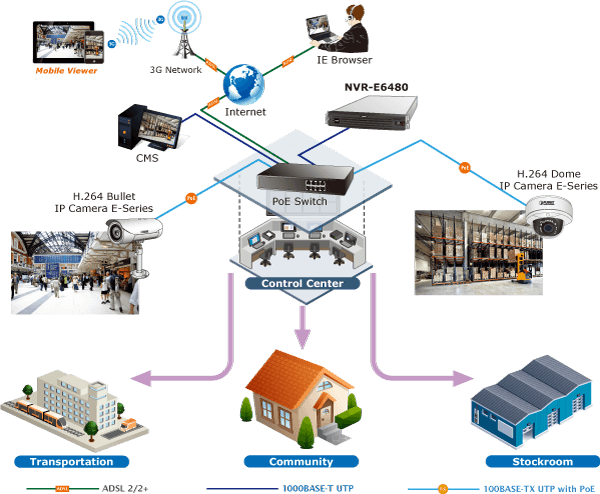

High Level Surveillance Solution PLANET NVR-E6480, a high-definition IP surveillance solution, is designed to work with PLANET E-series cameras or ONVIF cameras for traffic surveillance, public and other security monitoring applications. The NVR-E6480 is the Windows-embedded 64-channel NVR that can connect up to 64 IP cameras and supports 8 hard disks. The unit employs RAID 0/1 to optimize the process of securing data easily and quickly. The NVR-E6480 features Gigabit Ethernet ports, eMap, video motion detection, automatic camera registration, and mobile apps for smart phone and tablet connectivity. The NVR-E6480, capable of recording 300Mbps of video bandwidth, supports a wide range of resolutions in H.264, MPEG-4 and M-JPEG formats. In addition, the NVR is able to work with extended software such as ALPR (Automatic License Plate Recognition) and IVS (Intelligent Video Surveillance). Through these value-added applications, the NVR is definitely a necessity to keep track of those critical moments saved as evidences when in need. Instant Playback On the Live View page of the NVR-E6480’s management interface, whenever you want to look back to check suspicious events of a camera channel you just missed, just hit the ‘Instant Playback’ button to bring up the window to review recent feeds. While you don’t have to switch to the Playback page to do so, you can still have full live views of other channels simultaneously. Dual Stream Management The NVR provides dual stream management in live view and recording functions. User is able to monitor or record stream 1 or stream 2 of dual stream devices. This design is able to reduce the CPU and memory loading of the NVR that handles a large number of channels. Location Management with eMap The eMap function helps visualize the layout of IP cameras in the surveillance network enabling you to quickly identify the location of each IP camera, especially when an alarm occurs. Just upload the pictures of the monitoring locations and drag and drop the IP camera icons to the right place on the eMap. Once an alarm event happens, the camera icons will flash to indicate the event type for you to be alerted immediately and take necessary actions. Remote Access via Mobile App, Web Browser or CMS The NVR-E6480 provides central surveillance management capability with the adoption of its bundled Central Management Software (CMS). With the CMS, the NVR system is expandable for multi-sites management of up to 64 surveillance channels simultaneously. Besides, users are able to monitor the NVR via mobile app viewer or the Web browser anytime, anywhere. Large Storage Capacity The NVR-E6480 is suitable for various network environments. Besides applications in retail stores and SMBs, the NVR-E6480 offers 8 SATA HDDs supporting RAID 0/1 function and is able to be applied in large scale surveillance facilities, such as banks, enterprises, transportations, campuses, etc. Applications Perfect for Indoor Surveillance Applications PLANET NVR-E6480 is a rack server optimized for reliable high-definition surveillance. The NVR is preloaded with all necessary software and preconfigured to minimize installation time. It is then completed with PLANET E-series cameras and extended software to formally begin surveillance. With dual Ethernet ports, ONVIF standard, CMS management, eMap and high storage capacity features, the NVR-E6480 is especially perfect for indoor surveillance in such places as department stores, factories, communities, enterprises, transportations, campus, etc. Key Features Hardware Windows-embedded standalone NVR 2U rack-mount design Dual Gigabit Ethernet ports E-SATA, VGA and USB interface supported Audio line-in, line-out and mic-in jacks Video & Audio Simultaneous recording and live video streaming Supports M-JPEG, MPEG-4 and H.264 compressions 64-channel IP camera input Video resolution up to 10 mega-pixel 2-way audio support Video Recording & Backup Manual, event or scheduled recording of 64 IP cameras simultaneously Supports recording frame rate up to 1920fps Instant playback in live view Supports 8 SATA hard disks (RAID 0/1) for storage, up to 6TB per HDD Exports recorded video file in AVI or RAW format Network Service 2 x RJ45, 10/100/1000BASE-T IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF Easy Installation & Management ONVIF compliant for interoperability Supports multiple languages Dual stream management Location-based management with eMap Up to max. 64 channels with the central management software Supports USB keyboard and mouse Remote access via mobile app viewer and Web browser Cam Viewer E-series software supported – CV7-VA, CV7-LP *The NVR-E6480 supports 1-ch ONVIF only for the third-party camera. Users must purchase an additional license for expanding ONVIF channels.

Especificaciones técnicas

CPU

Intel Processor

RAM

2GB

Operating System

Windows 7 Standard Embedded

Ethernet

2 x RJ45, 10/100/1000BASE-T

USB Interface

6 x USB 2.0 for backup device and firmware upgrade

Video Interface

VGA video interface

Audio Interface

Mic-in, line-in and line-out

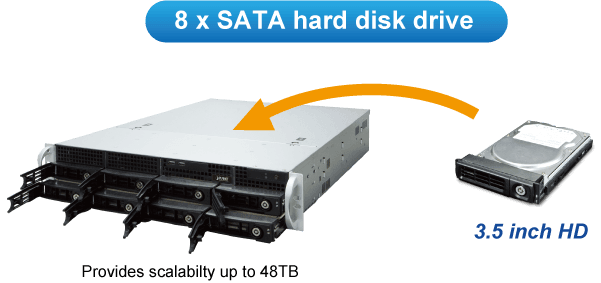

Storage Device

8 x 3.5" SATA II hard disk connectors; up to 6TB per HDD

External Storage Interface

1 x eSATA

LED

Power

Button

Power

Max. Channels

64-channel IP cameras *Resolution 320 x 240, 1 Mbps bitrate, 30 FPS per camera

Function

Manual, auto or ONVIF search

Compression

H.264, MPEG-4, M-JPEG

Resolution

10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGA

Max. Live Video Frame Rate (Local Display)

6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), 30fps@1.3MP (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch) *The above performance was tested with the following parameters: H.264 compression and 3Mbps bitrate

Audio Type

2-way

Display Layout Mode

Local: 1, 4, 5, 6, 8, 9, 10, 12, 16 Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64

Digital Zoom

Zoom in/out digitally by PiP (Picture-in-Picture)

Manual Recording/ Snapshot

Instant recording upon mouse click/Instant snapshot upon mouse click or hot key

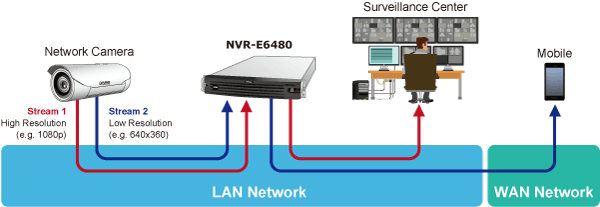

Dual Stream Management

Live view of stream 1 or stream 2 of dual stream devices

Event Panel

Displays event status upon alarm or upon connection loss or recovery

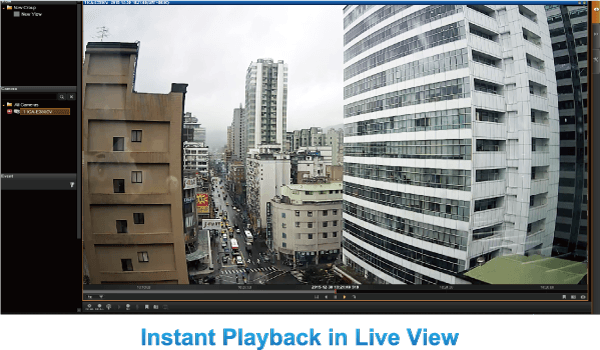

Instant Playback

Instant playback in live view window

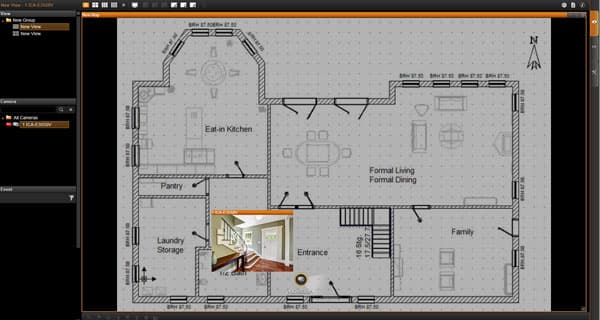

E-map

Area maps with camera icons and small live view windows hyperlinks

Video Search

Time/Event based

Playback Control

Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stop

Manual Snapshot

Instant snapshot from playback upon mouse click

Synchronized Playback

Up to 9 channels for local display; up to 64 channels for remote client

Video Export

Export video clips in AVI or RAW format

Recording Throughput

Maximum total bitrate 300Mbps

Schedule Recording

Record video with user defined schedule

Event Recording

Record video when the alarm event is triggered, including the pre-event buffered video clip

Frame Rate Setting

Different recording frame rate settings for non-event and triggered event

Manual Recording

Instant recording upon mouse click

Dual Stream Management

Recording of stream 1 or stream 2 of dual stream devices

Recording Frame Rate

Max. 1920fps in total; max. 30fps per camera

Max. Local Display Resolution

1920 x 1200

Network Service

IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF

Event Type

Video motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not found

Event Action

Record video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset point

Manual Event

Manually activate external devices through digital output via live view monitor

Scheduler

Define the schedule of event manager

Max. Number of Clients

1 local, 3 remote

Privileges

Live, Playback, Setup, Global

User Interface

Graphic local user interface (Operated by mouse, keyboard) Web browser (Internet Explorer 7 or above) CMS utility App viewer

Multiple Languages Support

Arabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional Chinese

Log Type

User Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request Log

Power

100-240V AC, 4-2A, 50-60Hz

Consumption

200W

Operating Temperature

0~40 degrees C

Humidity

10~85% RH

Weight

11.4 kg (with 1 system HDD and front cover)

Dimensions (W x D x H)

482 x 560 x 88 mm
