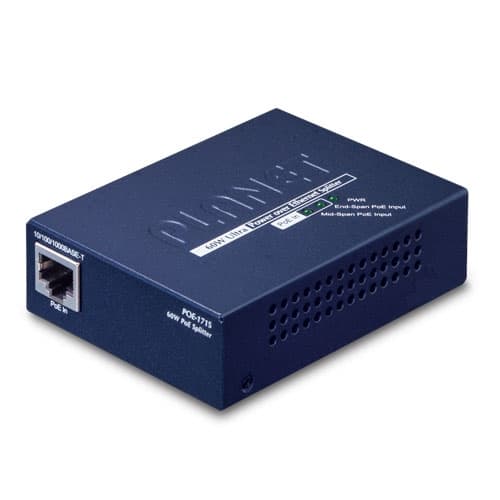

POE-171S — Single-Port 10/100/1000Mbps Ultra PoE Splitter (12V/19V/24V)

Descripción

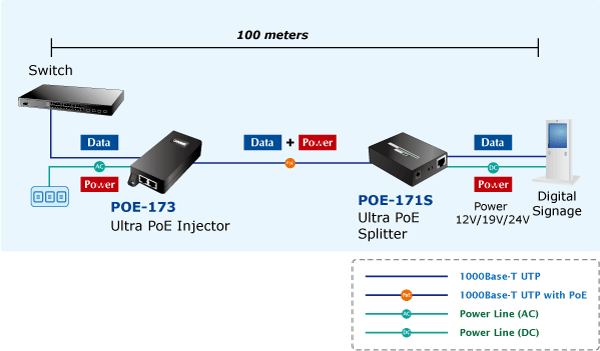

Quick and Easy Gigabit High Power PoE Network Deployment PLANET POE-171S Gigabit ultra Power over Ethernet splitter delivers the Ethernet digital data with DC 56V power over the twisted pair cables as an IEEE 802.3at/af Gigabit high Power over Ethernet splitter, and it separates the digital data and the power into three optional outputs (12V / 19V /24V DC) and distance up to 100 meters. If the POE-171S co-works with PLANET POE-171 (60-watt IEEE 802.3at PoE injector), it can offer more PoE applications, such as: ■ PoE PTZ Speed Dome ■ Other Network devices that need higher PoE power to work normally ■ Thin-client ■ AIO (All-in-One) touch PC ■ Remote digital signage display The POE-171S frees the device deployment from restrictions due to power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time. 50 watts of Power over 4-Pair UTP The POE-171S and POE-171 ultra PoE solution use cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 50 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. Cost-effective and Easy Cabling Installation In the IEEE 802.3at Gigabit high Power over Ethernet devices installed, the system administrator only has to connect one single RJ-45 Ethernet cable to carry both power and data from an IEEE 802.3at/af PoE injector to POE-171S , and then the POE-171S splits data and DC power to any of IP networking devices. Besides, to connect through IEEE 802.3at Power over Ethernet injector and POE-171S, you can also have the benefits of cost saving, easy networking planning and higher reliability. Upon the completion of the installation of IEEE 802.3at compliant devices, the POE-171S , when functioning with the POE-171, can make the connection while migrating or splitting the power and the Ethernet digital packets, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other Network devices that need 50-watt high power to work normally. Applications Ultra PoE Splitter and Injector Installation: For a place which is hard to find the power inlet, the POE-171S and PLANET Ultra PoE Injector - POE-171 or POE-173, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-171S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Key Features Interface 2-Port RJ-45 interfaces - 1-Port Data + Power input - 1-Port Data output 1-Port DC output power socket 1 DC 12V/19V/24V DIP switch Power over Ethernet Ultra Power over Ethernet End-Span / Mid-Span PSE IEEE 802.3at/af PoE standard compliant Compatible with All IEEE 802.3at/af Powered Devices Supports 56VDC, 50pwatt PoE power output Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output Remote power feeding up to 100 meters Hardware Metal case All-in-one compact size design LED indicators for Power LED and POE input Three-mode DC output DIP switch for 12V/19V/24V Standard Compliance IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet FCC Part 15 Class A, CE

Especificaciones técnicas

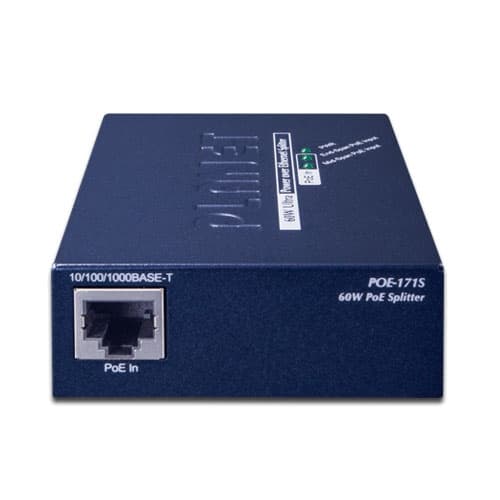

Interface

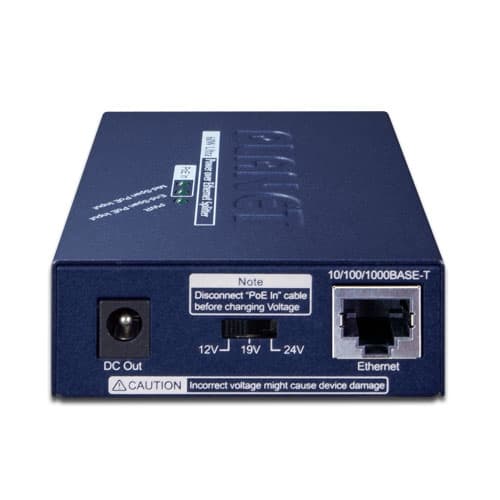

Input Port ■ 1 x RJ-45 STP ■ PoE (Data + Power) In Output Port ■ 1 x RJ-45 STP ■ Data Out DC Socket ■ DC Out DIP-Switch ■ 12V DC/19V DC/24V DC output voltage

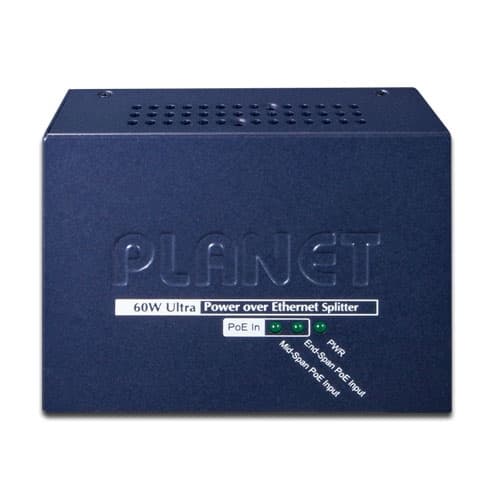

LED Indicator

System: Power x 1 (Green)

Network Cable

Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

300g

Power Requirements

52 ~ 56V DC

Power Consumption

50 watts (maximum)

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Humidity

5 ~ 95% (Non-condensing)

PoE Standard

IEEE 802.3at Power over Ethernet Plus

Power Output

DC 12V/19V/24V by DIP switch control

DC Plug connectors (Diameter)

2 external female plug cables: ■ 5.5/2.5mm to 5.5/2.5mm ■ 5.5/2.5mm to 5.5/2.1mm

PoE Power Supply Type

End-Span + Mid-Span

Power Pin Assignment

Pair 1: 1/2(-), 3/6(+) Pair 2: 4/5(+), 7/8(-)

Standards Compliance

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet

Regulation Compliance

FCC Part 15 Class A, CE
