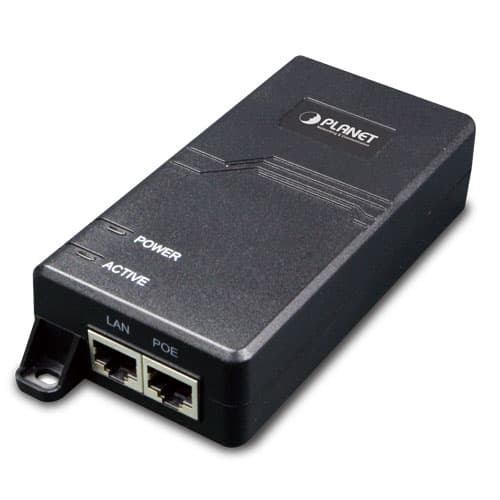

POE-172 — Single-Port 10/100/1000Mbps Ultra PoE Injector (60 Watts, internal PWR)

Descripción

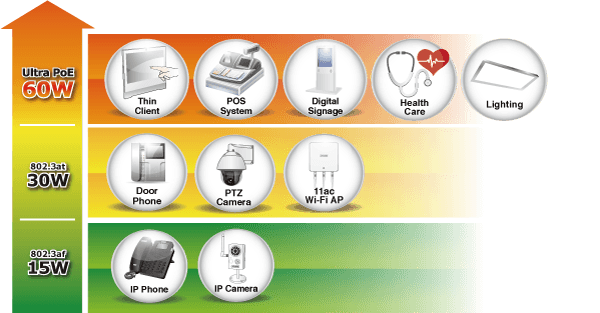

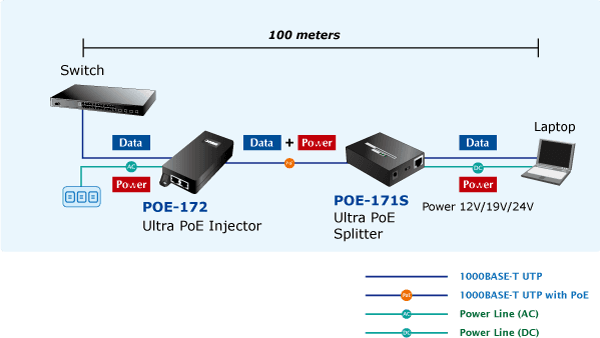

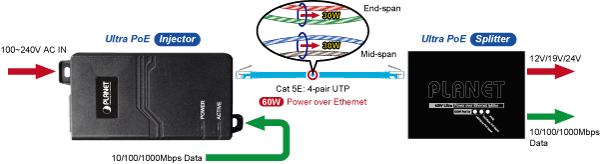

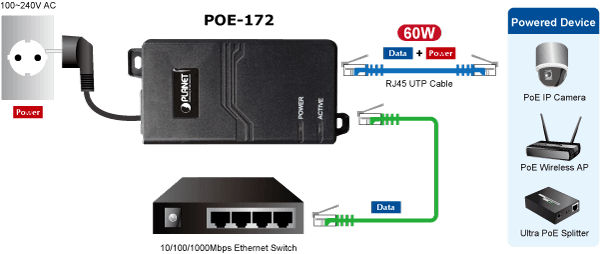

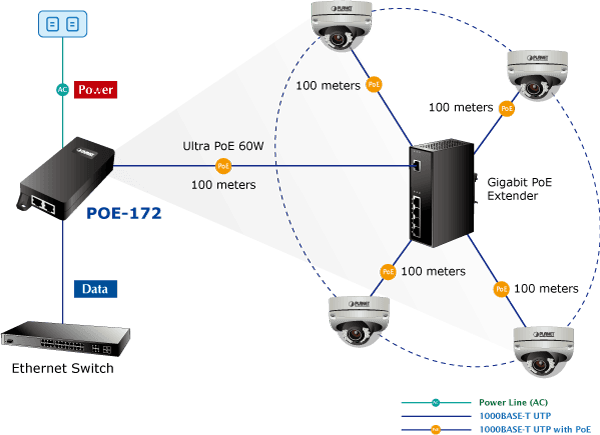

PLANET POE-172 Ultra Power over Ethernet Injector provides a maximum of 60-watt power and high-speed Ethernet data connection anywhere in your network infrastructure. PLANET single port Ultra Power over Ethernet solution contains the following products: ■ POE-172 : 60-watt Ultra Power over Ethernet Injector ■ POE-171S : 12V/19V/24V DC Power over Ethernet Splitter Quick and Easy Gigabit Ultra Power PoE Network Deployment The POE-172 is a Single-Port , Ultra Power over Ethernet Injector with a maximum of 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as: ■ PTZ Speed Dome ■ AIO (All-in-One) touch PC ■ Remote digital signage display ■ Other network devices that need higher power to work normally The POE-172 delivers the Ethernet digital data with 56V DC power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter, the POE-171S, will separate the digital data and the power into three optional outputs ( 12V / 19V / 24V DC ) with distance up to 100 meters. 60 watts of Power over 4-pair UTP The POE-172 and POE-171S Ultra PoE solutions use the same cabling standard such as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. PoE Standard IEEE 802.3af (802.3at Type 1) IEEE 802.3at (802.3at Type 2) Ultra PoE (POE-172) Maximum Power delivered by PSE 15.4 watts 30 watts 60 watts Power Available at PD 12.95 watts 25.5 watts 50 watts Voltage Range 48V 50~57V 56V Twisted Pair Used 2-pair 4-pair Supported Modes End-span or Mid-span End-span + Mid-span Supported Cabling Cat. 3/5/5e/6 Cat. 5e/6 All-in-One and Compact Size Design With concepts of " Easy to install ”, “ Plug and Play ” and " Simple troubleshooting " for business and home users, the POE-172 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-172 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE) on the top side and two RJ45 ports (PoE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-172 is ready to provide high-speed network communication and ultra power PoE injector functions simultaneously with no need of software configuration. Quick and Easy Cabling Installation for PoE Network Deployment Backward compatible with both 802.3af and 802.3at PoE standards, the POE-172 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-172 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time. Applications Installation of Ultra PoE Injector Due to the backward capability of IEEE 802.3at/af PoE standard, the POE-172 can directly connect with any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt & Zoom) speed dome network cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. Installation of Ultra PoE Injector and Splitter For a place which is hard to find the power inlet, the POE-172 and POE-171S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home. Extended Installation of IEEE 802.3at Injector and PoE Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the POE-172 and PLANET PoE Extender,IPOE-E174, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-172. The POE-172 delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining POE power to the remote PoE IP cameras. Key Features Interface 2 x RJ45 interfaces - 1-port 10/100/1000Mbps Data + Power output - 1-port 10/100/1000Mbps Data input 1 x AC 100-240V input power socket Power over Ethernet Ultra Power over Ethernet PSE Up to 60 watts of power on 4-pair UTP Backward compatible with IEEE 802.3at/af PD device Auto-detection of PoE IEEE 802.3at/af equipment and devices to check whether there’s any damage done via incorrect installation Remote power feeding up to 100m Hardware All-in-one compact size design Internal power supply LED indicators for Power LED and Active LED (PoE ready/in-use)

Especificaciones técnicas

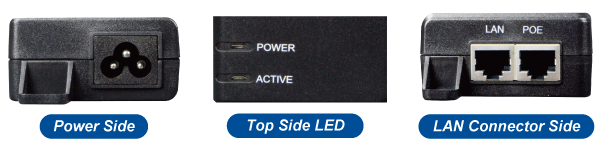

Interface

LAN: 1 x RJ45 STP, “ Data ” Input Port PoE: 1 x RJ45 STP, “ Data + Power ” Output Port AC Connector: 1 x AC input power socket, IEC-320 C6

Network Cable

Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)

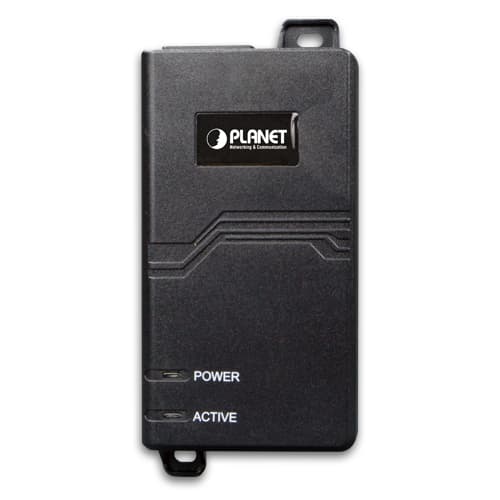

LED Indicator

System: Power x 1 (green) PoE Port: Active, PoE ready/in-use x 1 (green)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

115 x 62.5 x 31 mm

Weight

235g

Unit Output Voltage

DC 56V, 1.08A

Power Requirements

100-240V AC @50/60Hz, 1.5A max.

Power Consumption

60 watts max.

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity, non-condensing

Storage Humidity

5 ~ 95%, relative humidity, non-condensing

PoE Standard

Ultra PoE over 4-pair UTP cable, IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE

PoE Power Supply Type

End-span + Mid-span

Power Pin Assignment

Pair 1 End-span: 1/2 (+), 3/6 (-) Pair 2 Mid-span: 4/5 (+), 7/8 (-)

PoE Power Output

DC 56V/60-watt PoE via 4-pair DC 56V/30-watt PoE via 2-pair

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet

Regulatory Compliance

FCC Part 15 Class B, CE
