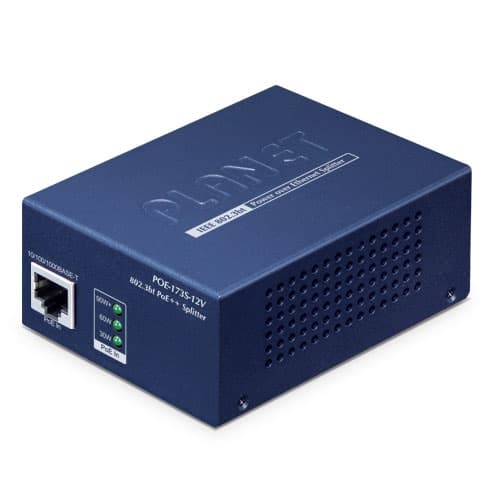

POE-173S-12V — Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

Descripción

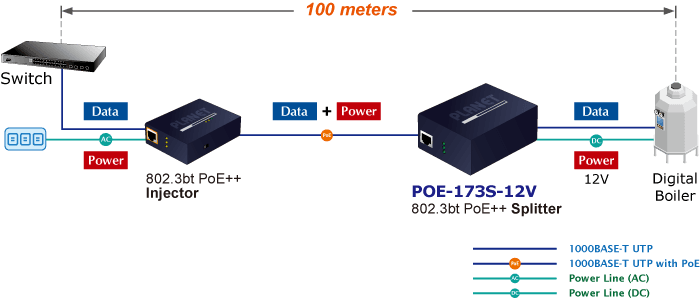

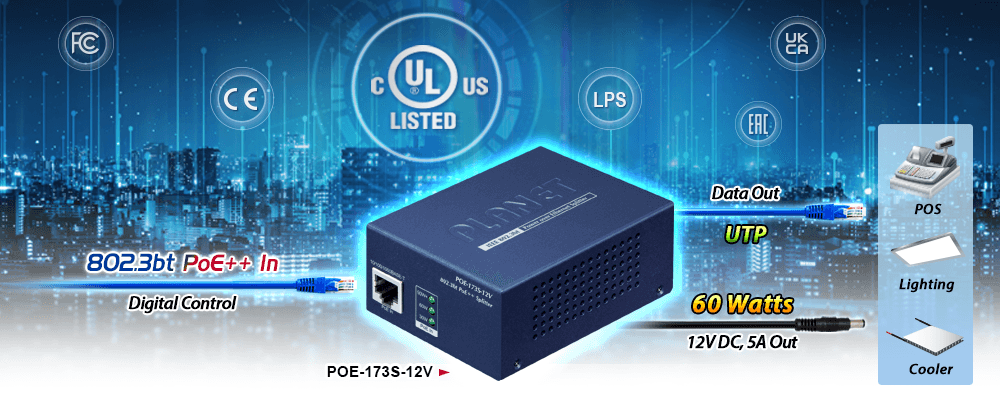

Quick and Easy Gigabit 802.3bt PoE++ Network Deployment PLANET POE-173S-12V Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a DC 12V output, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. The POE-173S-12V, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices, such as: PTZ speed dome camera Thin client AIO (All-in-One) touch PC Remote digital signage display Non-PoE network devices that need higher power to work normally The POE-173S-12V frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time. Stable DC 12V Power Output Voltage The POE-173S-12V can supply 12V DC output to the common network devices, it highly increases the flexibility of the product applications. 802.3bt PoE++ Power over 4-pair UTP Cable The POE-173S-12V and 802.3bt type-4 PoE++ switches use cables that meet the IEEE 802.3bt standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. Environment-friendly Structure The POE-173S-12V comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S-12V is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done. Applications 802.3bt PoE++ Splitter and Injector Installation For a place which is hard to find the power inlet, the POE-173S-12V and PLANET 802.3bt PoE++ switches or injectors operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-173S-12V separates digital data and power into DC 12V outputs to non-PoE devices such as laptops, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Key Features Interface 2 RJ45 interfaces 1-port data + power input 1-port data output 1-port DC plug-in Power over Ethernet Complies with 802.3bt Power over Ethernet plus plus PD Backward compatible with 802.3at PoE+ with up to 30-watt power output Splits the PoE power over RJ45 Ethernet cable into DC 12V output Distance up to 100 meters Hardware Metal case All-in-one compact size design PoE usage level LED indicators Desktop, wall-mount or DIN-rail (optional) design Complies with FCC, CE class B, CB and UL certifications

Especificaciones técnicas

Interface

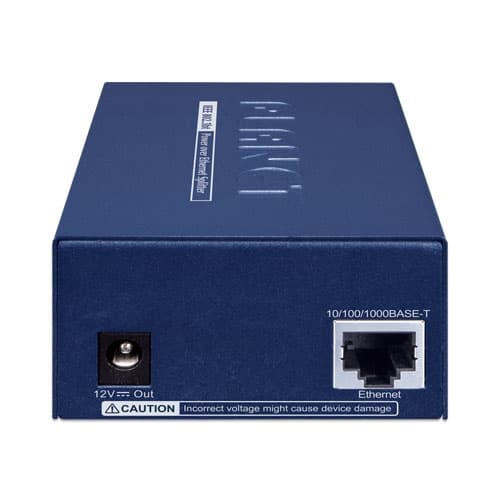

Ethernet：1 x 10/100/1000BASE-T RJ45, Ethernet data output port PoE in：1 x 10/100/1000BASE-T RJ45, PoE power input port Power socket：1 x DC plug-in

DC Socket

DC receptacle 2.5mm

LED Indicators

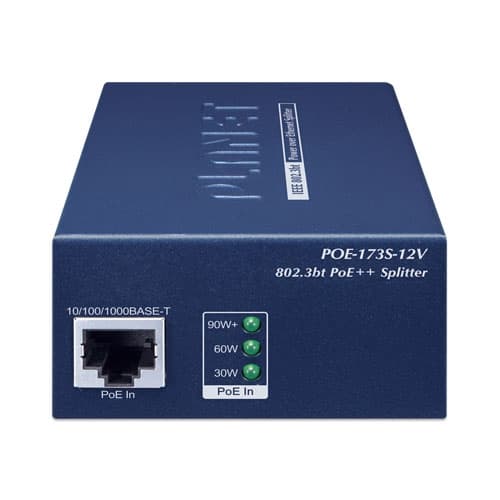

PoE in: 30W ( Green ) 60W ( Green ) 90W+ ( Green )

Data Rate

10/100/1000Mbps

Dimensions(W x D x H)

94 x 70.3 x 39.2 mm

Weight

265g

Installation

Desktop/wall mountable/DIN-rail

Enclosure

Metal case

Power Requirements

48~56V DC PoE

Unit Output Current(at 56VDC Input)

With 803.bt type 3 PoE++ input:　4.5A@12V DC With 803.bt type 4 PoE++ input:　5A@12V DC

Power Consumption

Ethernet full loading without DC output:　6.5 watts Full loading with maximum 12V DC, 5A output:　70 watts

Network Cable

803.bt PoE (60W+) 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3at PoE (30W) 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)

PoE Standard

802.3bt Type 3/4 Power over Ethernet 4-pair 802.3at PoE+ Compliant with voltage within 48-56V DC

Power Output

DC 12V

PoE Power Supply Type

End-span + Mid-span End-span Mid-span

Power Pin Assignment

1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4

Regulatory Compliance

FCC, CE, UL

Operating Temperature

0~ 50 degrees C

Storage Temperature

-10~ 70 degrees C

Humidity

5 ~ 95% (non-condensing)
