POE-E201 — IEEE 802.3at Power over Gigabit Ethernet Extender

Descripción

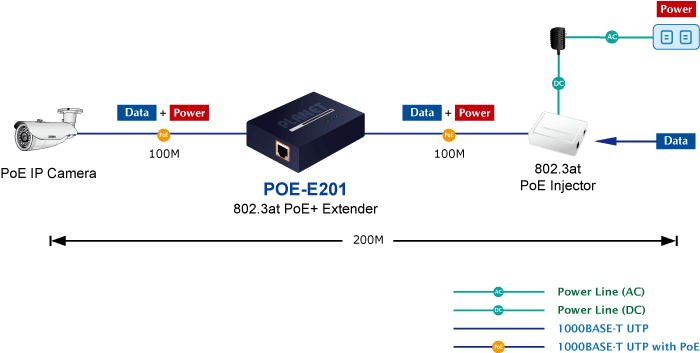

Long Distance 802.3at PoE+ and Gigabit Data Extension Solution PLANET POE-E201 is a simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m. No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E201 is designed as the extender to transmit both Gigabit Ethernet data and 802.3af/at PoE power over another distance of 100m. By daisy-chaining multiple POE-E201s, distance can be tripled or quadrupled to meet your requirements. With its ability to provide 802.3af/at PoE and Gigabit Ethernet data extension, the POE-E201 is an ideal networking solution for service providers, campuses and public areas. It enables you to centrally manage the power easily, efficiently and cost-effectively no matter now remote the location is. Plug and Play, and Easy Cabling Installation The POE-E201 Gigabit 802.3af/at PoE Extender is quite easy to be installed by the simple plug and play configuration. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E201 injects power to the PD without affecting the data transmission performance. The POE-E201 offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. This Gigabit 802.3af/at PoE Extender, designed in a compact box, features 2 RJ45 ports, of which the "PoE IN" port functions as PoE (Data and Power) input and the "PoE OUT" port on the other side functions as PoE (Data and Power) output . The "PoE OUT" port is also the power injector to transmit DC voltage via the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and a PD. Applications Long Distance PoE IP Surveillance Is 100 meter cable long enough for a long-distance IP surveillance deployment? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, PLANET POE-E201 Gigabit 802.3af/at PoE Extender is a quick and cost-effective option besides adopting a PoE injector or PoE Ethernet switch equipped with fiber optic interface. In the simplest application, the POE-E201 enables a PoE IP camera to be installed up to 200 meters away from a PoE injector. The PoE injector delivers PoE power over the first 100 meters to the POE-E201 over UTP cable, and then the POE-E201 forwards the Ethernet data and remaining POE power to the PoE IP camera. The POE-E201 does not require an external power supply and can be installed easily by the plug and play configuration, meaning the operator does not need to configure the POE-E201. Long Distance PoE Wireless Access Point In the wireless LAN, the POE-E201 enables wireless access points to be connected using standard Cat.5/5e/6 cable over 100 meters in length from the PSE, such as PoE switch, PoE injector hub or single port PoE injector. The POE-E201 is also powered by the incoming PoE on the Ethernet cable and does not require any external power feed. Therefore, the POE-E201 can reduce the usage of cables and eliminate the need of dedicated electrical outlets on the wall, ceiling or any unreachable place for the wireless AP deployment. Key Features Compliant with IEEE 802.3at Power over Ethernet Plus PSE and PD standard Backward compatible with IEEE 802.3802.3af Power over Ethernet Complies with IEEE 802.3/802.3u/802.3ab 10/100/1000BASE-T Extends the range of PoE to more than 100 meters (328ft.). Automatically detects and protects PoE equipment from being damaged by incorrect installation Daisy-chain installation support Forwards both Ethernet data and PoE power to the remote device No external power cable installation required Compact size, wall-mountable design Plug and Play

Especificaciones técnicas

LAN IN

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ45 connector

LAN OUT

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ45 connector

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

189g

Power Requirements

IEEE 802.3at PoE+ compliant with voltage within 52V-56V DC IEEE 802.3af PoE compliant with voltage within 48V-51V DC

Power Consumption

2.6 watts (system maximum) /PoE Output at maximum 36 watts

Enclosure

Metal

Installation

Wall or DIN-rail mounting

Protection

ESD (Ethernet): 2KV Surge (EFT for power) : 2KV

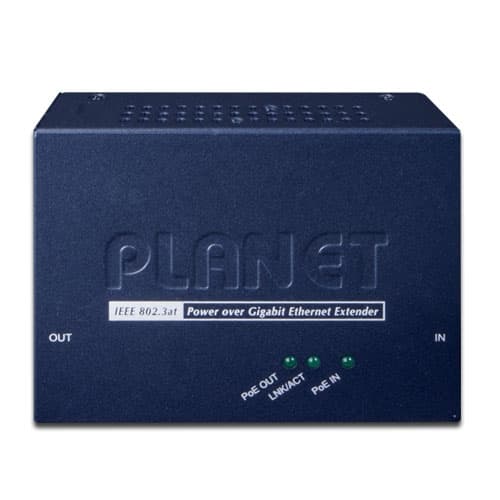

LED Indicators

1 x PoE IN ( Green ) 1 x LAN Data ( Green ) 1 x PoE OUT ( Amber )

Network Cable

10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-Pair UTP Cat. 5e, 6, 6A up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft)

Data Rate

10/100/1000Mbps

Switch Architecture

Store-and-Forward

Switch Throughput

10Mbps:14880pps@64Bytes 100Mbps:148810pps@64Bytes 1000Mbps:1488000pps@64Bytes

Maximum Frame Size

9K bytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

PoE Standard

“PoE In”Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet standard

PoE Power Supply Type

End-span/Type A

PoE Power

“PoE In” Port 48~56V DC, max. 30.8 watts “PoE Out” Port 44~52V DC, max. 26 watts

Power Pin Assignment

“PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) “PoE Out” Port 1/2 (+), 3/6 (-)

Maximum Distance

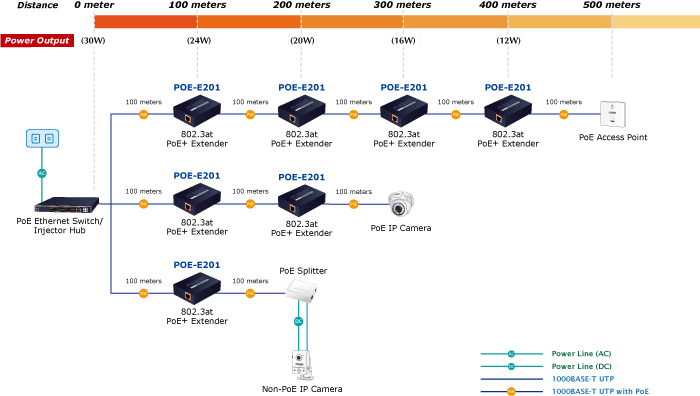

500 meters with daisy-chain installation of 4 units

Regulatory Compliance

FCC Part 15 Class A, CE

Standard Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control

Operating

Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
