POE-E202 — 1-port 802.3at PoE+ to 2-port 802.3af/at Gigabit PoE Extender

Descripción

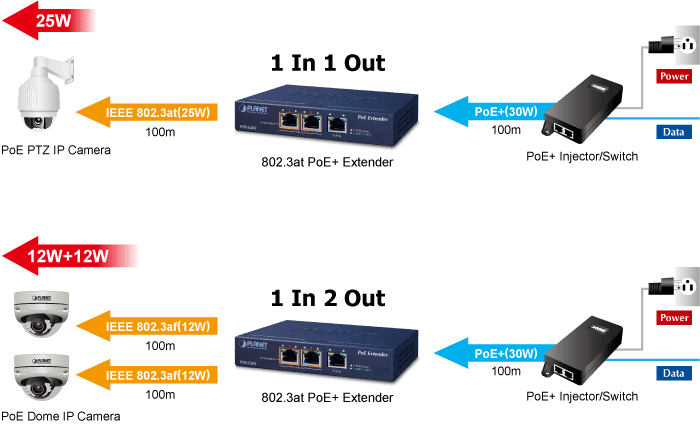

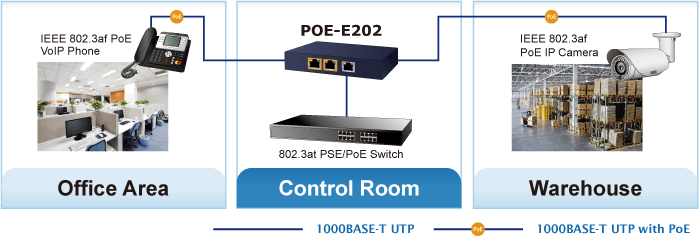

PoE Solution for Breaking RJ45 100m Limitation PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time. The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. Plug and Play Installation The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output . The "PoE OUT " port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD. Applications One Power Sourcing for Multi Powered Devices Solution Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and the long-distance IP camera distribution, PLANET POE-E202 is quite a useful Gigabit PoE extender if users have most of their network already set up, and hope to expand network communications and overcome cable distance limitations offering connections to devices in locations where traditional networking does not allow. Key Features Physical Port 3-port 10/100/1000BASE-T Gigabit RJ45 1-port data + power input 2-port data + power output Power over Ethernet 1-port data + power input Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD Supports PoE input power up to 30.8 watts 2-port data + power output Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE Up to 2 IEEE 802.3af/802.3at devices powered Supports PoE power up to 25 watts for each PoE port Auto detects powered device (PD) Extends the range of PoE to an additional 100 meters (328ft.) Forwards both Ethernet data and PoE power to remote device Layer 2 Features Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X Integrates address look-up engine, supporting 2K absolute MAC addresses 10K iumbo packet support IEEE 802.1Q VLAN transparency Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation Automatic address learning and address aging Supports CSMA/CD protocol Case and Installation No external power cable installation required Made of metal, desktop size design Wall-mountable, Plug-and-Play installation 0 ~ 50 degrees C operating temperature

Especificaciones técnicas

PoE IN

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “Data + DC power” in auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE OUT

2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC power” out auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Standard

“PoE In” Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE

PoE Power Supply Type

End-span (Type A)

PoE Power

“PoE In” Port 52~56V DC, max. 30.8 watts Per “PoE Out” Port 44~55V DC, max. 25 watts

Power Pin Assignment

“PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per “PoE Out” Port 1/2 (+), 3/6 (-)

Data Rate

10/100/1000Mbps

MAC Address Table

2K

Data Buffer

2Mbits

Switch Architecture

Store-and-Forward

Switch Fabric

6Gbps

Switch Throughput

4.46Mpps @ 64 bytes

Jumbo Frame

10KB

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

LED Indicators

“PoE In” Port: PoE-in-Use x 1 ( amber ), LNK/ACT x 1 ( green ) “PoE Out” Port 1: PoE-in-Use x 1 ( amber ), LNK/ACT x 1 ( green ) “PoE Out” Port 2: PoE-in-Use x 1 ( amber ), LNK/ACT x 1 ( green )

Protection

ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD)

Enclosure

Metal

Installation

Wall mountable

Dimensions (W x D x H)

140 x 76.7 x 27.7 mm

Weight

258g

Power Requirements

IEEE 802.3at compliant with voltage within 52V-56V DC

Power Consumption

1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE function) 36 watts/122.8BTU (Full loading with PoE function)

Network Cable

10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft)

Regulatory Compliance

FCC Part 15 Class A, CE

Standard Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
