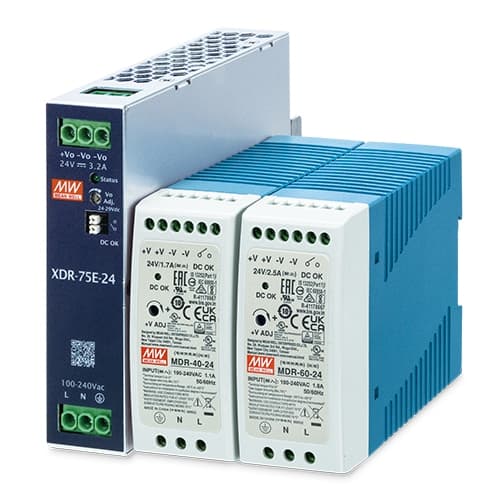

PWR-40-24 / PWR-60-24 / PWR-75-24 — DC Single Output Industrial DIN-rail Power Supply Units

Descripción

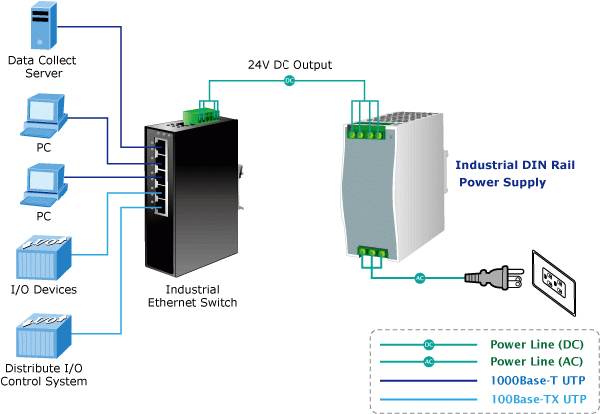

Compact Size with more Practicability and Convenience PLANET has released a series of DC single output industrial DIN-rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily. PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 24V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments. Stable Performance under Difficult Environments PLANET DC single output industrial DIN-rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN-rail power supply units can be placed in almost any difficult environments. Applications Ideal 24V DC Power Feeding Solution for Non-PoE Industrial Devices The following DC single output industrial DIN-rail power supply units are able to supply sufficient 24V power to non-PoE industrial devices, such as industrial Fast/Gigabit Ethernet switches and industrial VDSL2 converters. The model names and specifications are: PWR-40-24 (MEAN WELL/MDR-40-24): 40W 24V DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C） PWR-60-24 (MEAN WELL/MDR-60-24): 60W 24V DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C） PWR-75-24 (MEAN WELL/XDR-75E-24): 75W 24V DC Single Output Industrial DIN-rail Power Supply （-40 ~ 70 degrees C） Key Features PWR-40-24 (MEAN WELL/MDR-40-24) Universal AC input / full range Protection: short circuit, overload and over voltage Cooling by free air convection For installation on DIN rail TS-35/7.5 or 15 NEC class 2 / LPS compliant LED indicator for power on DC OK relay contact No load power consumption<0.75W 100% full load burn-in test PWR-60-24 (MEAN WELL/MDR-60-24) Universal AC input / full range Protection: short circuit, overload and over voltage Cooling by free air convection For installation on DIN rail TS-35/7.5 or 15 LED indicator for power on DC OK relay contact No load power consumption<0.75W 100% full load burn-in test PWR-75-24 (MEAN WELL/XDR-75E-24) Universal AC input / full range ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates Built-in constant current limiting circuit Protection: short circuit, overload, over voltage and over temperature Cooling by free air convection Operating altitude up to 5000 meters Built-in DC OK Relay contact For installation on DIN rail TS-35/7.5 or 15

Especificaciones técnicas

Dimensions (W x D x H)

40 x 100 x 90mm

Weight (kg)

0.3kg

Input Voltage

85 ~ 264VAC ,50/60Hz 120 ~ 370VDC

Output Voltage Adj. Range

24-30V

Power Output

40 watts, 24V, 1.7A

Protection Overload

105-150% rated output power Protection type: constant current limiting, recovers automatically after fault condition is removed

Protection Over Voltage

31.2~36V Protection type: Shut down o/p voltage, re-power on to recover

Temperature

Operating: -20~70 degrees C Storage: -40~85 degrees C

Humidity

Operating: 20 ~ 90% Storage: 10 ~ 95% (non-condensing)

Installation

DIN Rail TS-35/7.5 or 15

Safety & Function

UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant

Input Voltage

85 ~ 264VAC,50/60Hz 120 ~ 370VDC

Power Output

60 watts, 24V, 2.5A

Safety & Function

UL508, TUV EN60950-1 approved

Hardware Version

3

Dimensions (W x D x H)

30 x 116 x 125mm

Weight (kg)

0.4kg

Input Voltage

85 ~ 264VAC, 50/60Hz 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)

Output Voltage Adj. Range

24-29V

Power Output

75 watts, 24V, 3.2A

Protection Overload

105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed

Protection Over Voltage

30~34V Protection type: Shut down o/p voltage, re-power on to recover

Protection Over Temperature

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Temperature

Operating: -40~70 degrees C Storage: -40~85 degrees C

Humidity

Operating: 20 ~ 95% (non-condensing) Storage: 10 ~ 95% (non-condensing)

Safety & Function

UL61010： TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN/EN61010; CB IEC62368-1, IEC61558-1 IEC61010： RCM AS/NZS 62368-1, AS/NZS 61558-1/-2-16, BSMI CNS15598 -1, CCC GB4943.1, EAC TPTC004 approved： KC KC62368-1 and BIS IS13252 (Part 1):2010 certified
