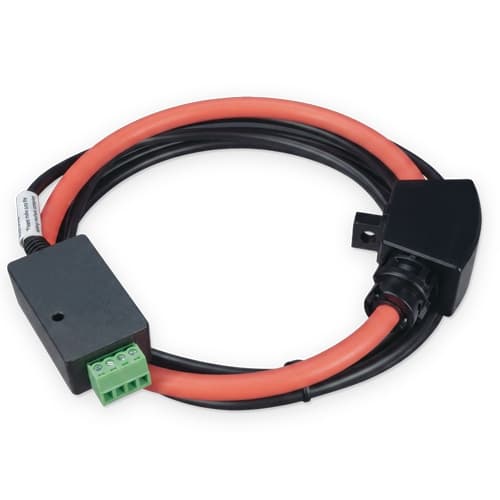

RC-300A-395/RC-500A-395/RC-800A-525/RC-1000A-525/RC-1500A-525/RC-2000A-525/RC-3000A-525 — Rogowski Coil Current Sensor with 333mV Output

Descripción

Flexible High-current Measurement with Rogowski Coil Sensors The PLANET RC Series Rogowski coil current sensors combine a flexible split-core coil with a compact integrator to provide reliable AC current measurement for high-current applications. Available with rated current options from 300A to 3000A and a standard 333mV AC output , the series is compatible with PLANET smart power meters featuring a Rogowski coil input. Its flexible construction simplifies installation around large conductors or busbars and in space-limited electrical panels, while its wide dynamic current range , resistance to magnetic saturation and IP65-rated coil make it suitable for power monitoring, industrial equipment, electrical furnaces and distributed energy measurement systems. Applications Applying Rogowski Coil Sensors to High-current Power Monitoring The PLANET RC Series Rogowski coil current sensors can be connected to PLANET smart power meters with a 333mV Rogowski coil input , including the SPM-D01-R and SPM-D05/D10 Series. Their flexible coil design enables convenient installation around large conductors and busbars where conventional rigid current transformers may be difficult to install. With rated current options from 300A to 3000A , the series is well suited for monitoring electrical furnaces, industrial machinery, main distribution feeders and other high-current equipment in energy management and power-monitoring applications. Key Features Flexible split-core design for convenient installation around large conductors and busbars Rated current options from 300A to 3000A Standard 333mV AC output for compatible PLANET smart power meters Less than 1% typical accuracy from 20% to 120% of rated current No magnetic saturation , open-circuit danger or overload danger Wide 1Hz to 100kHz bandwidth and IP65-rated coil

Especificaciones técnicas

Sensor Type

Flexible Rogowski coil with integrator

Primary Rated Current

RC-300A-395: 300A RC-500A-395: 500A RC-800A-525: 800A RC-1000A-525: 1000A RC-1500A-525: 1500A RC-2000A-525: 2000A RC-3000A-528: 3000A

Rated Output

333mV RMS

Accuracy

Less than 1% typical at 20% to 120% of rated current, average conductor position at 25 degrees C

Linearity Error

+/-0.2% of reading at 20% to 100% of range

Phase Error

0.5 degree maximum

Bandwidth

1Hz to 100kHz (-3dB)

Power Requirements

6 to 12V DC

Coil Length

RC-300A-395 / RC-500A-395: 395mm RC-800A-525 / RC-1000A-525 / RC-1500A-525 / RC-2000A-525 / RC-3000A-528: 525mm

Window Size (A x B)

RC-300A-395 / RC-500A-395: 135 x 100mm RC-800A-525 / RC-1000A-525 / RC-1500A-525 / RC-2000A-525 / RC-3000A-528: 165 x 150mm

Coil Outside Diameter

RC-300A-395 / RC-500A-395: 151mm RC-800A-525 / RC-1000A-525 / RC-1500A-525 / RC-2000A-525 / RC-3000A-528: 181mm

Coil Diameter

8mm

Lead Length

2m

Integrator Dimensions (W x D x H)

27 x 47.5 x 17mm

Coil and Cable Material

UL 94 V-0 flame-retardant thermoplastic rubber

Locking Connector Material

ABS and PC

Shielding

100% coil and 100% output cable shielding

Protection Rating

IP65

Operating Temperature

-30 to 80 degrees C

EMC

EN 61326-1:2006

Output Cable Insulation Voltage

3000V

Dielectric Strength

1000V

Measurement Category

1000V CAT III / 600V CAT IV
