SW-504 — 5-Port 10/100Mbps Desktop Fast Ethernet Switch

Descripción

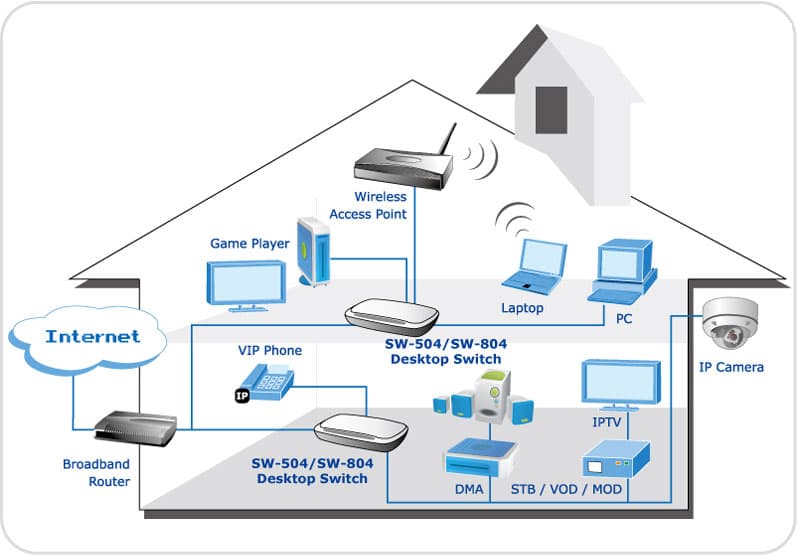

With concepts of "Easy to install and use", "Compact-sized design", and "Simple troubleshooting" , PLANET SW-504 provides cost-conscious business and home users with the foundation of an integrated system of small-office / home-office networking. The SW-504 is a fancy-shaped plastic model, which is just right for your network of 10 to 50 users. The SW-504 Desktop Fast Ethernet Switch is simple and cost-effective, and offers highly reliable network . And it is the ideal device for bridging Ethernet and Fast Ethernet workgroups or networks. Therefore, PLANET SW-504 switch will be recognized as one of the most important building blocks for today’s networking technology. To segment the network and ease the network traffic, the 5-port 10/100Mbps is useful for the SOHO switched networks as the friendly network backbone. With LED indicators, the network status can be monitored at a glance. Applications Home Use / SOHO Switch With 5 10/100Mbps ports, the SW-504 provides a cost-effective and high-performance solution for Home/SOHO use. In multiple applications, the advanced functionality of the SW-504 eliminates the traditional issues associated with Ethernet. Key Features 5 10/100Mbps TP interfaces Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation Features Store-and-Forward mode with wire-speed filtering and forwarding rates Supports 2K absolute MAC address Automatic address learning and address aging Supports Automatic MDI/MDI-X function Full/half-duplex capability on each TX port LED indicators for simple diagnostics and management FCC Class B, CE compliant

Especificaciones técnicas

Hardware Version

3

10/100Base-T Ports

5 Auto MDI/MDIX ports

Enclosure

Plastic

Dimensions (mm)

168 x 100 x 29

Weight (g)

142

Power Requirements (External power adapter)

DC 5V, 1A

Power Consumption / Dissipation (Full operation)

3.7 watts / 12 BTU

Switch Architecture

Store-and-Forward

Address Table

2K entries

Share Buffer

384K

Flow Control

Back pressure half duplex, IEEE 802.3x pause frame full duplex

Switch Fabric

1.0Gbps

Throughput (packet per second)

0.744Mpps

Standards Compliance

IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3x (Full-duplex Flow Control)

Temperature

Operating: 0~50 degrees C Storage: -20~70 degrees C

Operating Humidity

Operating: 5% to 90%, Storage: 5% to 90% (non-condensing)

Regulation Compliance

FCC Part 15 Class B, CE
