UNC-NMS — Universal Network Management Central Controller with LCD & 6 10/100/1000T LAN Ports (1024 x 100 nodes)

Descripción

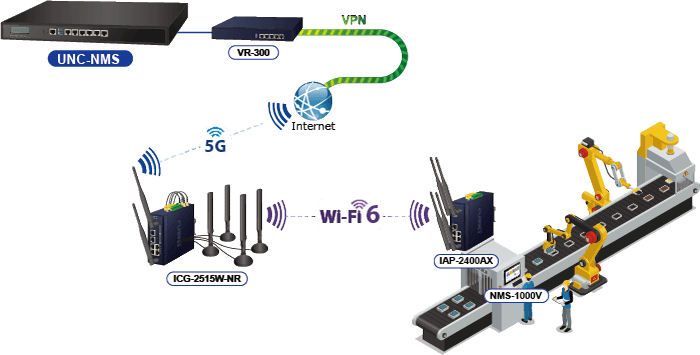

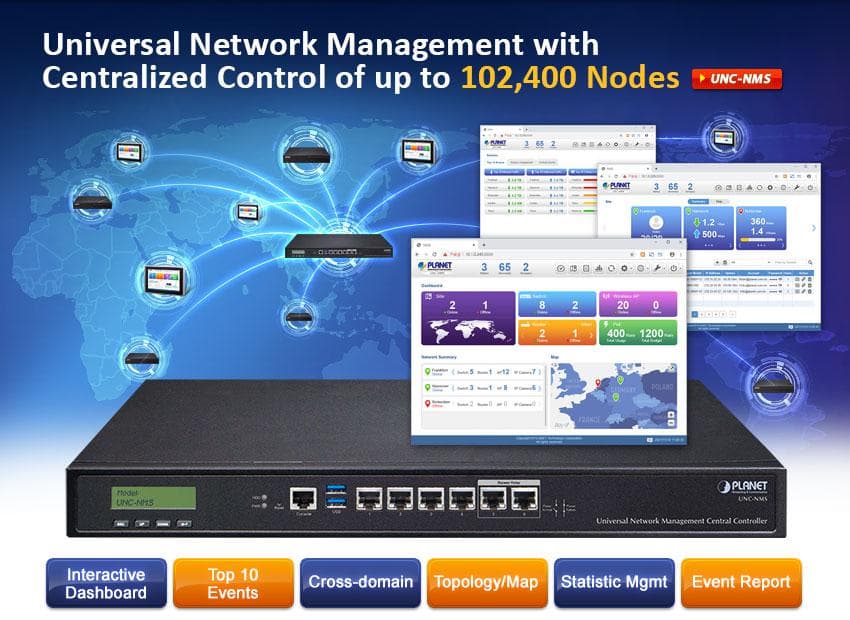

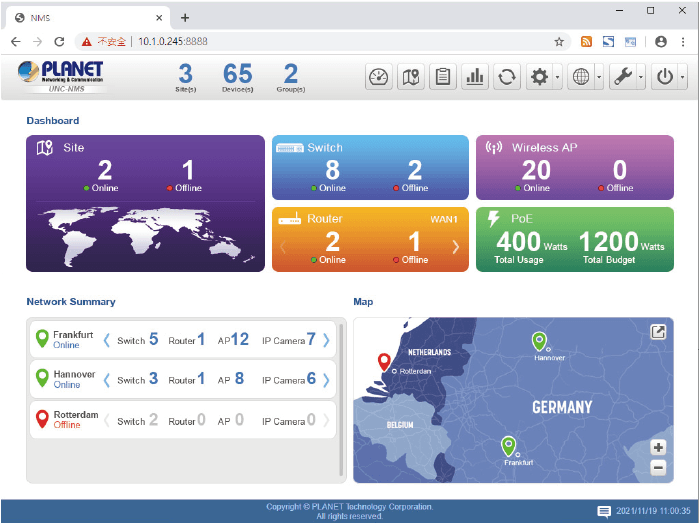

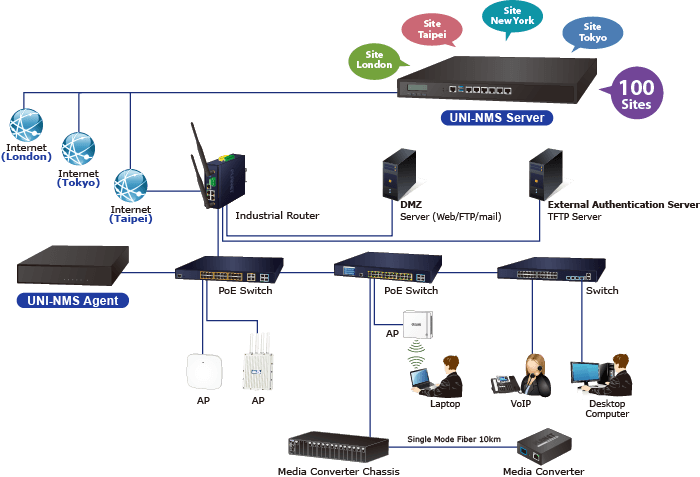

Universal Network Management Central Controller with LCD PLANET's UNC-NMS Network Management Central Controllers can directly monitor 102,400 nodes by monitoring NMS-500 or NMS-1000V up to 100 sites. However, the deployed devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc., have to be compliant with the MQTT Protocol, SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. These enable the administrator to centrally manage these nodes from a central office, greatly boosting network and power management efficiency. PLANET NMS solution features intuitive dashboard, topology and map viewing to make network management efficient and effective. The exclusive product features for PLANET NMS solution include: Centralized control of up to 102,400 nodes System upgrade and license ( free of charge ) Intuitive and user-friendly management functions Interactive Dashboard Shows Network Statuses in an Instant The NMS Controller’s interactive dashboard includes all the managed sites of network routers, switches, access points and PoE statistics. The administrator can quickly overview the status of each device from the Network Summary and Mapping window. Through each dashboard function button, the administrator can quickly link to the detailed current status. The site management page of deployed nodes can be monitored and managed in the VPN network environment. Status on a faulty event or log-in page is also displayed, thus immediately knowing where the disconnection issue comes from. Watch Over Network within Minutes The Device list information web page presents a list of managed devices, an NMS agent dashboard, topology view, AP control, and event and log viewing function. It provides the at-a-glance and efficient summary of your management network. It lets you have a valuable information on the current wired and wireless network statuses via data-driven graphical charts for each site. The topology viewer and event reports enable you to visualize the system usage and node status in real time so as to address whatever issue they may have. Optimizing Multiple Sites with Topology Viewer (with Maps) With the site maps, each site can be located according to the map, thus helping the administrator quickly overview the NMS agent and saving time and cost of on-site support and monitoring. The current statuses of NMS agents are shown in real time to optimize the site-to-site VPN network performance. The NMS Center Controller can provide up to 100 sites for all managed NMS agents. Real-time Centralized Monitoring with E-mail Alarm Function As the NMS controllers can display a topology view of the deployed powered devices, they can detect which device is online (Green) or offline (Red). The real-time centralized monitoring of these devices can help the administrator know what the current statuses of these devices are. Pop-up alerts shown on the touch panel tell where the problems are. The e-mail alarm function is designed to send an email alert to the administrator via the SMTP server where syslog information can be found once an abnormality is detected. This can prompt the administrator to quickly fix the identified problem in the network. Statistics for Top 10 Events to Manage Network Traffic and PoE Power The NMS statistic page lists the top 10 inbound and outbound traffic, PoE health, and critical events. It can help administrator to analyze which device is having abnormal power consumption, abnormally high temperature, illegal time of usage, and the near end of life cycle in order to avoid network crash. Power Consumption Analysis and Unloading Management Mechanism The NMS Controllers provide raw data records for PoE device power usage. Through the history statistics, the administrator can flexibly operate in whatever power is in demand. For energy savings and carbon reduction, the NMS system can help enterprises to save energy by unloading the low priority devices and ensure the safety and stability of electricity consumption in the overall environment of company, factory, etc. Applications Economical Central Network Management Solution for SMBs PLANET NMS-500 and NMS-1000V controllers help service providers and IT managers control all PLANET network devices at the same time and enable the administrator to effectively manage a local network of up to 100 sites and 102,400 managed nodes simultaneously without having to purchase any license and hardware-based controller, and pay an expensive annual subscription fee. The administrator can automatically discover and configure device profiles, batch provisioning/firmware upgrade, and built-in SAPC (Smart AP Control) that customize Wi-Fi planning against floor maps, and monitor all managed APs through a single Web-based interface. It allows operating across different platforms through virtualization software, which helps SMBs save costs on the need to configure the wireless APs one by one if done manually. Through the device list virtual panel function, the administrator also can do configuration with an NMS remote management switch to modify the network environment in one minute. Key Features Industrial-grade Physical Hardware 6 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (LAN 5 and LAN 6 are bypass ports) 1 x LCM for basic system setting 2 x LEDs (Power and HDD) 2 x USB 3.0 ports for configuration backup and restoration 1 x RJ45 Console port interface 1 x Factory default button (GPIO) 1 x 3-pin AC Power input socket for 100~240V 1U Rack-mount Network Devices Management Dashboard Providing the at-a-glance view of center system, site summary, site Map, traffic, PoE network status Site Management To create site list, site map for NMS agent management Device List To management all site devices or filter one site devices list for NMS agent function operation Statistic To show Top 10 Event Report, History Comparison function, Critical Events for devices Topology Viewer A topology of network devices compliant with MQTT, SNMP, ONVIF, Smart Discovery and LLTD Protocol with Map or not Event Reports The status of a network can be reported via network alarm, system log Alarm System Email alerts for the administrator via the SMTP server Switch Virtual Panel To directly configure the switch for basic function ONVIF IP Cam Snapshot Directly catch the managed IP cam snapshot Batch Provisioning Enabling multiple APs to be configured and upgraded at one time by using the designated profile for each site. Coverage Heat Map Real-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment Customized Profile Allowing the creation and maintenance of multiple wireless profiles Auto Provisioning Multi-AP provisioning with one click Cluster Management Simplifying high-density AP management Zone Plan Optimizing AP deployment with actual signal coverage Authentication Built-in RADIUS server seamlessly integrated into the enterprise network User Control Allowing on-demand account creation and user-defined access policy Scalability Free system upgrade and AP firmware bulk upgrade capability Maximum Scalability 100 sites, 100 site maps, 102,400 nodes Network Management Characteristics Built-in DHCP Server Built-in RADIUS Server SSL secure access Certification Authentication Web-based GUI management interface SNMP v1, v2c, and v3 management Supports PLANET DDNS/Easy DDNS

Especificaciones técnicas

Product

UNC-NMS Universal Network Management Center Central Controller with LCD & 6 10/100/1000T LAN Ports (1024 x 100 nodes)

Form Factor

1U Rack-mount

I/O Interface

6 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (LAN 5 and LAN 6 were bypass design) 2 USB 3.0 ports (They cannot be used at the same time.) 1 Factory default button (GPIO) 1 RJ45 Console port interface 2 DB-9 COM1,COM2 (reserve)

Storage

2.5" 64G SATA HDD

LED

2 LED (Power / HDD)

LCM Size (Active Area)

49.45 mm (W) x 9.58 mm (H)

LCM Button

4 touch buttons for enter, exit, up and down

Dimensions (W x D x H)

438 (W) x 180 (D) x 44 mm (H) 17.24” (W) x 7.09” (D) x 1.73” (H)

Weight

3 kg (6.62 lbs)

Enclosure

Metal

Power Requirements

3 pin AC Power input socket AC 100~240V , 65W

Temperature

Operating: 0 ~ 50 degrees C Storage: -20 ~ 70 degrees C

Humidity

5 ~ 90% relative humidity (non-condensing)

MTBF (Hours)

100,000

Number of Managed Sites

100

Number of Managed Devices

102,400

Auto Discovery by NMS agent

Supports PLANET devices

Dashboard

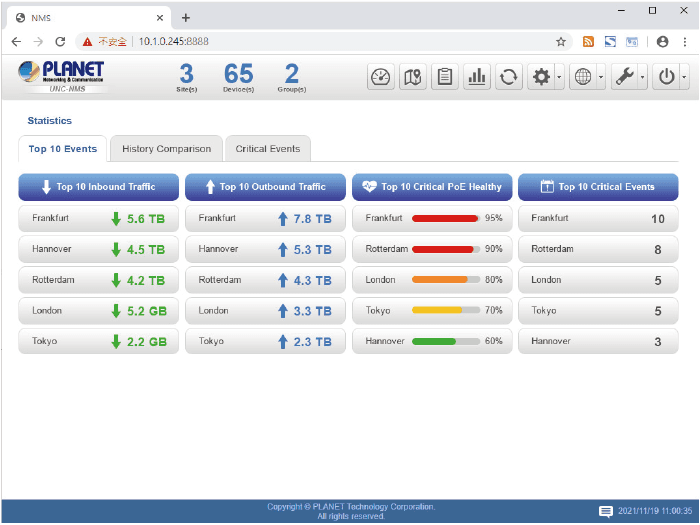

Providing the at-a-glance view of center system, site summary, site Map, traffic, PoE network status

Site Management

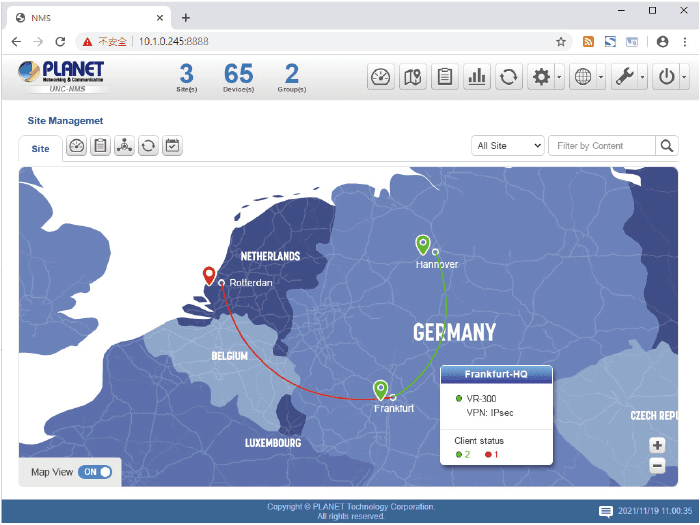

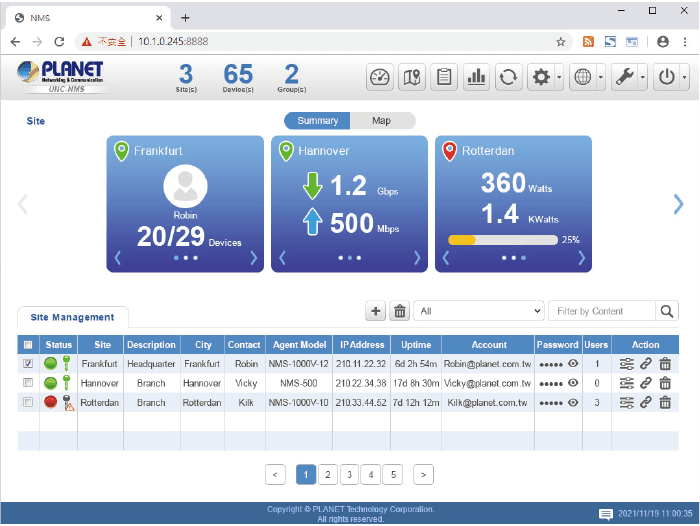

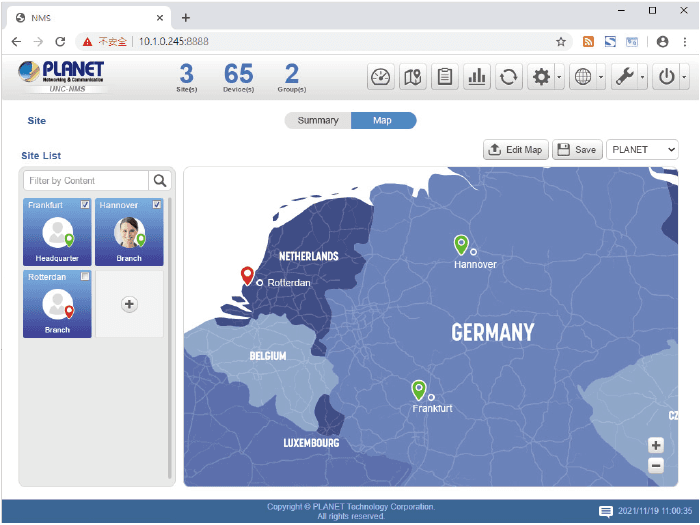

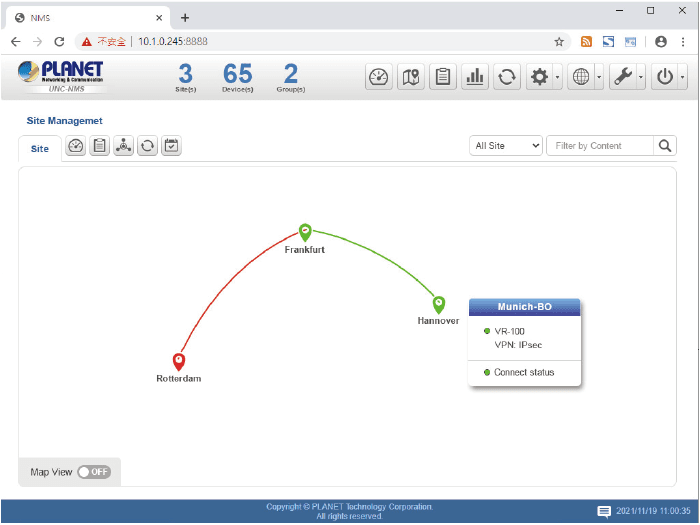

To create site list, site map for NMS agent management

Device List

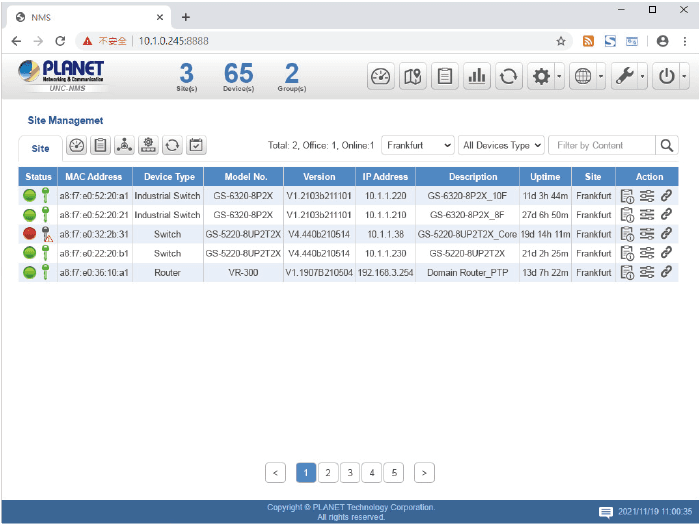

To manage all site devices or filter one site devices list for NMS agent function operation

Statistic

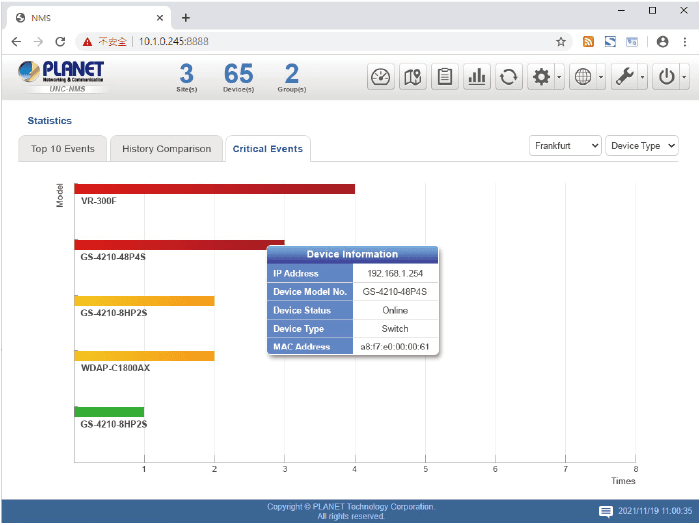

To show Top 10 Event Report, History Comparison function, Critical Events for devices

Topology Viewer

A topology of network devices compliant with MQTT, SNMP, ONVIF, Smart Discovery and LLTD Protocol with Map or not

Event Reports

The status of a network can be reported via network alarm, system log

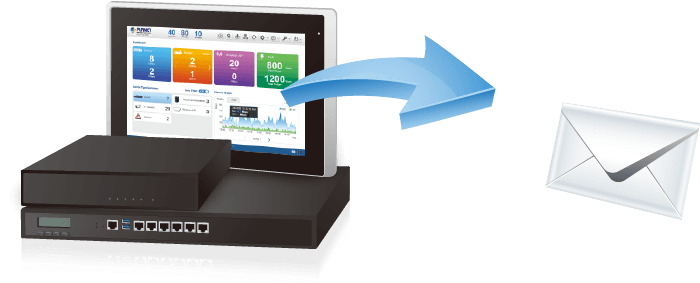

Alarm System

Email alerts for the administrator via the SMTP server

Switch Virtual Panel

To directly configure the switch for basic function

ONVIF IP Cam Snapshot

Directly catch the managed IP cam snapshot

Batch Provisioning

Enabling multiple APs to be configured and upgraded at one time by using the designated profile for each site.

Coverage Heat Map

Real-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment

Customized Profile

Allowing the creation and maintenance of multiple wireless profiles

Auto Provisioning

Multi-AP provisioning with one click

Cluster Management

Simplifying high-density AP management

Zone Plan

Optimizing AP deployment with actual signal coverage

Authentication

Built-in RADIUS server seamlessly integrated into the enterprise network

User Control

Allowing on-demand account creation and user-defined access policy

Scalability

Free system upgrade and AP firmware bulk upgrade capability

Network

DDNS Supports PLANET DDNS/Easy DDNS DHCP Built-in DHCP Server for auto IP assignment to APs Management Console; Telnet; SSL; Web browser (Chrome is recommended.); SNMP v1, v2c, v3 Discovery Supports SNMP, ONVIF and PLANET Smart Discovery

Maintenance

Backup System backup and restore to local or USB HDD Reboot Provides system reboot manually or automatically per power schedule Diagnostic Provides IPv4/IPv6 ping and trace route

Regulatory Compliance

CE, FCC

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T
