UPOE-800XG — 8-Port 10Gbps 802.3bt PoE++ Managed Injector Hub

Descripción

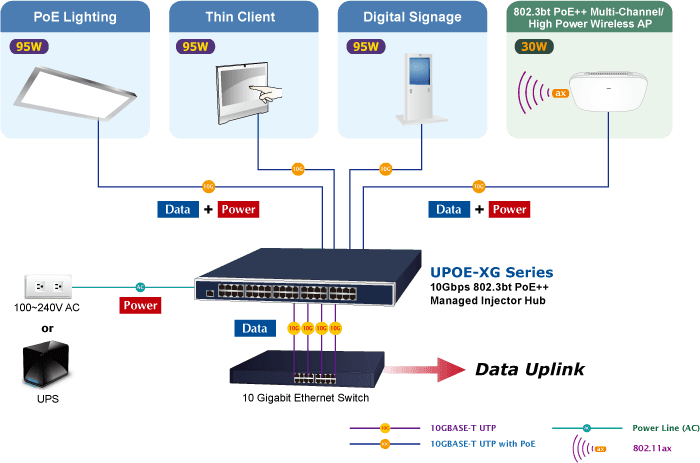

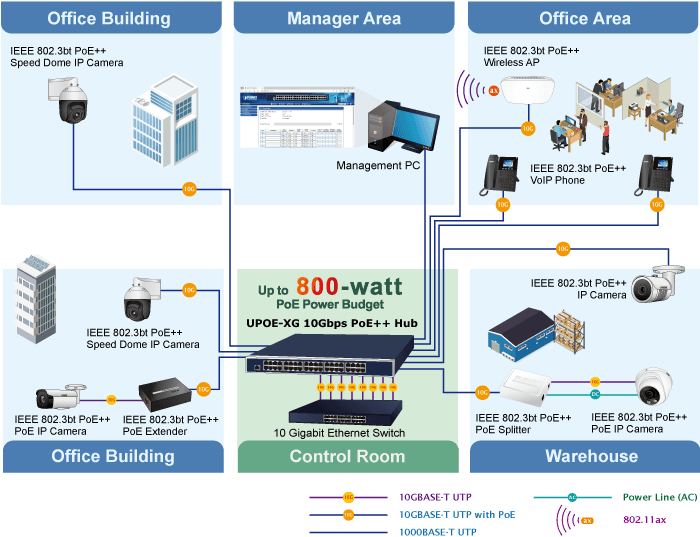

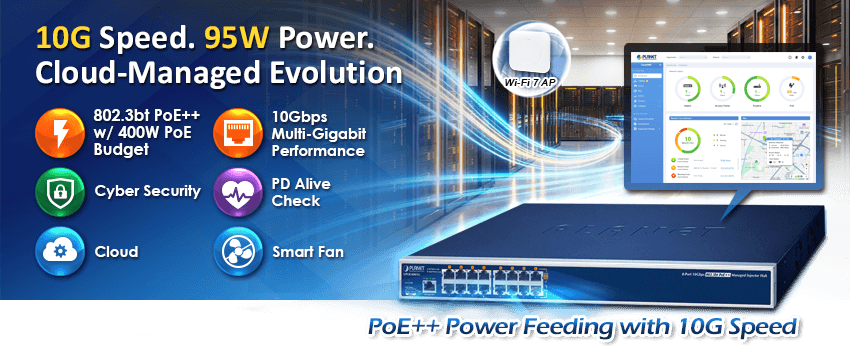

PLANET’s newly launched 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-800XG offers a high-density, rack-mountable solution for rapid 10Gbps PoE++ deployment. It is designed to seamlessly upgrade existing network infrastructures to the IEEE 802.3bt standard without the need to replace current Ethernet Switch devices. To ensure robust cybersecurity, the 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-800XG features enhanced management functions, including TLSv1.2 and TLSv1.3 protocols. Furthermore, through integration with PLANET’s NMSViewerPro/ CloudNMS apps, all kinds of businesses can efficiently manage their entire network from a single, centralized platform. This 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-800XG also supports PLANET DDNS/Easy DDNS services for flexible remote access. A Perfect Managed 10G PoE++ Injector Hub with Full Power Budget The UPOE-800XG , a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector hub, features PLANET intelligent PoE functions through web user interface for remote management. It provides 8 10/100/1000/2.5G/5G/10GBASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of 400 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6/7 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD). The UPOE-800XG enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet network solution for small businesses and enterprises. Model PoE Ports Per PoE Power Output PoE Standard Total PoE Budget UPOE-800XG 8 95 Watts IEEE 802.3bt PoE++ IEEE 802.3at PoE+ 400 Watts 802.3bt PoE++ 95-watt Power over 4-pair UTP Solution As the UPOE-800XG adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat.5/5e/6/7 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as: PoE PTZ speed dome cameras Network devices Thin clients AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks Remote digital signage displays PoE lightings 802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power, the UPOE-800XG supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and 4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field. 95W 802.3bt PoE++ Power Output Mode 36W End-span 802.3at PoE+ Power Output Mode 36W Mid-span 802.3at PoE+ Power Output Mode PoE Watts PoE Operation Mode Power Output Mode 95W 802.3bt PoE++ (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8) 36W End-span 802.3at PoE (Pins 1, 2, 3, 6) 36W Mid-span 802.3at PoE (Pins 4, 5, 7, 8) Quick and Easy 802.3bt/at PoE Network Deployment The UPOE-800XG is installed between a regular Ethernet Switch and the PDs. There are totally 16 RJ45 STP ports on the front panel of the UPOE-800XG, of which the 8 ports are on the lower stack functioned as " Data input " while the other 8 ports are on the upper stack functioned as " PoE (Data and Power) output ". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. With data and Power over Ethernet from one unit, the UPOE-800XG can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Built-in Unique PoE Functions for Powered Device Management As it is the 10Gbps Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE-800XG features the following special PoE management functions: PoE schedule PD alive check Scheduled power recycling PoE usage monitoring Intelligent Powered Device Alive Check The UPOE-800XG can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the UPOE-800XG will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. PoE Schedule for Energy Savings Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the UPOE-800XG can effectively control the power supply besides its capability of giving high watts power. The built-in “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. Scheduled Power Rebooting The UPOE-800XG can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow. PoE Usage Monitoring Via the power usage chart in the web management interface, the UPOE-800XG enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. High Power Budget for PoE Extension With up to 95-watt PoE output capability, the UPOE-800XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET 802.3bt PoE++ Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network. Smart Fan Design for Silent Operation The UPOE-800XG features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface . The UPOE-800XG is able to operate reliably, stably and quietly in any environment without affecting its performance. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the UPOE-800XG management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. User-friendly Web Management Interface To efficiently manage the PDs, the UPOE-800XG provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments more efficiently , securely , and intelligently —all from a single cloud-based platform. Applications Gigabit PoE++ Network Deployment The UPOE-800XG provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 8 10/100/1000/2.5G/5G/10GBASE-T Gigabit Ethernet ports, the UPOE-800XG supports full 54V DC power for any remote IEEE 802.3at/IEEE 802.3bt powered device (PD). To control the power system of your networking devices, the UPOE-800XG can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The UPOE-800XG can be directly connected to any third-party IEEE 802.3bt and 802.3at PoE compliant devices installed within 100 meters. Furthermore, the UPOE-800XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. Key Features Interface 16-port RJ45 8-port 10/100/1000/2.5G/5G/10GBASE-T “ Data input ” 8-port 10/100/1000/2.5G/5G/10GBASE-T “ Data + Power outpu t” One 10/100/1000BASE-T management port 802.3bt Power over Ethernet Complies with IEEE 802.3bt Power over Ethernet Plus Plus Backward compatible with IEEE 802.3at Power over Ethernet Plus Up to 8 ports of IEEE 802.3at/IEEE 802.3bt PoE devices powered 8 PoE ports with built-in 802.3bt type-4 PoE 95W injector function All PoE ports support 802.3at end-span/mid-span PoE 36W injector function Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE Management PoE admin-mode control PoE Consumption and allocation mode option Per port PoE function enable/disable Per port PoE Inline mode option (802.3bt(Factory default)/End-span/Mid-span) Per port PD type option (Standard(Factory default)/Legacy/Force) PoE port power feeding priority PD classification detection PoE schedule PD alive check Security SPI Firewall Protection Authentication Method Configuration MAC Filtering Access Management for HTTP/HTTPS/SNMP System CA Certificate for HTTPS Management IPv4 and IPv6 dual stack management Web interface for remote management LLDP Link Layer Discovery Protocol (LLDP) PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and CloudNMS for deployment management Remote RADIUS Server authentication SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events System event log/remote syslog Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route Hardware 19-inch rack mountable; 1U height Reset button for resetting to default setting and system reboot LED indicators for PoE ready and PoE activity LED indicators for power alert and fan alert FCC Part 15 Class A, CE

Especificaciones técnicas

Interface

Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX “Data” Input Ports: 8 x RJ45 “Data + Power” Output Ports: 8 x RJ45

Data Rate

10/100/1000/2.5G/5G/10GBASE-T

Power Requirements

100-240V AC, 50/60 Hz, 6.5A

Power Consumption

Max. 11.5 watts / 39.2 BTU (Power on without any connection) Max. 455 watts / 1552 BTU (Full Loading)

Ventilation

Smart Fan x 3

Dimensions (W x D x H)

440 x 301 x 44mm

Weight

3.8kg

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

LED

System: SYS PWR x 1 ( Green ) PoE Alarm x 1 ( Red ) Fan Alarm x 2 ( Red ) Management port x 1: LNK/ACT ( Green ), Per PoE Port: 802.3bt PoE-in-use x 1 ( Green ) 802.3at/af PoE-in-use x1 ( Amber )

Network Cable

10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 10GBASE-T: 4-pair UTP Cat 6A/Cat 7 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)

PoE Standard

802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE

PoE Power Supply Mode

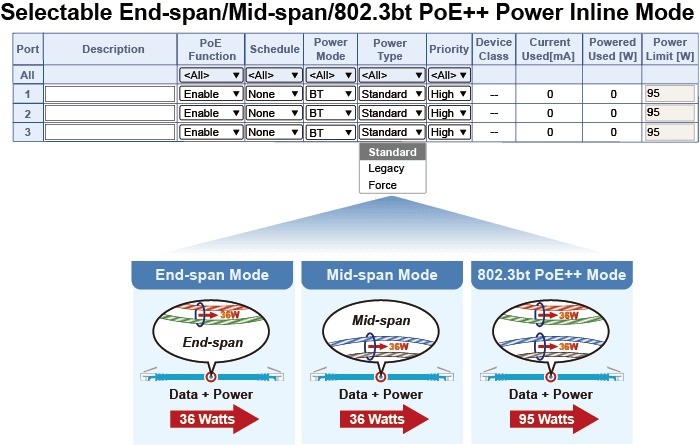

802.3bt End-span Mid-span

PoE Power Output

Per port 54V DC 802.3bt mode: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts

Power Pin Assignment

802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-)

PoE PD Type

Standard Legacy Force

PoE Power Budget

400 watts

Number of 95W 802.3bt Type-4 PDs

4

Number of 60W 802.3bt Type-3 PDs

6

Number of 802.3at PDs

8

PoE Management

Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption

Firewall

SPI Firewall Protection

Authentication

Authentication Method Configuration

Filtering

MAC Filtering

Access Management

HTTP/HTTPS/SNMP

Certificates

System CA Certificate for HTTPS

Management Interface

HTTP/HTTPs Web user interface

Secure Management Interface

TLSv1.2, TLSv1.3

Management Feature

IPv4 and IPv6 dual stack management Web interface for remote management LLDP Link Layer Discovery Protocol (LLDP) PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and CloudNMS for deployment management Remote RADIUS Server authentication Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route

SNMP Management

SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events

Event Management

Local system event log Remote syslog

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz Gigabit 2.5G, 5GBASE-T Ethernet IEEE 802.3an Gigabit 10GBASE-T Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
