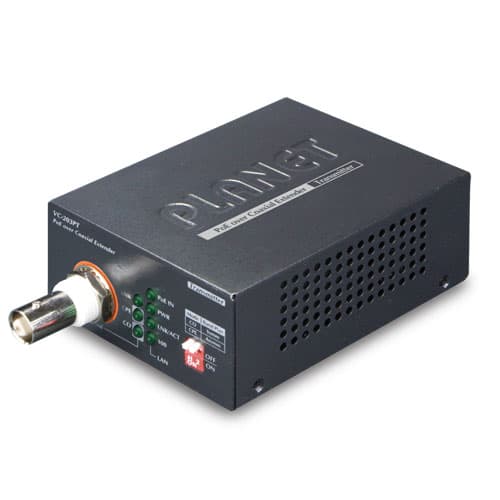

VC-203PT — PoE over Coaxial Extender – Transmitter

Descripción

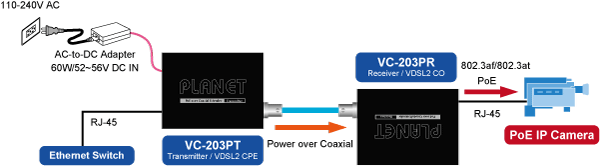

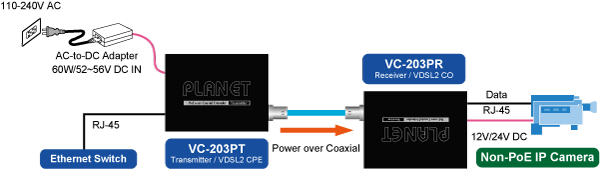

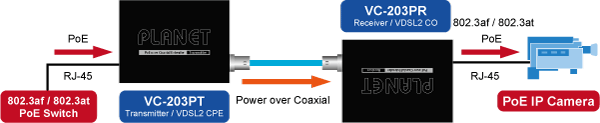

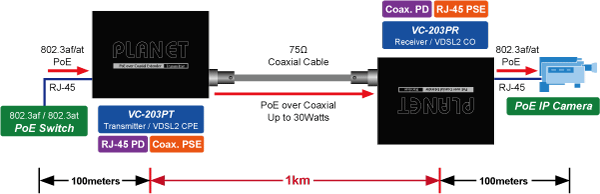

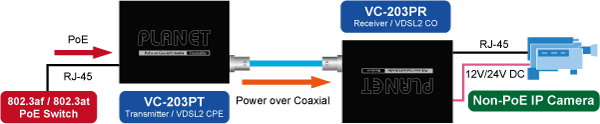

PLANET VC-203Px series of PoE over Coaxial Extender is designed to extend IP Ethernet transmission and inject power over an existing coaxial cable for distance up to 1000m (3280ft) to PoE IP camera, PoE Wireless AP and any 802.3af/at complied powered device (PD). The VC-203Px consists of a Transmitter and Receiver set which can work in pair without any power adapter and anywhere on your network infrastructure. The solution contains two brand-new products: ■ VC-203PT : 1-Port 10/100TX PoE PD + 1-Port BNC PoE over Coaxial PSE Extender – Transmitter ■ VC-203PR : 1-Port 10/100TX PoE PSE + 1-Port BNC PoE over Coaxial PD Extender – Receiver Models VC-203PT VC-203PR Power over Coax. Extender Transmitter Receiver Power Input (Optional) PoE RJ-45: 802.3af/at PoE In UTP cable, up to 100m BNC: PoE over Coaxial In Coaxial cable, up to 1km DC DC Jack: 52~56V DC In DC Jack: 52~56V DC In Power Output PoE BNC: Power over Coaxial Out Coaxial cable, up to 1km RJ-45: 802.3af/at PoE out UTP cable, up to 100m DC -- 2-Pin Terminal Block : Selectable 12V/24V DC It is a perfect solution for sending IP Video links and power to remote PoE IP camera installation that are beyond the 100 meters distance limit of Ethernet. Power over Coaxial Based on IEEE 802.3at High Power over Ethernet and up to 25 watts of power output, PLANET PoE over coaxial extender solution eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera at long range. This feature eliminates the need for local and remote site power supplies. Stable Operating Performance under Difficult Environments The VC-203PT and VC-203PR extenders are one perfect combined solution for extending data and power transmissions over long distances for places like warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. Applications Applications of VC-203PT and VC-203PR The VC-203PT, which functions with the VC-203PR can split into four different kinds of combinations. The VC-203PT can power by either from external DC power adapter or high power PoE switch. The power output of the VC-203PR is selectable - PoE output to the PoE Power Devices (PD) OR DC power output to the Non-PoE Devices. Type 1 – VC-203PT with 52~56V power adapter and VC-203PR with PoE power output CPE CO VC-203PT VC-203PR Power Input Power adapter with 52~56V DC in BNC with DC power over coaxial input Power Output BNC with DC power over coaxial output RJ-45 with 802.3at/af PoE output Type 2 – VC-203PT with 52~56V power adapter and VC-203PR with DC power output CPE CO VC-203PT VC-203PR Power Input Power adapter with 52~56V DC in BNC with DC power over coaxial input Power Output BNC with DC power over coaxial output DC Terminal block with 12V or 24V DC output Type 3 – VC-203PT with PoE power input and VC-203PR with PoE power output CPE CO VC-203PT VC-203PR Power Input RJ-45 with 802.3at/af PoE input BNC with DC power over coaxial input Power Output BNC with DC power over coaxial output RJ-45 with 802.3at/af PoE output Type 4 – VC-203PT with PoE power input and VC-203PR with DC power output CPE CO VC-203PT VC-203PR Power Input RJ-45 with 802.3at/af PoE input BNC with DC power over coaxial input Power Output BNC with DC power over coaxial output DC Terminal block with 12V or 24V DC output Key Features Physical Port 1 x 10/100Base-TX RJ-45 copper interface (PoE IN) 1 x BNC connector (Power and data transmitter) Power over Ethernet Eliminates Power cabling with PoE over Coaxial Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port Supports PoE Power up to 30.8 watts (Varying with Power Source and Coaxial Distance) Layer 2 Features Supports auto-negotiation and 10/100Mbps half / full duplex Prevents packet loss with back pressure (half duplex) and IEEE 802.3x pause frame flow control (full duplex) VDSL2 Features One box design, Master / Slave selectable via DIP Switch Defines asymmetric (Band Plan 998) and symmetric band plans for the transmission of upstream and downstream signals Industrial Case / Installation Supports extensive LED indicators for network diagnostics IP30 metal case protection Flexible power source either extemal DC or PoE power input Supports EFT protection 2000 VDC for power line Supports 2000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature

Especificaciones técnicas

Interface

Copper: 10/100Base-TX RJ-45 Auto-negotiation/auto-MDI/MDI-X 802.3at/af PoE Input Coaxial: BNC, female Power over Coaxial output DC Socket(Optional): 52~56V DC input DIP-Switch: 2-position DIP Switch ■ Selectable CO or CPE mode (Default: CPE) ■ Selectable Band plan: asymmetric or symmetric (Default: asymmetric)

LED Indicators

LED is Green in Color: System: PoE: ■ PWR ■ PoE IN VDSL2: Ethernet: ■ LNK ■ LNK/ACT ■ CO ■ 100 ■ CPE

System

: PoE:

VDSL2

: Ethernet:

ESD Protection

2KV DC

EFT Protection

2KV DC

Enclosure

IP30 metal case

Installation

Wall mount or DIN rail with optional kit

Dimensions (W x D x H)

94 x 70.3 x 39.2 mm

Weight

288g

Power Requirements

■ RJ-45 PoE Input: 802.3at/af 44~57V DC ■ DC Input: 52~56V DC

PoE Standard

IEEE 802.3at Type 2 IEEE 802.3af

PSE Interface

BNC 44~57V DC (Depending on what the DC/PoE Power Input is)

PD Interface

RJ-45, both Mid-Span and End-Span Input Range: 44~57V DC

DC Power Output

-

Max. PoE Budget

Power Input by PoE BNC : 25 watts Power Input by DC BNC : 30 watts

Performance 　*(Downstream / Upstream)*

Distance Data Rate VC-203PR PoE Output Asymmetric Mode Symmetric Mode VC-203PT W/DC IN VC-203PT W/PoE+ IN 200m 100/60 Mbps 90/100 Mbps 20W 13W 400m 95/55 Mbps 85/100 Mbps 16W 11W 600m 90/50 Mbps 70/80 Mbps 12W 10W 800m 85/45 Mbps 65/70 Mbps 7W 6W 1000m 70/35 Mbps 55/55 Mbps 5W 4W 1200m 60/25 Mbps 45/40 Mbps - -

Distance

Data Rate | VC-203PR PoE Output

Asymmetric Mode

Symmetric Mode | VC-203PT W/DC IN | VC-203PT W/PoE+ IN

200m

100/60 Mbps | 90/100 Mbps | 20W | 13W

400m

95/55 Mbps | 85/100 Mbps | 16W | 11W

600m

90/50 Mbps | 70/80 Mbps | 12W | 10W

800m

85/45 Mbps | 65/70 Mbps | 7W | 6W

1000m

70/35 Mbps | 55/55 Mbps | 5W | 4W

1200m

60/25 Mbps | 45/40 Mbps | - | -

Standards Compliance

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2)

Regulation Compliance

FCC Part 15 Class A, CE

Temperature

Operating: -40 ~ 75 degree C Storage: -40 ~ 75 degrees C

Operating

: -40 ~ 75 degree C

Storage

: -40 ~ 75 degrees C

Humidity

Operating: 5 ~ 95% (non-condensing) Storage: 5 ~ 95% (non-condensing)

Operating

: 5 ~ 95% (non-condensing)

Storage

: 5 ~ 95% (non-condensing)
