VC-231G — 1-Port 10/100/1000T Ethernet to VDSL2 Converter w/ G.vectoring

Descripción

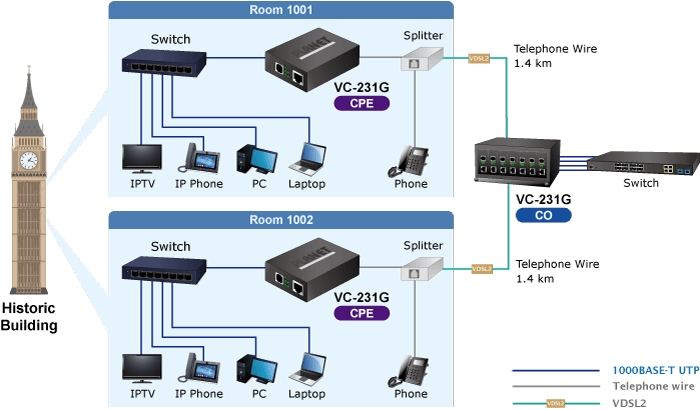

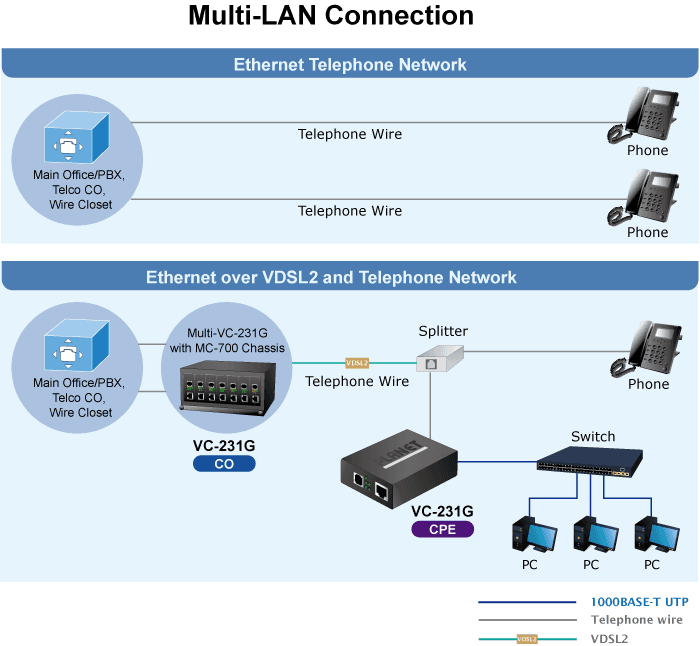

200/200Mbps Downstream/Upstream, High-performance Gigabit Ethernet over Phone Wire Solution PLANET VC-231G, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Converter with the brand-new VDSL2 Super Vector 35b profile, works well with a pervasive telephone line network with a symmetric data rate of up to 200/200Mbps (G.INP, Sym, 8dB) over a distance of 200m and 21/13Mbps over a long distance of 1.4km . It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring. High-performance Ethernet over VDSL2 Via the latest VDSL2 technology, PLANET VC-231G offers high-speed access to Internet, up to 200Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s new G.993.5 vectoring technology , the VC-231G works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure. Implementing with Existing Telephone Copper Wires The VC-231G is also a Long Reach Ethernet (LRE) converter providing one RJ45 Ethernet port and one RJ11 phone jack, which is for VDSL2 connection. Use the additional splitter from the package of the VC-231G to share the existing phone line with POTS, thus replacing the existing copper wiring is not necessary. Just plug the VC-231G with the additional splitter into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network. Delivering High-demanding Service Connectivity for ISP/Triple Play Devices The VC-231G provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. With the asymmetric data transmission of 316/60Mbps (G.INP, Asym, 8dB) , the VC-231G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on. Easy and Flexible Installation The VC-231G offers two modes, CPE and CO, for application -- CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231G and a CO mode VC-231G must be set up as one pair of converters to perform the connection. The VC-231G comes with a plug-and-play design and is fully compatible with all kinds of network protocols, the VC-231G can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 10/19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/MC-1500R/MC-1500R48). Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. ADSL2+ Fallback For those ISPs that still provide ADSL broadband service, the VC-231G can support transmission rates up to 24Mbps downstream and 1Mbps upstream with the ADSL2+ technology. The VC-231G establishes a connection with ISP and can be also directly switched over to VDSL2 after the ISP network upgrade. Applications Ethernet Distance Extension Two VC-231G converters can act as a standalone pair which is good for Ethernet distance extension over the existing telephone wires. With just one pair of AWG-24 copper wires, two Ethernet networks can be easily connected to each other with a maximum data transmission rate of 200Mbps. The telephone service can still be used while the VC-231G CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 bridge. MTU/MDU/Hospitality Solution The VC-231G is a perfect solution to quickly providing cost-effective yet high-speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels and hospitals. By utilizing the existing telephony infrastructure, a new network installation can be easily built, without requiring new wiring. With a transmission rate of up to 316/60Mbps (G.INP, Asym, 8dB) , VoD, IP telephony and various broadband services can be easily provided. Last Mile of FTTx Deployment The VC-231G is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high-bandwidth VDSL2 over the existing telephone wires in the “ last mile ” from the ISP/telecom/service provider’s fiber node to the buildings and customers’ apartments. The 10/100/1000Mbps port of the VC-231G can be directly connected to a PC or Ethernet devices such as Ethernet switches or broadband routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost. Key Features Supports ITU-T G.993.2 VDSL2 Profile 17a/30a/35b Supports ITU-T G.993.5 G.vectoring and G.INP DMT-based coding technology Additional splitter to share voice and data CO/CPE mode selectable via DIP switch Selectable target band plan and SNR margin Up to 200/200Mbps bandwidth (in G.INP, Sym, 8dB mode ) 1 10/100/1000BASE-T LAN ports. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards One RJ11 connector for VDSL port with VDSL connection Voice and data communication can be shared simultaneously based on the existing telephone wire Supports IEEE 802.1Q VLAN tag transparency VDSL2 standalone transceiver for simple bridge modem application Advantage of minimum installation time (Simply by Plug-and-Play) Supports extensive LED indicators for network diagnosis Wall mounting or DIN-rail installation (optional) Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48) Compact in size and easy to install

Especificaciones técnicas

Hardware Version

2

LAN Ports

1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

VDSL Port

1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km

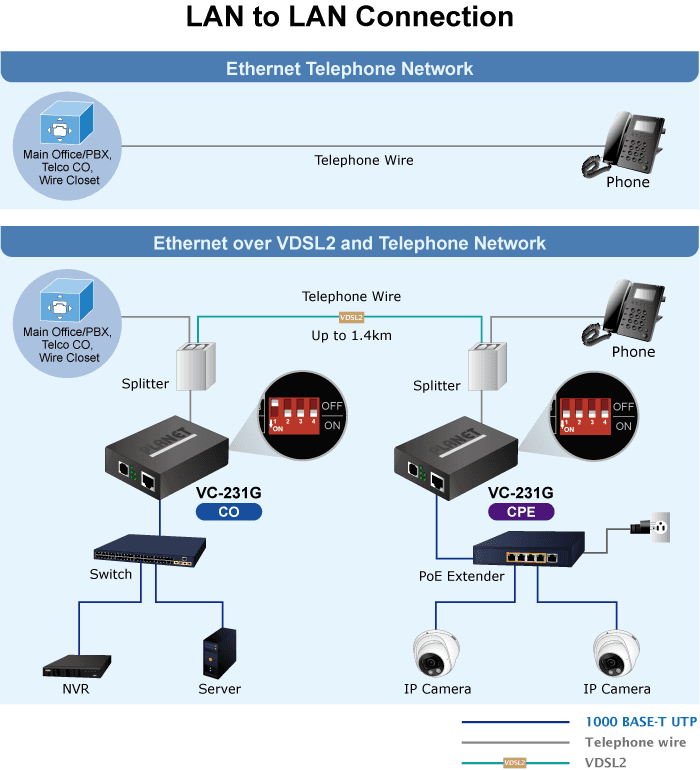

DIP Switch & Functionality

4-position DIP switch CO or CPE mode selectable Selectable G.INP and interleaved mode Selectable target Band plan Selectable target SNR mode

Phone Port

Additional splitter for POTS connection

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

196g

Power Requirements

DC 5V, 2A external power

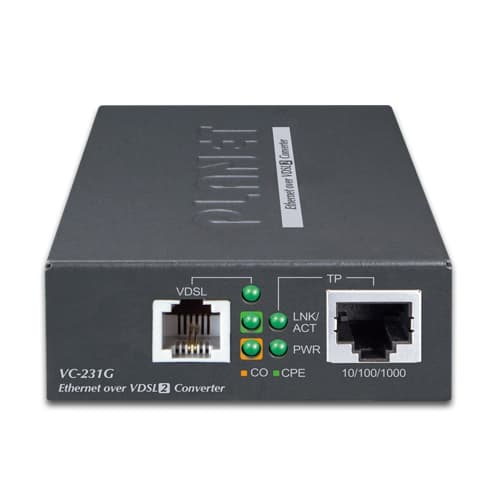

LED Indicators

1 x power： Green 1 x 10/100/1000BASE-T LNK/ACT： Green 1 x VDSL： Green 1 x CO： Green 1 x CPE： Green

Housing

Metal

Installation

Wall-mount or DIN-rail installation (optional)

Switch Processing Scheme

Store-and-Forward

Address Table

1K entries

Maximum Packet Size

1522bytes

VDSL Compliance

VDSL-DMT ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 G.vectoring ITU-T G.998 G.INP

ADSL Compliance

Capable of ADSL2/2+ standard ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998

Regulatory Compliance

FCC Part 15 Class A, CE

Temperature

Operating: 0~50 degrees C Storage: -10~70 degrees C

Humidity

Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)

Performance* (Downstream/Upstream)

Interleave, Asym, 8dB Interleave, Asym, 12dB 200M → 260Mbps/56Mbps 400M → 180Mbps/53Mbps 600M → 111Mbps/48Mbps 800M → 68Mbps/39Mbps 1000M → 53Mbps/18Mbps 1200M → 42Mbps/8Mbps 1400M → 24Mbps/4Mbps 200M → 267Mbps/57Mbp 400M → 161Mbps/49Mbps 600M → 93Mbps/46Mbps 800M → 56Mbps/33Mbps 1000M → 47Mbps/14Mbps 1200M → 34Mbps/8Mbps 1400M → 30Mbps/6Mbps Interleave, Sym, 8dB Interleave, Sym, 12dB 200M → 175Mbps/180Mbps 400M → 109Mbps/130Mbps 600M → 75Mbps/93Mbps 800M → 50Mbps/65Mbps 1000M → 37Mbps/33Mbps 1200M → 26Mbps/22Mbps 1400M → 20Mbps/13Mbps 200M → 165Mbps/172Mbp 400M → 107Mbps/115Mbps 600M → 65Mbps/82Mbps 800M → 43Mbps/55Mbps 1000M → 31Mbps/29Mbps 1200M → 21Mbps/16Mbps 1400M → 12Mbps/8Mbps G.INP, Asym, 8dB G.INP, Asym, 12dB 200M → 316Mbps/60Mbps 400M → 185Mbps/56Mbps 600M → 110Mbps/51Mbps 800M → 68Mbps/38Mbps 1000M → 51Mbps/18Mbps 1200M → 39Mbps/10Mbps 1400M → 37Mbps/6Mbps 200M → 291Mbps/60Mbp 400M → 161Mbps/51Mbps 600M → 91Mbps/44Mbps 800M → 55Mbps/34Mbps 1000M → 47Mbps/15Mbps 1200M → 35Mbps/8Mbps 1400M → 32Mbps/2Mbps G.INP, Sym, 8dB G.INP, Sym, 12dB 200M → 187Mbps/190Mbps 400M → 108Mbps/134Mbps 600M → 74Mbps/95Mbps 800M → 50Mbps/66Mbps 1000M → 34Mbps/35Mbps 1200M → 24Mbps/22Mbps 1400M → 21Mbps/13Mbps 200M → 174Mbps/184Mbp 400M → 99Mbps/119Mbps 600M → 63Mbps/84Mbps 800M → 40Mbps/55Mbps 1000M → 30Mbps/30Mbps 1200M → 22Mbps/18Mbps 1400M → 20Mbps/10Mbps ＊The performance data above is for reference only. The actual data rate will vary on the quality of the copper wire and environmental factors

Interleave, Asym, 8dB

Interleave, Asym, 12dB

200M → 260Mbps/56Mbps 400M → 180Mbps/53Mbps 600M → 111Mbps/48Mbps 800M → 68Mbps/39Mbps 1000M → 53Mbps/18Mbps 1200M → 42Mbps/8Mbps 1400M → 24Mbps/4Mbps

200M → 267Mbps/57Mbp 400M → 161Mbps/49Mbps 600M → 93Mbps/46Mbps 800M → 56Mbps/33Mbps 1000M → 47Mbps/14Mbps 1200M → 34Mbps/8Mbps 1400M → 30Mbps/6Mbps

Interleave, Sym, 8dB

Interleave, Sym, 12dB

200M → 175Mbps/180Mbps 400M → 109Mbps/130Mbps 600M → 75Mbps/93Mbps 800M → 50Mbps/65Mbps 1000M → 37Mbps/33Mbps 1200M → 26Mbps/22Mbps 1400M → 20Mbps/13Mbps

200M → 165Mbps/172Mbp 400M → 107Mbps/115Mbps 600M → 65Mbps/82Mbps 800M → 43Mbps/55Mbps 1000M → 31Mbps/29Mbps 1200M → 21Mbps/16Mbps 1400M → 12Mbps/8Mbps

G.INP, Asym, 8dB

G.INP, Asym, 12dB

200M → 316Mbps/60Mbps 400M → 185Mbps/56Mbps 600M → 110Mbps/51Mbps 800M → 68Mbps/38Mbps 1000M → 51Mbps/18Mbps 1200M → 39Mbps/10Mbps 1400M → 37Mbps/6Mbps

200M → 291Mbps/60Mbp 400M → 161Mbps/51Mbps 600M → 91Mbps/44Mbps 800M → 55Mbps/34Mbps 1000M → 47Mbps/15Mbps 1200M → 35Mbps/8Mbps 1400M → 32Mbps/2Mbps

G.INP, Sym, 8dB

G.INP, Sym, 12dB

200M → 187Mbps/190Mbps 400M → 108Mbps/134Mbps 600M → 74Mbps/95Mbps 800M → 50Mbps/66Mbps 1000M → 34Mbps/35Mbps 1200M → 24Mbps/22Mbps 1400M → 21Mbps/13Mbps

200M → 174Mbps/184Mbp 400M → 99Mbps/119Mbps 600M → 63Mbps/84Mbps 800M → 40Mbps/55Mbps 1000M → 30Mbps/30Mbps 1200M → 22Mbps/18Mbps 1400M → 20Mbps/10Mbps
