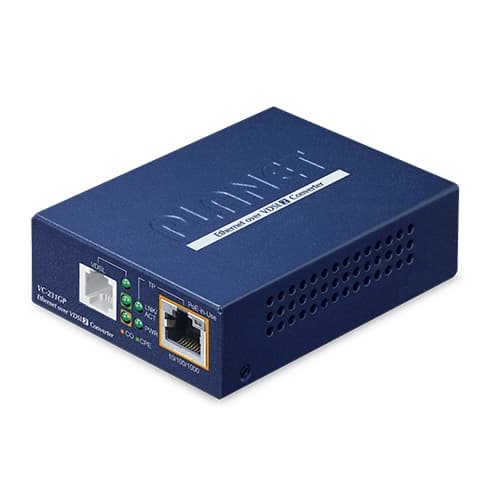

VC-231GP — 1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter

Descripción

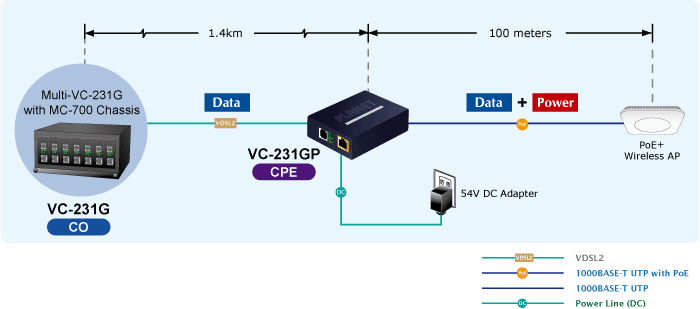

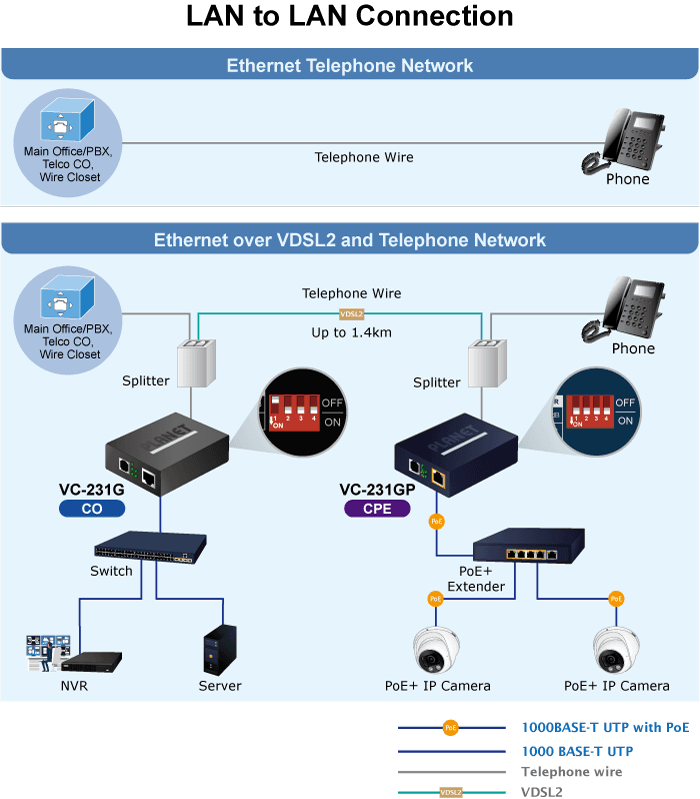

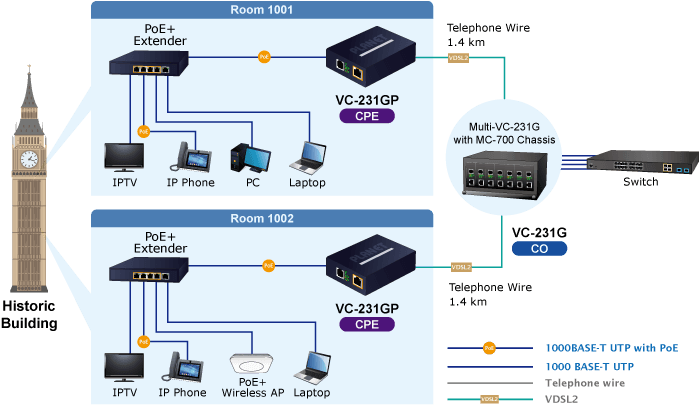

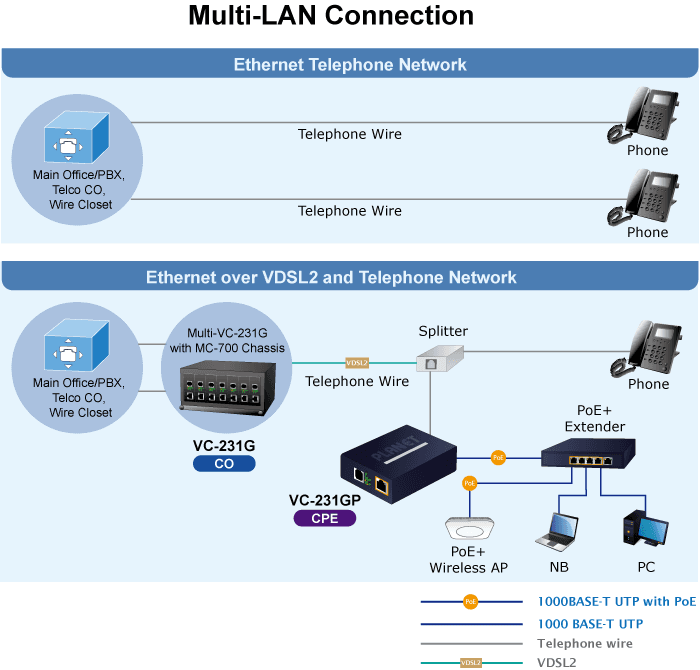

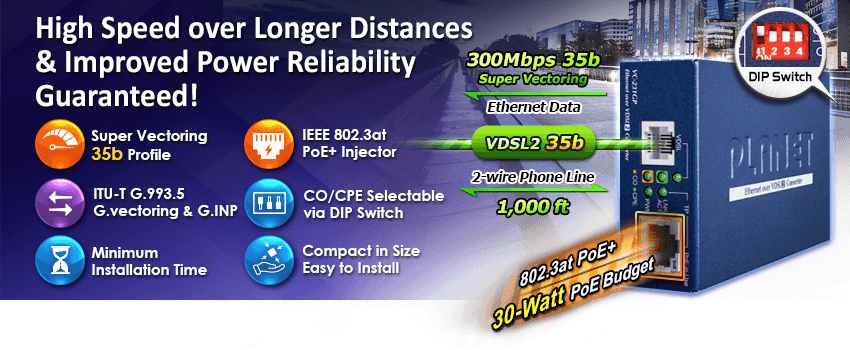

200/200Mbps Downstream/Upstream, High-performance Gigabit Ethernet over Phone Wire Solution PLANET VC-231GP, a new-generation and high-performance Single-port Gigabit Ethernet-over-VDSL2 Converter with PoE injector function and the brand-new VDSL2 Super Vector 35b profile, works well with a pervasive telephone line network with a symmetric data rate of up to 200/200Mbps (G.INP, Sym, 8dB) over a distance of 200m and 11/9Mbps over a long distance of 1.4km . It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring. The VC-231GP forwards the Ethernet data and provides a maximum of 30-watt power output over an additional 100m UTP cable to a remote IP device complied with 802.3af/at PoE PD (powered device) for network deployment, such as PoE IP camera, PoE wireless AP, or PoE IP VoIP phone/door phone. Users have the ability to grow the structure of the current networks simply with even more flexibility with following three advanced technologies: VDSL2/ADSL2+ Digital Subscriber Line technologies Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus High-performance Ethernet over VDSL2 Via the latest VDSL2 technology, PLANET VC-231GP offers high-speed access to Internet, up to 200Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s new G.993.5 vectoring technology , the VC-231GP works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure. Implementing with Existing Telephone Copper Wires The VC-231GP is also a Long Reach Ethernet (LRE) converter providing one RJ45 Ethernet port and one RJ11 phone jack, which is for VDSL2 connection. An additional splitter from the package of the VC-231GP can be used to share the existing phone line with POTS, eliminating the need to replace the existing copper wiring. The VC-231GP can be connected to the additional splitter through the existing RJ11 telephone jack, enabling a high-performance VDSL2 network connection. It is ideal for use as an Ethernet extender within an existing Ethernet network. Delivering High-demanding Service Connectivity for ISP/Triple Play Devices The VC-231GP provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. With the asymmetric data transmission of 281/59Mbps (G.INP, Asym, 8dB) , the VC-231GP enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on. IEEE 802.3at Power over Ethernet Plus The PoE in-line power following the IEEE 802.3at Power over Ethernet Plus standard makes the VC-231GP able to deliver Gigabit speed Ethernet data and up to 30 watts of power to remote PoE PDs over one Cat.5E/6 Ethernet cable. The VC-231GP provides more flexibility in power requirements for all kinds of PDs at affordable installation costs. Easy and Flexible Installation The Ethernet-over-VDSL2 converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231GP offers two modes, CPE and CO , for application -- CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, the VC-231G in the CPE mode and the VC-231G in the CO mode must be set up as one pair of converters to perform the connection. ADSL2+ Fallback For those ISPs providing ADSL broadband service, the VC-231GP can support transmission rates up to 24Mbps downstream and 1Mbps upstream with the ADSL2+ technology. The VC-231GP establishes a stable connection with an ISP and can be switched to VDSL2 after the ISP upgrades its network. Applications Ethernet Distance Extension Two VC-231GP converters can act as a standalone pair which is good for Ethernet distance extension over the existing telephone wires. With just one pair of AWG-24 copper wires, two Ethernet networks can be easily connected to each other with a maximum data transmission rate of 200Mbps. The telephone service can still be used while the VC-231GP CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 bridge. MTU/MDU/Hospitality Solution The VC-231GP is a perfect solution to quickly providing cost-effective yet high-speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels and hospitals. By utilizing the existing telephony infrastructure, a new network installation can be easily built, without requiring new wiring. With a transmission rate of up to 281/59Mbps (G.INP, Asym, 8dB) , VoD, IP telephony and various broadband services can be easily provided. Last Mile of FTTx Deployment The VC-231GP is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high-bandwidth VDSL2 over the existing telephone wires in the “ last mile ” from the ISP/telecom/service provider’s fiber node to the buildings and customers’ apartments. The 10/100/1000Mbps port of the VC-231GP can be directly connected to a PC or Ethernet devices such as Ethernet switches or broadband routers. It is excellent for phone line network built for Internet access as each room or house can use the existing phone line to transmit data. This allows the whole building to share a single Internet connection can to the wider area network at a minimum cost. Key Features Physical Port 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector One RJ11 female phone jack for VDSL2 Transmission Power Over Ethernet Complies with IEEE 802.3at/af PoE Plus end-span PSE Supports PoE power up to 30.8 watts per PoE port Provides DC 54V power over RJ45 Ethernet cable to PD with Ethernet port Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation Remote power feeding up to 100m IEEE 802.3at/af splitter devices compatible VDSL2 Features ITU-T G.993.2 VDSL2 Profile 17a/30a/35b ITU-T G.993.5 G.vectoring and G.INP DMT-based coding technology Additional splitter to share voice and data CO/CPE mode selectable via DIP switch Selectable target band plan and SNR margin Up to 200/200Mbps bandwidth (in G.INP, Sym, 8dB mode) Voice and data communication can be shared simultaneously based on the existing telephone wire Used in pairs to extend Point-to-Point connection up to 1.4km Layer 2 Features Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth Integrated address look-up engine, supporting 1K absolute MAC addresses 1522bytes packet size Automatic address learning and address aging IEEE 802.1Q VLAN transparency Hardware and Installation Compact size, wall-mountable design; ideal solution for space-limited locations Advantage of minimum installation time (Simply by Plug and Play) Metal case, good for heat sinking Supports extensive LED indicators for network diagnosis DIN-rail installation (optional) Additional POTS splitter to share voice and data Supports 6KV DC Ethernet ESD protection

Especificaciones técnicas

Hardware Version

2

LAN Ports

1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port

VDSL Port

1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km

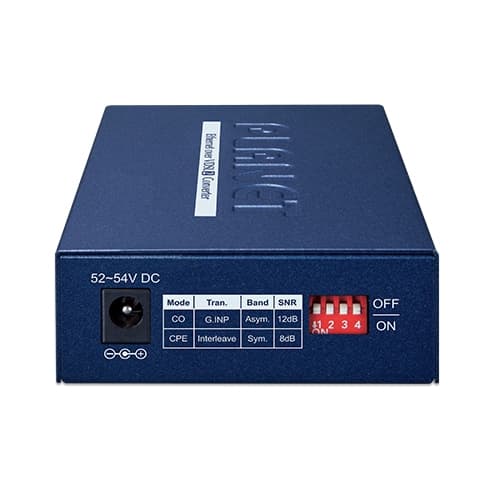

DIP Switch & Functionality

4-position DIP switch CO or CPE mode selectable Selectable G.INP and interleaved mode Selectable target Band plan Selectable target SNR mode

Phone Port

Additional splitter for POTS connection

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

214g

Power Requirements

DC 54V, 0.74A external power

Power Consumption

34.5 watts/117BTU

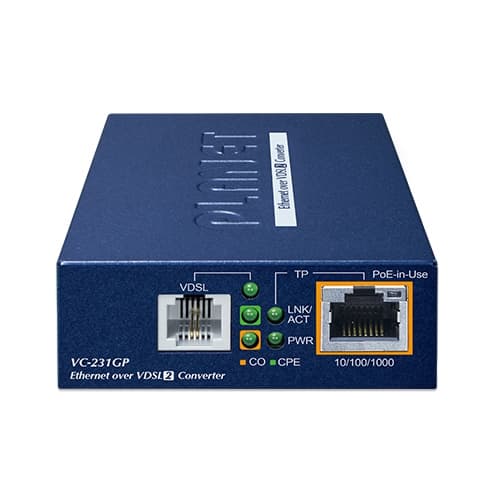

LED Indicators

1 x power: Green 1 x 10/100/1000BASE-T LNK/ACT: Green 1 x 10/100/1000BASE-T PoE-in-Use: Amber 1 x VDSL: Green 1 x CO: Green 1 x CPE: Green

Housing

Metal

Installation

Wall-mount or DIN-rail installation (optional)

PoE Standard

IEEE 802.3at PoE+ PSE

PoE Power Output Budget

DC 54V, 30 watts

PoE Power Supply Type

End-span

Power PIN Assignment

1/2(+), 3/6(-)

Switch Processing Scheme

Store-and-Forward

Address Table

1K entries

Maximum Packet Size

1522bytes

VDSL Compliance

VDS L-DMT ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 .vectoring ITU-T G.998 G.INP

ADSL Compliance

Capable of ADSL2/2+ standard ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998

Regulatory Compliance

FCC Part 15 Class A, CE

Temperature

Operating: 0~50 degrees C Storage: -10~70 degrees C

Humidity

Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)

RJ11 Performance*(Downstream/Upstream)

Distance (meter) Interleave (Downstream/Upstream: Mbps) Asymmetric Symmetric 8dB 12dB 8dB 12dB 200m 254/56 234/53 178/160 163/144 400m 197/51 174/46 145/122 104/104 600m 112/40 88/36 81/72 67/58 800m 77/29 56/24 48/47 36/36 1000m 32/7 28/6 18/17 16/15 1200m 27/2 23/5 14/14 13/12 1400m 18/1 15/1 12/6 9/4 Distance (meter) G.INP (Downstream/Upstream: Mbps)

Distance (meter)

Interleave (Downstream/Upstream: Mbps)

Asymmetric

Symmetric

8dB

12dB | 8dB | 12dB

200m

254/56 | 234/53 | 178/160 | 163/144

400m

197/51 | 174/46 | 145/122 | 104/104

600m

112/40 | 88/36 | 81/72 | 67/58

800m

77/29 | 56/24 | 48/47 | 36/36

1000m

32/7 | 28/6 | 18/17 | 16/15

1200m

27/2 | 23/5 | 14/14 | 13/12

1400m

18/1 | 15/1 | 12/6 | 9/4

200m

281/59 | 246/56 | 192/168 | 169/144

400m

208/53 | 180/47 | 153/127 | 133/104

600m

112/42 | 84/36 | 87/72 | 69/56

800m

76/30 | 56/22 | 51/48 | 40/34

1000m

32/9 | 27/6 | 18/17 | 16/14

1200m

27/4 | 23/3 | 14/14 | 12/12

1400m

24/2 | 21/2 | 11/9 | 9/6
