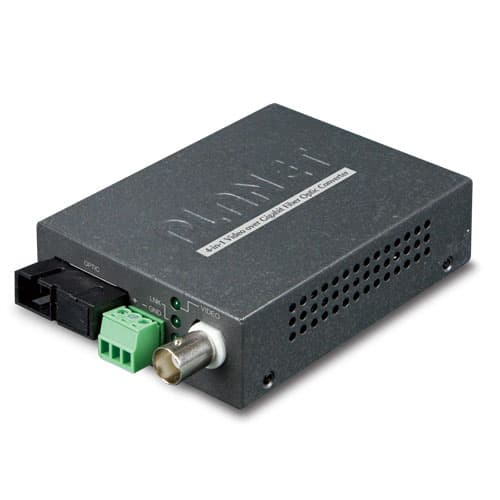

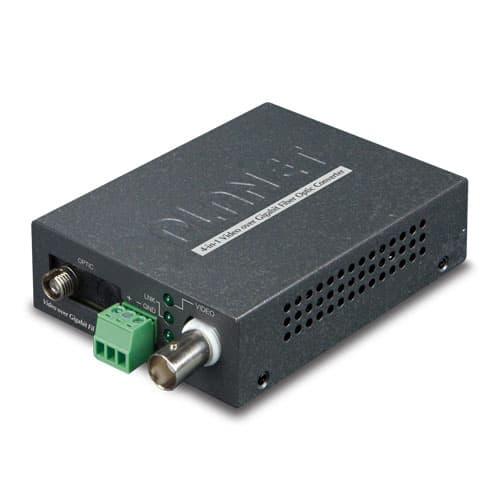

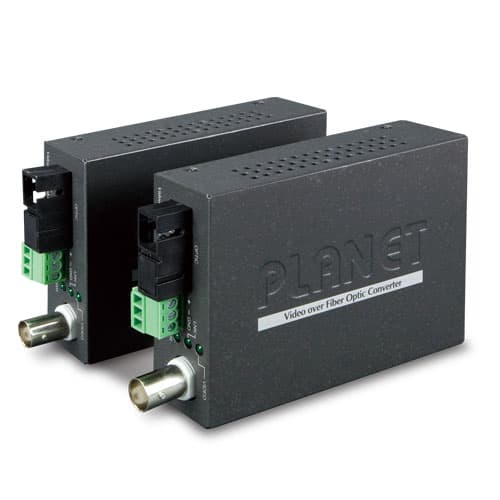

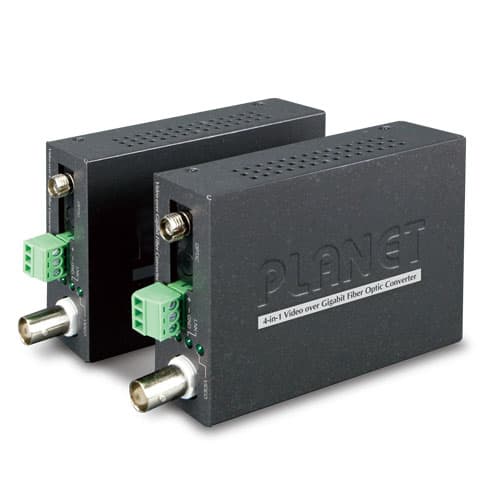

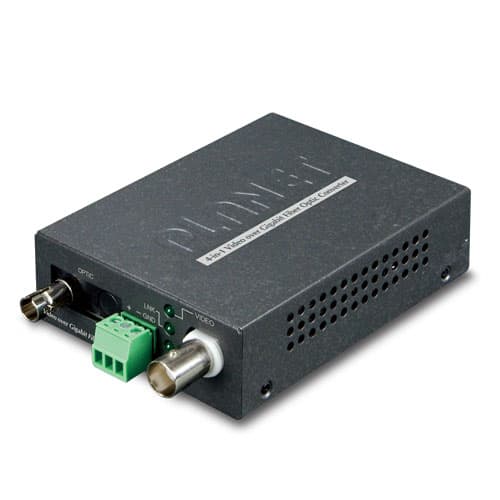

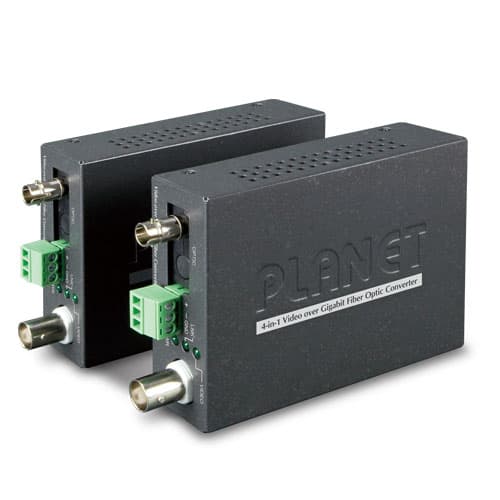

VF-10xG-KIT — 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit

Descripción

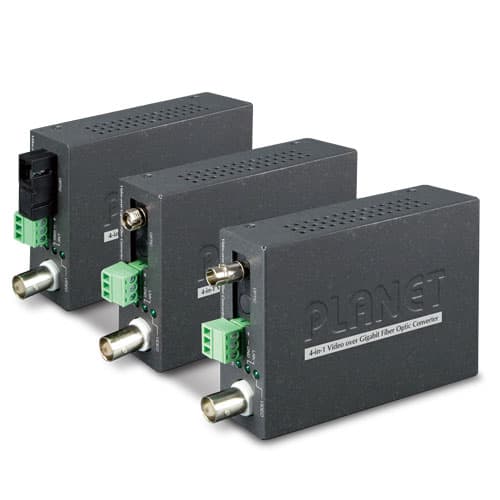

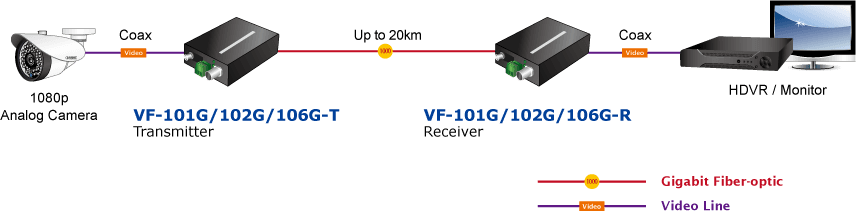

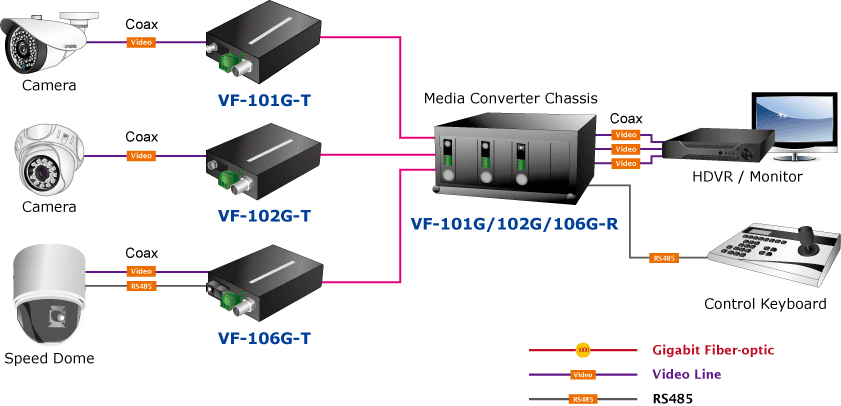

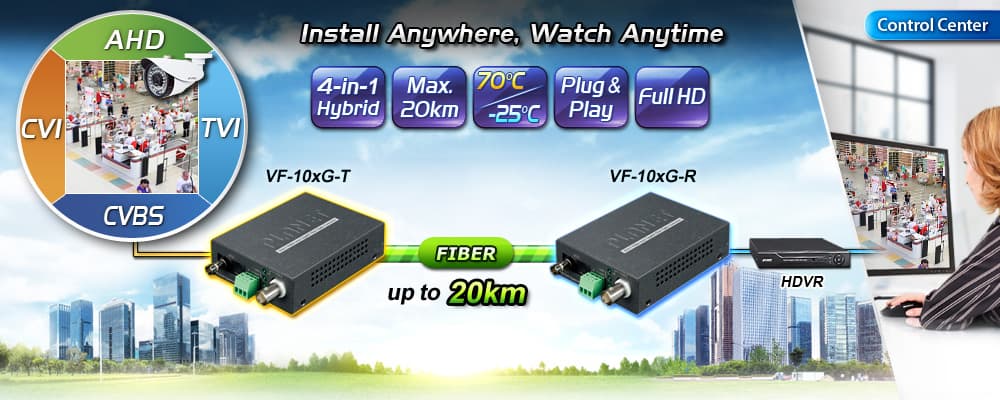

Long Distance Analog Surveillance Transmission System To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over Gigabit fiber media converter kit, VF-101G/102G/106G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G/102G/106G-KIT video over fiber media converter enables videos to be delivered in high quality over a distance of up to 20km long. Fiber Optic Communication for Video and Serial Data This Video over Gigabit Fiber Converter kit consists of a Video Transmitter and a Video Receiver: VF-101G/102G/106G-T: 1-channel Video over Gigabit Fiber Transmitter VF-101G/102G/106G-R: 1-channel Video over Gigabit Fiber Receiver Model Name Video Type Fiber Speed Optical Distance Optical Connector VF-101G AHD/TVI/CVI/CVBS 1.25G/84M 20km in single mode ST VF-102G FC VF-106G WDM-SC The VF-101G/102G/106G-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 1 channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-101G/102G/106G-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc. Easy Installation Simply by Plug and Play, the installation of the VF-101G/102G/106G-KIT media conversion is quite easy. They can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R). When working with the media converter chassis, the media converter chassis provides DC power to VF-101G/102G/106G-T or VF-101G/102G/106G-R to maintain the video over fiber-optic transmission system at the central location. Applications The VF-101G/102G/106G-KIT consists of 1 channel video over fiber optic transceiver and receiver to transmit video and RS485 signal through a reliable single mode or single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high-performance signal transmission over long distances. The VF-101G/102G/106G-KIT can be installed easily by way of “Plug and Play”, meaning the operator does not need to configure the pair of the video over fiber transmission in advance. The transmitter and receiver can work as standalone or can be slotted into a rack-mountable media converter chassis. The flexible and maintenance-free design fits in with different installation environments. With one VF-101G/102G/106G-KIT, video cameras can be deployed over a distance of up to 20km, which ideally suits the following applications: Intelligent Transportation Systems (ITS) Toll Collection Traffic Surveillance Air Traffic Management (ATM) Rail Signaling Perimeter Alarms and Area Monitors Telemedicine and Teleconference Industrial Surveillance Intelligent Buildings Key Features Compliant with hybrid video (AHD/TVI/CVI/CVBS) Long-distance data transmission of 20km Status indication for power supply, optical signal and video High-speed synchronous digital transmission technology Guarantees safe transmission under poor electromagnetic environment Video and data transmission over Gigabit fiber optic cable PAL, NTSC, SECAM compatible Data type: RS485 8-/10-bit digital Video Signal sampling Standalone or work with PLANET MC-700/1500/1500R media converter chassis Compact size, wall-mount design, easy installation

Especificaciones técnicas

Video Channel

1 channel bi-direction

Signal Mode

NTSC/PAL/SECAM

Video Connector

BNC

Video Bandwidth

60MHz

Video Input/Output Voltage

1.0 Vpp/typical peak-to-peak value

Video Input/Output Impedance

75ohm/unbalanced interface

Supported Video Type

1080p: AHD/TVI/CVI 480p: CVBS

Video Digital Bit Width

8/10 bit

Differential Gain (DG)

< 1.3% (typical value)

Differential Phase (DP)

< 1.3° (typical value)

SNR Weighted

> 67dB (typical value)

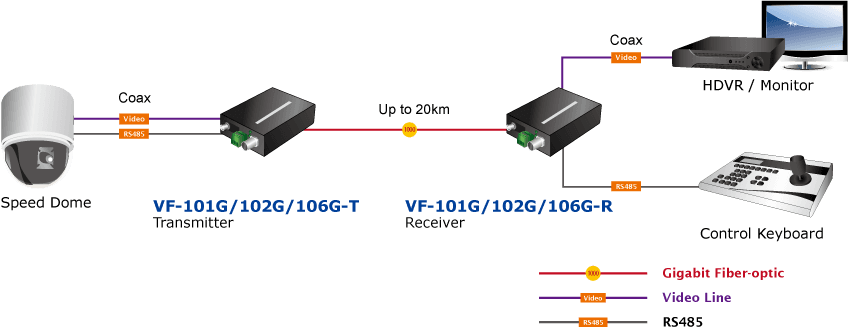

Data Channel

1 channel

Physical Protocol

RS485

Operation Mode

Simplex

Data Connector

3-pin terminal block with screw clamps

Data Rate

DC-115.2Kbps

Bit Error Rate (BER)

< 10ns

Optical Connector

VF-101G-KIT VF-102G-KIT VF-106G-KIT ST FC WDM-SC

VF-101G-KIT

VF-102G-KIT | VF-106G-KIT

ST

FC | WDM-SC

Distance

20km for single mode

Optical Wavelength

VF-101G-T VF-102G-T VF-106G-T TX: 1310nm RX: 1550nm TX: 1310nm RX: 1550nm TX: 1310nm RX: 1550nm VF-101G-R VF-102G-R VF-106G-R TX: 1550nm RX: 1310nm TX: 1550nm RX: 1310nm TX: 1550nm RX: 1310nm

VF-101G-T

VF-102G-T | VF-106G-T

TX

1310nm RX: 1550nm: TX: 1310nm RX: 1550nm | TX: 1310nm RX: 1550nm

VF-101G-R

VF-102G-R | VF-106G-R

TX

1550nm RX: 1310nm: TX: 1550nm RX: 1310nm | TX: 1550nm RX: 1310nm

Launch Power (dBm)

Max.: 0, Min.: -9

Receive Sensitivity (dBm)

-26

Max. Input Power (dBm)

-3

Cable

9/125μm single mode cable

LED Indicators

Power Video Link (fiber optic)

Dimensions (W x D x H)

94 x 70 x 26 mm

Weight

200g

Power Requirement

5V DC, 2A

Power Consumption

4.8 watts (maximum)

Mechanical

Metal

Installation

Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis)

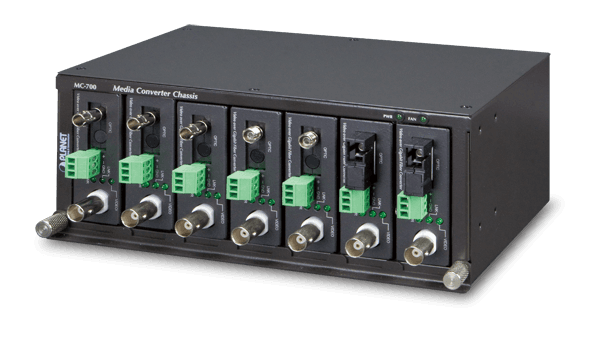

Compatible Converter Chassis

MC-700/MC-1500/MC-1500R

Regulatory Compliance

FCC, CE

Operating

Temperature: -25 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing)

Storage

Temperature: -30 ~ 80 degrees C Relative Humidity: 0 ~ 95% (non-condensing)

Packet Contents

VF-101G/102G/106G-T x 1 VF-101G/102G/106G-R x 1 User’s manual x 1 5V, 2A power adapter x 2
