VF-402-KIT — 4-Channel Video over Fiber Bundled Kit

Descripción

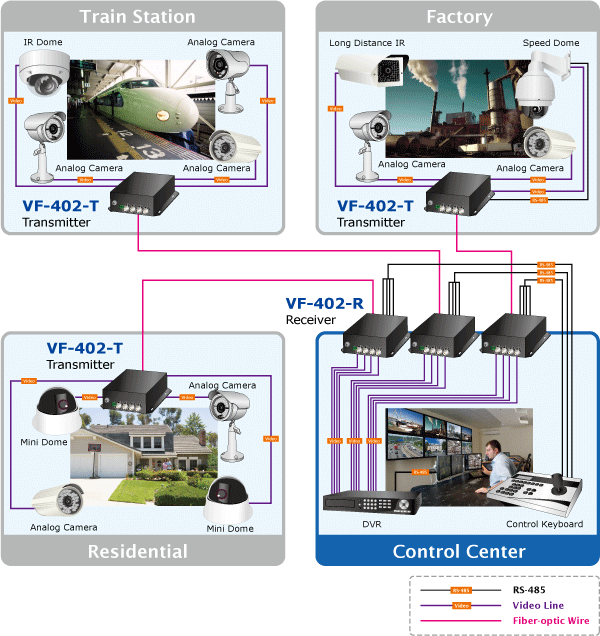

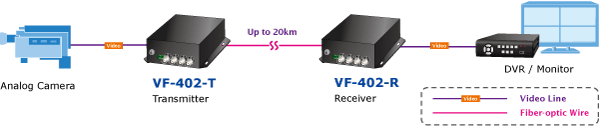

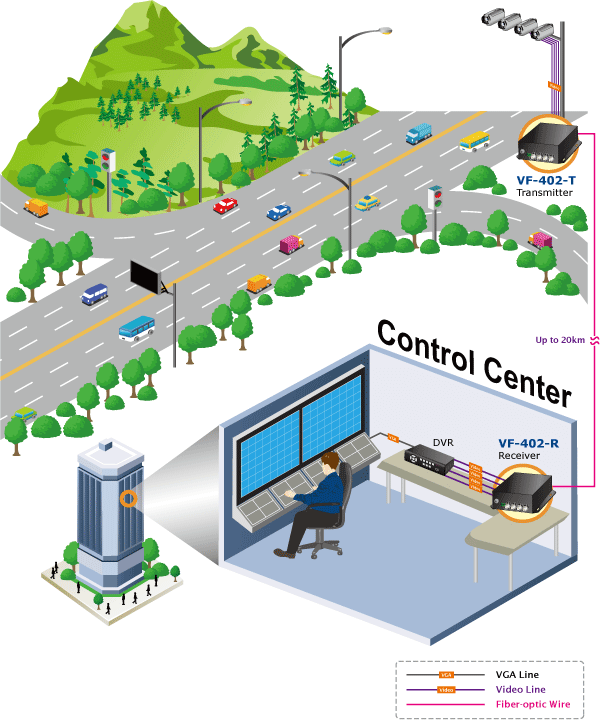

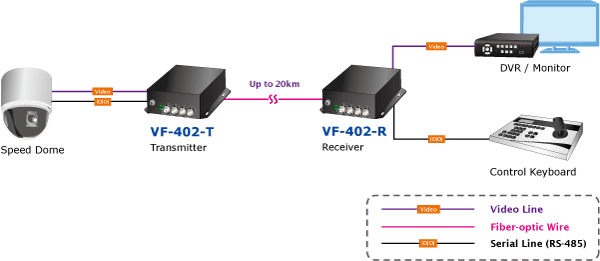

Reliable Long Distance Solution for Analog Surveillance System To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over fiber media converter kit, VF-402-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-402-KIT video over fiber media converter enables the videos to be delivered in high quality up to 20km long in distance. Fiber Optic Communication for Video and Serial Data The VF-402-KIT consists of a Video Transmitter and a Video Receiver: VF-402-T : 4-channel Video over Fiber Transmitter VF-402-R : 4-channel Video over Fiber Receiver The VF-402-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 4-channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-402-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc. Industrial Monitoring Systems The industrial-level VF-402-KIT’s wide temperature ranges from -20 to 70 degrees C, applicable to all kinds of environments. It supports hot plugging and its 4-channel video adopts the full digital video non-compression and Gigabit fiber optic transmission technology that brings distortion-free videos over a long-distance fiber cable. Thus, it can observe working condition visually with LED. It can be a standalone or rack-mounted structure, and is simple to operate with no field adjustment needed. Applications The VF-402-KIT consists of 4-channel video over fiber optical transceiver and receiver to transmit video and RS485 signal through a reliable single mode or single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high-performance signal transmission over long distances. The VF-402-KIT can be installed easily by way of “Plug and Play”, meaning the operator does not need to configure the pair of the video over fiber transmission in advance. Typical Applications Intelligent Transportation Systems (ITS) Toll Collection Traffic Surveillance Air Traffic Management (ATM) Rail Signaling Perimeter Alarms and Area Monitoring Telemedicine and Teleconference Industrial Surveillance Intelligent Building CCTV Network Key Features Compliant with hybrid video (AHD/TVI/CVI/CVBS) 20km long-distance data transmission Fiber optic transmission of four video signals on one fiber with RS485 data signals which may be one way with the video or optional duplex Status indication for power supply, optical signal and video High-speed synchronous digital transmission technology Effective against electromagnetic interference, radio frequency interference, 6KV high-level lightning protection design Guarantees safe transmission under poor electromagnetic environment Maximum tolerable link loss for single mode single fiber is 0.35dB/km Video bandwidth of 60MHz, SNR>67dB Wide temperature range from -20 to 70 degrees C

Especificaciones técnicas

Video Channel

4-channel bi-direction

Video Connector

BNC

Supported Video Type

1080p: AHD/TVI/CVI 480p: CVBS

Video Input/Output Impedance

75ohm/unbalanced interface

Video Input/Output Voltage

1.0 Vpp / typical peak-to-peak value

Video Bandwidth

25 to 60MHz

Video Digital Bit Width

8/10 bit

Differential Gain (DG)

< 2% (typical value)

Differential Phase (DP)

< 2° (typical value)

SNR-weighted Scheme

> 67dB (typical value)

Data Channel

4 channels

Physical Protocol

RS485

Operation Mode

Simplex

Data Connector

4 Pin terminal block with screw clamps

Data Rate

DC-150Kbps

Data Distance

RS485: 0-20km

BPS

0-115.2Kbps

Bit Error Rate (BER)

< 10 -9

Optical Connector

FC

Fiber Type

Single-mode, single fiber

Distance

20km for single mode

Optical Wavelength

VF-402-T TX: 1310nm RX: 1550nm VF-402-R TX: 1550nm RX: 1310nm

Transmitter Coupled Power

Max.: 0dBm Min.: -8dBm

Receive Sensitivity

-22dBm

Link Budget

From 15dB to 20dB at 1310nm or 1550nm

Cable

9/125μm single-mode cable

LED Indicators

Power Each channel Link (fiber optic)

Dimensions (W x D x H)

157 × 118.5 × 48.8 mm

Weight

580g

Power Requirement

5V DC, 2A

Chassis Current Consumption

1.10 amp for 4-channel video and 1-channel data

Mechanical

Metal

Regulatory Compliance

FCC, CE

Operating

Temperature: -20 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative Humidity: 0 ~ 95% (non-condensing)

Packet Contents

VF-402-T x 1 VF-402-R x 1 User’s manual x 1 5V/2A power adapter x 2
