VR-300P — Enterprise 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T VPN Security Router

Descripción

Powerful VPN Security Solution The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the VR-300P VPN PoE Security Router, an all-in-one appliance that carries several main categories across your network security deployments: Cyber Security, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and MAC/IP Filtering), AP Controller, Captive Portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience. Built-in Unique PoE Functions for Powered Devices Management The VR-300P is capable of having a maximum of up to 120 watts of power output and can deliver up to 36W for each port. It also features the following special PoE management functions: PoE Usage Monitoring With PoE usage monitoring, it can show the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. User can obtain detailed information about the real-time PoE working condition of the VR-300P directly. PoE Schedule Under the trend of energy saving worldwide and contributing to environmental protection, the VR-300P can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. Scheduled Power Recycling The VR-300P allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PD Alive Check The VR-300P can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the VR-300P will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Wi-Fi Deployments and Authentication with Simplified Management The VR-300P also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300 can offer a secure Wi-Fi network with easy installation for your business. Centralized Remote Control of Managed APs* The VR-300P provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost. For example, to configure multiple Smart APs of the same model, the VR-300P allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately. Ideal High-Availability VPN Security Router Solution for SMBs The VR-300P provides complete data security and privacy for accessing and exchanging most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300P makes the connection secure, more flexible, and more capable. Excellent Ability in Threat Defense The VR-300P’s built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack prevention functions provide high efficiency and extensive protection for your network. Virtual Server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300P is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300P offers an easy-to-use, platform independent management and configuration facility. The VR-300P supports SNMP and it can be managed via any management software based on the standard SNMP protocol. Applications Improving Network Efficiency It is applicable to the small-scale sector (from 60 to 100 people), using a 13-inch desktop design, with five Gigabit ports (WAN/LAN). It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the High-Availability and Dual-WAN interfaces enable the VR-300P to support outbound load balancing and WAN fail-over features. Furthermore, the VR-300P can connect dual IPv4/v6 WANs with up to two different ISPs and supports many popular security features including Content Filterring to block specific URL feature that can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites like Facebook, YouTube and Yahoo. The VR-300P has link redundancy, MAC/IP filtering, outbound load balancing, QoS and many more functions to make the entire network system better. It creates a stable and qualified VPN security connection for many important applications such as VoIP, video conferencing and data transmission. The VR-300P’s economical price with complete network security management features make it an inevitable choice for the next-generation office network load balancer. Key Features Highlights Dual-WAN failover and Dual-WAN load balancing SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful Packet Inspection (SPI) firewall and content filtering Blocks DoS/DDOS attack, port range forwarding High Availability, AP Controller, Captive Portal and RADIUS IPv6, SNMP, PLANET DDNS and Universal Network Management System Compliant with the IEEE 802.3at PoE+ with PD alive check/schedule management Hardware 5 10/100/1000BASE-T RJ45 ports with 4-port IEEE 802.3at PoE+ injector function 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function 1 USB 3.0 port for system configuration backup and restore Reset button and fanless design Desktop installation or rack mounting Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 4 ports of IEEE 802.3af / 802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection PD alive check PoE schedule IP Routing Feature Static Route Dynamic Route OSPF Firewall Security Cybersecurity Stateful Packet Inspection (SPI) firewall Blocks DoS/DDoS attack Content Filtering MAC Filtering and IP Filtering NAT ALGs (Application Layer Gateway) Blocks SYN/ICMP Flooding VPN Features IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN) Max. Connection Tunnel Entries: 60 VPN tunnels, Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Networking Outbound load balancing Failover for dual-WAN High availability Captive Portal RADIUS Server/Client Static IP/PPPoE/DHCP client for WAN DHCP server/NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3 MAC address clone DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP Others Setup wizard Dashboard for real-time system overview Supported access by HTTP or HTTPS Auto reboot PLANET Smart Discovery utility/UNI-NMS supported

Especificaciones técnicas

Ethernet

5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Port-1 to Port-3) 1 LAN/WAN port (Port-4) 1 WAN port (Port-5)

USB Port

1 USB 3.0 port for system configuration backup and restore

Reset Button

Reset to factory default

Thermal Fan

1

LED Indicators

PWR (Green) Internet (Green) LAN/WAN (Green) PoE-in-Use LED (Amber)

Installation

Desktop installation or rack mounting

Power Requirements

100~240V AC, 50/60Hz, auto-sensing

Power Consumption / Dissipation

Max.121watts/413BTU

Weight

1.6kg

Dimensions (W x D x H)

330.2 x 153 x 44 mm, 1U height

Enclosure

Metal

PoE Standard

IEEE 802.3af / 802.3at PoE+ PSE

PoE Power Supply Type

End-span

PoE Power Output

Per port 52V DC, 36 watts (max.)

Power Pin Assignment

1/2 (+), 3/6 (-)

PoE Power Budget

120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C

Max. Number of Class 4 PDs

4

PoE Management

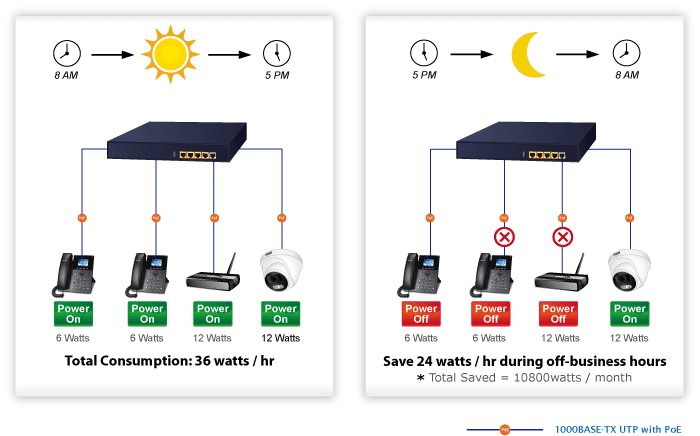

PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring

Firewall Security

Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323, TFTP

NAT

Port forwarding DMZ Host UPnP

Content Filtering

MAC filtering IP filtering Web filtering

Bandwidth Management

Outbound load balancing Failover for dual-WAN QoS (Quality of Service)

Operation Mode

Routing mode

Routing Protocol

Static Route, Dynamic Route (RIP), OSPF

VLAN

802.1q Tag-based, Port-based, Multi-VLAN

Multicast

IGMP Proxy

NAT Throughput

Max. 900Mbps

Outbound Load Balancing

Supported algorithms: Weight

Protocol

IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,

Key Features

HA (High Availability) Captive Portal RADIUS Server/Client AP Control

VPN Function

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)

VPN Tunnels

Max. 60

VPN Throughput

Max. 60Mbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encrypting

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported

System Log

System Event Log

Secure Management Interfaces

SSHv2, TLSv1.2, SNMP v3

Others

Setup wizard Dashboard System Status/Service Statistics Connections Status Auto reboot Diagnostics

Regulatory Compliance

CE, FCC

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
