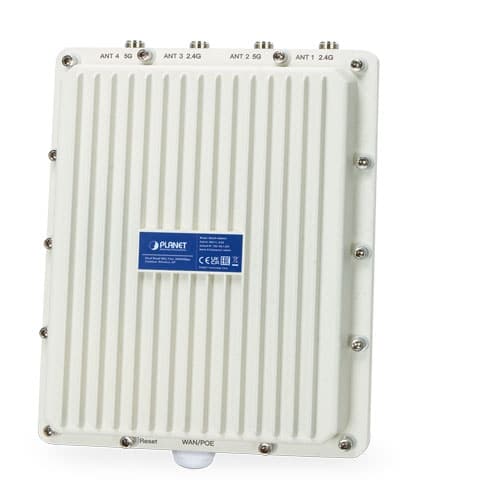

WDAP-3000AX — Dual Band 802.11ax 3000Mbps Outdoor Wireless AP (IP67, 802.3at PoE+, 4 x N-type connector)

Descripción

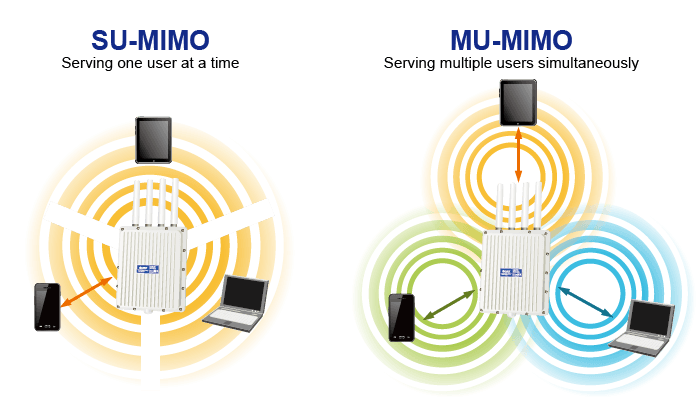

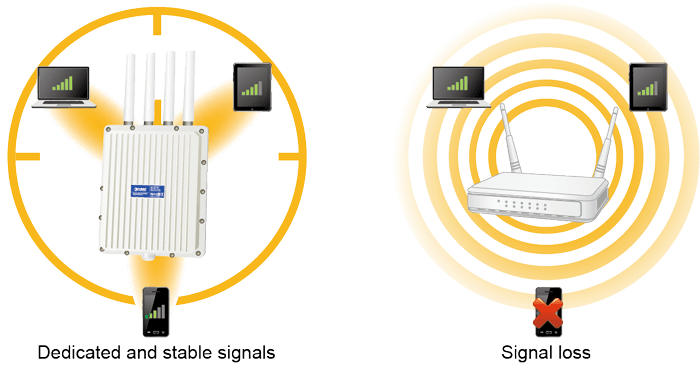

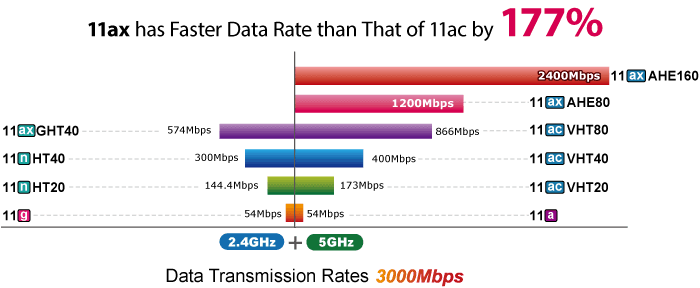

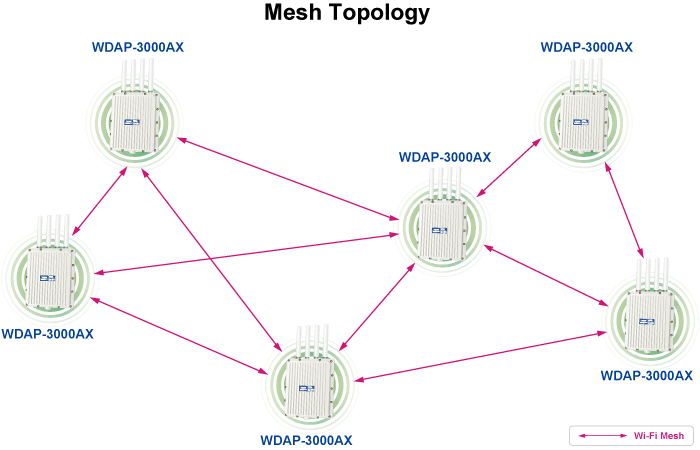

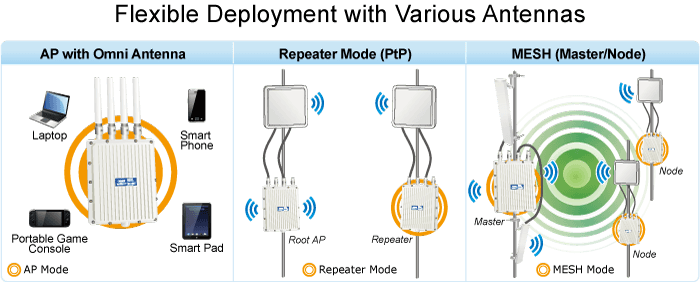

Ultra-high-speed Wi-Fi 6 Wireless LAN Solution PLANET's WDAP-3000AX is a high-performance Dual Band 802.11ax Wireless Access Point (AP) designed to deliver blazing-fast Wi-Fi speeds and advanced features. With support for Wi-Fi Mesh , MU-MIMO , OFDMA , Seamless Roaming , Beamforming , and BSS Coloring technology, this AP ensures a seamless and efficient wireless experience. In the 5GHz band, it offers an impressive maximum wireless speed of 2400Mbps , while in the 2.4GHz band, it provides 600Mbps of speed. This dual-band capability ensures reliable connectivity for various devices. One of the standout features of the WDAP-3000AX is its rugged build. Encased in an IP67-rated aluminum case , it's safeguarded against dust and water, making it suitable for deployment in harsh outdoor environments. Additionally, the flexible N-type connectors allow system integrators to easily set up high-gain antennas for long-distance outdoor applications, even in rough weather conditions. To enhance product durability further, the WDAP-3000AX includes 20KV surge protection for wired cable interfaces, safeguarding against electrical surges and ensuring stable operation. With support for up to 256 client users , this AP is well-suited for high-density environments, providing secure and robust connectivity. Its adoption of Wi-Fi 6 technology ensures optimal performance and efficiency, making it an excellent choice for businesses and organizations that demand top-tier wireless capabilities. Benefits of MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring The WDAP-3000AX can be installed in public areas such as hotspots, airports and conferences as OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the 0 clients. With MU-MIMO and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. Beamforming is to improve your Wi-Fi signal when you are far away from your router. The BSS color is a numerical identifier of the BSS. 802.11ax radios are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel. These technologies also can solve Wi-Fi congestion issues in open work spaces and conference rooms. The WDAP-3000AX can offer more powerful throughput coverage of up to 256 client users. OFDMA (Orthogonal Frequency Division Multiple Access) Benefits Helps transmit small and large packets together to reduce bandwidth burden and improve data transmission performance Transmitting data at the same time can effectively reduce the transmission delay for longer frame and low-speed transmission. Improves the overall traffic quality, and effectively uses bandwidth in an environment where multiple people use the Internet. Increases the number of devices that can be connected to the AP. Reduces the power consumption of the device by way of the use of low bandwidth. Beamforming Beamforming is to improve your Wi-Fi signal when you are far away from your router. When you use beamforming, Wi-Fi beamforming narrows the focus of that router signal, sending it directly to your devices in a straight line, thus minimizing surrounding signal interference and increasing the strength of the signal that ultimately bring you the following benefits: Extend your Wi-Fi coverage Deliver a more stable Wi-Fi connection Deliver better Wi-Fi throughput Reduce router interference BSS Coloring The BSS color is a numerical identifier of the BSS. 802.11ax radios are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel. If the color is the same, this is considered to be an intra-BSS frame transmission. In other words, the transmitting radio belongs to the same BSS as the receiver. If the detected frame has a different BSS color from its own, then the STA considers that frame as an inter-BSS frame from an overlapping BSS. WPA3 Next Generation Security for Your WLAN Solution WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simplified the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users. * WDAP-3000AX only supports WPA3-Personal. Super Power Dual band WLAN Solution PLANET WDAP-3000AX, adopting the IEEE 802.11ax Wi-Fi 6 standard, provides a high-speed transmission. The maximum wireless speed in 2.4GHz band is up to 11AX of 574Mbps, and in the 5GHz band is up to 11AX of 2402Mbps. Both the 2.4GHz and 5GHz wireless connections can also be used simultaneously. Advanced Security and Rigorous Authentication The WDAP-3000AX supports WPA/WPA2/WPA3 wireless encryptions, and also supports the WPA2 Enterprise, WPA/WPA2 Enterprise, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. Flexible, Durable and Reliable Outdoor Characteristics To reach maximum reliability in the harsh environment, the WDAP-3000AX comes with IP67-rated Aluminum Die-cast Housing , capable of withstanding wide temperature ranging from -40 to 70 degrees C. The WDAP-3000AX includes 20KV surge protection for wired cable interfaces, safeguarding against electrical surges and ensuring stable operation. Designed with the IEEE 802.3at PoE+ ( P ower o ver E thernet) power scheme, the WDAP-3000AX can be easily installed in the areas where power outlets are not available. Furthermore, it is also suitable to be integrated with PLANET Renewable Power PoE System to offer farther wireless service in remote areas. Multiple Operation Modes for Various Applications The WDAP-3000AX supports the simplified usage modes of AP, Gateway, Repeater and WISP mode, through which they provide more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-3000AX offers more powerful and flexible capability for wireless clients. Mesh Wi-Fi for More Hassle-free Network The WDAP-3000AX boasts support for 802.11s Mesh technology, an open standard wireless networking solution that takes Wi-Fi coverage and stability to the next level. It enables seamless collaboration between various router and Wi-Fi device brands, creating a unified and efficient network experience. Mesh technology leverages multiple frequency bands, enabling fast roaming and intelligent network management, resulting in top-notch performance. Setting up a Mesh network is a breeze, thanks to its user-friendly installation process and automated configuration. This ensures that users can enjoy extended Wi-Fi coverage and a consistently reliable connection across their homes or workplaces. In summary, Mesh technology is the go-to solution for those seeking to enhance their Wi-Fi coverage without the headache of complex network setups. It's a convenient and effective way to achieve a seamless and robust wireless network. (The maximum number of Mesh supported device is 6 pcs.) Optimized Efficiency in AP Management with Cloud and NMS system Via the PLANET CloudViewerPro app, you can monitor and control Access Points in real time without a specified location and time limitation. The brand-new GUI configuration wizard helps the system administrator easily set up the WDAP-3000AX step by step. Besides, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel overlapping to assure greater performance. With the automatic transmission power mechanism, distance control and scheduling reboot setting, the WDAP-3000AX is easy for the administrator to deploy and manage without on-site maintenance. Moreover, you can use PLANET NMS-500 or NMS-1000V AP control function to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple. Applications Robust Hardware and Flexible Dual RF for Various Outdoor Requirements With high-power, long-distance, reliable and comprehensive characteristics, the WDAP-3000AX designed with durable and robust IP67 hardware architecture, and dramatic wireless efficiency is perfect for any outdoor network infrastructure. With higher gain antennas and dual RF design, the WDAP-3000AX is suitable for various applications. For example, the WDAP-3000AX can establish the backhaul link through the 5GHz radio and then relay the wireless signal through the 2.4GHz radio to provide internet service to rural residents. With the WDAP-3000AX, an outdoor wireless infrastructure in the harsh environment can be speedily deployed to reduce cabling cost and installation time. **We recommend you to match the WDAP-3000AX with our related products to get the best results. Key Features Hardware Compliant with the IEEE 802.11a/b/g/n/ac/ax wireless technology Equipped with 10/100/1000Mbps RJ45 ports, and auto MDI/MDI-X One reset button and power LED indicator RF Interface Characteristics 802.11ax 2T2R architecture with data rate of up to 3000Mbps (600Mbps in 2.4GHz and 2400Mbps in 5GHz) Built-in four N-type antenna connectors High output power with multiply-adjustable transmit power control Outdoor Environmental Characteristics IP67 rating, IEEE 802.3at PoE design Rugged protection with aluminum extrusion case and ground terminal 20KV surge protection for wire cable interface Operating temperature: -40~70 degrees C Multiple Operation Modes and Wireless Features Multiple operation modes: AP, gateway and repeater Supports OFDMA (orthogonal frequency division multiple access) Supports MU-MIMO (multi-user multiple-input multiple-output), Beamforming and BSS Coloring WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless Coverage threshold to limit the weak signal of clients occupying session Real-time Wi-Fi channel analysis chart and client limit control for better performance Support Terminal Seamless Roaming with 802.11k, 802.11v, and 802.11r Supports mesh connection(The maximum number of Mesh supported device is 6 pcs.) Secure Network Connection Full encryption supported: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise Supports 802.1Q port VLAN Supports IP/Port/MAC address/URL filtering, DoS, SPI firewall Supports DMZ and port forwarding Bandwidth control per IP address to increase network stability Easy Deployment and Management Support management by PLANET CloudViewer and CloudViewerPro app Supports PLANET AP Controllers in AP mode Easy discovery by PLANET Smart Discovery Self-healing mechanism through system auto reboot setting System status monitoring through remote syslog server Gateway mode supports PLANET DDNS/Easy DDNS, Captive Portal, RADIUS Server/Client

Especificaciones técnicas

Interfaces

PoE WAN/LAN: 1 x 10/100/1000BASE-T, auto-MDI/MDIX, 802.3at PoE In

Antennas

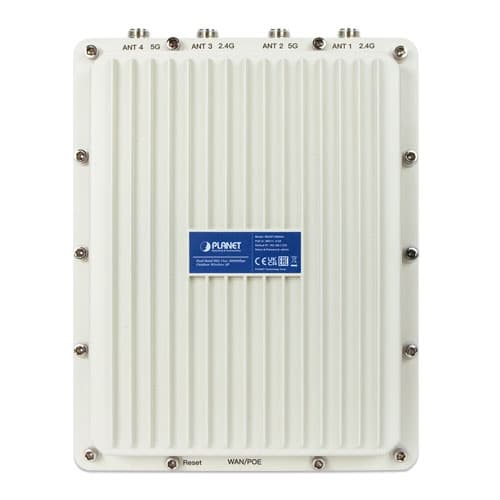

Built-in four N-type connectors

Reset Button

Reset button (Press over 5 seconds to reset the device to factory default)

LED Indicators

Power

Dimensions (W x D x H)

231 x 80 x 295 mm

Weight

2527 g

Material

Aluminum

Power Requirements

48V 0.5A, IEEE 802.3at PoE+

Power Consumption

< 15W

Mounting

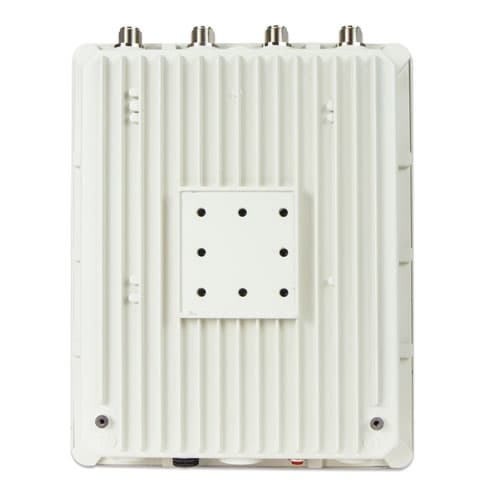

Mast mounting

IP Level

IP67

ESD Protection

±8kV air gap discharge ±4kV contact discharge

Surge Protection

±20kV

Standard

IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r

Media Access Control

CSMA/CA

Data Modulation

802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz

Operating Channels

ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,256,132, 136, 140 (19 Channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24Channels) 5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 22 ± 1dBm ETSI: < 19dBm (EIRP) Network Mode Data Rate Max. Transmit Power (dBm) 2.4G Power 802.11b 1Mbps 11Mbps 22±2 22±2 802.11g 6Mbps 54Mbps 21±2 19±2 802.11n HT20 MCS0 MCS7 20±2 18±2 802.11n HT40 MCS0 MCS7 20±2 18±2 802.11ax HT20 MCS0 MCS11 20±2 16±2 802.11ax HT40 MCS0 MCS11 20±2 16±2 5G Power

Network Mode

Data Rate | Max. Transmit Power (dBm)

802.11b

1Mbps 11Mbps | 22±2 22±2

802.11g

6Mbps 54Mbps | 21±2 19±2

802.11n HT20

MCS0 MCS7 | 20±2 18±2

802.11n HT40

MCS0 MCS7 | 20±2 18±2

802.11ax HT20

MCS0 MCS11 | 20±2 16±2

802.11ax HT40

MCS0 MCS11 | 20±2 16±2

802.11a

6Mbps 54Mbps | 21±2 19±2

802.11ac HT20

MCS0 MCS7 | 20±2 17±2

802.11ac HT40

MCS0 MCS7 | 20±2 17±2

802.11ac HT80

MCS0 MCS9 | 19±2 17±2

802.11ax HT80

MCS0 MCS11 | 19±2 16±2

802.11ax HT160

MCS0 MCS11 | 18±2 14±2

Network Mode

Data Rate | Receive Sensitivity (dBm)

802.11b

1Mbps 11Mbps | -96 -87

802.11g

6Mbps 54Mbps | -93 -75

802.11n HT20

MCS0 MCS7 | -92 -73

802.11n HT40

MCS0 MCS7 | -88 -63

802.11ax HT20

MCS0 MCS11 | -92 -64

802.11ax HT40

MCS0 MCS11 | -88 -58

802.11a

6Mbps 54Mbps | -92 -74

802.11n HT20

MCS0 MCS7 | -90 -73

802.11n HT40

MCS0 MCS7 | -87 -70

802.11ac HT20

MCS0 MCS7 | -91 -67

802.11ac HT40

MCS0 MCS7 | -88 -63

802.11ac HT80

MCS0 MCS9 | -84 -60

802.11ax HT20

MCS0 MCS11 | -91 -62

802.11ax HT40

MCS0 MCS11 | -89 -59

802.11ax HT80

MCS0 MCS11 | -86 -56

802.11ax HT160

MCS0 MCS11 | -83 -53
