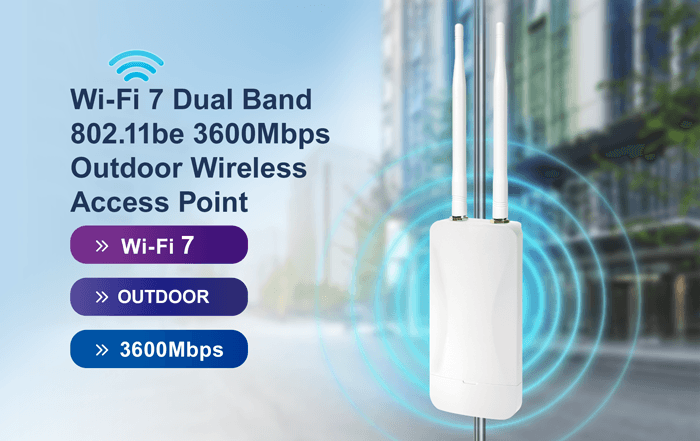

WDAP-3600BE — Wi-Fi 7 Dual Band 802.11be 3600Mbps Outdoor Wireless Access Point

Descripción

Outdoor-grade Wi-Fi 7 AP for High-speed and Reliable Wireless Coverage PLANET WDAP-3600BE is a rugged outdoor wireless access point that delivers next-generation Wi-Fi 7 (802.11be) performance with an aggregated throughput of up to 3600Mbps (2.4GHz: 688Mbps + 5GHz: 2882Mbps) . Designed for harsh environments, it ensures ultra-fast, low-latency, and stable connectivity for outdoor campuses, industrial parks, resorts, and smart city deployments. Ruggedized Outdoor Design Built with a weatherproof housing, the WDAP-3600BE withstands -30°C to 70°C operating temperatures and harsh outdoor conditions. Combined with dual high-gain external antennas , it provides extended coverage and reliable performance in wide-area wireless deployments. High-density Wi-Fi 7 Performance Equipped with advanced Wi-Fi 7 features such as 4096-QAM, MU-MIMO, OFDMA, BSS Coloring, and Beamforming , the WDAP-3600BE supports multiple simultaneous users with consistent connectivity—ideal for outdoor public Wi-Fi, transportation hubs, and enterprise campuses. Robust Security and Business-ready Features To safeguard sensitive business and personal data, the WDAP-3600BE supports the latest WPA3 encryption , VLAN-to-SSID mapping, and client isolation. Combined with its flexible SSID configuration and advanced access control, it ensures a secure and well-segmented wireless environment for both commercial and hospitality applications. Flexible Power and Deployment The WDAP-3600BE supports IEEE 802.3at PoE+ and 12V DC power , providing flexible installation options. Its 1 × 2.5GBASE-T PoE WAN port and 1 × Gigabit LAN port enable high-speed wired backhaul while reducing cabling complexity. Multiple Operation Modes for Various Applications The WDAP-3600BE supports the simplified usage modes of Access Point , Gateway , Repeater and WISP mode, through which they provide more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-3600BE offers more powerful and flexible capability for wireless clients. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments mor e efficiently, securely, and intelligently —all from a single cloud-based platform. Applications Smart Cities and Public Wi-Fi The WDAP-3600BE enables municipalities to build next-generation smart city networks , providing fast and reliable Wi-Fi access in parks, plazas, bus stops, and transportation hubs. With its wide coverage and weatherproof housing, it not only supports public internet access but also powers city surveillance , IoT sensors , and digital kiosks , creating a safer and smarter urban experience. Industrial and Logistics Parks Warehouses, factories, and logistics yards demand robust connectivity for automation, tracking, and workforce mobility. The WDAP-3600BE ensures real-time data transfer for barcode scanners, AGVs, and surveillance cameras. Its -30°C to 70°C operating temperature guarantees reliable performance in harsh industrial conditions, minimizing downtime and boosting productivity. Resorts, Hotels, and Campuses Outdoor areas in hotels, resorts, and campuses require seamless Wi-Fi coverage to keep guests, students, and staff connected. The WDAP-3600BE delivers high-density performance , supporting hundreds of concurrent users for streaming, e-learning, and online collaboration. With centralized CloudNMS management, IT teams can easily monitor, configure, and optimize Wi-Fi service across multiple outdoor zones. Event Venues and Outdoor Enterprises Concerts, exhibitions, and outdoor co-working spaces need temporary but powerful wireless networks that handle peak traffic demands. The WDAP-3600BE offers 3600Mbps Wi-Fi 7 connectivity with advanced features like MU-MIMO and OFDMA to guarantee smooth user experiences, even in high-density environments. Its PoE+ power option simplifies rapid deployment, making it an ideal choice for pop-up networks and large-scale outdoor events . Key Features Standard-compliant Outdoor Wireless LAN Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology Dual-band concurrent operation with a maximum wireless throughput of 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps) Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r) Rugged Outdoor Hardware Design 1 × 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD) 1 × 10/100/1000BASE-T LAN port Dual-band high-gain external antennas for extended outdoor coverage IP-rated weatherproof housing with wide temperature support (-30°C ~ 70°C) Multiple Operation Modes and Wireless Features Flexible operation modes: Gateway, AP, Repeater, WISP Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping Wi-Fi Multimedia (WMM) for optimized audio/video streaming Real-time Wi-Fi channel analysis chart for interference management Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility Secure Network Connection Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation Enhanced security with ACL management to prevent unauthorized access Easy Deployment and Centralized Management Powered by 802.3af/at PoE+, simplifying installation by combining power and data through a single Ethernet cable Fully compatible with PLANET CloudNMS app, and AP Controllers, enabling centralized monitoring and management Self-healing mechanism through system auto-reboot scheduling User-friendly Web GUI and setup wizard for quick configuration and monitoring

Especificaciones técnicas

Interfaces

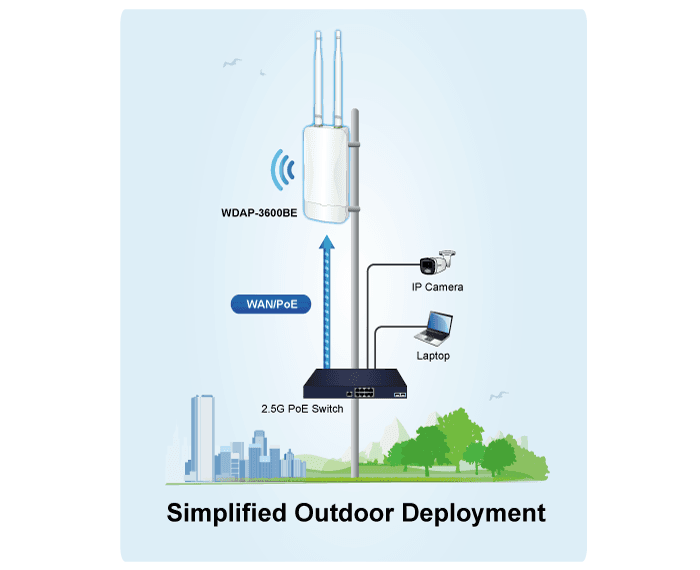

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X

Antennas

2 × External dual-band RP-SMA type antennas (2.4GHz / 5GHz: 5dBi)

Reset Button

Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.)

LED Indicators

5 × Green LEDs for Power, LAN, WAN, and Wi-Fi (2.4GHz / 5GHz) status

Dimensions (W × D × H)

86 × 30 × 186 mm (without antennas)

Weight

550g

Material

ABS+PC

Power Requirements

IEEE 802.3af/at PoE (End-span, not support Mid-span), DC 12V/2A

Power Consumption

Max. 5.5 watts / 18.76 BTU (Power on without any connection) Max. 9.5 watts / 32.4 BTU (Full loading)

Mounting

Mast mounting

IP Level

IP65

Surge Protection

±2KV (Common Mode), ±1KV (Differential Mode)

Standard

5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode Frequency Range 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz

Operating Channels

ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) ＊5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 22 ± 2dBm ETSI: < 19dBm (EIRP) Network Mode Data Rate Max. Transmit Power (dBm) 2.4G Power 802.11b 11Mbps 1Mbps 22±2 22±2 802.11g 54Mbps 6Mbps 20±2 22±2 802.11n HT20 MCS7 MCS0 18±2 20±2 802.11n HT40 MCS7 MCS0 18±2 20±2 802.11ax HE20 MCS11 MCS0 17±2 20±2 802.11ax HE40 MCS11 MCS0 17±2 21±2 802.11be EHT20 MCS13 MCS0 16±2 20±2 802.11be EHT40 MCS13 MCS0 16±2 20±2 5G Power 802.11a 54Mbps 6Mbps 18±2 20±2 802.11n HT20 MCS7 MCS0 17±2 19±2 802.11n HT40 MCS7 MCS0 18±2 19±2 802.11ac VHT20 MCS8 MCS0 16±2 19±2 802.11ac VHT40 MCS7 MCS0 17±2 19±2 802.11ac VHT80 MCS9 MCS0 17±2 19±2 802.11ax HE20 MCS11 MCS0 16±2 19±2

Network Mode

Data Rate | Max. Transmit Power (dBm)

802.11b

11Mbps 1Mbps | 22±2 22±2

802.11g

54Mbps 6Mbps | 20±2 22±2

802.11n HT20

MCS7 MCS0 | 18±2 20±2

802.11n HT40

MCS7 MCS0 | 18±2 20±2

802.11ax HE20

MCS11 MCS0 | 17±2 20±2

802.11ax HE40

MCS11 MCS0 | 17±2 21±2

802.11be EHT20

MCS13 MCS0 | 16±2 20±2

802.11be EHT40

MCS13 MCS0 | 16±2 20±2

802.11a

54Mbps 6Mbps | 18±2 20±2

802.11n HT20

MCS7 MCS0 | 17±2 19±2

802.11n HT40

MCS7 MCS0 | 18±2 19±2

802.11ac VHT20

MCS8 MCS0 | 16±2 19±2

802.11ac VHT40

MCS7 MCS0 | 17±2 19±2

802.11ac VHT80

MCS9 MCS0 | 17±2 19±2

802.11ax HE40

MCS11 MCS0 | 16±2 19±2

802.11ax HE80

MCS11 MCS0 | 15±2 18±2

802.11ax HE160

MCS11 MCS0 | 15±2 19±2

802.11be EHT20

MCS13 MCS0 | 15±2 19±2

802.11be EHT40

MCS13 MCS0 | 14±2 19±2

802.11be EHT80

MCS13 MCS0 | 14±2 19±2

802.11be EHT160

MCS13 MCS0 | 13±2 18±2

802.11b

11Mbps 1Mbps | -90 -98

802.11g

54Mbps 6Mbps | -78 -96

802.11n HT20

MCS7 MCS0 | -76 -95

802.11n HT40

MCS7 MCS0 | -73 -92

802.11ax HE20

MCS11 MCS0 | -66 -99

802.11ax HE40

MCS11 MCS0 | -63 -93

802.11be EHT20

MCS13 MCS0 | -60 -86

802.11be EHT40

MCS13 MCS0 | -60 -86

802.11a

54Mbps 6Mbps | -75 -93

802.11n HT20

MCS7 MCS0 | -74 -92

802.11n HT40

MCS7 MCS0 | -71 -89

802.11ac VHT20

MCS8 MCS0 | -69 -92

802.11ac VHT40

MCS7 MCS0 | -64 -89

802.11ac VHT80

MCS9 MCS0 | -61 -86

802.11ax HE20

MCS11 MCS0 | -63 -93

802.11ax HE40

MCS11 MCS0 | -60 -90

802.11ax HE80

MCS11 MCS0 | -56 -87

802.11ax HE160

MCS11 MCS0 | -54 -84

802.11be EHT20

MCS13 MCS0 | -54 -86

802.11be EHT40

MCS13 MCS0 | -52 -84

802.11be EHT80

MCS13 MCS0 | -50 -82

802.11be EHT160

MCS13 MCS0 | -48 -80
