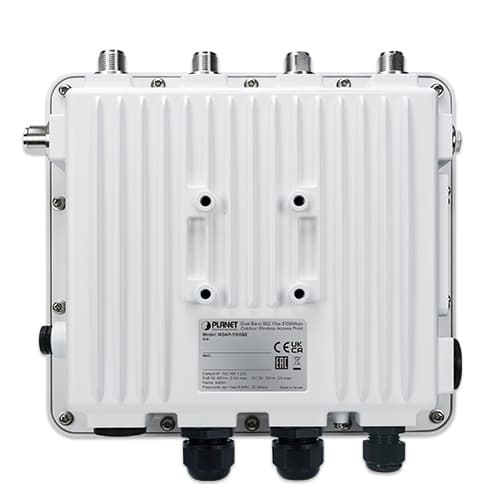

WDAP-5100BE — Wi-Fi 7 Dual Band 802.11be 5100Mbps Outdoor Wireless Access Point

Descripción

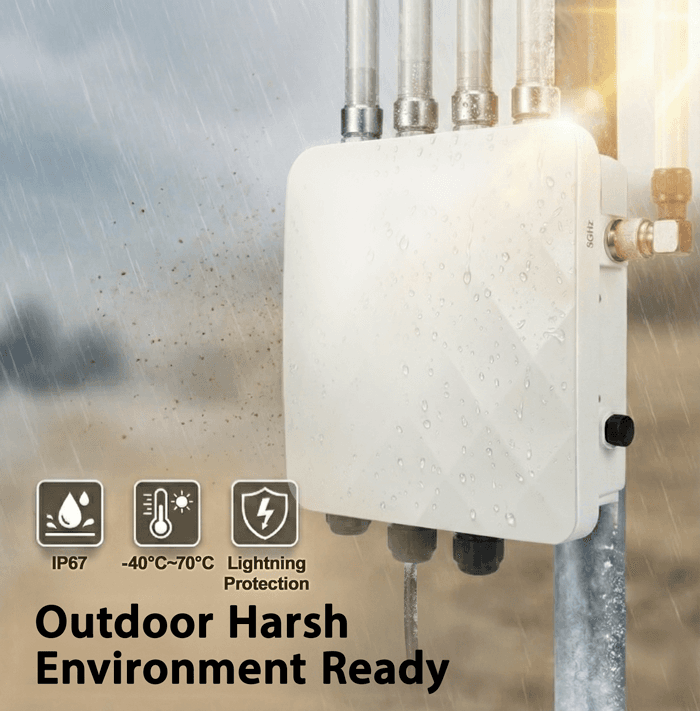

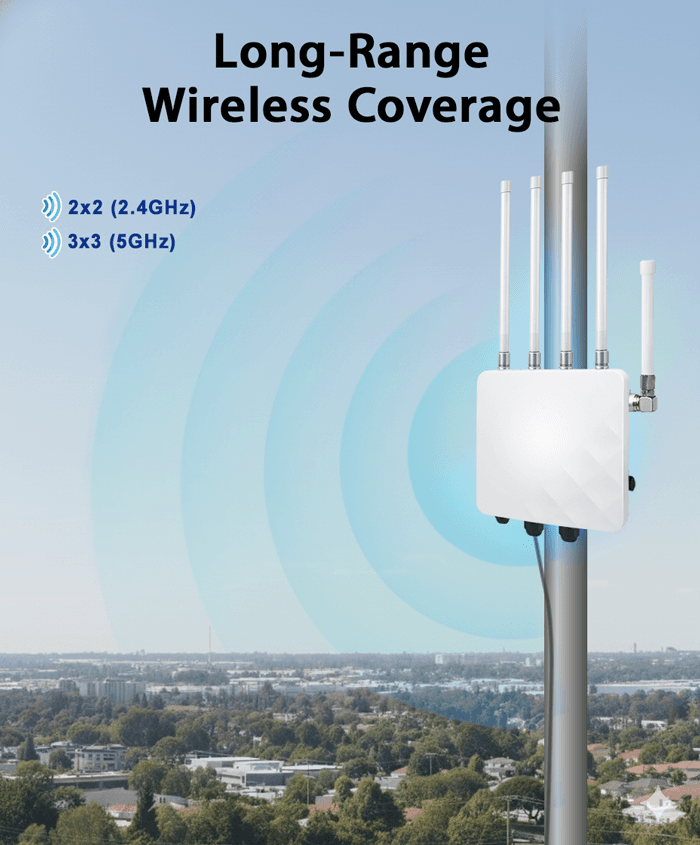

Next-Generation Outdoor Wi-Fi 7 Flagship Performance The WDAP-5100BE is PLANET’s next-generation flagship outdoor wireless access point, designed with an upgraded 2×2 (2.4GHz) + 3×3 (5GHz) Wi-Fi 7 architecture that delivers an impressive total throughput of up to 5100Mbps. Leveraging advanced Wi-Fi 7 technologies including EHT modulation, 4096-QAM, OFDMA, MU-MIMO, and BSS Coloring, it provides ultra-fast speeds, exceptionally low latency, and highly efficient bandwidth utilization across wide-area deployments. Even in interference-prone or high-density outdoor environments, the WDAP-5100BE ensures consistently smooth and responsive wireless performance for mission-critical applications. Rugged IP67 Metal Construction for Extreme Outdoor Environments Built to operate reliably under severe environmental conditions, the WDAP-5100BE features a reinforced metal enclosure with IP67-rated protection, offering complete resistance against dust ingress and powerful water exposure. Its industrial-grade hardware supports a wide operating temperature range of -40°C to 70°C, ensuring stable operation in both freezing climates and scorching outdoor heat. With enhanced lightning-protection circuitry and superior mechanical durability, the WDAP-5100BE remains highly dependable when deployed on poles, rooftops, building exteriors, or exposed industrial sites. Flexible External Antenna Deployment for Extended Coverage The WDAP-5100BE is equipped with 5 x N-Type connectors (2x2 for 2.4GHz + 3x3 for 5GHz), allowing for flexible antenna selection to match deployment needs. This advanced Wi-Fi 7 architecture enhances beamforming gain and receive sensitivity, significantly improving uplink stability. By maintaining higher MCS rates at longer distances, it outperforms traditional 2x2 solutions, making it ideal for high-density environments and mission-critical surveillance uplinks. Enterprise-Grade Security and Seamless Mobility Designed with enterprise-class wireless security and mobility in mind, the WDAP-5100BE supports WPA3 encryption, SSID-to-VLAN segmentation, seamless roaming mechanisms, and advanced access control capabilities. Users and devices can move across expansive outdoor environments without experiencing service interruption, making the AP ideal for campus facilities, resort complexes, municipal outdoor networks, and other large open-air deployments requiring stable and secure connectivity. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments more efficiently , securely , and intelligently —all from a single cloud-based platform. Applications High-Bandwidth Smart City & Surveillance The WDAP-5100BE is optimized for smart city deployments, offering high wireless throughput for outdoor surveillance and public internet access. Its 3x3 5GHz architecture enhances uplink performance, ensuring stable video transmission even in interference-heavy urban environments. Extreme Industrial Environments Engineered with a rugged IP67-rated metal enclosure , the WDAP-5100BE withstands dust, water exposure, and extreme temperatures ranging from -40°C to 70°C . It provides reliable wireless connectivity for automation systems and outdoor industrial deployments, including cold chain logistics and harsh industrial environments. Long-Range Rural & Campus Connectivity Ideal for expansive resorts, agricultural fields, and large campuses, the WDAP-5100BE features enhanced receive sensitivity to deliver extended wireless coverage . It serves as a powerful solution for wireless bridging or connecting remote IoT sensors across vast open spaces. Ultra-High-Density Public Venues Designed for crowded stadiums, festivals, and transportation hubs, the WDAP-5100BE leverages Wi-Fi 7 capabilities to deliver high aggregated wireless throughput. It efficiently manages high client density, ensuring smooth data transmission for multiple concurrent users in outdoor hotspots environments. Key Features Standard-compliant Outdoor Wireless LAN Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology Dual-band concurrent operation with a maximum wireless throughput of 5100Mbps (2.4GHz: 688Mbps, 5GHz: 4323Mbps) Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r) Enhanced 3×3 5GHz Wi-Fi 7 radio boosts downlink and uplink throughput, multi-user efficiency, and long-range signal stability—ideal for outdoor surveillance uplinks and dense client environments. Rugged Outdoor Hardware Design 1 × 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD) 1 × 10/100/1000BASE-T LAN port Dual-band high-gain external antennas for extended outdoor coverage IP-rated weatherproof housing with wide temperature support (-40°C ~ 70°C) Multiple Operation Modes and Wireless Features Flexible operation modes: Gateway, AP, Repeater, WISP Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping Wi-Fi Multimedia (WMM) for optimized audio/video streaming Real-time Wi-Fi channel analysis chart for interference management Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility Secure Network Connection Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation Enhanced security with ACL management to prevent unauthorized access Easy Deployment and Centralized Management Powered by 802.3at PoE+, simplifying installation by combining power and data through a single Ethernet cable Fully compatible with PLANET CloudNMS platform and mobile app, and AP Controllers, enabling centralized monitoring and management Self-healing mechanism through system auto-reboot scheduling User-friendly Web GUI and setup wizard for quick configuration and monitoring

Especificaciones técnicas

Interfaces

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X

Antennas Connectors

2 x 2.4GHz N-Type Connectors 3 x 5GHz N-Type Connectors

Reset Button

Reset button on the rear side (Press over 5 seconds to reset the device to factory default.)

LED Indicators

6 x Green LEDs for Power, System, LAN, WAN, 2.4GHz, and 5GHz status

Dimensions (W × D × H)

243.16 × 218.26 × 64.04 mm (without antennas)

Weight

2.0 kg

Material

Aluminum

Power Requirements

IEEE 802.3at PoE (End-span, not support Mid-span), DC 12V/2A

Power Consumption

Max. 5.9 watts / 20.12 BTU (Power on without any connection) Max. 10.5 watts / 35.81 BTU (Full loading)

Mounting

Mast mounting

IP Level

IP67

ESD Protection

±8kV air gap discharge ±6kV contact discharge

Surge Protection

2KV (Common Mode), ±1KV (Differential Mode)

Standard

5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz

Operating Channels

ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) 5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 24 ± 2dBm ETSI: < 19dBm (EIRP) Network Mode Data Rate Max. Transmit Power (dBm) 2.4GHz Power 802.11b 11M 1M 24 ± 2 24 ± 2 802.11g 54M 6M 21 ± 2 23 ± 2 802.11n HT20 MCS7 MCS0 20 ± 2 22 ± 2 802.11n HT40 MCS7 MCS0 20 ± 2 22 ± 2 802.11ax HE20 MCS11 MCS0 18 ± 2 22 ± 2 802.11ax HE40 MCS11 MCS0 18 ± 2 22 ± 2 802.11be EHT20 MCS13 MCS0 18 ± 2 22 ± 2 802.11be EHT40 MCS13 MCS0 18 ± 2 22 ± 2 5G Power 802.11a 54M 6M 19 ± 2 21 ± 2 802.11n HT20 MCS7 MCS0 16 ± 2 19 ± 2 802.11n HT40 MCS7 MCS0 16 ± 2 19 ± 2 802.11ac VHT20 MCS7 MCS0 16 ± 2 19 ± 2 802.11ac VHT40 MCS7 MCS0 16 ± 2 19 ± 2 802.11ac VHT80 MCS9 MCS0 15 ± 2 19 ± 2 802.11ax HE20 MCS11 MCS0 16 ± 2 19 ± 2 802.11ax HE40 MCS11 MCS0 16 ± 2 19 ± 2 802.11ax HE80 MCS11 MCS0 15 ± 2 19 ± 2 802.11ax HE160 MCS11 MCS0 15 ± 2 19 ± 2 802.11be EHT20 MCS13 MCS0 15 ± 2 19 ± 2 802.11be EHT40 MCS13 MCS0 15 ± 2 19 ± 2 802.11be EHT80 MCS13 MCS0 14 ± 2 19 ± 2 802.11be EHT160 MCS13 MCS0 14 ± 2 19 ± 2

Network Mode

Data Rate | Max. Transmit Power (dBm)

802.11b

11M 1M | 24 ± 2 24 ± 2

802.11g

54M 6M | 21 ± 2 23 ± 2

802.11n HT20

MCS7 MCS0 | 20 ± 2 22 ± 2

802.11n HT40

MCS7 MCS0 | 20 ± 2 22 ± 2

802.11ax HE20

MCS11 MCS0 | 18 ± 2 22 ± 2

802.11ax HE40

MCS11 MCS0 | 18 ± 2 22 ± 2

802.11be EHT20

MCS13 MCS0 | 18 ± 2 22 ± 2

802.11be EHT40

MCS13 MCS0 | 18 ± 2 22 ± 2

802.11a

54M 6M | 19 ± 2 21 ± 2

802.11n HT20

MCS7 MCS0 | 16 ± 2 19 ± 2

802.11n HT40

MCS7 MCS0 | 16 ± 2 19 ± 2

802.11ac VHT20

MCS7 MCS0 | 16 ± 2 19 ± 2

802.11ac VHT40

MCS7 MCS0 | 16 ± 2 19 ± 2

802.11ac VHT80

MCS9 MCS0 | 15 ± 2 19 ± 2

802.11ax HE20

MCS11 MCS0 | 16 ± 2 19 ± 2

802.11ax HE40

MCS11 MCS0 | 16 ± 2 19 ± 2

802.11ax HE80

MCS11 MCS0 | 15 ± 2 19 ± 2

802.11ax HE160

MCS11 MCS0 | 15 ± 2 19 ± 2

802.11be EHT20

MCS13 MCS0 | 15 ± 2 19 ± 2

802.11be EHT40

MCS13 MCS0 | 15 ± 2 19 ± 2

802.11be EHT80

MCS13 MCS0 | 14 ± 2 19 ± 2

802.11be EHT160

MCS13 MCS0 | 14 ± 2 19 ± 2

Receive Sensitivity

Network Mode Data Rate Receive Sensitivity (dBm) (dBm) 2.4GHz 802.11b 11Mbps 1Mbps -88 -97 802.11g 54Mbps 6Mbps -75 -92 802.11n HT20 MCS7 MCS0 -72 -92 802.11n HT40 MCS7 MCS0 -68 -88 802.11ax HE20 MCS11 MCS0 -63 -92 802.11ax HE40 MCS11 MCS0 -58 -88 802.11be EHT20 MCS13 MCS0 -58 -88 802.11be EHT40 MCS13 MCS0 -56 -86 5GHz 802.11a 54Mbps 6Mbps -75 -95 802.11n HT20 MCS7 MCS0 -72 -92 802.11n HT40 MCS7 MCS0 -70 -88 802.11ac VHT20 MCS7 MCS0 -68 -88 802.11ac VHT40 MCS7 MCS0 -63 -86 802.11ac VHT80 MCS9 MCS0 -60 -84 802.11ax HE20 MCS11 MCS0 -60 -88 802.11ax HE40 MCS11 MCS0 -58 -86 802.11ax HE80 MCS11 MCS0 -54 -84 802.11ax HE160 MCS11 MCS0 -52 -82 802.11be EHT20 MCS13 MCS0 -54 -86 802.11be EHT40 MCS13 MCS0 -52 -84 802.11be EHT80 MCS13 MCS0 -50 -82 802.11be EHT160 MCS13 MCS0 -48 -80

Network Mode

Data Rate | Receive Sensitivity (dBm) (dBm)

802.11b

11Mbps 1Mbps | -88 -97

802.11g

54Mbps 6Mbps | -75 -92

802.11n HT20

MCS7 MCS0 | -72 -92

802.11n HT40

MCS7 MCS0 | -68 -88

802.11ax HE20

MCS11 MCS0 | -63 -92

802.11ax HE40

MCS11 MCS0 | -58 -88

802.11be EHT20

MCS13 MCS0 | -58 -88

802.11be EHT40

MCS13 MCS0 | -56 -86

802.11a

54Mbps 6Mbps | -75 -95

802.11n HT40

MCS7 MCS0 | -70 -88

802.11ac VHT20

MCS7 MCS0 | -68 -88

802.11ac VHT40

MCS7 MCS0 | -63 -86

802.11ac VHT80

MCS9 MCS0 | -60 -84

802.11ax HE20

MCS11 MCS0 | -60 -88

802.11ax HE40

MCS11 MCS0 | -58 -86

802.11ax HE80

MCS11 MCS0 | -54 -84

802.11ax HE160

MCS11 MCS0 | -52 -82

802.11be EHT20

MCS13 MCS0 | -54 -86

802.11be EHT40

MCS13 MCS0 | -52 -84

802.11be EHT80

MCS13 MCS0 | -50 -82

802.11be EHT160

MCS13 MCS0 | -48 -80

2.4G EVM

802.11b : ≤-10dB；802.11g : ≤-25dB；802.11n : ≤ -28dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

5G EVM

802.11a : ≤-25dB；802.11n : ≤-28dB；802.11ac : ≤ -32dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

LAN

Static IP / Dynamic IP

WAN

Static IP Dynamic IP PPPoE / PPTP / L2TP

Wireless Mode

Access Point Gateway Repeater WISP

Channel Width

20MHz, 40MHz, 80MHz, 160MHz

Encryption Security

WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X)

Supported EAP Methods

EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC)

Wireless Security

Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

256 (128 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring

Status Monitoring

Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP* Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal*, RADIUS Server/Client

Central Management

Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS

Temperature

Operating: -40~ 70 degrees C Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS
