WDAP-C5100BE — Dual Band 802.11be 5100Mbps Ceiling-mount Wireless Access Point w/802.3at PoE+ 1 10/100/1000/2500T Port and 1 10/100/1000T LAN Port

Descripción

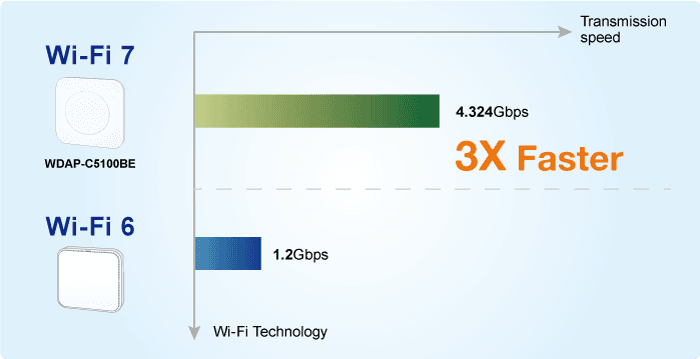

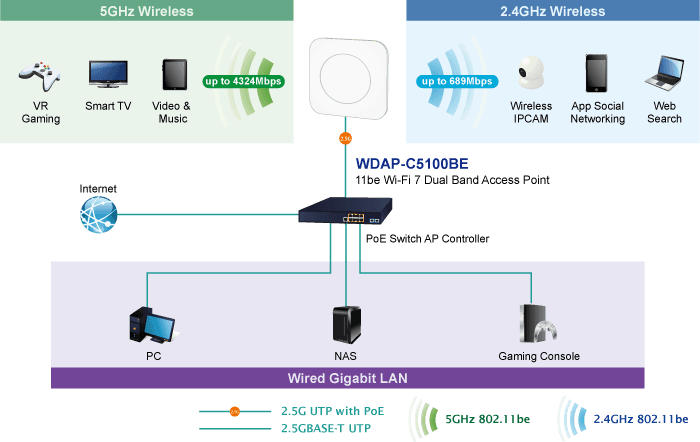

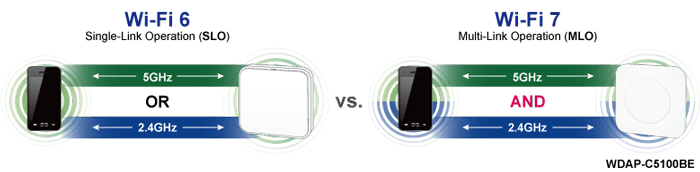

Business-grade Wi-Fi 7 Ceiling-mount Wireless AP for Future-ready Networks High‑speed, stable, and secure, PLANET WDAP‑C5100BE is the ideal solution for upgrading business networks to meet the demands of high‑density environments and future applications. Leveraging the latest Wi‑Fi 7 (802.11be) technology and supporting both the 2.4 GHz and 5 GHz frequency bands, this ceiling‑mount access point delivers exceptional wireless connectivity for airports, large offices, conference centers, and smart cities. With advanced innovations, robust stability, and high efficiency for business‑grade applications, the WDAP‑C5100BE is designed to optimize network performance and commercial reliability. Ultra-Wide Channels for Stable and Efficient Enterprise Wi-Fi 7 Connectivity The WDAP-C5100BE supports up to 160 MHz channel bandwidth, a key feature of Wi-Fi 7 that doubles the available channel width compared to Wi-Fi 6E. Its peak transmission rate of 5100 Mbps is designed for commercial environments, delivering stable performance, higher efficiency, and reliable operation. Boost Network Throughput with 4096-QAM With 4096-QAM encoding, the WDAP-C5100BE transmits more data per signal, increasing throughput and making it ideal for high-bandwidth applications such as 4K/8K video streaming, AR/VR experiences, and real time cloud services while maintaining a stable and efficient network connection. Seamless Connectivity and Peak Network Performance Designed for robust dual‑band operation, the WDAP‑C5100BE ensures seamless connectivity across both 2.4 GHz and 5 GHz frequencies. This design guarantees consistent data transfer and stable connections even in interference‑prone, high‑density scenarios, delivering the reliability demanded by modern commercial applications. Optimize Spectrum Utilization Employing advanced techniques such as dynamic allocation of resource units and spectrum puncturing, the WDAP‑C5100BE minimizes spectrum waste and maximizes efficiency in densely‑populated wireless environments, further enhancing overall network performance and business productivity. Business‑oriented Performance The WDAP-C5100BE is optimized for enterprise environments, focusing on network stability, efficiency, and high performance. It delivers speeds of up to 4.324 Gbps on the 5 GHz band, offering a threefold performance boost compared to Wi-Fi 6E while ensuring stable and continuous connectivity. Ultra-low Latency and Jitter Equipped with advanced Quality of Service (eQoS) and enhanced channel access technologies, the WDAP-C5100BE dynamically prioritizes data packets to minimize latency and ensure consistent performance for real-time applications such as AR/VR, video conferencing, and online gaming. Precision Interference Control for Seamless Performance Incorporating BSS Coloring technology to effectively differentiate overlapping networks, the WDAP‑C5100BE minimizes interference and maintains stable connections. In addition, beamforming technology directs Wi‑Fi signals toward connected devices, enhancing coverage and signal stability throughout the deployment area. Advanced Security The WDAP‑C5100BE supports advanced encryption protocols including WPA3‑PSK, WPA2‑PSK, and WPA/WPA2 Enterprise to ensure robust data protection, prevent unauthorized access, and safeguard the network. Administrators can further manage access through predefined ACLs for enhanced security, making it an ideal choice for sensitive business applications. Flexible Deployment Modes and Easy Management With versatile operation modes (AP, Gateway, and Repeater), the WDAP‑C5100BE adapts seamlessly to various deployment scenarios, whether establishing a new network or upgrading an existing one. Its PoE+ support (802.3at) and intuitive remote management via PLANET CloudViewerPro app and NMS systems enable effortless installation, monitoring, and maintenance. Choose WDAP‑C5100BE and Embrace the Future of Business Networking More than just an access point, the WDAP‑C5100BE is a smart, future‑proof solution engineered to meet the high‑performance demands of modern businesses. Its benefits of Wi‑Fi 7 technology facilitate the optimization of stability, efficiency, and commercial excellence across all your network applications. Applications Infinite Possibilities and Seamless Connectivity for a Comprehensive Smart Environment The WDAP‑C5100BE is not only the ideal choice for upgrading enterprise networks but also a key driving force behind the smart environment revolution. Whether it's in the bustling airport hubs, modern large-scale offices, dynamic conference centers, or every corner of smart cities, the WDAP‑C5100BE delivers stable, efficient, and low-latency wireless connectivity, ensuring every user enjoys an exceptional networking experience. Moreover, it is equally suited for diverse commercial settings such as hotels, restaurants, and educational institutions, enabling customers, travelers, and students alike to experience ultimate network speed and connection stability wherever they are. The WDAP‑C5100BE is ideal for future smart living and high-efficiency work environments. Key Features Industrial Compliant Wireless LAN and LAN Compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) wireless technology Equipped with one 10/100/1000/2500Mbps WAN/PoE RJ45 port and one 10/100/1000Mbps LAN RJ45 port, supporting auto-negotiation and auto MDI/MDI-X for seamless connectivity RF Interface Characteristics A state‑of‑the‑art Wi‑Fi 7 architecture with advanced MIMO technology Up to 5100 Mbps (approximately 689 Mbps at 2.4 GHz and 4324 Mbps at 5 GHz) with 4K‑QAM (4096‑QAM) encoding for boosted throughput Multiple Operation Modes and Wireless Features Flexible operation modes (AP, Gateway, and Repeater) for diverse deployment needs Wi‑Fi Multimedia (WMM) for superior streaming quality A real-time channel analyzer for channel utilization, and seamless roaming with 802.11k/v/r for uninterrupted connectivity Dynamic coverage thresholds for further weak signal interference reduction to maintain stable sessions Secure Network Connection Comprehensive wireless security with WPA3-PSK, WPA2-PSK, WPA/WPA2 Enterprise, and 802.1X RADIUS authentication VLAN support with SSID to VLAN mapping, along with IP/Port/MAC filtering, DoS protection, and SPI firewall features for robust network safeguarding Customizable configurations such as DMZ, port forwarding, and per IP bandwidth control for consistent performance in high density deployments Easy Deployment and Management PLANET AP Controllers in AP mode. Self-healing mechanism through system auto reboot setting System status monitoring via remote syslog servers, combined with support for PLANET DDNS/Easy DDNS, Captive Portal, and RADIUS Server/Client in Gateway mode, to streamline management. PLANET Smart Discovery Utility, PLANET NMS system, and CloudViewerPro app for centralized, efficient deployment management.

Especificaciones técnicas

Interfaces

WAN/PoE: 1 x 10/100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X

Antennas

Gain: 5 x internal 3dBi antenna (2.4G x 2, 5G x 3)

Reset Button

Reset button on the rear side (Press over 5 seconds to reset the device to factory default.)

LED Indicators

Composite LED (Red: Booting, Green: 2.4GHz+5GHz or 5GHz only, Blue: 2.4GHz only)

Dimensions

220 x 225 x 42.5 mm (W x D x H)

Weight

628 ± 5g

Power Requirements

48V DC IN, 0.5A, IEEE 802.3at PoE+ (WAN/PoE was changed port) 12V DC IN, 1.5A from DC Jack (5.5 x 2.1mm)

Power Consumption

< 15W

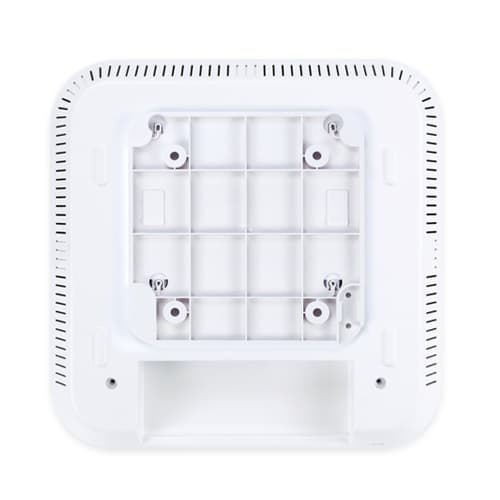

Mounting

Ceiling-mount

Standard

5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz

Operating Channels

ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) 5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 23 ± 2dBm ETSI: < 19dBm (EIRP) Network Mode Data Rate Max. Transmit Power (dBm) 2.4G Power 802.11b 11Mbps 1Mbps 23±2 23±2 802.11g 54Mbps 6Mbps 20±2 22±2 802.11n HT20 MCS7 MCS0 18.5±2 21±2 802.11n HT40 MCS7 MCS0 18.5±2 21±2 802.11ax HE-SU20 MCS11 MCS0 17±2 20.5±2 802.11ax HE-SU40 MCS11 MCS0 17±2 20.5±2 802.11be EHT20 MCS13 MCS0 16±2 20.5±2 802.11be EHT40 MCS13 MCS0 16±2 20.5±2 5G Power 802.11a 54Mbps 6Mbps 20±2 22±2 802.11n HT20 MCS7 MCS0 18.5±2 21±2 802.11n HT40 MCS7 MCS0 18.5±2 21±2 802.11ac VHT20 MCS8 MCS0 18±2 20.5±2 802.11ac VHT40 MCS9 MCS0 18±2 20.5±2 802.11ac VHT80 MCS9 MCS0 17.5±2 20.5±2 802.11ac VHT160 MCS9 MCS0 16±2 18.5±2 802.11ax HE-SU20 MCS11 MCS0 17±2 20.5±2 802.11ax HE-SU40 MCS11 MCS0 17±2 20.5±2 802.11ax HE-SU80 MCS11 MCS0 16.5±2 20±2 802.11ax HE-SU160 MCS11 MCS0 15.5±2 18.5±2 802.11be EHT20 MCS13 MCS0 15.5±2 20.5±2 802.11be EHT40 MCS13 MCS0 15.5±2 20.5±2 802.11be EHT80 MCS13 MCS0 15±2 20.5±2 802.11be EHT160 MCS13 MCS0 13±2 18.5±2

Network Mode

Data Rate | Max. Transmit Power (dBm)

802.11b

11Mbps 1Mbps | 23±2 23±2

802.11g

54Mbps 6Mbps | 20±2 22±2

802.11n HT20

MCS7 MCS0 | 18.5±2 21±2

802.11n HT40

MCS7 MCS0 | 18.5±2 21±2

802.11ax HE-SU20

MCS11 MCS0 | 17±2 20.5±2

802.11ax HE-SU40

MCS11 MCS0 | 17±2 20.5±2

802.11be EHT20

MCS13 MCS0 | 16±2 20.5±2

802.11be EHT40

MCS13 MCS0 | 16±2 20.5±2

802.11a

54Mbps 6Mbps | 20±2 22±2

802.11ac VHT20

MCS8 MCS0 | 18±2 20.5±2

802.11ac VHT40

MCS9 MCS0 | 18±2 20.5±2

802.11ac VHT80

MCS9 MCS0 | 17.5±2 20.5±2

802.11ac VHT160

MCS9 MCS0 | 16±2 18.5±2

802.11ax HE-SU80

MCS11 MCS0 | 16.5±2 20±2

802.11ax HE-SU160

MCS11 MCS0 | 15.5±2 18.5±2

802.11be EHT20

MCS13 MCS0 | 15.5±2 20.5±2

802.11be EHT40

MCS13 MCS0 | 15.5±2 20.5±2

802.11be EHT80

MCS13 MCS0 | 15±2 20.5±2

802.11be EHT160

MCS13 MCS0 | 13±2 18.5±2

Receive Sensitivity

Network Mode Data Rate Receive Sensitivity (dBm) 2.4GHz 802.11b 11Mbps 1Mbps -89 -97 802.11g 54Mbps 6Mbps -76 -94 802.11n HT20 MCS7 MCS0 -75 -94 802.11n HT40 MCS7 MCS0 -72 -91 802.11ax HE-SU20 MCS11 MCS0 -65 -94 802.11ax HE-SU40 MCS11 MCS0 -61 -92 802.11be EHT20 MCS13 MCS0 -58 -94 802.11be EHT40 MCS13 MCS0 -56 -91 5GHz 802.11a 54Mbps 6Mbps -76 -94 802.11n HT20 MCS7 MCS0 -69 -93 802.11n HT40 MCS7 MCS0 -67 -90 802.11ac VHT20 MCS8 MCS0 -69 -93 802.11ac VHT40 MCS9 MCS0 -66 -90 802.11ac VHT80 MCS9 MCS0 -61 -87 802.11ac VHT160 MCS9 MCS0 -58 -84 802.11ax HE-SU20 MCS11 MCS0 -64 -93 802.11ax HE-SU40 MCS11 MCS0 -61 -91 802.11ax HE-SU80 MCS11 MCS0 -58 -88 802.11ax HE-SU160 MCS11 MCS0 -55 -85 802.11be EHT20 MCS13 MCS0 -57 -93 802.11be EHT40 MCS13 MCS0 -54.5 -91 802.11be EHT80 MCS13 MCS0 -51.5 -88 802.11be EHT160 MCS13 MCS0 -48.5 -85

Network Mode

Data Rate | Receive Sensitivity (dBm)

802.11b

11Mbps 1Mbps | -89 -97

802.11g

54Mbps 6Mbps | -76 -94

802.11n HT20

MCS7 MCS0 | -75 -94

802.11n HT40

MCS7 MCS0 | -72 -91

802.11ax HE-SU20

MCS11 MCS0 | -65 -94

802.11ax HE-SU40

MCS11 MCS0 | -61 -92

802.11be EHT20

MCS13 MCS0 | -58 -94

802.11be EHT40

MCS13 MCS0 | -56 -91

802.11a

54Mbps 6Mbps | -76 -94

802.11n HT20

MCS7 MCS0 | -69 -93

802.11n HT40

MCS7 MCS0 | -67 -90

802.11ac VHT20

MCS8 MCS0 | -69 -93

802.11ac VHT40

MCS9 MCS0 | -66 -90

802.11ac VHT80

MCS9 MCS0 | -61 -87

802.11ac VHT160

MCS9 MCS0 | -58 -84

802.11ax HE-SU20

MCS11 MCS0 | -64 -93

802.11ax HE-SU40

MCS11 MCS0 | -61 -91

802.11ax HE-SU80

MCS11 MCS0 | -58 -88

802.11ax HE-SU160

MCS11 MCS0 | -55 -85

802.11be EHT20

MCS13 MCS0 | -57 -93

802.11be EHT40

MCS13 MCS0 | -54.5 -91

802.11be EHT80

MCS13 MCS0 | -51.5 -88

802.11be EHT160

MCS13 MCS0 | -48.5 -85

LAN

Static IP / Dynamic IP

WAN

Static IP Dynamic IP PPPoE/PPTP/L2TP

Wireless Mode

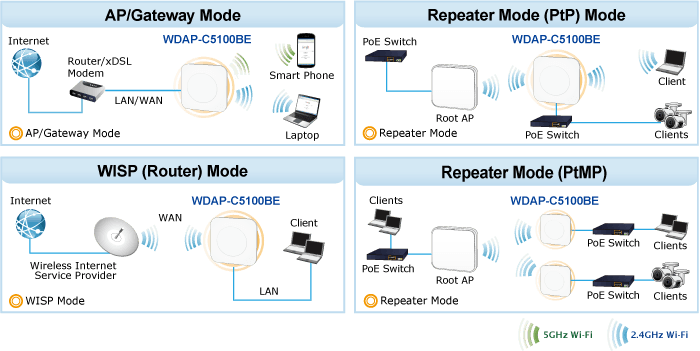

Access Point Gateway Repeater WISP

Channel Width

20MHz, 40MHz, 80MHz, 160MHz

Encryption Security

WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise (802.1X), WPA/WPA2 Enterprise (802.1X)

Supported EAP Methods

EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC)

Wireless Security

Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

256 (128 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring

Status Monitoring

Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client

Central Management

Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudViewerPro

Temperature

Operating: -10~ 55 degrees C Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS
