WDAP-W3600BE — Wi-Fi 7 Dual Band 802.11be 3600Mbps In-wall Wireless Access Point

Descripción

Wi-Fi 7 In-wall Access Point for Stylish and High-density Networking PLANET WDAP-W3600BE is a new-generation in-wall wireless access point designed to deliver enterprise-grade performance with modern aesthetics. Supporting the latest Wi-Fi 7 (802.11be) standard, it provides an aggregated wireless throughput of up to 3600Mbps (2.4GHz: 688Mbps + 5GHz: 2882Mbps). This ensures lightning-fast speed, ultra-low latency, and reliable connectivity, enabling smooth operation of 4K/8K streaming, AR/VR, cloud collaboration, and smart applications. Compact In-wall Design for Seamless Integration With its 86 x 86 mm in-wall form factor, the WDAP-W3600BE blends naturally into any interior, making it the ideal solution for hotels, residences, offices, and classrooms. By eliminating visible cabling and bulky equipment, it delivers high-performance networking while preserving a clean and elegant environment. High-density Performance with Enterprise Reliability Equipped with advanced Wi-Fi 7 technologies including 4096-QAM, MU-MIMO, OFDMA, beamforming, and seamless roaming, the WDAP-W3600BE ensures stable connectivity in interference-prone, high-density scenarios such as offices, classrooms, and hotels. Robust Security and Business-ready Features To safeguard sensitive business and personal data, the WDAP-W3600BE supports the latest WPA3 encryption, VLAN-to-SSID mapping, and client isolation. Combined with its flexible SSID configuration and advanced access control, it ensures a secure and well-segmented wireless environment for both commercial and hospitality applications. Flexible PoE+ Deployment Powered via 802.3at PoE+, the WDAP-W3600BE simplifies installation by delivering both power and data through a single Ethernet cable. This reduces the need for additional cabling, lowers deployment costs, and makes installation more flexible across various environments. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform. Applications Hotels and Hospitality In guest rooms, the WDAP-W3600BE can be seamlessly installed on the bedside wall or desk area , providing high-speed Wi-Fi for streaming, video conferencing, and online entertainment. The in-wall design preserves room aesthetics, while centralized cloud management enables hotel operators to easily monitor and maintain network performance across every room. Modern Residences and Smart Homes For residential users, the WDAP-W3600BE integrates into the wall to keep living spaces tidy while ensuring full-home Wi-Fi coverage. It supports multiple connected devices — such as smart TVs , laptops , game consoles , and IoT appliances — delivering a smooth, intelligent, and connected lifestyle. Campuses and Educational Institutions In classrooms and dormitories, the WDAP-W3600BE provides reliable connectivity for multiple simultaneous users , ensuring smooth e-learning, interactive whiteboard usage, and video conferencing. With PoE+ deployment, schools can reduce wiring costs while simplifying network expansion and maintenance. Enterprise Offices and Co-working Spaces In business offices and shared workspaces, the WDAP-W3600BE provides reliable , secure wireless access for both employees and visitors. Using SSID-to-VLAN mapping and client isolation , administrators can segment networks for different user groups, improving security, optimizing performance, and ensuring efficient IT management. Key Features Standard-compliant Wireless LAN and LAN Compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) wireless technology Equipped with one 100/1000/2500BASE-T PoE RJ45 port (WAN) and one 10/100/1000BASE-T RJ45 port (LAN), supporting auto-negotiation and auto MDI/MDI-X RF Interface Characteristics Dual-band concurrent operation with maximum wireless throughput up to 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps) Built-in dual-band omnidirectional antennas Advanced Wi-Fi 7 features: 4096-QAM, MU-MIMO, OFDMA, Beamforming, and Seamless Roaming Multiple Operation Modes and Wireless Features Flexible operation modes: Gateway, AP, Repeater, WISP Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping Wi-Fi Multimedia (WMM) for optimized audio/video streaming Real-time Wi-Fi channel analysis chart for interference management Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility Secure Network Connection Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation Enhanced security with ACL management to prevent unauthorized access Easy Deployment and Cloud Management Powered by 802.3af/at PoE+, simplifying installation by combining power and data through a single Ethernet cable Fully compatible with PLANET CloudNMS app, and AP Controllers, enabling centralized monitoring and management Self-healing mechanism through system auto-reboot scheduling User-friendly Web GUI and setup wizard for quick configuration and monitoring

Especificaciones técnicas

Interfaces

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X

Antennas

2 × internal dual-band antennas (2.4GHz: 1.7dBi, 5GHz: 3dBi)

Reset Button

Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.)

LED Indicators

Composite LED (Red: Booting, Green: 2.4GHz+5GHz or 5GHz only, Blue: 2.4GHz only)

Dimensions

86 × 86 × 42.8 mm (W × D × H, with 10.8 mm beyond wall surface)

Weight

210g

Power Requirements

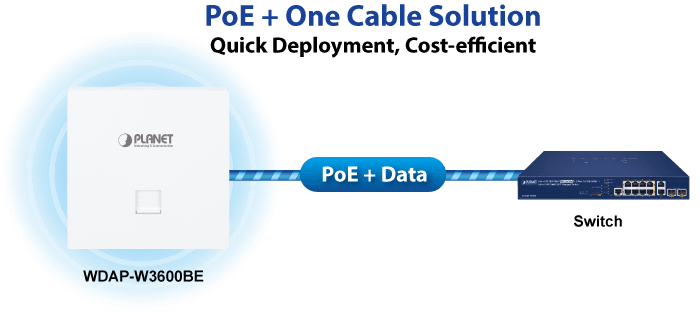

IEEE 802.3af/at PoE (48V DC)

Power Consumption

Max. 5.1 watts / 17.4 BTU (Power on without any connection, PoE 54V) Max. 14.1 watts / 48.1 BTU (Full loading, PoE 48V)

Mounting

In-wall mount

Standard

5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz

Operating Channels

ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) 5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 23 ± 2dBm ETSI: < 19dBm (EIRP) Network Mode Data Rate Max. Transmit Power (dBm) 2.4G Power 802.11b 11Mbps 1Mbps 23±2 23±2 802.11g 54Mbps 6Mbps 20±2 22±2 802.11n HT20 MCS7 MCS0 18.5±2 21±2 802.11n HT40 MCS7 MCS0 18.5±2 21±2 802.11ax HE20 MCS11 MCS0 17±2 20.5±2 802.11ax HE40 MCS11 MCS0 17±2 20.5±2 802.11be EHT20 MCS13 MCS0 16±2 20.5±2 802.11be EHT40 MCS13 MCS0 16±2 20.5±2 5G Power 802.11a 54Mbps 6Mbps 19.5±2 22±2 802.11n HT20 MCS7 MCS0 19±2 21±2 802.11n HT40 MCS7 MCS0 19±2 21±2 802.11ac VHT20 MCS8 MCS0 18.5±2 21±2 802.11ac VHT40 MCS7 MCS0 18.5±2 20.5±2 802.11ac VHT80 MCS9 MCS0 18.5±2 20.5±2 802.11ac VHT160 MCS9 MCS0 18±2 21±2 802.11ax HE20 MCS11 MCS0 18±2 20.5±2 802.11ax HE40 MCS11 MCS0 18±2 20.5±2 802.11ax HE80 MCS11 MCS0 17±2 20±2 802.11ax HE160 MCS11 MCS0 16±2 19.5±2 802.11be EHT20 MCS13 MCS0 15.5±2 20.5±2 802.11be EHT40 MCS13 MCS0 16±2 20.5±2 802.11be EHT80 MCS13 MCS0 15.5±2 20.5±2 802.11be EHT160 MCS13 MCS0 14.5±2 19.5±2

Network Mode

Data Rate | Max. Transmit Power (dBm)

802.11b

11Mbps 1Mbps | 23±2 23±2

802.11g

54Mbps 6Mbps | 20±2 22±2

802.11n HT20

MCS7 MCS0 | 18.5±2 21±2

802.11n HT40

MCS7 MCS0 | 18.5±2 21±2

802.11ax HE20

MCS11 MCS0 | 17±2 20.5±2

802.11ax HE40

MCS11 MCS0 | 17±2 20.5±2

802.11be EHT20

MCS13 MCS0 | 16±2 20.5±2

802.11be EHT40

MCS13 MCS0 | 16±2 20.5±2

802.11a

54Mbps 6Mbps | 19.5±2 22±2

802.11n HT20

MCS7 MCS0 | 19±2 21±2

802.11n HT40

MCS7 MCS0 | 19±2 21±2

802.11ac VHT20

MCS8 MCS0 | 18.5±2 21±2

802.11ac VHT40

MCS7 MCS0 | 18.5±2 20.5±2

802.11ac VHT80

MCS9 MCS0 | 18.5±2 20.5±2

802.11ac VHT160

MCS9 MCS0 | 18±2 21±2

802.11ax HE20

MCS11 MCS0 | 18±2 20.5±2

802.11ax HE40

MCS11 MCS0 | 18±2 20.5±2

802.11ax HE80

MCS11 MCS0 | 17±2 20±2

802.11ax HE160

MCS11 MCS0 | 16±2 19.5±2

802.11be EHT20

MCS13 MCS0 | 15.5±2 20.5±2

802.11be EHT80

MCS13 MCS0 | 15.5±2 20.5±2

802.11be EHT160

MCS13 MCS0 | 14.5±2 19.5±2

Receive Sensitivity

Network Mode Data Rate Max. Transmit Power (dBm) 2.4G Power 802.11b 11Mbps 1Mbps -87 -95 802.11g 54Mbps 6Mbps -75 -92 802.11n HT20 MCS7 MCS0 -74 -92 802.11n HT40 MCS7 MCS0 -71 -89 802.11ax HE20 MCS11 MCS0 -63 -92 802.11ax HE40 MCS11 MCS0 -60 -88 802.11be EHT20 MCS13 MCS0 -56 -92 802.11be EHT40 MCS13 MCS0 -53 -89 5G Power 802.11a 54Mbps 6Mbps -74 -91 802.11n HT20 MCS7 MCS0 -73 -90 802.11n HT40 MCS7 MCS0 -70 -87 802.11ac VHT20 MCS8 MCS0 -67 -91 802.11ac VHT40 MCS7 MCS0 -63 -88 802.11ac VHT80 MCS9 MCS0 -60 -85 802.11ax HE20 MCS11 MCS0 -62 -91 802.11ax HE40 MCS11 MCS0 -59 -89 802.11ax HE80 MCS11 MCS0 -58 -86 802.11ax HE160 MCS11 MCS0 -53 -83 802.11be EHT20 MCS13 MCS0 -55 -91 802.11be EHT40 MCS13 MCS0 -52 -88 802.11be EHT80 MCS13 MCS0 -49 -85 802.11be EHT160 MCS13 MCS0 -46 -82

802.11b

11Mbps 1Mbps | -87 -95

802.11g

54Mbps 6Mbps | -75 -92

802.11n HT20

MCS7 MCS0 | -74 -92

802.11n HT40

MCS7 MCS0 | -71 -89

802.11ax HE20

MCS11 MCS0 | -63 -92

802.11ax HE40

MCS11 MCS0 | -60 -88

802.11be EHT20

MCS13 MCS0 | -56 -92

802.11be EHT40

MCS13 MCS0 | -53 -89

802.11a

54Mbps 6Mbps | -74 -91

802.11n HT20

MCS7 MCS0 | -73 -90

802.11n HT40

MCS7 MCS0 | -70 -87

802.11ac VHT20

MCS8 MCS0 | -67 -91

802.11ac VHT40

MCS7 MCS0 | -63 -88

802.11ac VHT80

MCS9 MCS0 | -60 -85

802.11ax HE20

MCS11 MCS0 | -62 -91

802.11ax HE40

MCS11 MCS0 | -59 -89

802.11ax HE80

MCS11 MCS0 | -58 -86

802.11ax HE160

MCS11 MCS0 | -53 -83

802.11be EHT20

MCS13 MCS0 | -55 -91

802.11be EHT40

MCS13 MCS0 | -52 -88

802.11be EHT80

MCS13 MCS0 | -49 -85

802.11be EHT160

MCS13 MCS0 | -46 -82

2.4G EVM

802.11b : ≤-10dB；802.11g : ≤-25dB；802.11n : ≤ -28dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

5G EVM

802.11a : ≤-25dB；802.11n : ≤-28dB；802.11ac : ≤ -32dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

LAN

Static IP / Dynamic IP

WAN

Static IP Dynamic IP PPPoE/PPTP/L2TP

Wireless Mode

Access Point Gateway Repeater WISP

Channel Width

20MHz, 40MHz, 80MHz, 160MHz

Encryption Security

WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X)

Supported EAP Methods

EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC)

Wireless Security

Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

256 (128 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring

Status Monitoring

Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP* Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client

Central Management

Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS

Temperature

Operating: -10~ 50 degrees C Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS
