WGS-5225-8MT — Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch

Descripción

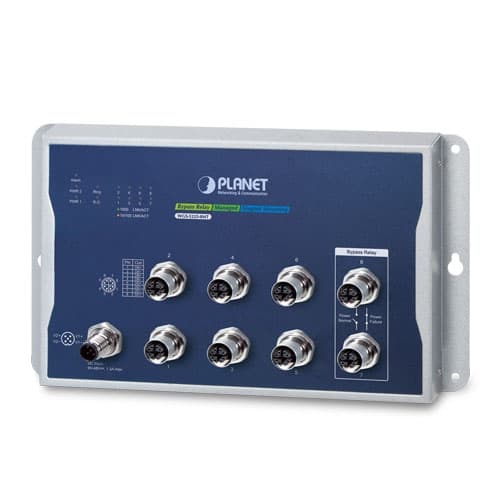

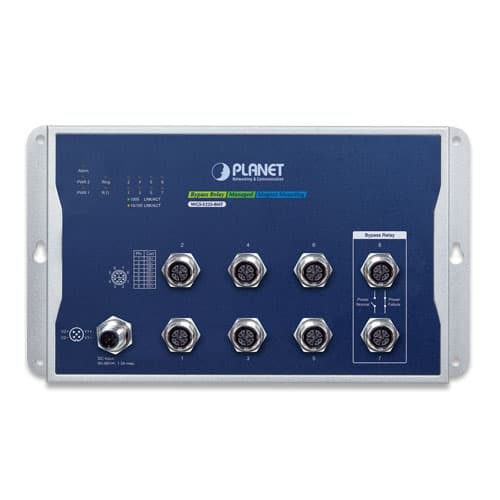

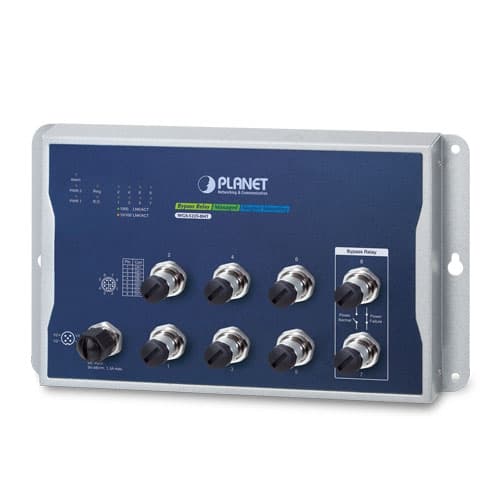

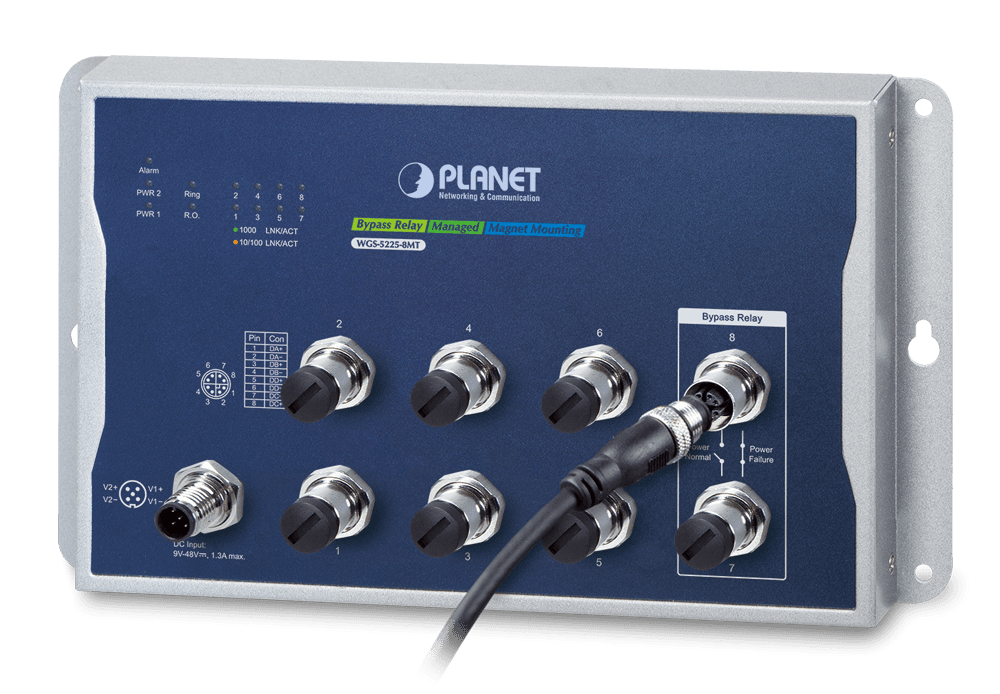

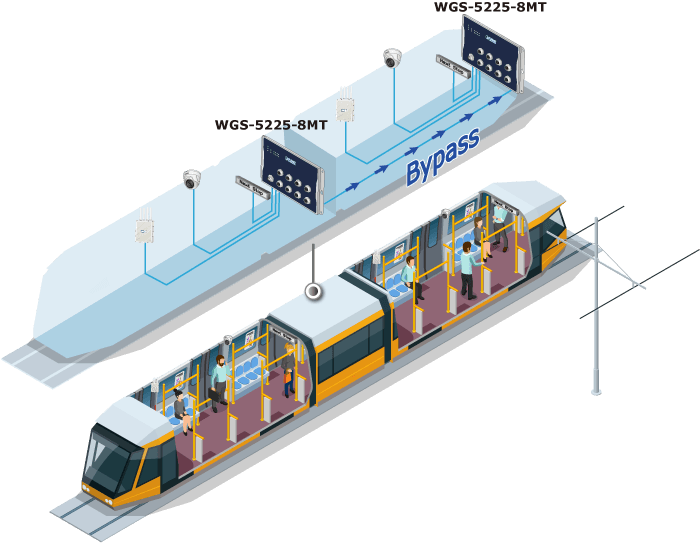

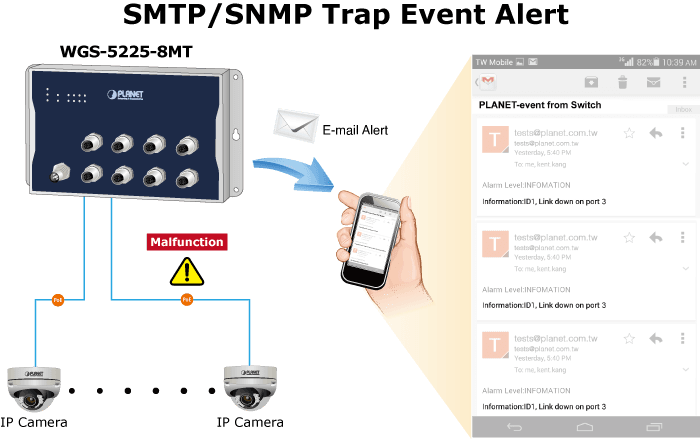

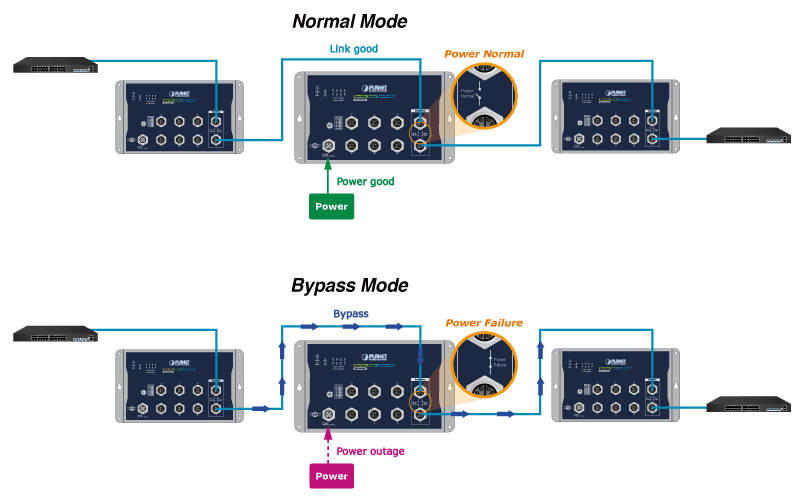

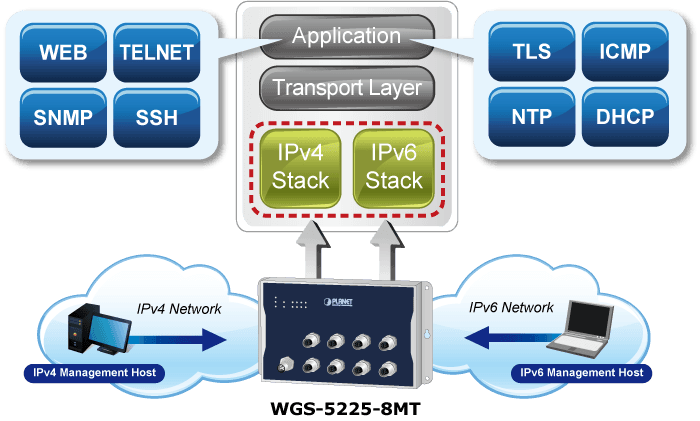

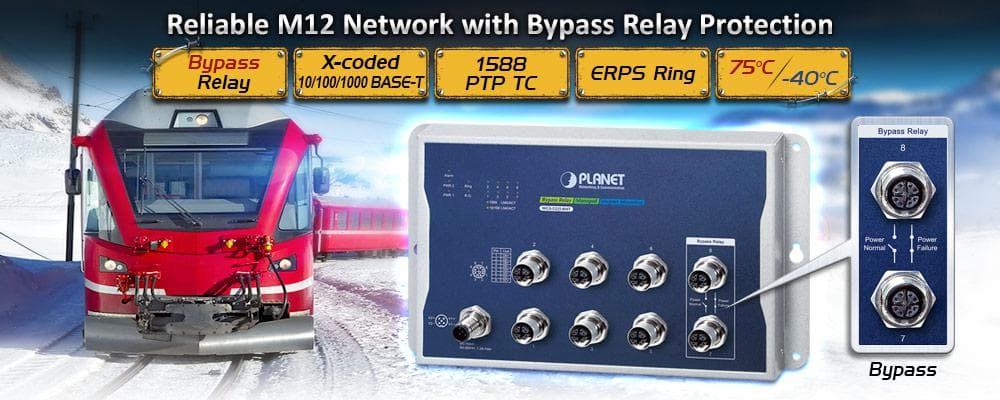

Easily-deployed and Expanded Network PLANET WGS-5225-8MT managed switch offers eight 10/100/1000BASE-T M12 ports and is housed in an IP40-rated enclosure with redundant 9-48 VDC power inputs. Designed to be deployed in the industrial environments, the WGS-5225-8MT offers wire-speed throughput, shock and vibration proofing, and a wide -40° to 75°C operating temperature range. The WGS-5225-8MT offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions , and user-friendly interface . The WGS-5225-8MT is able to operate reliably, stably and quietly in railway and other industrial applications subject to shock, vibration and other extreme conditions without affecting its performance. Besides, the WGS-5225-8MT with bypass relay ports ensure non-stop data flow even in the event of a power outage. Bypass Relay Prevents Link Failure During Power Loss Bypass relay is set to bypass the failed switch to the next normal switch to prevent the network from power loss. The WGS-5225-8MT supports the bypass relay function on the one pair of Gigabit ports. When the switch is operating normally, the Gigabit ports operate in the same way as the other ports, processing and forwarding Ethernet packets. Bypass relay ports allow network traffic to continue to flow in the event of a power outage. It also can go back to the normal mode when power is back and the switch is completely booting up to avoid another network loss. Vibrationproof and Dustproof M12 Ethernet Connector The WGS-5225-8MT is equipped with 8-port 10/100/1000BASE-T, auto-negotiation, vibration-proof, waterproof and dustproof M12 connector. The M12 connector provides tight and strong connection, and guarantees stable Ethernet operating performance in a high vibration and shock environment. It comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold. Redundant Ring, Fast Recovery for Critical Network Applications The WGS-5225-8MT supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms. Network with Cybersecurity Helps Minimize Security Risks The WGS-5225-8MT comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGS-5225-8MT protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort. Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the WGS-5225-8MT not only provides high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the WGS-5225-8MT helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 edge network is set up. Robust Layer 2 Features The WGS-5225-8MT can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , Loop and BPDU Guard, IGMP Snooping , and MLD Snooping . Via the link aggregation, the WGS-5225-8MT allows the operation of a high-speed trunk to combine with multiple ports such as a 4Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The WGS-5225-8MT is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control , per port bandwidth control , 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security from Layer 2 to Layer 4 The WGS-5225-8MT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Advanced IP Network Protection The WGS-5225-8MT also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Efficient Management For efficient management, the WGS-5225-8MT is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the WGS-5225-8MT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. SMTP/SNMP Trap Event Alert The WGS-5225-8MT provides event alert function through SMTP email and SNMP trap function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Modbus TCP provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the WGS-5225-8MT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory. 1588 Time Protocol for Industrial Computing Networks The WGS-5225-8MT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Dual Power Input for High Availability Network System The WGS-5225-8MT features a strong dual power input system (Dual 9V~48V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the WGS-5225-8MT via DC Power 2 alternatively without any loss of operation. Applications High Availability Networking with Excellent Redundancy for Surveillance System The WGS-5225-8MT features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The WGS-5225-8MT is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission. Bypass Relay Solution for Daisy Chain Topology In a daisy chain topology, if there is one failed node, it will cause the failed links of other switches. For railway communication systems with interconnected networks, the failed upstream link in one train car will impact on the downstream link in other train cars. To prevent such a failure, the WGS-5225-8MT offers two ports with a bypass relay function. If one of the switches has power loss, the other ports of the swithc will bypass the failed relay circuit, enabling the network traffic to continue to flow smoothly to assure continuous system operation. Key Features Physical Port 8-port 10/100/1000BASE-T, vibration-proof and dustproof M12 X-coded female connectors Industrial Hardened Design 1 pair of bypass protection IP40-rated metal case Redundant power design 9 to 48V DC, redundant power with reverse polarity protection Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience DIN-rail and wall-mount designs Supports 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Industrial Protocol Modbus TCP for real-time monitoring in SCADA system IEEE 1588v2 PTP (Precision Time Protocol) Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Layer 2 Features High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth Storm control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN IP subnet-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 4 trunk groups, with 8 ports for each trunk Up to 16Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring monitors the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) Quality of Service Ingress shaper and egress rate limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS ToS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering MVR (Multicast VLAN Registration) Security Authentication IEEE 802.1x port-based/MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Source MAC/IP address binding DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Telnet command line interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2 and TLSv1.2 secure access SNMP Management Four RMON groups (history, statistics, alarms, and events) SNMP trap for interface Link Up and Link Down notification IPv6 address/NTP management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Reset button for system reboot or reset to factory default Dual images DHCP relay and option 82 DHCP server User privilege levels control NTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) and LLDP-MED Network diagnostic Cable diagnostic technology provides the mechanism to detect and report potential cabling issues ICMPv6/ICMPv4 remote ping SMTP, Syslog and SNMP trap remote alarm System Log PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management

Especificaciones técnicas

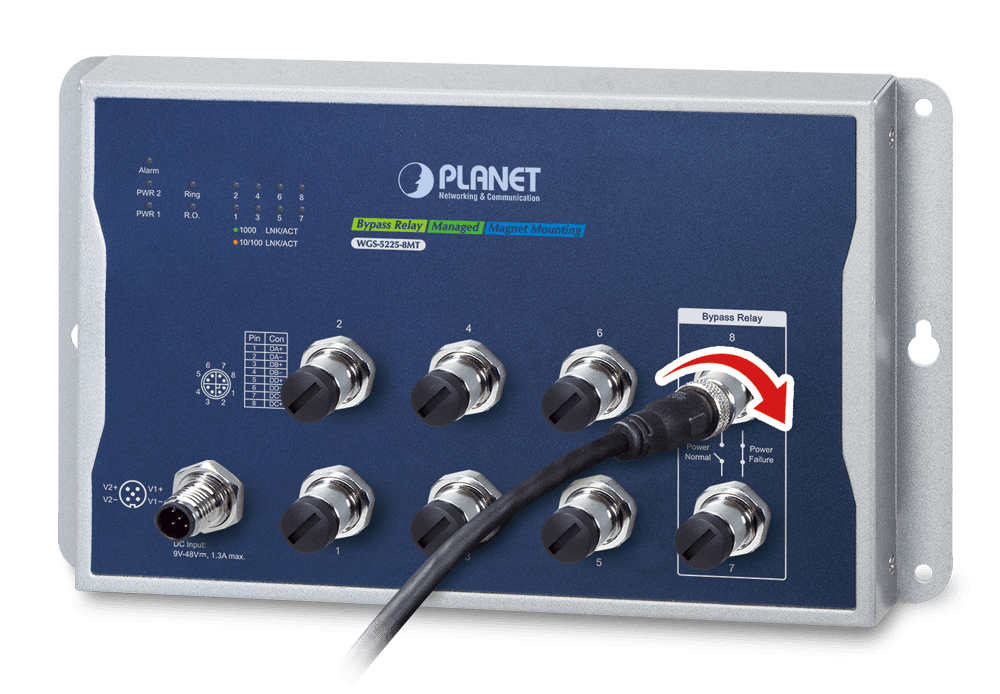

Copper Ports

8 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports

Power Connector

1 x M12, 5-pin A-coded male connector

Bypass Function (Pair)

1

Dimensions (W x D x H)

245 x 140 x 24.4 mm

Weight

1 kg

Enclosure

IP40 metal case

Installation

Wall-mount kit, magnetic-mount kit or DIN-rail kit

Power Consumption

System on: Max. 7.68 watts/ 26.21 BTU Full loading: Max. 11.04 watts/ 37.67 BTU

Power Requirements

Dual 9~48V DC

ESD Protection

6KV DC

LED

System: PWR1 (Green), PWR2 (Green), Alarm (Red) Ring (Green), R.O. (Green) 10/100/1000 RJ45 Interfaces : 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber)

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Throughput

11.9Mpps@64bytes

Address Table

4K entries, automatic source address learning and aging

Shared Data Buffer

4M bits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

10K bytes

Port Configuration

Port disable/ enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/ enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both Many-to-1 monitor

VLAN

IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) GVRP Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/ static trunk 4 groups with 8 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

QoS

Traffic classification based strict priority and WRR 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tagging DSCP/ToS field in IP packet

IGMP Snooping

IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support

MLD Snooping

MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support

Bandwidth Control

Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps

RING

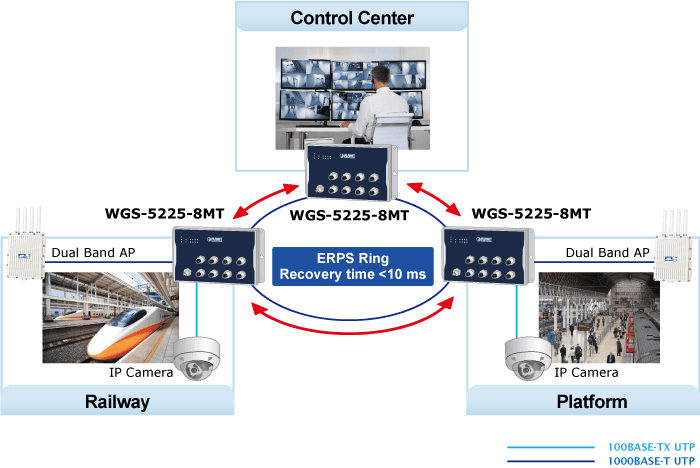

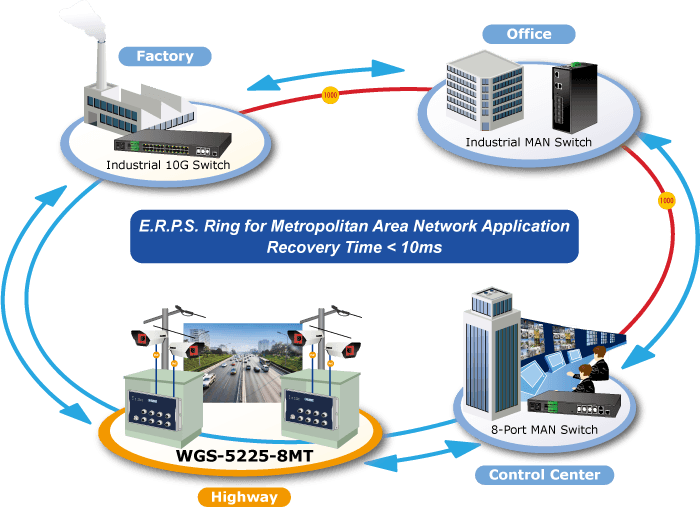

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms

Synchronization

IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

Access Control List

IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries

Security

Port security IP source guard Dynamic ARP inspection Command line authority control based on user level

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing IPv6 software static routing

Basic Management Interfaces

Telnet; Web browser; SNMP v1, v2c

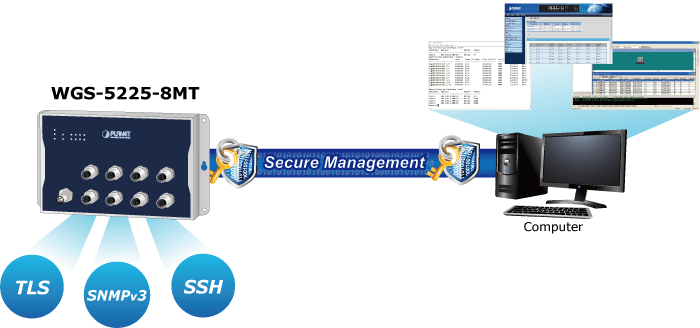

Secure Management Interfaces

SSHv2, TLS v1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Packet Contents

1 x 8-pin X-coded M12-to-RJ45 UTP cable (2m) 1 x M12 5-pin A-coded female connector power cable (1.2m) 1 x Wall-mount Kit 1 x DIN-rail Kit 1 x Magnet Kit 1 x Quick Installation Guide 8 x M12 Female Dust Cap 1 x M12 Power Waterproof Cap
