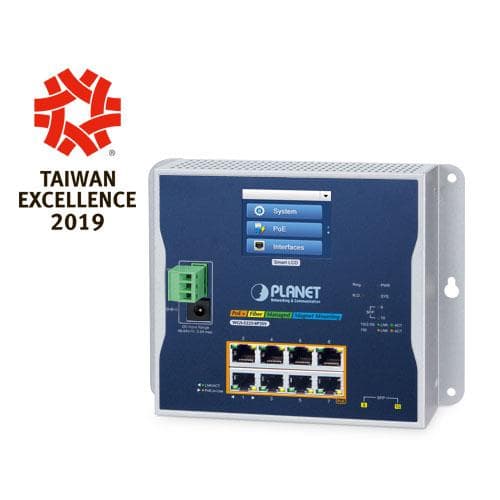

WGS-5225-8P2SV — Industrial L2+ 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen

Descripción

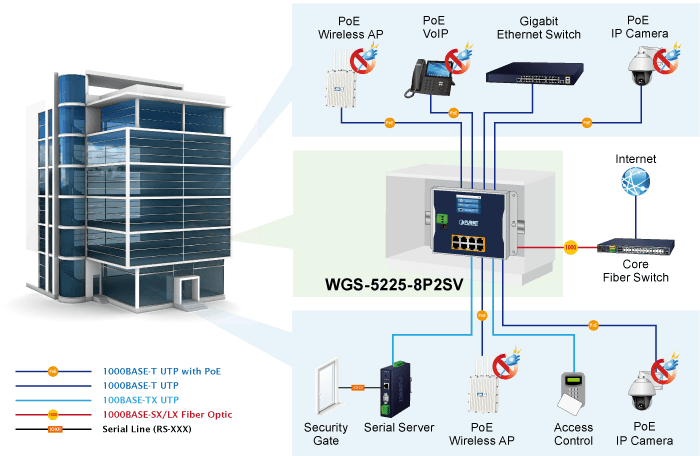

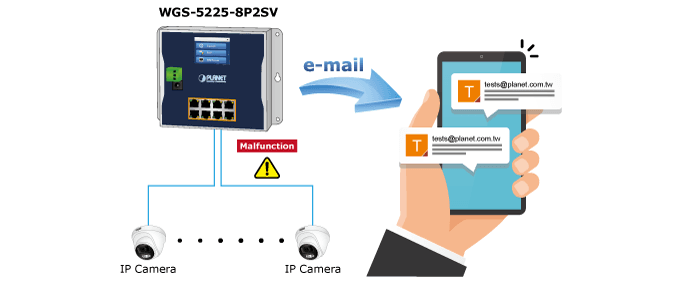

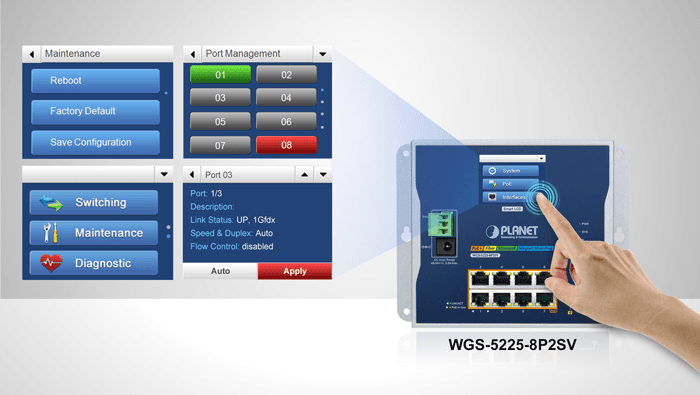

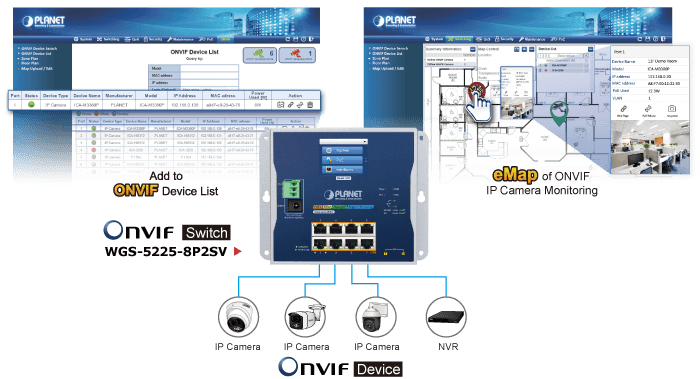

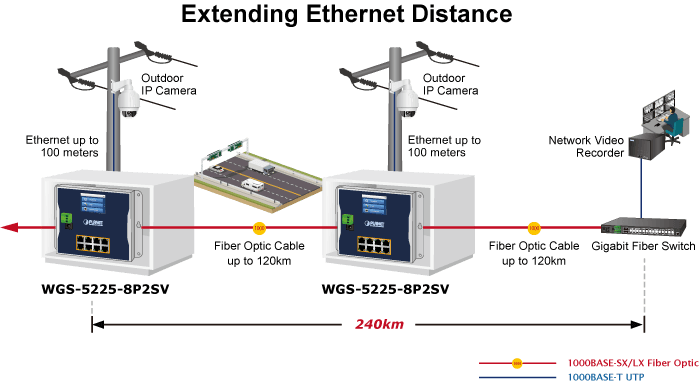

Wall-mount PoE Managed Switch with Advanced L2+/L4 Switching and Security Designed to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-5225-8P2SV, an innovative Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP Wall-mounted Managed Switch with LCD Touch Screen , features PLANET intelligent PoE functions to improve the availability of industrial applications. It offers IPv6/IPv4 dual stack management, intelligent Layer 2 and Layer 4 management functions, and user-friendly interface , with a total power budget of up to 240 watts for different kinds of PoE applications. Featuring ultra networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8P2SV is an ideal solution to meet the demand for the following network applications: Building/Home automation network Internet of things (IoT) IP surveillance Wireless LAN Cybersecurity Network Solution to Minimize Security Risks The WGS-5225-8P2SV supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Intuitive LCD Control The WGS-5225-8P2SV comes with an intuitive touch panel on its front panel to facilitate the Ethernet management to greatly promote management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It also features the following special management and status functions: IP address, VLAN and QoS configuration PoE management and status Port management and status, and SFP information Troubleshooting: cable diagnostic and remote IP ping Maintenance: reboot, factory default and save configuration Redundant Ring, Fast Recovery for Critical Network Applications The WGS-5225-8P2SV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. In a certain simple ring network, the recovery time of data link can be as fast as 10ms. Convenient and Smart ONVIF Devices with Detection Feature PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8P2SV’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI. Built-in Unique PoE Functions for Powered Devices Management As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-5225-8P2SV features the following special PoE management functions: PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension Intelligent Powered Device Alive Check The WGS-5225-8P2SV can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the WGS-5225-8P2SV will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing the administrator’s management burden. Scheduled Power Recycling The WGS-5225-8P2SV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the trend of energy savings worldwide and contributing to environmental protection, the WGS-5225-8P2SV can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. PoE Usage Monitoring Via the power usage chart in the web management interface, the WGS-5225-8P2SV enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. 802.3at PoE+ Power and Ethernet Data Transmission Distance Extension In the “ Extend ” operation mode, the WGS-5225-8P2SV operates on a per-port basis at 10Mbps duplex operation but can support 36-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-5225-8P2SV provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Innovative Wall-mount Installation The WGS-5225-8P2SV is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “ Front Access ” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-5225-8P2SV placed in an enclosure very convenient for technicians. The WGS-5225-8P2SV can be installed by fixed wall mounting, magnetic wall mounting or DIN rail , thereby making its usability more flexible. Environmentally Hardened Design With IP30, flat but rugged metal housing protection, the WGS-5225-8P2SV provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -20 to 70 degrees C, the WGS-5225-8P2SV can be placed in almost any difficult environment. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the WGS-5225-8P2SV helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. SMTP/SNMP Trap Event Alert The WGS-5225-8P2SV provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the WGS-5225-8P2SV not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application. Robust Layer 2 Features The WGS-5225-8P2SV can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , Loop and BPDU Guard , IGMP Snooping , and MLD Snooping . Via the link aggregation, the WGS-5225-8P2SV allows the operation of a high-speed trunk to combine with multiple ports such as a 20Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The WGS-5225-8P2SV is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security PLANET WGS-5225-8P2SV offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. User-friendly and Secure Management For efficient management, the WGS-5225-8P2SV is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the WGS-5225-8P2SV offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the WGS-5225-8P2SV offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the WGS-5225-8P2SV can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information , port information and communication status , thus easily achieving enhanced monitoring and maintenance of the entire factory. Flexibility and Long-distance Extension Solution The two SFP slots built in the WGS-5225-8P2SV support SFP auto-detection and triple speed as it features 100BASE-FX , 1000BASE-SX/LX and 2500BASE SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 300 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The WGS-5225-8P2SV supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. 1588 Time Protocol for Industrial Computing Networks The WGS-5225-8P2SV is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Applications Model that Withstands Harsh Operation and Extends Distance The WGS-5225-8P2SV is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the WGS-5225-8P2SV is easy and helpful to build a Gigabit high-bandwidth switched network quickly. ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted The WGS-5225-8P2SV features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the WGS-5225-8P2SV can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The WGS-5225-8P2SV can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled. Security Building Automation Switch Suitable for buildings where security is strictly to be enforced, the WGS-5225-8P2SV Industrial Wall-mount Managed Switch offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-5225-8P2SV, a tightly-controlled network can be easily had in no time. Key Features Physical Port 8 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3at/af PoE Injector function 2 1000/2500BASE-X SFP slots for SFP type auto detection Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 8 ports of IEEE 802.3af/802.3at devices powered Supports PoE power up to 36 watts for each PoE port 240-watt PoE budget Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters in standard mode and 250m in extend mode PoE management Total PoE power budget control Per port PoE function enable/disable PoE Port Power feeding priority Per PoE port power limitation PoE delay PD classification detection Intelligent PoE features PD alive check PoE schedule PoE extension Industrial Case and Installation Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design IP30 metal case Supports -20 to 70 degrees C operating temperature Supports ESD 6KV DC Ethernet protection Dual power input design 48V~54V DC wide power input with reverse polarity protection 3-pin terminal block or DC jack connector Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Up to 4K VLANs groups, out of 4094 VLAN IDs Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Provides port mirror (1-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS IP TOS/DSCP/IP precedence IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration) Security IEEE 802.1x Port-based/MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers TACACS+ login users access authentication RADIUS/TACACS+ users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management Switch Management Interfaces Telnet Command Line Interface Web switch management SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMP v3 secure access 2.4-inch color LCD touch screen Four RMON groups (history, statistics, alarms, and events) IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment Firmware upload/download via HTTP/TFTP DHCP Relay and DHCP Option 82 User Privilege levels control Network Time Protocol (NTP) Link Layer Discovery Protocol (LLDP) SFP- DDM (Digital Diagnostic Monitor) Cable diagnostic technology provides the mechanism to detect and report potential cabling issues Reset button for system reboot or reset to factory default PLANET Smart Discovery Utility for deployment management PLANET NMS system and CloudViewer/CloudViewerPro for deployment management

Especificaciones técnicas

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE Injector Port

8 ports with 802.3at/af PoE injector function (Ports 1 to 8)

SFP/mini-GBIC Slots

2 1000/2500BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) Compatible with 100BASE-FX SFP

SDRAM

128Mbytes

Flash Memory

64Mbytes

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

ESD Protection

6KV DC

Enclosure

IP30 metal case

Installation

DIN-rail kit, wall-mount and magnetic-mount

Connector

Removable 3-pin terminal block for power input Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.0mm central pole

Dimensions (W x D x H)

180 x 24.4 x 140 mm

Weight

671g

Power Requirements

Dual 48~54V DC (>51V DC for PoE+ output recommended)

Power Consumption

Max. 6.83 watts/23.3BTU (Power on without any connection) Max. 255.4 watts/871.46BTU (Full loading with PoE function)

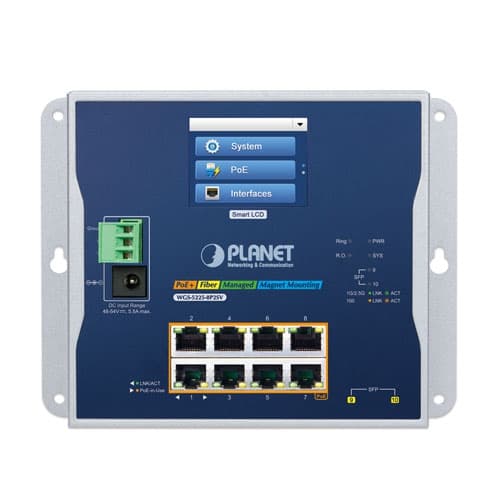

LED Indicator

System: PWR(Green) SYS (Green) Ring (Green) Ring Owner (Green) Per 10/100/1000T RJ45 PoE+ Ports: PoE-in-Use (Amber) LNK/ACT (Green) Per SFP Interface: 100 LNK/ACT (Amber) 1G/2.5G LNK/ACT (Green)

Switch Architecture

Store-and-Forward

Switch Fabric

26Gbps/non-blocking

Throughput

19.34Mpps@ 64 bytes packet

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

4M bits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

9K bytes

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

PoE Power Output

IEEE 802.3af Standard Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard Per port 51V~54V DC (depending on the power supply), max. 36 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

240W maximum (depending on power input)

Max. Number of Class 2 PDs

8

Max. Number of Class 3 PDs

8

Max. Number of Class 4 PDs

8

Enhanced PoE Mode

Yes

Active PoE Device Live Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extend Mode

Yes, max. 250 meters

PoE System Management

System PoE Admin control Total PoE power budget control Auto power input and PoE budget control Over-temperature threshold alarm PoE usage threshold alarm

PoE Port Management

Port Enable/Disable/Schedule PoE mode control Standard mode Legacy Force mode Port Priority

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX/RX/both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions

VLAN

802.1Q tag-based VLAN Q-in-Q tunneling Private VLAN Edge MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 5 trunk groups with 10 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard

IGMP Snooping

IGMP (v1/v2/v3) snooping IGMP querier mode support Up to 255 multicast groups

MLD Snooping

MLD (v1/v2) snooping MLD querier mode support Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps

Ring

Supports ERPS, and complies with ITU-T G.8032 Supports major ring and sub-ring Recovery time < 10ms @ 3 units Recovery time < 50ms @ 16 units

Synchronization

IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries

Security

Port security IP source guard, up to 256 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level

MAC Security

IP-MAC port binding MAC filter Static MAC address, up to 64 entries

AAA

Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing IPv6 software static routing

Basic Management Interfaces

Telnet/Web browser/SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System and CloudViewer/CloudViewerPro

Event Management

Remote Syslog Local System log SMTP

SNMP MIBs

RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP ITU-T G.8032 Ethernet Ring Protection Switching RFC 768 UDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2

Operating Temperature

-20 ~ 70 degrees C

Storage Temperature

-20 ~ 70 degrees C

Humidity

5 ~ 95% (non-condensing)
