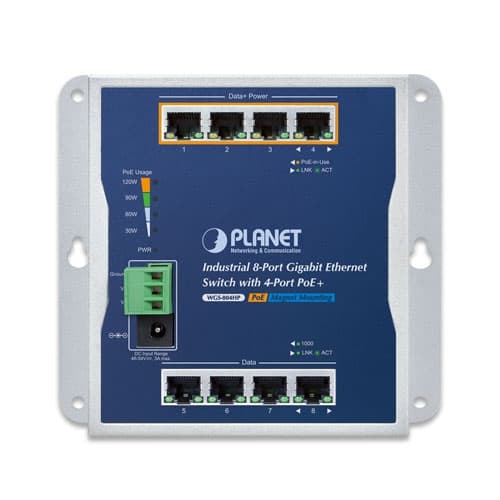

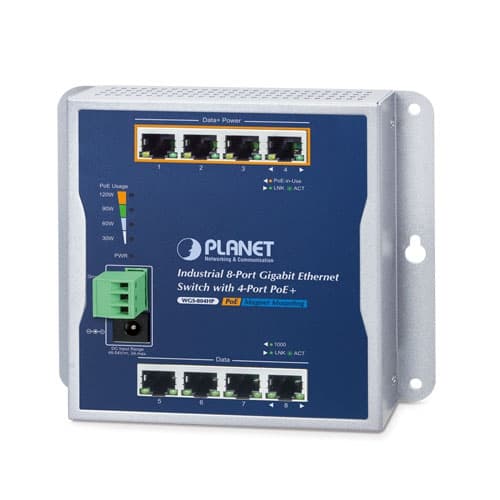

WGS-804HP — Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+

Descripción

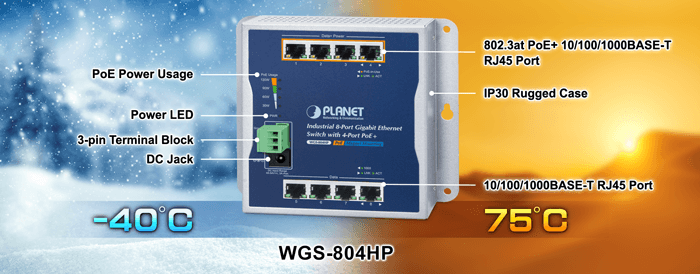

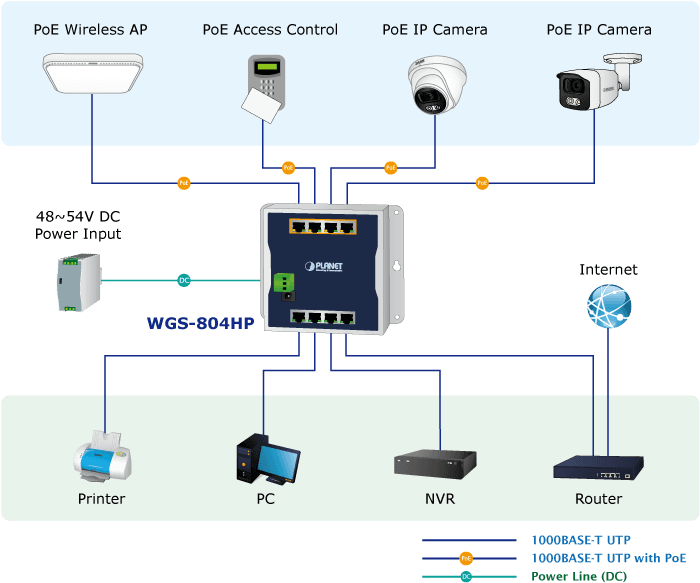

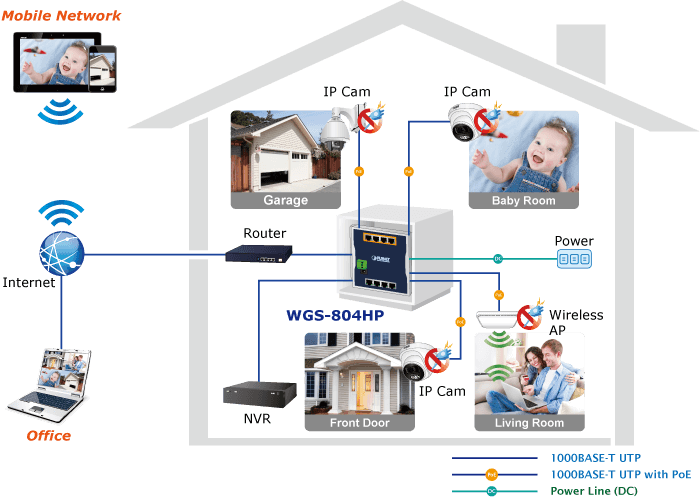

Easily-deployed and Expanded Network Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-804HP is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch with 4-port 802.3af/802.3at Power over Ethernet . It comes in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 120 watts, ultra networking speed and operating temperature ranging from -40 to 75 degrees C , the WGS-804HP is an ideal solution to meeting the demand for sufficient PoE power for the following network applications. Building/Home automation network Internet of things (IoT) IP surveillance Wireless LAN The WGS-804HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding. Innovative Wall-mount Installation The WGS-804HP is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-804HP placed in an enclosure very convenient for technicians. The WGS-804HP can be installed by fixed wall mounting , magnetic wall mounting or DIN rail , thereby making its usability more flexible. Centralized Power Distribution for Small Ethernet Networking The WGS-804HP provides four PoE ports that combine up to 120 watts of power output budget for catering to small-scale PoE network applications. Compliant with both IEEE 802.3at and IEEE 802.3af Power over Ethernet standards, each PoE port supplies up to 36 watts of power output and data transmission in Gigabit speed both delivered over one Cat.5e/6 Ethernet cable, powering remote PoE PD at distance up to 100 meters. Intelligent LED Indicator for Real-time PoE Usage To facilitate auto power management, the WGS-804HP implements Power Budget Control function that helps to prevent power budget overloading. Moreover, the WGS-804HP helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “ PoE Power Usage ”, the front panel of the WGS-804HP has four LEDs indicating 30W , 60W , 90W and 120W of power usage. Ready to Power Up IoT Internet is very popular the world over as users surf online daily with their mobile devices, such as smart phones and tablets, or laptop computers. However, users want more from the Internet, like how to use their mobile devices to control something via the Internet, thus making life more convenient. The WGS-804HP is based on such concept to help users implement the Internet of things (IoT) on the PoE network. Home automation is no longer a dream as Gigabit network performance plus power over Ethernet can easily drive IoT equipment, making it a smart home. Quick, Safe and Easy PoE Network Deployment Carrying both Ethernet data and power simultaneously, the WGS-804HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps users to utilize just one Ethernet cable to install and deploy IP camera, wireless AP or VoIP phone more efficiently and cost-effectively. Applications Industrial Area Department/Workgroup PoE Switch The WGS-804HP provides 4 PoE, in-line power interfaces and can easily build a power centrally-controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or building a wireless roaming environment in the industrial area. Without the power-socket limitation, the WGS-804HP series makes the installation of IP cameras or wireless APs easier and more efficient. SOHO/Home-Use Gigabit Ethernet PoE Network Deployment With its expanded home-use feature, the WGS-804HP 802.3at PoE+ Switch helps SOHO/home users to create an integrated network where power is so easily utilized for transmission of data and video. The wireless AP and PoE IP camera devices work perfectly with the WGS-804HP, which injects power through the Ethernet cables, thus helping SOHO / home users to build a cost-effective and reliable PoE networking environment easily. Key Features Physical Port 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at/af PoE Injector function (Ports 1 to 4) Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 4 ports of IEEE 802.3af/802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Switching Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 8K MAC address table size 9K jumbo frame Automatic address learning and address aging Supports CSMA/CD protocol Industrial Case and Installation Compact size, wall-mounted, magnetic wall mount and DIN-rail designs IP30 metal case Supports -40 to 75 degrees C operating temperature Supports EFT 6000VDC protection for power line Supports ESD 6000VDC Ethernet protection LED indicators for real-time PoE usage Redundant power design 48V~54V DC wide power input 3-pin terminal block or DC jack connector

Especificaciones técnicas

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE Inject Port

4-Port with 802.3af/802.3at PoE injector function (Ports1 to 4)

Connector

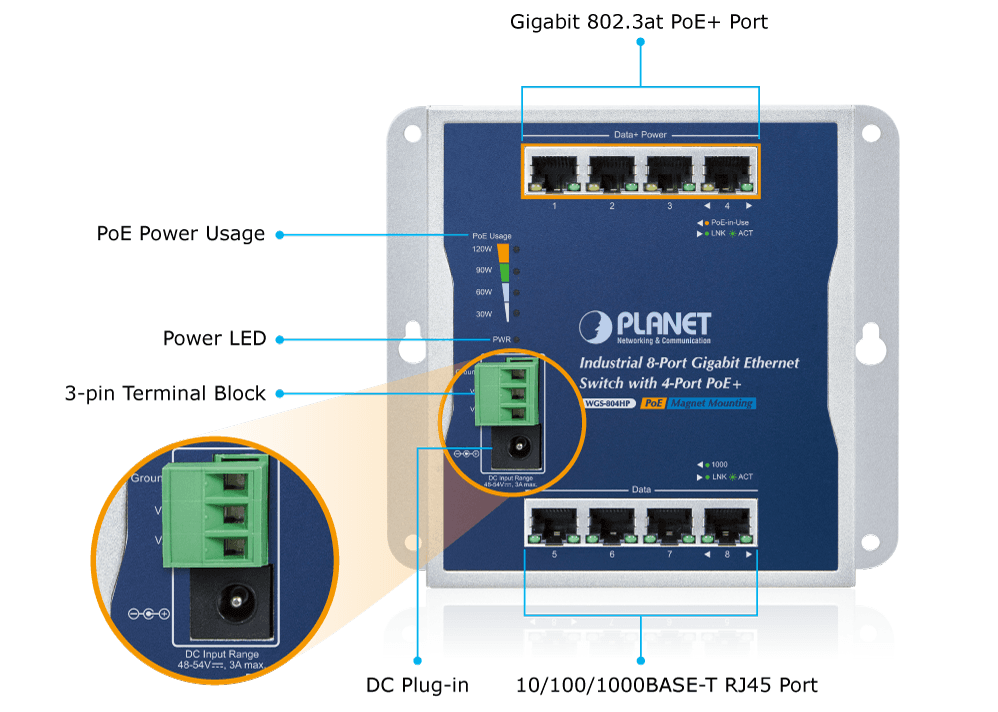

Removable 3-pin terminal block for power input Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.0mm central pole

Power Requirements

48V~54V DC, 3A (max.)

Power Consumption/ Dissipation

Max.130 watts/443 BTU

Dimensions (W x D x H)

148 x 24.2 x 134 mm

Weight

561g

ESD Protection

Contact Discharge 6KV DC Air Discharge 6KV DC

Enclosure

IP30 metal

Installation

Wall mount, magnetic wall mount and DIN-rail kit

LED

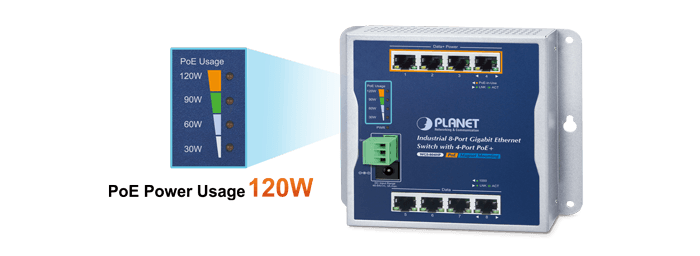

Power LED: Power ( Green ) PoE Power Usage LED: 30W, 60W, 90W, 120W ( Amber ) PoE Ports (Ports 1 to 4): PoE-in-Use ( Amber ) LNK/ACT ( Green ) 10/100/1000BASE-TX Ports (Ports 5 to 8): 1000 ( Green ) LNK/ACT ( Green )

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Switch Throughput@64 bytes

11.9Mpps @64 bytes

MAC Address Table

8K entries

Shared Data Buffer

1Mbit

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

9KB

PoE Standard

IEEE 802.3af/802.3at Power over Ethernet PSE

PoE Power Supply Type

End-span

PoE Power Output

IEEE 802.3af Standard Per port 48V~54V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard Per port 50V~54V DC (depending on the power supply), max. 36 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

120 watts (depending on power input)

Max. Number of Class 2 PDs

4

Max. Number of Class 3 PDs

4

Max. Number of Class 4 PDs

4

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Standard Accessories

QR Code Sheet x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 8
