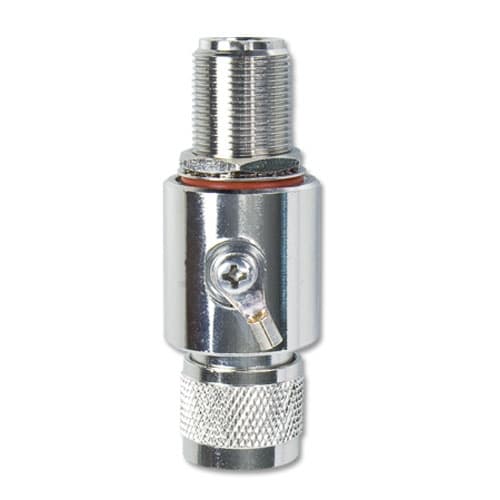

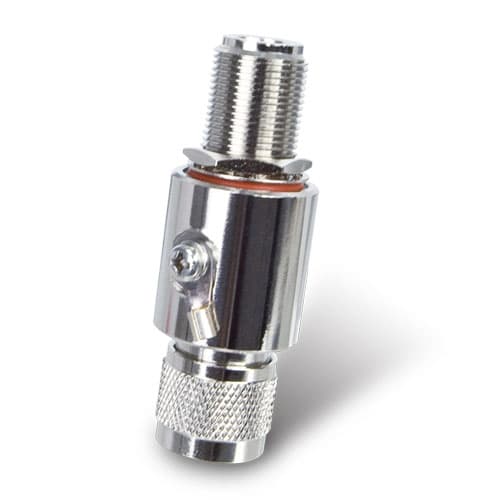

WL-LTNA — 2.4/5GHz Lightning Arrester (N-male to N-female)

Descripción

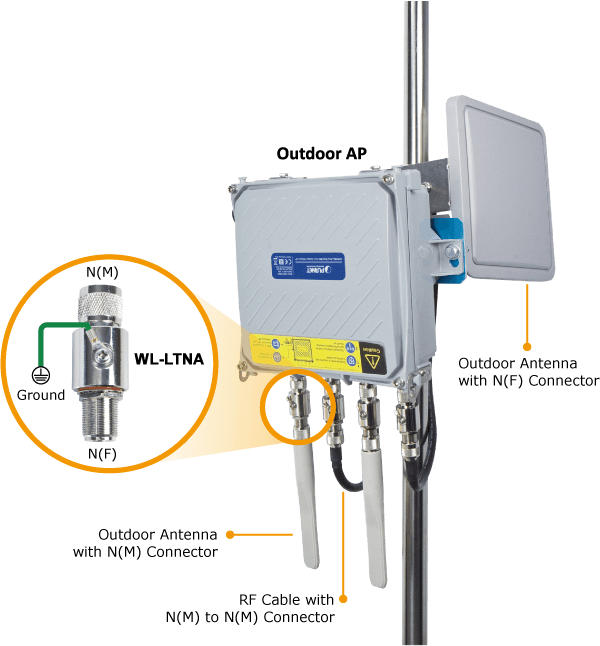

PLANET WL-LTNA Lightning Arrester is a gas discharge tube suppressor featuring wide-band operation up to 6GHz. The unit features a built-in N-male (plug) to N-female (jack) connector which is suitable for outdoor wireless AP. The WL-LTNA is maintenance-free and features the best protection performance with both the highest surge current handling capability and the lowest insertion loss of only 0.2dB or less. In the event of high voltage, the lightning arrester immediately directed the high voltage surge current to the Earth, thereby limiting the voltage amplitude and protecting electrical insulation. When the over-voltage disappears, the system can be operated normally. With the replaceable gas tube element, multi-strike capability and fast response time, the WL-LTNA is suitable for a wide range of applications. A ground lug and terminal are provided directly on the lightning protector housing which provides superior grounding. Key Features Lightning Arrester for outdoor wireless application Available for application bands from 0 to 6GHz N-male (plug) to N-female (jack) connector type Highest current handling capability up to 100 kA (max.) Insertion loss of less 0.2dB Lower VSWR, wider operating range Gas discharge tube replaceable Maintenance-free and easy installation

Especificaciones técnicas

Type

Gas discharged

Frequency

0 ~ 6GHz

Impedance

50Ω

V.S.W.R

≤ 1.2 @6GHz

Gain Loss

≤ 0.2dB

Maximum Withstand Current

20 ~ 100kA

DC Breakdown Voltage

90±20% (@100V/S)

Impulse Breakdown Voltage

＜600V（@1KV/μs）

AC Discharge Current

5A（@50Hz）

Surge Discharge Current

5KA （@8/20μs）

Temperature Range

-40 ~ 65 degrees C

Humidity

85 degrees C / 85% RH-48hrs

Connector Type

N male to N female

Connector Body Material

Nickel-plated brass

Body Material

Anodized aluminum

Pin Material

Gold-plated brass

Dimensions (max.)

20 x 68 mm (Φ x H)

Weight

124g
